Super-fast business printing and integrated solutions

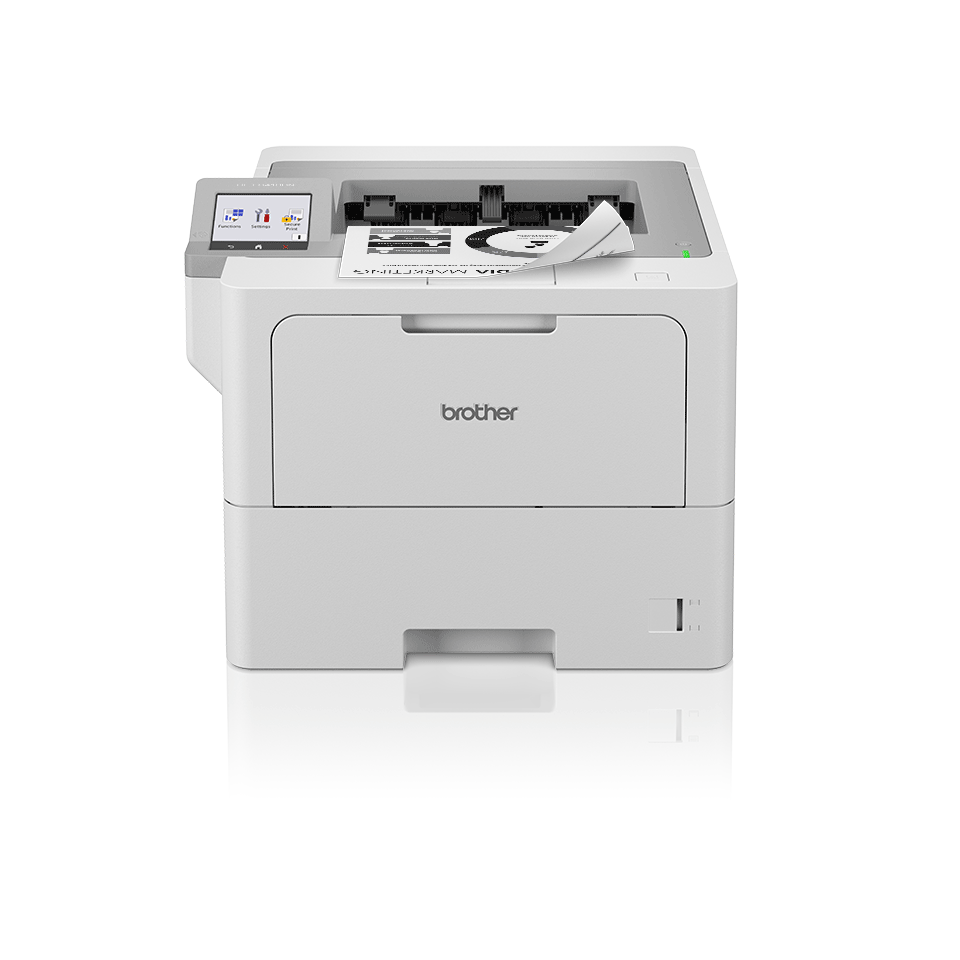

HLL6415DN
HLL6415DN
| Printer type | Mono |
|---|---|
| Function | |
| Display | Colour touchscreen |
| Display size | 8.9cm |
| Max paper size | A4 |
| Memory | 1GB Internal memory with optional secure USB storage |
| Technology | Laser |
| Connectivity | Wired Network, USB |
|---|---|
| Local interface | Hi-Speed USB 2.0, USB 2.0 Host (Rear) |
| NFC | Integrated NFC Reader Supported NFC standards include: (ISO14443 Type A) MIFARE Standard/Plus/ Ultralight/Ultralight C/DESfire my-d move, Tag-it (ISO15693 Type B) |
| Wired network interface | Gigabit Ethernet |
| Wireless network interface | 2.4GHz and 5GHz Support (optional) |
| With carton | 497 x 494 x 422mm - 15.90kg |
|---|---|
| Without carton | 402 x 396 x 319mm - 13.50kg |
| Power consumption (Watts) | Printing: 710W Printing in quiet mode: 430W Ready: 31W Sleep: 5.9W Deep Sleep: 0.6 W Power Off: 0.05W (*13) (*23) |
|---|---|
| Sound power | Printing: 7.07B(A) Ready: 4.90B(A) Quiet Mode: 6.54B(A) Deep Sleep: Inaudible (*12) |
| Sound pressure | PC Printing (Mono): Approx. 54.0dB(A) Ready: 35.0db(A) Quiet Mode: 50.0db(A) (*12) |
| Blue Angel environmental accreditation | Yes |
|---|---|
| Nordic Swan environmental accreditation | Yes |
| Typical electrical consumption | 0.62 kWh/week |
| Contents | Device, Inbox Toners, Drum, Power Supply Cord, Quick Set-Up Guide, Warranty Card |
|---|
| Types and sizes | Standard Tray A4, Letter, B5(JIS), A5, A5(Long Edge), A6, Executive, Legal, Mexico Legal, India Legal, A4 short (270mm), Folio,16K Multi Purpose Tray Width 69.8 to 215.9 mm, Length 127 to 355.6 mm Envelope: COM-10, DL, C5, Monarch Auto 2-Sided A4 |
|---|---|
| Weights | Standard Tray Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper, Thick Paper 60-163gsm Multi Purpose Tray Plain Paper, Letterhead, Colored Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env. Thin, Env.Thick 60-230gsm Auto 2-Sided Plain Paper, Letterhead, Colored Paper, Thin Paper, Recycled Paper 64-105gsm |
| Wi-Fi Direct™ | Yes |
|---|---|
| Wired network | Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T) |
| Wired network security | SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, LDAP), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec |
| Wireless applications | Yes |
| Wireless network | 2.4GHz: IEEE 802.11 b/g/n (Infrastructure Mode) IEEE 802.11 g/n (Wi-Fi Direct) 5GHz: IEEE 802.11 a/n (Infrastructure Mode) IEEE 802.11 a/n (Wi-Fi Direct) (*22) |
| Wireless network security | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only. SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, LDAP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec (*22) |
| Wireless setup support | Yes |
| Supported OS | For full list of compatible operating systems visit support brother com |
|---|
| Paper input | Standard Tray 520 Sheets (with paper low detection) Multi Purpose Tray 100 Sheets (*11) |
|---|---|
| Paper output | 250 Sheets A4 (with stack full sensor) (*11) |
| A4 2-sided print speed | Up to 24 sides per minute |
|---|---|
| Resolution | Up to 1200 x 1200dpi |
| A4 standard mono print speed | 50 pages per minute |
| Automatic 2 sided print | Yes |
| Emulations | PCL6, BR-Script3, IBM Proprinter XL, Epson FX-850, PDF Version 1.7 |
| First print out time | Less than 6.7 seconds |
| Recommended monthly volume | Up to 16,000 pages |
| 802.1x | Yes |
|---|---|
| Active Directory LDAP Authentication | Yes |
| Automatic Intrusion Detection | Yes |
| Digitally-signed Firmware | Yes |
| IP filter | Yes |
| NFC | Yes |
| Port based Network Access Control | Yes |
| Restrict network protocols | Yes |
| Secure function lock v3 | Yes |
| Secure Key Management | Yes |
| Secure print | Yes |
| Setting lock | Yes |
| Store Print Log | Yes |
| SysLog | Yes |
| Supported | Comes with SecurePrint Barcode Print Compatible with Order Supplies, Remote Panel, Request Help, ThinPrint Client, SecurePrint Barcode Print , Email Print (*19) |
|---|
| Accessories | Card Reader Holder CH-1000 Optional external NFC Card reader holder Filter Holder FH-1100 Used in Quiet Mode (Germany Only) Paper Trays 250 sheet tray LT-5505 520 sheet tray LT-6505 4 x 520 sheet tower tray TT-4000 Maximum combinations 3 x LT-5505 or 2 x LT-6505 or 1 x LT-5505 1 x LT-6505 or TT-4000 Wi-Fi Module NC-9110W Optional wireless network interface Staple Finisher SF4000 Automatically staple your documents. Compatible with SR100 staples Mailbox MX4000 Increase output tray capacity. Assign 4-bin output to specific users or group |
|---|---|
| Supplies | Inbox Toner 1 x 25,000 pages (BK) Standard Yield Toner TN3600 - 3,000 pages High Yield Toner TN3600XL - 6,000 pages Super High Yield Toner TN3600XXL - 11,000 pages Ultra High Yield Toner TN3610 - 18,000 pages Super Ultra High Yield Toner TN3610XL - 25,000 pages (*7) Drum Unit DR3600 Approx 75,000 pages at 3 pages per job |
| Print from | Print directly from a USB flash memory drive. Supported formats include; PDF 1.7, JPEG, Exif JPEG, PRN (created using printer driver of model), TIFF (scanned using brother model) |
|---|
| * | (*7) Approx. declared yield value in accordance with ISO/IEC 19752 (*12) Sound pressure and sound power level in accordance with ISO 7779 (*13) Power consumption power off is measured according to IEC 62301 Edition 2.0 (*11) Capacity calculated with 80gsm paper (*16) Windows only (*17) Optional download (*19) Requires additional activation (*22) Optional wireless module required (*23) Power consumption is measured using ENERGY STAR Ver 3.1 test method network configuration |
|---|
