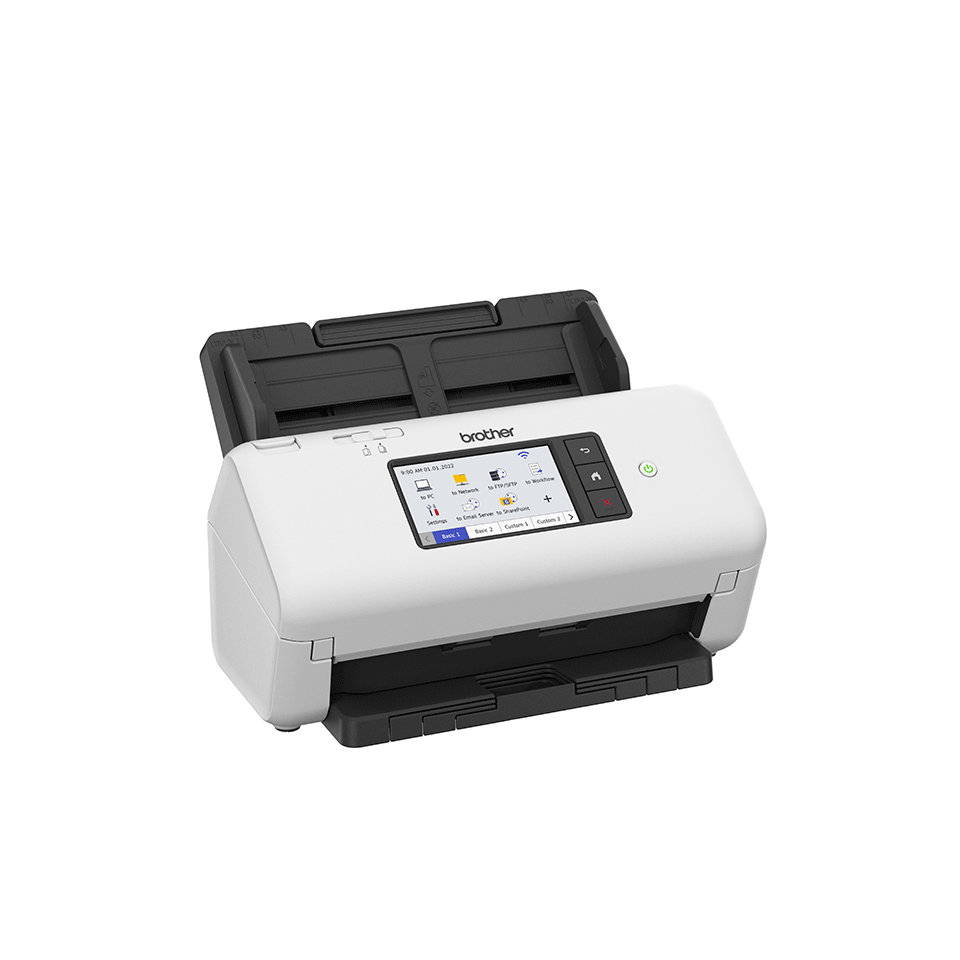

ADS-4700W Desktop document scanner

With high-speed wired and wireless connectivity and dedicated user touchscreen. Ideal for complex workflows and sharing documents with colleagues.

SRP £490.80 Inc. VAT

SRP £409.00 Ex. VAT

Scan up to 40 pages per minute

2-sided scan up to 40 pages per minute

80 sheet Automatic Document Feeder (ADF)

Product Overview

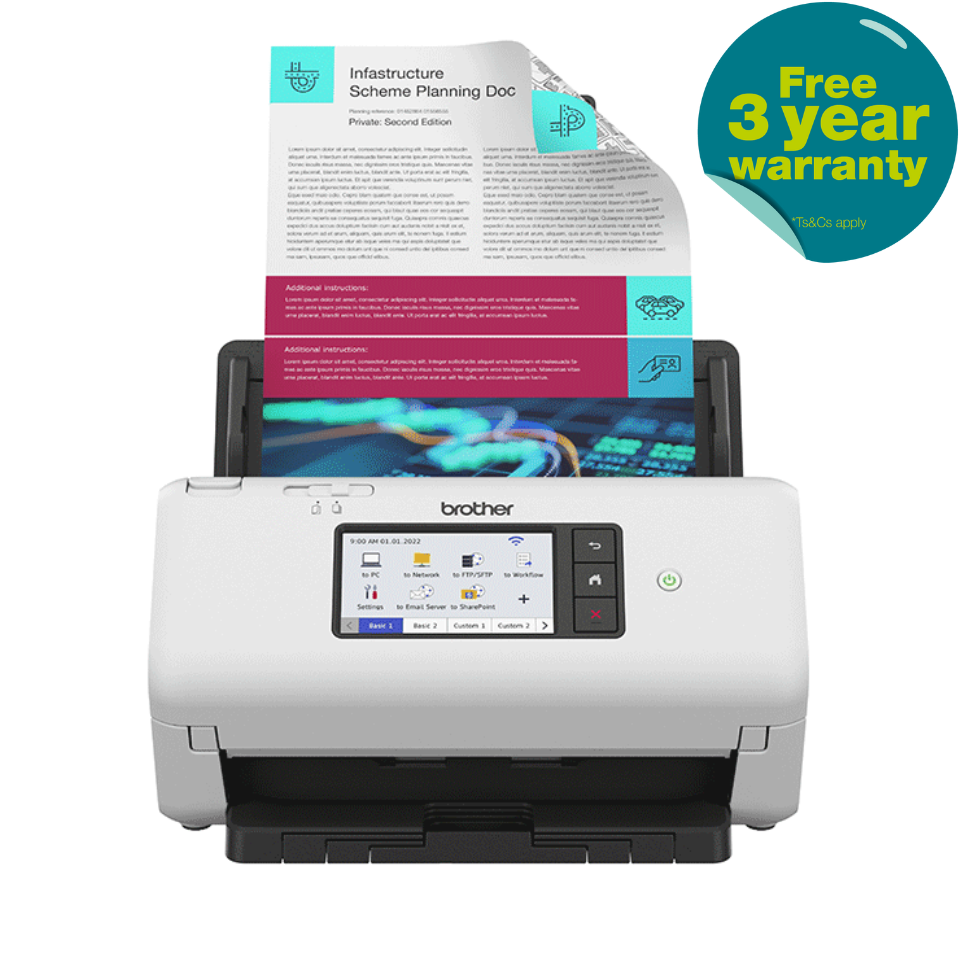

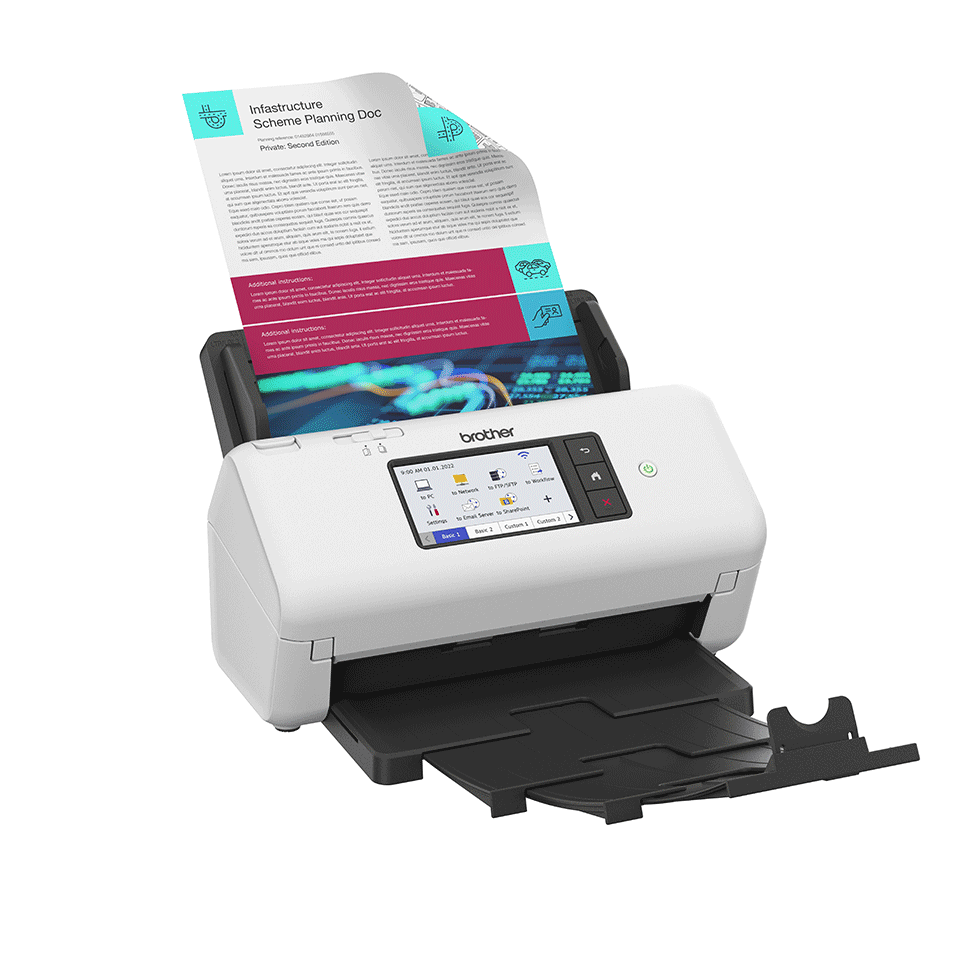

ADS-4700W facing forward with document

Wireless and wired connectivity

SuperSpeed USB3.0

Scan directly to USB host

  • Scan up to 40 pages per minute
  • 2-sided scan up to 40 pages per minute
  • 80 sheet Automatic Document Feeder (ADF)
  • Wireless and wired connectivity
  • SuperSpeed USB3.0
  • Scan directly to USB host

About this product:

Designed to enable businesses to simplify complex workflow or operational processes. Securely capture your documents to easily share and collaborate with colleagues whether they're at home or in the office.

  • Large intuitive 10.9cm touchscreen with 56 configurable shortcuts
  • Personalised multi-user experience
  • Secure workgroup sharing
  • Advanced image processing and batch scanning
  • Features Auto Start scan, ultrasonic multifeed sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm
  • Includes Brother ScanEssentials software
  • Driver compatibility with TWAIN (WIN and macOS), WIA, ISIS, Linux SANE

Specification Details


Usage type Desktop
Control panel 4 keys
Display Colour touchscreen
Display size 10.9cm


USB interface SuperSpeed 3.0, USB 2.0 Host (Rear)
Wi-Fi Direct 802.11g/n
Wired network interface 10Base-T/100Base-TX
Wireless network interface 2.4GHz: IEEE 802.11b/g/n, (Infrastructure Mode), Vertical Pairing

Dimensions & weights

With carton W 391mm x D 243mm x H 320mm
With carton 3.46 kg
Without carton W 299.5mm x D 215.9mmx H 190.5mm
Weight 2.75 kg

Energy Consumption

Power Consumption - ready mode Up to 8.6W
Power Consumption - sleep mode Up to 1.7W
Operating Up to 26 watts
Off 0.1 watts
Sound power 59 dB


Operating humidity 20 - 80%
Operating temperature 5 - 35°C

In the box

Others ADS-4700W, detachable ADF. Power supply cord. AC adapter. USB Cable. Quick setup guide. Product safety guide. Warranty

Media specifications

Types and sizes Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Business Card, Plastic Card
Weights 40 - 200 gsm


IPv4 DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
IPv6 RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Wired network security SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Wireless network security SMTP-AUTH, TLS, SSL(HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Wireless setup support Yes

Operating systems & software

Software supplied - Mac 10.14.x/10.15.x/11.0.x/11.1.x. Brother iPrint&Scan for Desktop, Remote Setup. AirPrint Scan, TWAIN
Software supplied - Windows Windows 10 (Home|Pro|Education|Enterprise)(32 or 64 bit editions), Windows 8.1(32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012. Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, Brother ScanEssentials. TWAIN, WIA, ISIS. BRAdmin Light, Brother BRAdmin Professional 4


2-Sided scan Yes
A4 Scan Speed 40 pages per minute
ADF 80
Scan to PC, Image, Network (SMB), Email Server, Workflow, FTP/SFTP, SharePoint(On Premise), Brother Web Connect, Scan to HTTP(S), Brother Cloud Apps
Colour depth 48/24 bit
Greyscale 256 levels
Interpolated scan resolution 1200 x 1200 dpi
ISIS compatibility Yes
Multi feed detection Yes
Paper sensor Yes
SANE compatibility Yes
Scan features 56 Personalised Shortcuts including Dedicated UI, USB HID class, Separation Switch, Scan Preview, CIS Cleaning Alarm, Auto Start Scan, Continuous Scan, Resume Scan, Document Separation, Long Paper Scan (5000mm), Kensington Lock
Scan resolution from ADF 600 x 600


Brother Solutions Interface Yes


Warranty 12 months
Show more
Show less


Woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
Man and a woman sat a desk on a laptop


Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
Man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

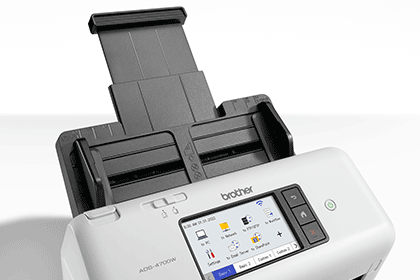

ADS-4700W Automatic Document Feeder ADF

Fast and reliable

With an in-built ultrasonic multifeed to eliminate misfeeds, the ADS-4700W has a large 80 sheet ADF capacity and rapidly scans up to 40 pages per minute. The separation switch enables very thick and thin documents, plastic cards and crumpled paper to smoothly feed through with ease.

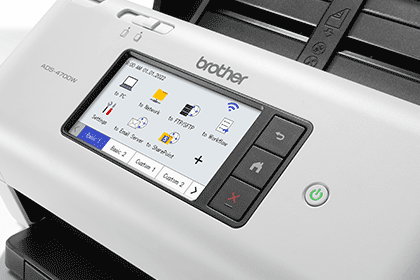

ADS-4700W touchscreen, keys

Simple and intuitive

Set up a dedicated user interface with one-touch scanning and the ability to add up to 56 shortcuts to frequently used destinations. You can also use an optional external cardreader to make the scanning process even easier. Just tap the card and add your documents into the ADF to automatically and securely capture the information on the page.

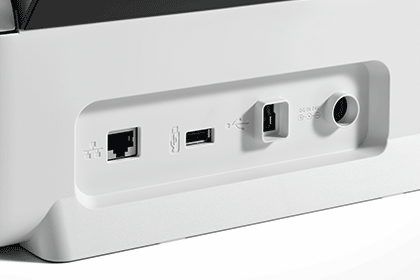

Connection ports on ADS-4700W scanner

Advanced connectivity

With USB3.0, USB host, network and wireless connectivity, you can securely scan documents and share with colleagues.

Grey file icons, blue rotate icon, blue crop icon

Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

The document separation functionality also automatically detects and removes any scanned blank pages, thus reducing file sizes and document preparation time.

Grey scanner icon with colour paper, ScanEssentials

Brother ScanEssentials

Our ScanEssentials software provides you with additional features which you can tailor to your business. For added security, you can set up passwords and protect your workflows, with the option to save your documents in a variety of formats.

The metadata function can also read barcodes or specific strings of text to easily facilitate the separation and file naming of documents.

Kofax logo, PaperPort logo, PowerPDF logo

Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
