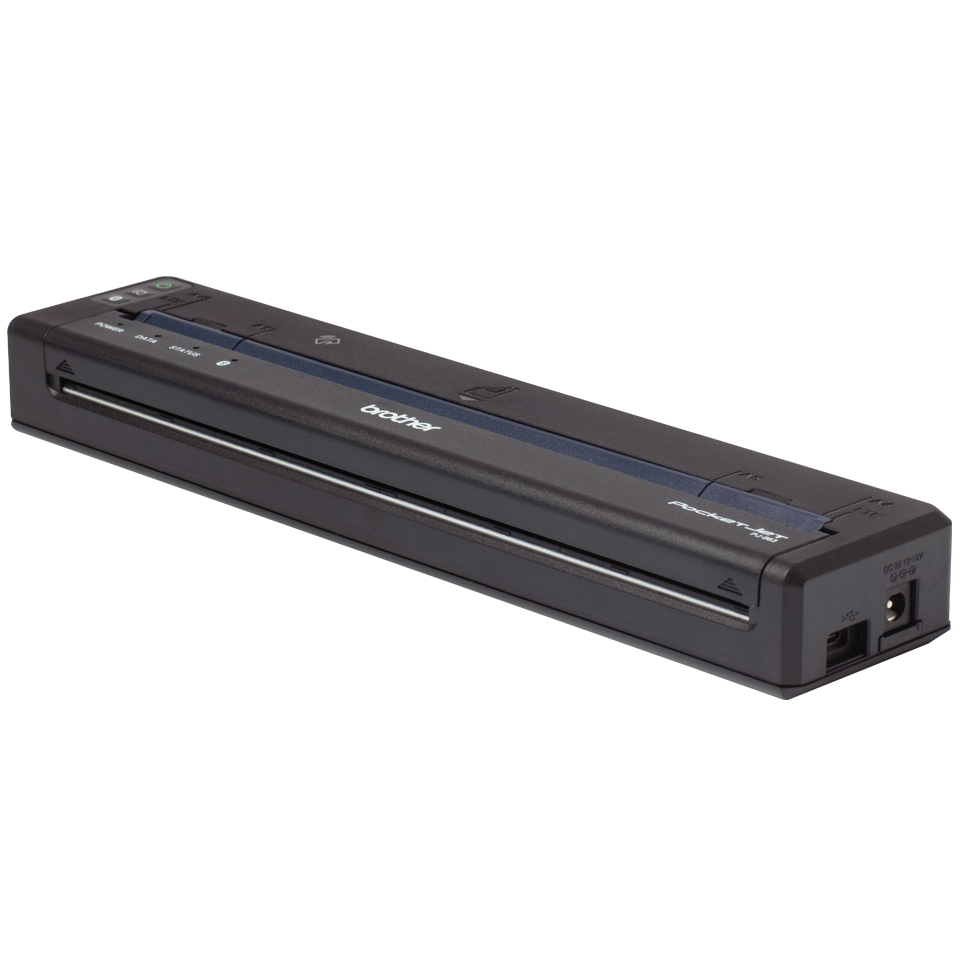

PJ-863 A4 Mobile Thermal Printer + Bluetooth

Compact, high-resolution portable printer to print quotations, invoices, and other reports whilst on the move

View Videos (1)
View Videos (1)
PJ-863 A4 Mobile Thermal Printer + Bluetooth
PJ-863 A4 Mobile Thermal Printer + Bluetooth 2
PJ-863 A4 Mobile Thermal Printer + Bluetooth 3
PJ-863 A4 Mobile Thermal Printer + Bluetooth 4
PJ-863 A4 Mobile Thermal Printer + Bluetooth 5

SRP £572.34 Inc. VAT

SRP £476.95 Ex. VAT

Buy from our retailers Find a local store

USB Type-C and Bluetooth connectivity

300dpi print resolution

Up to 13.5ppm print speed

Product Overview

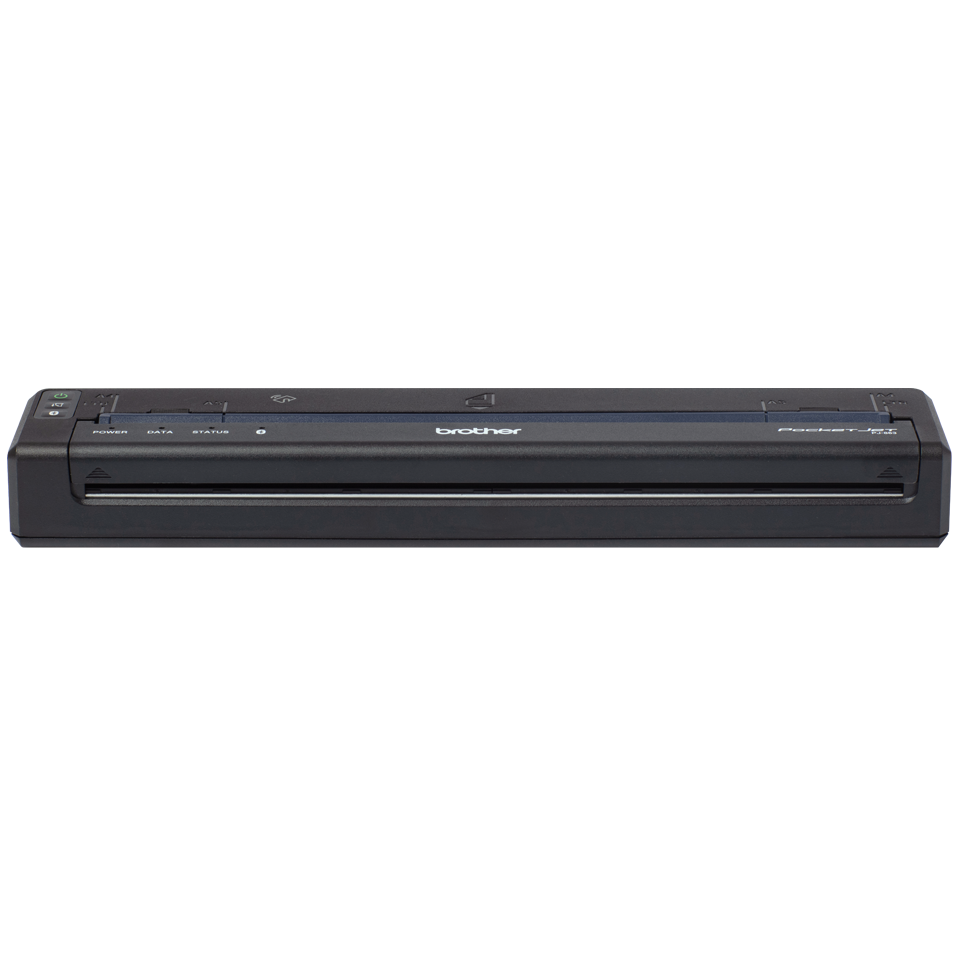

PJ863_main

Android, Windows, Mac and Linux support

Optional high-capacity Li-ion battery for printing away from power sources

Customise your print solution with vehicle mounting kit, chargers and protective cases

Key Features

  • USB Type-C and Bluetooth connectivity
  • 300dpi print resolution
  • Up to 13.5ppm print speed
  • Android, Windows, Mac and Linux support
  • Optional high-capacity Li-ion battery for printing away from power sources
  • Customise your print solution with vehicle mounting kit, chargers and protective cases

About this product:

Print quotations, invoices, and other reports whilst on the move and streamline the work of field sales, field service, logistics, delivery and the emergency service sectors.

The PJ-863 supports both charging and data transfer via USB-C, as well as Bluetooth connectivity to provide a mobile A4 print solution which is compact enough to fit easily into a briefcase or computer bag, but that can also be permanently installed in vehicles.

Thermal print technology at 300x300dpi produces high-resolution, crisp text at a print speed of up to 13.5 pages per minute.

Compatible with a wide range of mobile and desktop operating systems, the PJ-863 can easily be integrated into your own apps and software using the various SDKs (Software Development Kits) available. Also supports a variety of printer command languages, including ZPL2 emulation.

Specifications More about this product

Supplies

Show more
Show less
Show more
Show less
Show all Supplies

Specifications

General

Printer type Mono
Barcode symbologies Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN-8/13, UPC/EAN EXTENSION, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Standard 2of5, Industrial Mail Barcode, Postnet, 2D: PDF417/MicroPDF417, DataMatrix, Maxicode, QR Code/Micro QR Code, Aztec, GS1 Databar Composite
Flash RAM 64 MB
Max paper size A4
Memory 256MB RAM

Connectivity

Bluetooth Ver 5.2 (Classic, BLE)
Bluetooth profiles SPP, OPP, HCRP (Bluetooth Classic), GATT (Bluetooth Low Energy), iAP
USB interface Ver.2.0 (Full Speed). Peripheral plug type: Type-C

Mobile connectivity

Supported Android V8 or later, iOS v11 or later

Dimensions & weights

Dimensions 255(W) x 55(D) x 30(H) mm
Weight 480 g

In the box

Contents Mobile printer, USB Type-C to A Cable, Printhead Cleaning Sheet, Documentation

Media specifications

Types and sizes Paper and Synthetic. Full-page: Cut Sheet, Continuous Roll, Perforated Roll, Fan-Fold Labels: Cut Sheet, Fan-Fold. A4, A5, Letter, Legal, continuous

Operating systems & software

Supported Windows - 8.1/10/11/Server 2012/Server 2012 R2/Server 2016/Server 2019/Server 2022, Mac OSX - v10.15/11/12, Linux - Redhat, Debian

Printing

A4 standard print speed Up to 13.5 ppm
Resolution 300x300dpi
Bitmap fonts Gothic, Letter Gothic Bold, Helsinki, Brussels, San Diego, Brougham
Emulations ESC/P-P, ESC/P_B, Raster_P, P-touch Template, ZPL2 emulation
Outline/Vector fonts Gothic, Letter Gothic, Helsinki, Brussels

Warranty

Warranty 3 year return to base
Show more
Show less

Support

Woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
Man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
Man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

More about this product



PJ 700 series mobile printer in healthcare with bluetooth or wifi connection

High quality A4 printing on the move

The Brother PJ range of mobile printers offers businesses a reliable way of producing high quality A4 sized prints wherever and whenever they are required.

Featuring direct thermal printing, workers can focus on the job at hand without the inconvenience, or the added cost of purchasing ink, toner or ribbons - the only consumable used is the paper itself. The technology also allows the machine to be mounted, in any orientation, and can be carried around without the risk of spillages, leaks and smudges.

Brother PJ 700 size

Compact and lightweight

Despite its incredibly small size and lightweight design, the development and manufacturing process has been focused on producing a durable, professional printer that can be carried in a briefcase or computer bag, or permanently mounted in a vehicle.

PJ 700 series printer in healthcare situation, printing from a tablet PC

Integrate printing within your existing mobile apps and software

Enabling printing within existing apps or software used to be a difficult task.

However, as well as standard printer drivers for Windows®, Mac and Linux, Brother has a range of SDK (Software Development Kits) that allow developers to easily add printing capabilities into existing solutions, or allow new printing apps to be developed quickly and efficiently.

SDKs are available for iOS, Android and Windows® operating systems.

For more information, please visit the Brother European Developer website.

Mobile printer being used from tablet PC with wireless connection

Bluetooth and USB connectivity

Offering the flexibility of both wired or wireless connections means you can connect to a wide variety of devices such as Android tablets and smartphones, or to Windows®, Mac or Linux based desktops and laptops.

Bluetooth data transmission is fast and secure thanks to Bluetooth v5.2, and with support for SPP, OPP, HCRP (Bluetooth Classic), GATT (Bluetooth Low Energy) and iAP profiles.

Dark grey rosette on light grey background

Protect your investment with Service Packs

As well as a 3 year return-to-base service included as standard on this product, Brother offers a range of Service Packs to suit your requirements.
