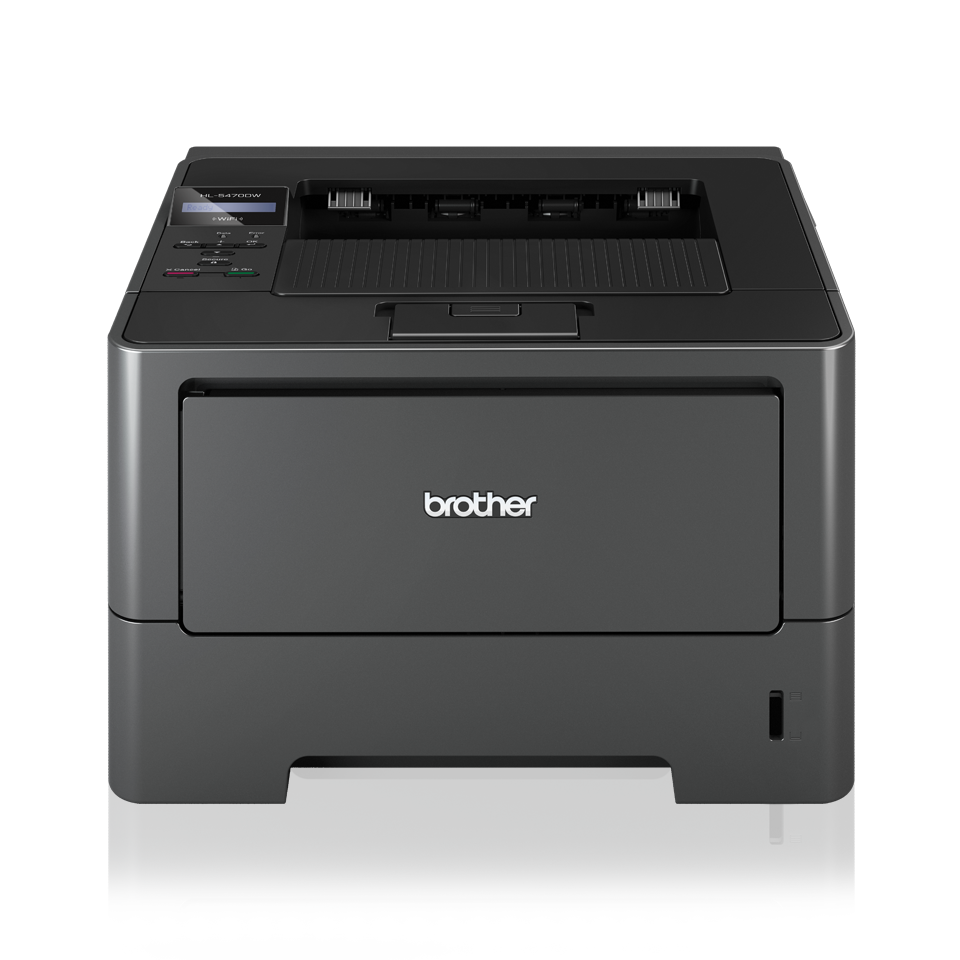

HL-5470DW High Speed Mono Laser Printer + Duplex, Network, Wireless

Our top-of-the-range mono laser for the busy office

Supplies

Support

woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Specifications

General

Printer type Mono
Function Print
Display Backlit LCD
Display size 16 characters x 1 line
Laser classification Class 1 laser product (IEC 60825-1:2007)
Max paper size A4
Memory 128MB (expandable up to 384MB using 1 x 144 pin, 16bit DDR2 DIMM)
Processor 400MHz
Technology Laser

Connectivity

Connectivity Wired Network, Wireless
Local interface Hi-Speed USB 2.0
Wired network interface Ethernet (10Base-T/100Base-TX)
Wireless network interface IEEE 802.11b/g/n

Mobile connectivity

Supported AirPrint, Cortado Cloud Print, Google Cloud Print, iPrint&Scan, Wi-Fi Direct

Dimensions & weights

With carton 499(w) x 478(d) x 411(h) mm / 13.6kgmm / 12.5kg
Without carton 371(w) x 384(d) x 257(h) mm / 23.1kg

Environmental

Blue Angel environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Sound power 6.79BA active, 6.4BA quiet mode, 4.7BA ready
Sound pressure 59dBA active, 54dBA quiet mode, 34dBA ready
Typical electrical consumption 2kWh / week

In the box

Contents Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard Paper Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio. Optional Paper Tray - A4, Letter, B5(ISO/JIS), A5, B6(ISO), Exective, Legal, Folio. Multi-Purpose Tray - Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. (A4 only supported in automatic duplex print mode)
Weights Standard / Optional Paper Tray - Plain & recycled paper (between 60 - 105 g/m2), Multi-Purpose Tray - Plain, recycled & bond paper (between 60 - 163g/m2) per Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio (A4 only supported in automatic duplex print mode). Multi-Purpose Tray - Width: 76.2mm to 215.9mm (3” to 8.5”) x Length: 127mm to 355.6mm (5” to 14”)”)

Network

Secure print Yes
Secure function lock v2 Restrict print activities to selected users and assign optional page limits
Wi-Fi Direct™ Yes
Wired network security APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos
Wireless setup support Yes

Operating systems & software

Supported Windows® 8(32 & 64 bit editions), Windows® 7 (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012R2, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). OS X 10.5.8, 10.6.x, 10.7.5, 10.8.x, 10.9.x, 10.10 or greater. Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper handling

Paper input 250 sheet standard paper tray, 50 sheet multi-purpose tray, 500 sheet optional paper tray
Paper output 150 sheets face down, 1 sheet face up (straight paper path)

Printing

A4 2-sided print speed Up to 18 sides per minute
A4 standard print speed Up to 38
Resolution 1,200 x 1,200dpi, HQ1200 (2,400 x 600dpi quality), 600 x 600dpi
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3TM Language Emulation), IBM Proprinter XL, Epson FX-850
First print out time Less than 8.5 seconds

Solutions

Supported AirPrint, b-guard, Cortado Cloud Print, Google Cloud Print, iPrint&Scan, Managed Print Services

Supplies and accessories

Supplies In-box Toner Approx. 3,000 pages* Standard Toner TN-3330 - Approx. 3,000 pages* High Yield Toner TN-3380 - Approx. 8,000 pages* Drum DR-3300 - Approx. 30,000 pages (one job per page). *Approx. cartridge yield is declared in accordance with ISO/IEC 19752000 pages1 Standard Toner TN-3330 - Approx. 3,000 pages1 High Yield Toner TN-3380 - Approx. 8,000 pages1 Drum DR-3300 - Approx. 30,000 pages (one job per page)

Warranty

Warranty 12 month
