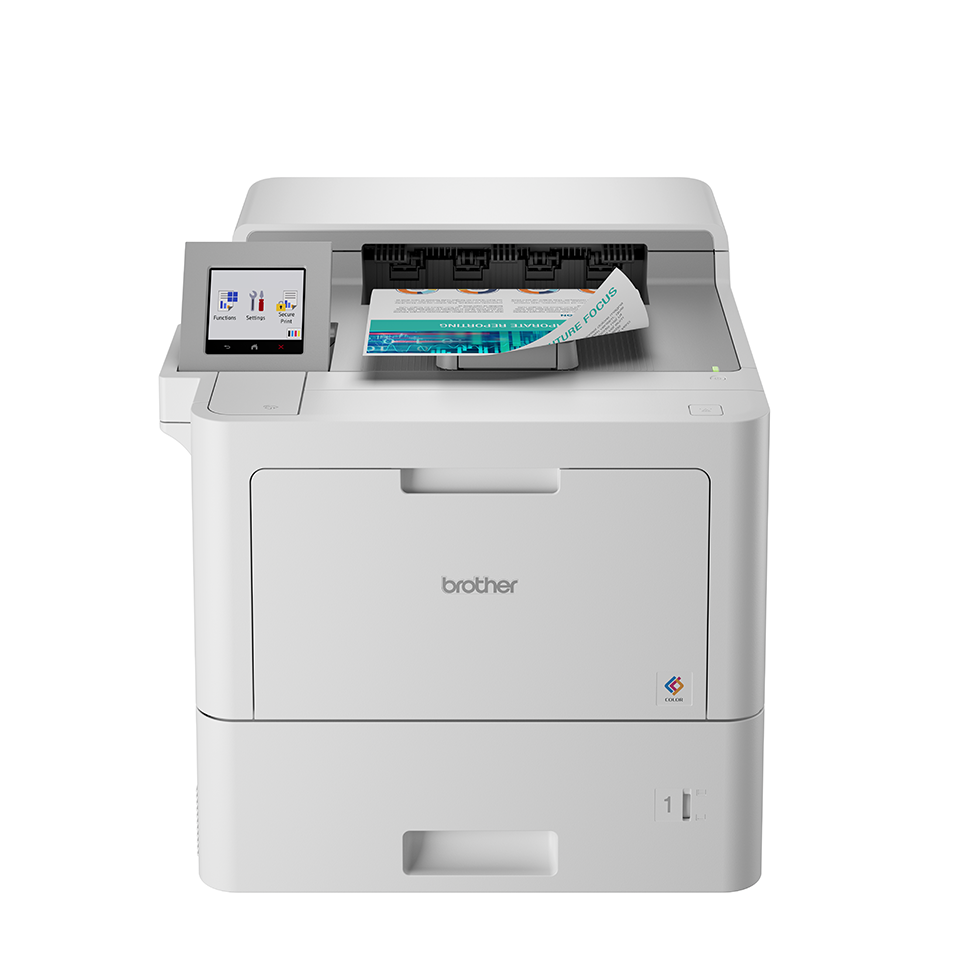

HL-L9430CDN Professional Workgroup A4 Colour Laser Printer

High-quality, cost effective enterprise level colour printing for your business.

Print up to 40ppm (pages per minute)

2-sided print, up to 28 sides per minute

8.76cm Colour touchscreen LCD

Product Overview

Brother HL-L9470CDN colour laser printer facing forwad
BLI Security valudation testing 2022 logo

1GB Internal memory

520 Sheet paper input tray expandable to 2600

9,000 pages (BK), 6,500 pages (CMY) inbox toners*

  • Print up to 40ppm (pages per minute)
  • 2-sided print, up to 28 sides per minute
  • 8.76cm Colour touchscreen LCD
  • 1GB Internal memory
  • 520 Sheet paper input tray expandable to 2600
  • 9,000 pages (BK), 6,500 pages (CMY) inbox toners*
BLI Security valudation testing 2022 logo

About this product:

High-quality, cost effective professional colour printing with premium results. Built for business, this device is designed to deliver enterprise level performance whilst providing a competitive total cost of ownership. With high-speed, glossy colour printing you can rely on combined with the flexibility to be tailored to your specific business needs. Together with:

  • Integrated NFC reader
  • Gigabit network as standard with optional 2.4/5GHz Wi-Fi module
  • Expandable memory capacity (USB flash drive not included)
  • Optional Mailbox and Staple Finisher
  • Fully compatible with 3rd party print management and document management solutions including Kofax, YSoft and more
*Approx declared toner yield value in accordance with ISO/IEC 19798

Supplies and Accessories

Show more
Show less
Show more
Show less

Specification Details


Printer type Colour
Function Print
Display Colour touchscreen
Display size 8.76cm
Laser classification Class 1 Laser Product
Max paper size A4
Memory 1GB Internal


Connectivity Wired Network
Local interface Hi-Speed USB 2.0 & USB Host (Front | Rear)
NFC Integrated NFC Reader Supported for printing. NFC standards include: (ISO14443 Type A) MIFARE Standard/Plus/ Ultralight/Ultralight C/DESfire my-d move, Tag-it (ISO15693 Type B)
Wired network interface GigE (10Base-T/100Base-TX/1000Base-T)
Wireless network interface Optional accessory

Mobile connectivity

Supported AirPrint, Mopria, Brother Print Service Plugin, Brother Apps, Web Connect

Dimensions & weights

With carton 557 x 628.2 x 633.5mm
With carton 34.3 kg
Without carton 442 x 541 x 403mm
Weight 29.0 kg


Operating humidity 20-80%
Operating temperature 10-32 Celsius
Storage humidity 10-90%
Storage temperature 0-40 Celsius
Sound power Printing 6.88BA, Ready 3.02BA, Quiet Mode 6.68BA, Deep Sleep 3.02BA
Sound pressure Printing 56.5dbA, Ready 17.2dbA, Quiet Mode 53dbA


Nordic Swan environmental accreditation Yes
Power consumption (Watts) Printing - 770W (420W in quiet mode), Ready 85W, Sleep 15.6W, Deep Sleep 1.0W, Power Off 0.04W
Typical electrical consumption 0.662kWh/Week

In the box

Contents Machine, Inbox Toners, Drum, Belt, Waste Toner Box, Power Supply Cord, Quick Set-Up Guide, Warranty Card (PC interface cable NOT included)

Media specifications

Types and sizes Media Types including, Thin Paper, Plain Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond Paper, Label, Envelopes, Glossy Paper. Media sizes up to Width: 76.2mm - 215.9mm Length: 127mm - 355.6mm
Weights Standard (Tray 1) and Multi Purpose Tray 60 - 230gsm, Optional (Trays 2-5) 64 - 105gsm

Operating systems & software

Software supplied - Mac Brother iPrint&Scan, Utilities, Easy Setup
Software supplied - Windows Brother iPrint&Scan, Utilities, Easy Setup, PaperPort SE 14, BRAdmin Professional, Mass Deployment Tool, Status Monitor

Paper handling

Paper input Standard Tray1 - Up to 520 sheets, Multi Purpose Tray - Up to 100 sheets, 15 Envelopes
Paper output 250 sheets face down, 1 sheet face up (straight path)


Resolution 2,400 dpi class (2400 x 600), 600 x 600 dpi quality
A4 2-sided colour print speed 28 pages per minute
A4 standard colour print speed 40 pages per minute
Automatic 2 sided print Yes
Emulations PCL5e, PCL5c, PCL6(PCL XL Class3.0, BR-Script3, PDF Version 1.7, XPS Version 1.0
First print out time Less than 10 seconds
Recommended monthly volume 12,000 pages

Security features

802.1x Yes
Active Directory LDAP Authentication Yes
Automatic Intrusion Detection Yes
Digitally-signed Firmware Yes
IP filter Yes
Port based Network Access Control Yes
Restrict network protocols Yes
Secure function lock v3 Yes
Secure print Yes
Secure printing with SSL Yes
Setting lock Yes
Store Print Log Yes
SysLog Yes


Brother Solutions Interface Yes
Cloud Secure Print Yes

Supplies and accessories

Accessories LT-330CL, LT-340CL, TT-4000, TC-4100, NC-9000w, FH-3000, CH-1000, SF-4000, SR100, MX-4000
Supplies TN821XL, TN821XXL, DR821CL, BU800CL, WT-800CL
Show more
Show less


Woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
Man and a woman sat a desk on a laptop


Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
Man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals


Man in office holding ipad next to printer

Solutions enabled out of the box

The HL-L9430CDN comes with Cloud Secure Print straight out the box, so you can securely print your documents directly from the cloud. You also have the option to further enhance your device with third party solutions, meaning that you can have a fully integrated print, capture and output management solution all from one provider.

Woman holding NFC card bext to printer, colour documents, table

Enterprise level security

The HL-L9430CDN has built-in industry security protocols to securely protect your network, documents and device. Additional levels of protection can be setup to restrict access to certain settings and functions available to authorised user.

Man holding colour A4 document with woman in office, buildings, glass window

Quality and performance

Impressive colour and high-quality outputs makes the HL-L9430CDN the device of choice for many businesses. The robust design and long life components provides complete peace of mind that you can keep on printing and scanning without interruption.

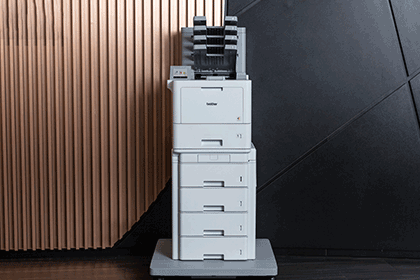

Printer  on a tower tray with a mailbox against copper and black wall

Flexibility for your business

With a choice of a staple finisher to automatically staple your documents, to a mailbox, for sorting your printed documents - your printer can be easily transformed to help improve overall business productivity. Together with a selection of additional paper-trays, you can easily scale your HL-L9430CDN from a desktop to a floor-standing device.

A man and two women sat around table with colour documents on the table, printer, desks, chairs

Contract printing that looks after itself

Get the most out of your HL-L9430CDN with managed print services. Your business can easily manage and control print costs and have the high-yield toners you need, when they need them.
