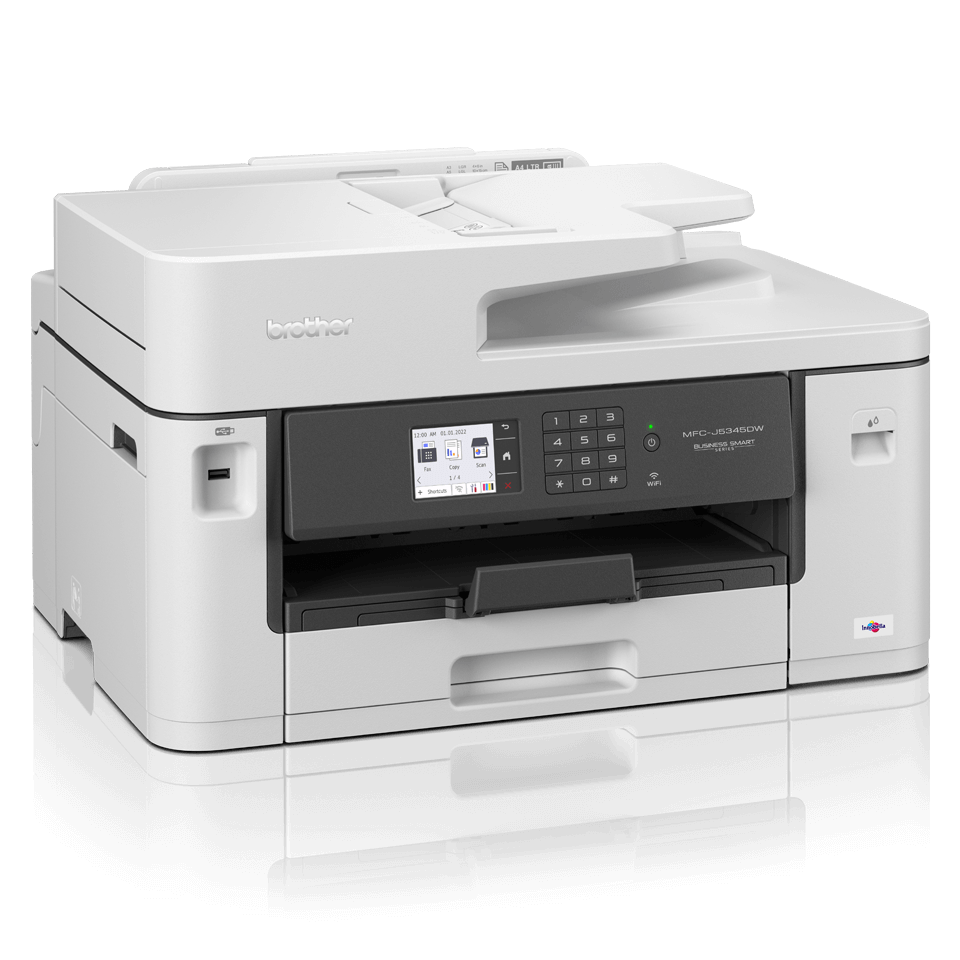

MFC-J5345DW Professional A3 inkjet wireless all-in-one printer

Fast automatic 2-sided A4 print, 6.8cm colour touchscreen and 250 (A3) sheet paper capacity. Meeting the needs of demanding small offices and business workgroups.

Print (up to A3), copy, scan and fax functionality

Print speeds of up to 28 ipm mono and colour (Based on ISO/IEC 24734)

Automatic A4 2-sided print

Product Overview

MFCJ5345DW_main

Wired and wireless connectivity | Mobile compatible – download app: Brother Mobile Connect

6.8cm colour LCD touch screen

250 sheet paper capacity | 50 sheet ADF | manual feed slot

Key Features:

  • Print (up to A3), copy, scan and fax functionality
  • Print speeds of up to 28 ipm mono and colour (Based on ISO/IEC 24734)
  • Automatic A4 2-sided print
  • Wired and wireless connectivity | Mobile compatible – download app: Brother Mobile Connect
  • 6.8cm colour LCD touch screen
  • 250 sheet paper capacity | 50 sheet ADF | manual feed slot

About this product:

The professional A3 MFC-J5345DW all-in-one printer is built to last, meeting the needs of demanding small offices and business workgroups.
A3 capability enables you to produce a variety of A3, as well as A4 colour documents, without any hassle, while experiencing high quality prints,
fast print speeds and low running costs. This multifunction device offers print, copy, scan and fax functionality. Print from your workstation, in a meeting
room, or from your mobile device with wireless connectivity.

Supplies

Specifications

General

Printer type Colour
Function Print, Copy, Scan, Fax
Display Colour touchscreen
Display size 6.8cm
Max paper size A3
Memory 256MB
Technology Inkjet

Brother Apps

Creative Center Yes
Easy Scan to Email Yes
Enlarge Text Copy Yes
Fax Forward to Cloud Yes
Note Scan Yes
Scan to Mobile Yes
Scan to Searchable PDF Yes

Connectivity

Connectivity Wired Network, Wireless, USB
Local interface Hi-Speed USB 2.0, USB 2.0 Host (Front)
NFC No
Wi-Fi Direct Print wirelessly without having to go through a wireless access point (both automatic and manual methods supported)
Wired network interface Ethernet 10/100BASE-TX Auto Negotiation
Wireless network interface 2.4GHz IEEE 802.11 b/g/n & 5GHz IEEE 802.11a/n

Mobile connectivity

Supported Brother Mobile Connect, AirPrint, Mopria, Brother Print Service Plugin

Copying

2-sided copy Yes (A4)
Resolution Flatbed: Up to 600 x 600dpi (colour and mono). ADF: Up to 600 x 600 (mono) and up to 600 x 600 (colour)
Speed 16ipm colour & 25ipm mono
Enlargement / reduction ratio 25% to 400% in 1% increments
N in 1 Yes

Dimensions & weights

With carton 636 (W) x 468 (D) x 419 (H)mm | 19.2kg
Without carton 530 (W) x 398 (D) x 305 (H)mm | 17.0kg

Faxing

Fax modem 14.4 kbps
PC Fax Yes

Environment

Operating humidity 20-80%
Operating temperature 10-35 Celsius
Sound power Mono: 6.78B(A), Colour: 6.82B(A)
Sound pressure Printing 51.5dBA, Copying 52.0dBA

Environmental

Blue Angel environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Power consumption (Watts) Copying - 36W, Ready 5.5W, Sleep 0.9W, Power Off 0.03W
Typical electrical consumption 0.17 kWh/week

In the box

Contents Power supply cord, Product safety guide, Supplies, User guide, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard Tray: Plain, Inkjet, Glossy, Recycled | A3, LGR, LGL, Folio, A5, A6, Photo (10x15cm/4x6"), Indexcard (13x20cm/5x8"), Photo-L(9x13cm/3.5x5"), Photo-2L (13x18cm/5x7"), Com-10, DL Envelope, Monarch,C5, Mexico Legal, India Legal | Manual Feed Slot: Plain, Inkjet, Glossy, Recycled | A3, LGR, LGL, Folio, A5, A6, Photo (10x15cm/4x6"), Indexcard (13x20cm/5x8"), Photo-L (9x13cm/3.5x5"), Photo-2L (13x18cm/5x7"), C5, Com-10, DL Envelope, Monarch, Mexico Legal, India Legal | ADF: Plain, Recycled | Width 105 to 215.5 mm, Length 148 to 355.6 mm
Weights Standard Tray: 64-220g/m2 | Manual Feed Slot: 64-220g/m2 | ADF: 64-120g/m2

Network

Wi-Fi Direct™ Yes
Wired network Ethernet 10/100BASE-TX Auto Negotiation
Wired network security APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS,FTPS, SMTP, POP3, IMAP4), SNMP v3 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec
Wireless network 2.4GHz Infrastructure Mode: IEEE 802.11 b/g/n | Wi-Fi Direct: IEEE 802.11 g/n & 5GHz Infrastructure Mode: IEEE 802.11 a/n | Wi-Fi Direct: IEEE 802.11 a/n
Wireless network security APOP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS,FTPS, SMTP, POP3, IMAP4), SNMP v3, 802.1x (EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos, IPsec | WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) *Wi-Fi Direct supports WPA2-PSK (AES) only
Wireless setup support Yes

Operating systems & software

Software supplied - Mac Brother iPrint&Scan
Software supplied - Windows Brother iPrint&Scan, BRAdmin Professional, Mass Deployment Tool, Status Monitor
Supported Windows®: 10, 8, 7 (32 & 64 bit editions), Windows® Server: 2019, 2016, 2012 2012R2, 2008R2 & 2008 (32 & 64 bit editions) | macOS: 10.14.6/10.15.x/11 | Linux: CUPS, LPD/LPRng (32 & 64 bit editions) | ChromeOS: Print

Paper handling

Paper input Standard Tray: 250 Sheets | Manual Feed Slot: 1 Sheet | Automatic Document Feeder (ADF): 50 Sheets | *calculated with 80g/m² paper
Paper output 100 sheets A4 | 50 Sheets A3 | *calculated with 80g/m² paper

Printing

A4 2-sided print speed Up to 21 sides per minute
A4 standard print speed Up to 28 ipm
Resolution Up to 1200x 4800 dpi (Horizontal x Vertical)
Automatic 2 sided print Yes
First print out time Less than 4.6 seconds
Recommended monthly volume 2500 pages

Scanning

2-Sided scan No
Resolution Flatbed:1200x2400dpi(mono) / 1200x1200dpi(colour) | ADF: 600 x 600dpi(mono) / 600 x 600dpi(colour)
Scan to Image, OCR, File, Network, FTP, SharePoint, Email & Email Server, Searchable PDF
Speed 1-sided (Mono and Colour): A4 portrait: 25ipm
Scanner type CIS

Security features

Automatic Intrusion Detection Yes
Digitally-signed Firmware Yes
Port based Network Access Control Yes
802.1x Yes
IP filter Yes
Secure function lock v3 Yes
Secure printing with SSL Yes

Supplies and accessories

High-yield ink cartridges 3000 Black (LC422XLBK) / 1500 Colour (LC422XL C/M/Y) is declared in accordance with ISO/IEC 24711
Standard-yield ink cartridges 550 Black (LC422BK) / 550 Colour (LC422 C/M/Y) is declared in accordance with ISO/IEC 24711
Supplies Product is shipped with LC422 cartridges. The first time you install a set of ink cartridges the machine will use an amount of ink to fill the delivery tubes for high quality printouts. This process will only happen once. The amount of ink remaining will be a minimum of 358 pages BK and 358 pages CMY (declared in accordance with ISO/IEC 24711).

Direct printing/scanning

Print from USB Flash Memory Drive

Warranty

Warranty 12 months

Web connect

Print from Print from and scan to without using a PC on Box, Dropbox, Evernote, OneDrive, Google DriveTM OneNote
Scan to Scan to Mobile, Scan to Searchable PDF, Enlarge Text Copy, Scan to PowerPoint, Scan to Excel, Scan to Word, Easy scan to E-mail
Show more
Show less

Support

Woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
Man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
Man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product


Print Bigger

Print bigger

Make your documents more memorable by printing them in A3 size. With full colour A3 print capabilities, your important training materials or presentation documents will stand out and be easier to digest. By printing A3 documents in house you have more control over your deadlines and can expand your opportunities.
work connected always

Work connected, always

You don’t just need to be sat at your desk, or even near the printer to use the MFC-J5345DW. With the range of connectivity options available, you can print anywhere in your office / home – and even from your mobile phone through wireless connectivity.

By downloading the Brother Mobile Connect app you can access an array of features – from sending print jobs, to checking your ink levels and ordering replacements when necessary.
MAXIDRIVE_PrintHeadStructure_02

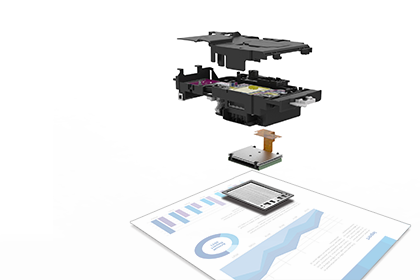

Increase your print speed, with the new Brother MAXIDRIVE print technology

The newly developed high power print head enables a dramatic improvement in print speed, saving you time when printing your business documents. Not only is speed improved, but this new print head is highly durable and produces high print quality, delivering professional results to your outputs.
built to last 2

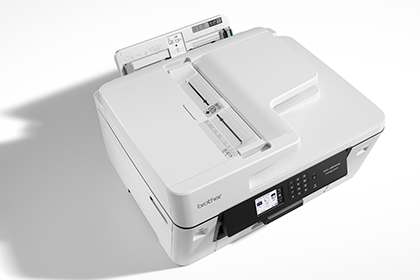

Built to last

You need a device you can rely on. These A3 professional multifunction devices have been engineered into robust business devices, delivering fast, secure and professional quality to suit the growing needs of your business.
scanning

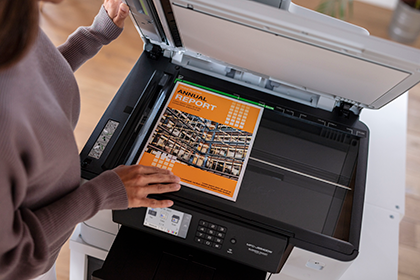

Scanning technology to improve work flow, even when working remotely

As a multifunction device the MFC-J5345DW can do so much more than print. The scanning opportunities can significantly enhance your productivity from home. You can scan in colour or mono at high speeds to several destinations to boost workflow:

File
OCR
Email
