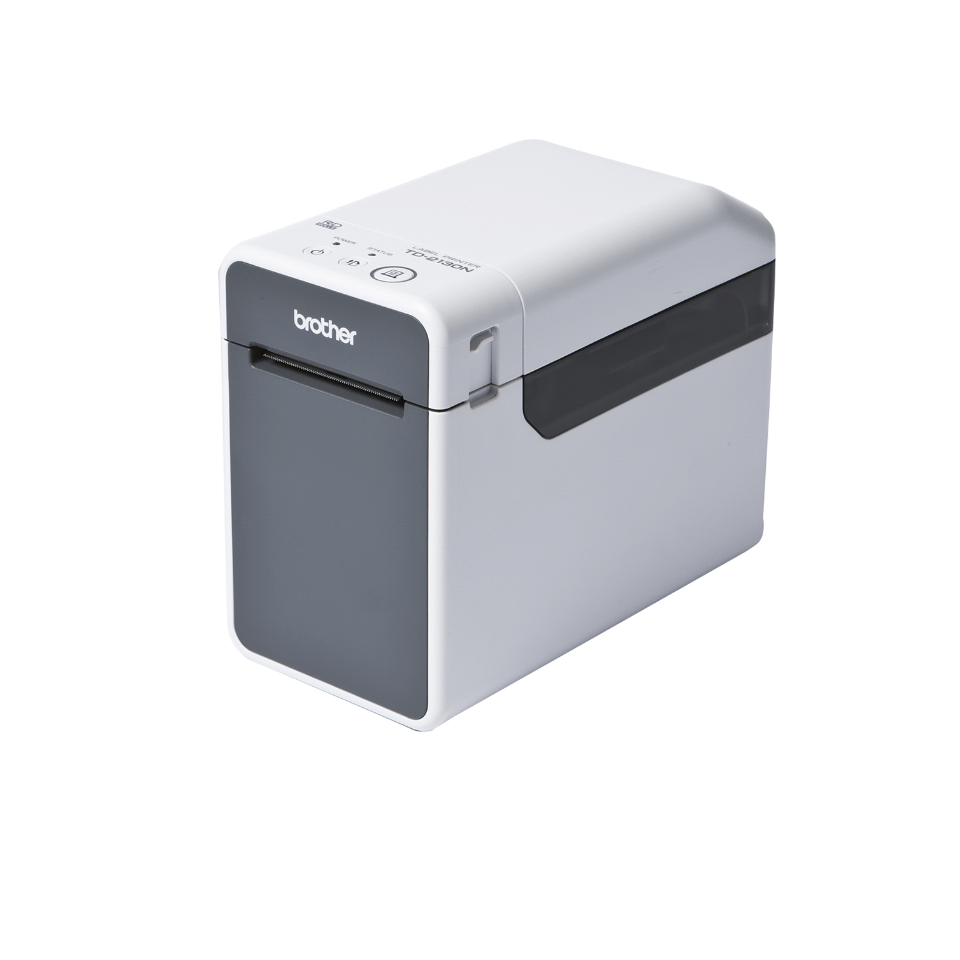

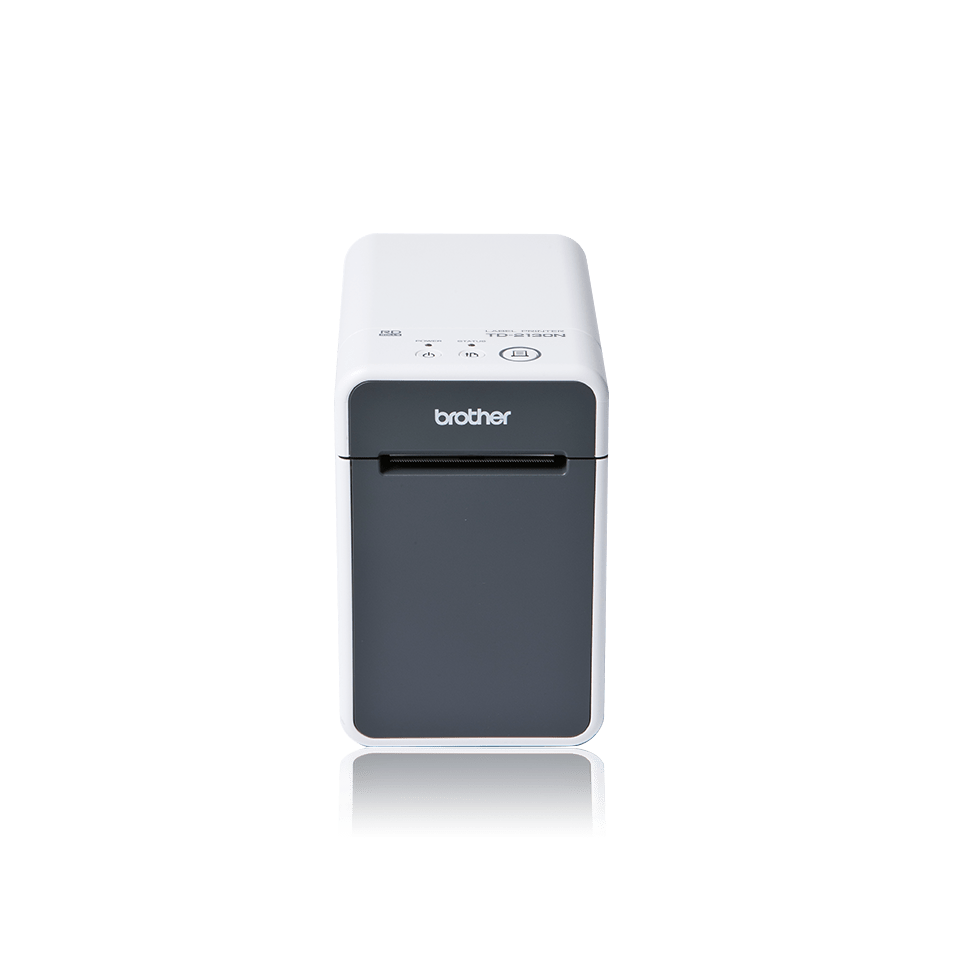

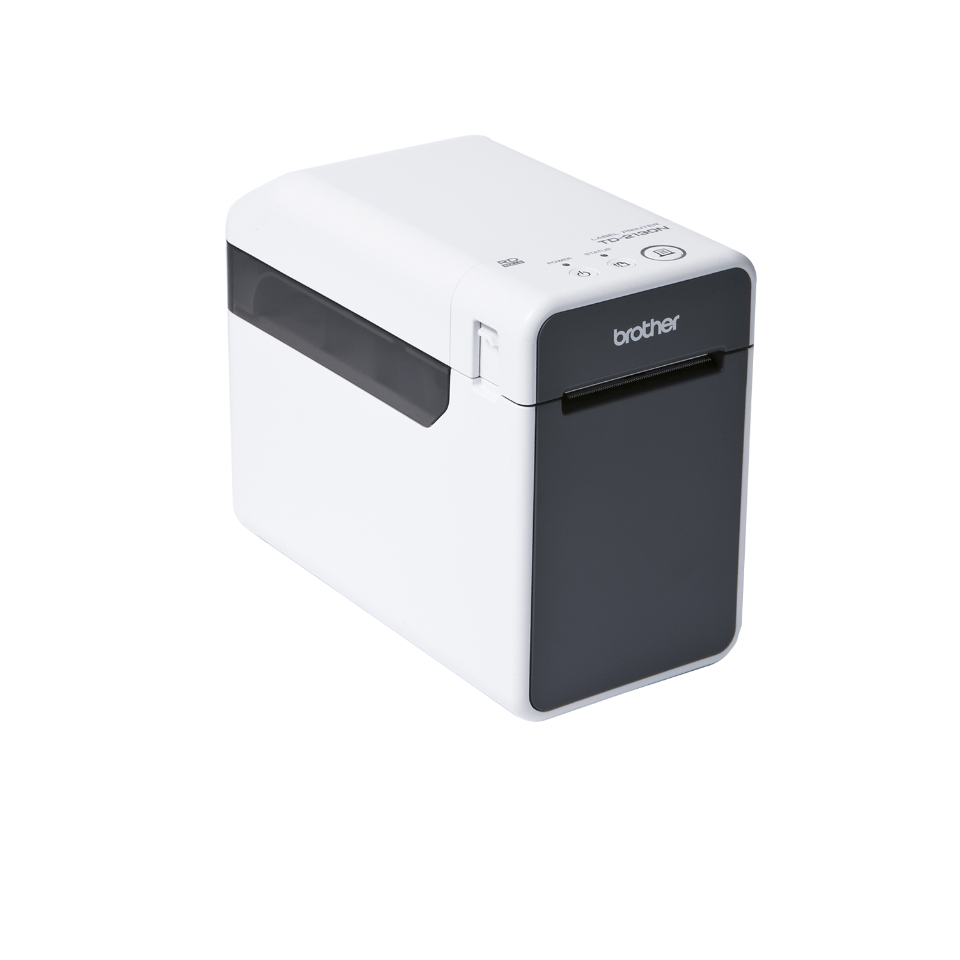

TD-2135NWB Desktop Label Printer with USB, WiFi and Bluetooth
Versatile, high-resolution desktop label printer with built-in network, wireless and bluetooth connectivity. Print crisp, professional quality labels, wristbands and receipts with 300dpi resolution.Product Details
- High quality 300dpi print resolution
- Network capability / USB, serial, WiFi and bluetooth connectivity
- ZPL II printer language emulation
- Free 3 year return to base warranty. Advanced exchange service up to five years available to purchase.
- Print from a PC or mobile device, or add on optional touch panel display (PA-TDU-001) for stand-alone printing.
- Ready to integrate with iOS and Android apps
Product Overview
The TD-2135NWB's range of specialised features mean it is the perfect label printer for healthcare, retail warehousing, logistics and manufacturing – plus any other sector where you need to be able to print receipts, labels or wristbands. The built-in network, WiFi and bluetooth connectivity provides the flexibility to print wirelessly, or by using the available apps on your smartphone or tablet.
Ideal for printing stock rotation labels, pre-packaged food ingredients labels, barcode labels, specimen, pathology and phlebotomy labels and shelf edge labels.
With a higher print resolution of 300dpi, the TD-2135NWB prints professional, high-quality labels at speeds of 152mm/sec.
Specifications
General
| Technology | Direct thermal |
| Buttons | Power , Feed |
| Memory capacity | RAM, FLASH, 64MB, 256MB |
Connectivity
| Serial | Yes (Requires optional cable) |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
Connectivity
| Bluetooth | Yes (Ver 5.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile), GATT (Bluetooth Low Energy) |
| WiFi Direct | IEEE802,11n, Yes, WiFi (802,11 a/b/g/n) |
| Serial | Yes (Requires optional cable) |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
Dimensions and weights
| Dimensions | 110mm (W) x 215mm (D) x 173mm (H) |
| Weight | 1.34 |
In the box
| In the box | Printer, AC adaptor, AC Power supply cord, USB Cable, Quick Setup Guide (QSG) |
Operating systems & software
| Supported Operating Systems | Windows (Labelling,SupportedOperatingSystems,Windows, Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Android (5 or higher ), iOS (Labelling,SupportedOperatingSystems,Mac), For the full list of compatible operating systems visit support.brother.com |
Printing
| Maximum Print Speed | 152mm/sec |
| Maximum Print Length | 1000mm |
| Resolution | 300 |
| Supported commands | P-touch Template, CPCL emulation, ESC/P |
Printing
| Maximum Print Speed | 152mm/sec |
| One Dimensional Barcode Symbology | CODABAR(NW7), Code128, Code39, Code93, EAN13(JAN13), EAN8(JAN8), GS1 DataBar (RSS), GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), GS1-128(UCC/EAN-128), ITF(I-2/5), MSI, POSTNET, UPC-A, UPC-E, UPC/EAN EXTENSION |
| Two Dimensional Barcode Symbology | QR Code, MaxiCode, PDF417, DataMatrix, Aztec |
| Maximum Print Lenght | 1000mm |
| Printing Maximum Print Speed | 152mm/sec |
| Printing Resident Fonts | Letter Gothic Bold, Gothic, Brougham, Brussels, Helsinki, San Diego, Letter Gothic Regular |
| Resolution (dpi) | 300 |
| Printing Maximum Roll Diameter | 127mm |
| Printing Minimum Label Width | 19mm |
| Supported commands | P-touch Template, CPCL emulation, ESC/P |
Solutions
| SDK (Software Development Kit) | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Support & Drivers
Resources
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
