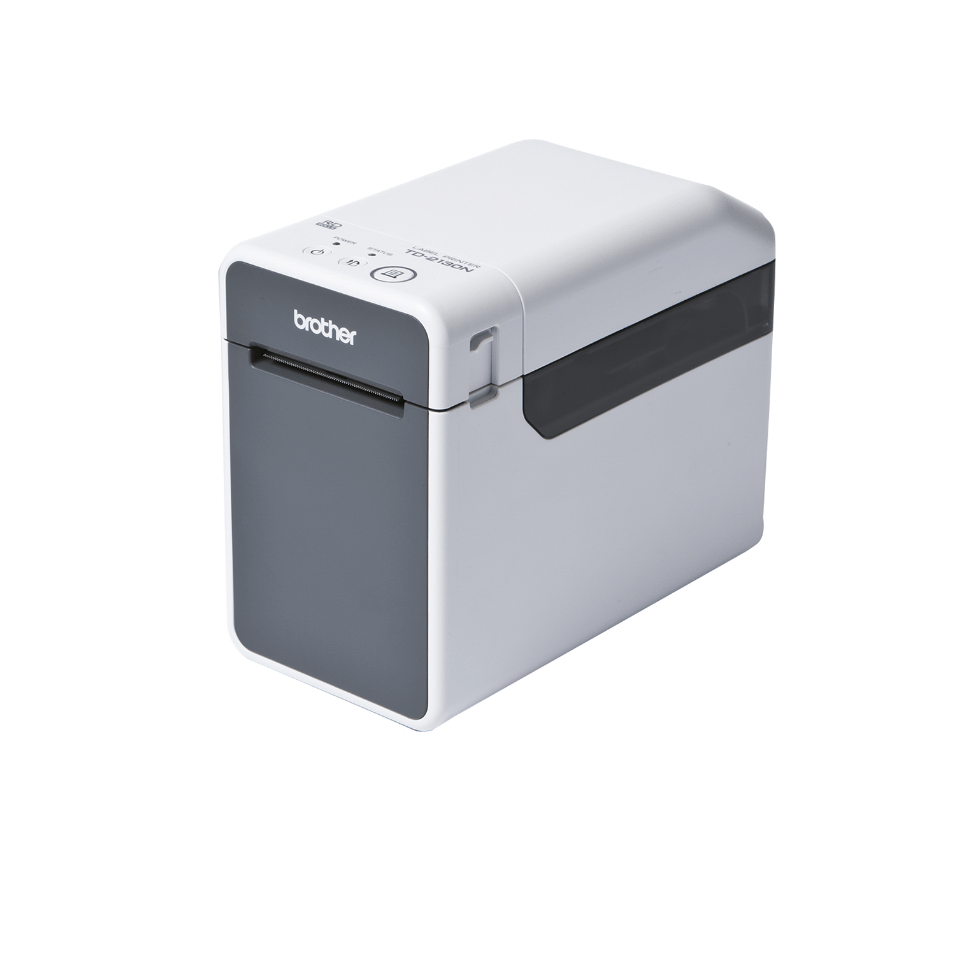

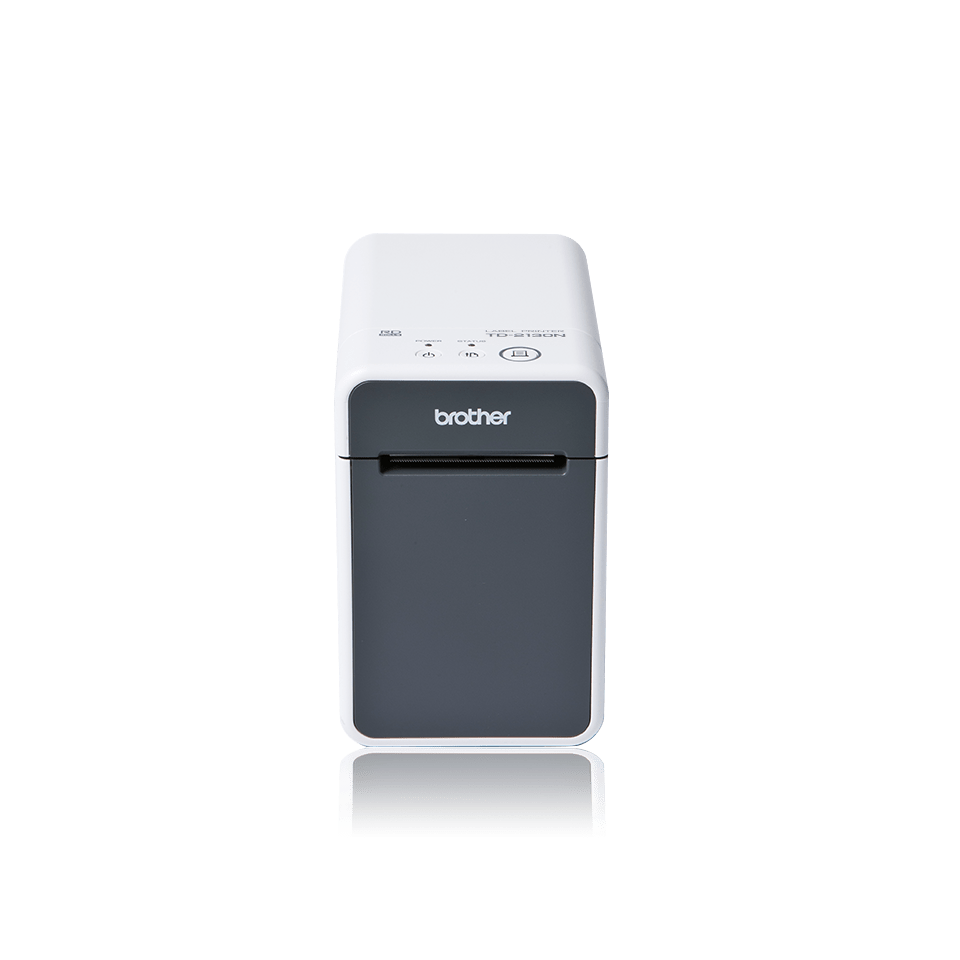

TD-2135N Desktop Label Printer
Versatile, high-resolution desktop label printer. Print crisp, professional quality labels, wristbands and receipts with 300dpi resolution.Product Details
- High quality 300dpi print resolution
- Network capability / USB & serial connectivity
- ZPL II printer language emulation
- Up to 152mm/second print speed
- Print from a PC via USB or add on optional touch panel display (PA-TDU-001) for stand-alone printing.
- Free 3 year return to base warranty. Advanced exchange service up to five years available to purchase.
Product Overview
The TD-2135N's range of specialised features mean it is the perfect label printer for healthcare, retail, warehousing, logistics and manufacturing – plus any other sector where you need to be able to print receipts, labels or wristbands.
Ideal for printing stock rotation labels, pre-packaged food ingredients labels, barcode labels, specimen, pathology and phlebotomy labels and shelf edge labels.
With a higher print resolution of 300dpi, the TD-2135N prints high quality labels at speeds of 152mm/sec.
Specifications
General
| Technology | Direct thermal |
| Buttons | Power , Feed |
| Memory capacity | RAM, FLASH, 64MB, 256MB |
Connectivity
| Serial | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
Connectivity
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile), GATT (Bluetooth Low Energy) |
| Serial | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
Dimensions and weights
| Dimensions | 110mm (W) x 215mm (D) x 172mm (H) |
| Weight | 1.33 |
In the box
| In the box | Printer, AC adaptor, AC Power supply cord, USB Cable, Quick Setup Guide (QSG) |
Operating systems & software
| Supported Operating Systems | Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), For the full list of compatible operating systems visit support.brother.com, Linux |
Printing
| Maximum Print Speed | 152mm/sec |
| Maximum Print Length | 1000mm |
| Resolution | 300 |
| Supported commands | CPCL emulation, P-touch Template 2.0 (includes ZPL2® emulation), ESC/P |
Printing
| Maximum Print Speed | 152mm/sec |
| One Dimensional Barcode Symbology | CODABAR(NW7), Code128, Code39, Code93, EAN13(JAN13), EAN8(JAN8), GS1 DataBar (RSS), GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), GS1-128(UCC/EAN-128), ITF(I-2/5), MSI, POSTNET, UPC-A, UPC-E, UPC/EAN EXTENSION |
| Two Dimensional Barcode Symbology | QR Code, MaxiCode, PDF417, DataMatrix, Aztec |
| Maximum Print Lenght | 1000mm |
| Printing Maximum Print Speed | 152mm/sec |
| Printing Resident Fonts | Letter Gothic Bold, Gothic, Brougham, Brussels, Helsinki, San Diego, Letter Gothic Regular |
| Resolution (dpi) | 300 |
| Printing Maximum Roll Diameter | 127mm |
| Printing Minimum Label Width | 19mm |
| Supported commands | CPCL emulation, P-touch Template 2.0 (includes ZPL2® emulation), ESC/P |
Solutions
| SDK (Software Development Kit) | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
