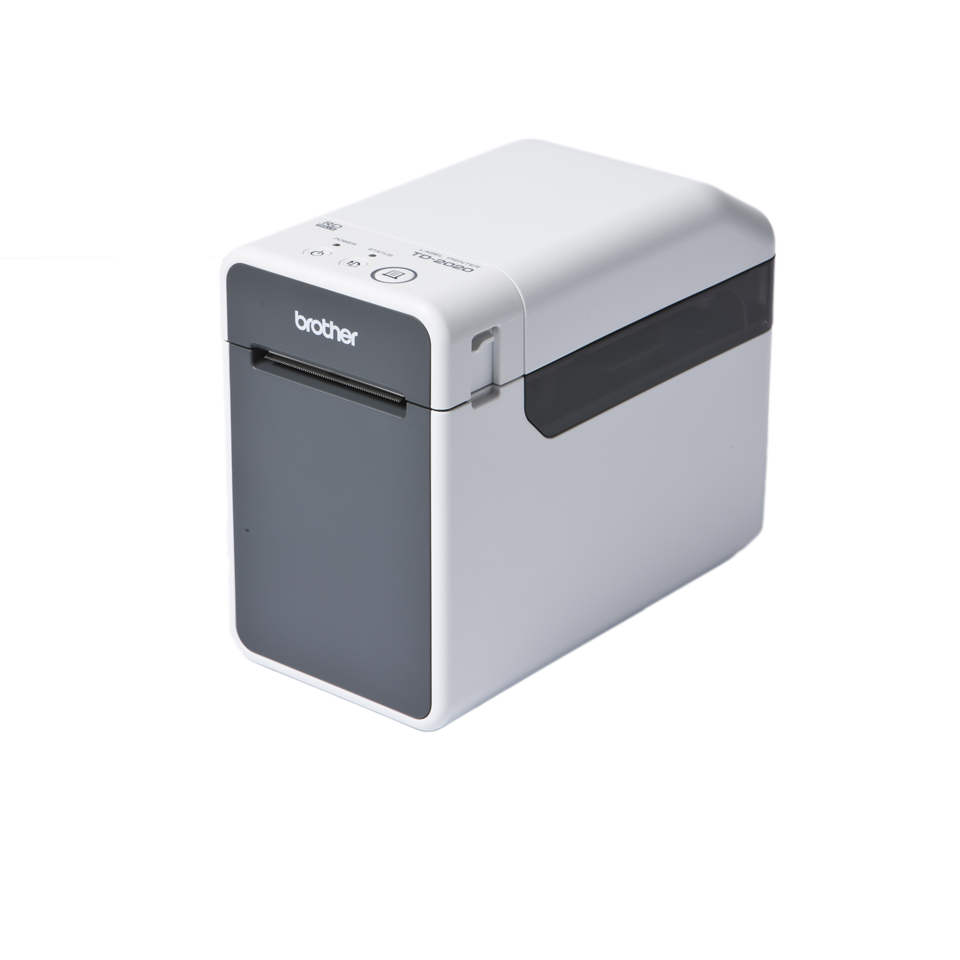

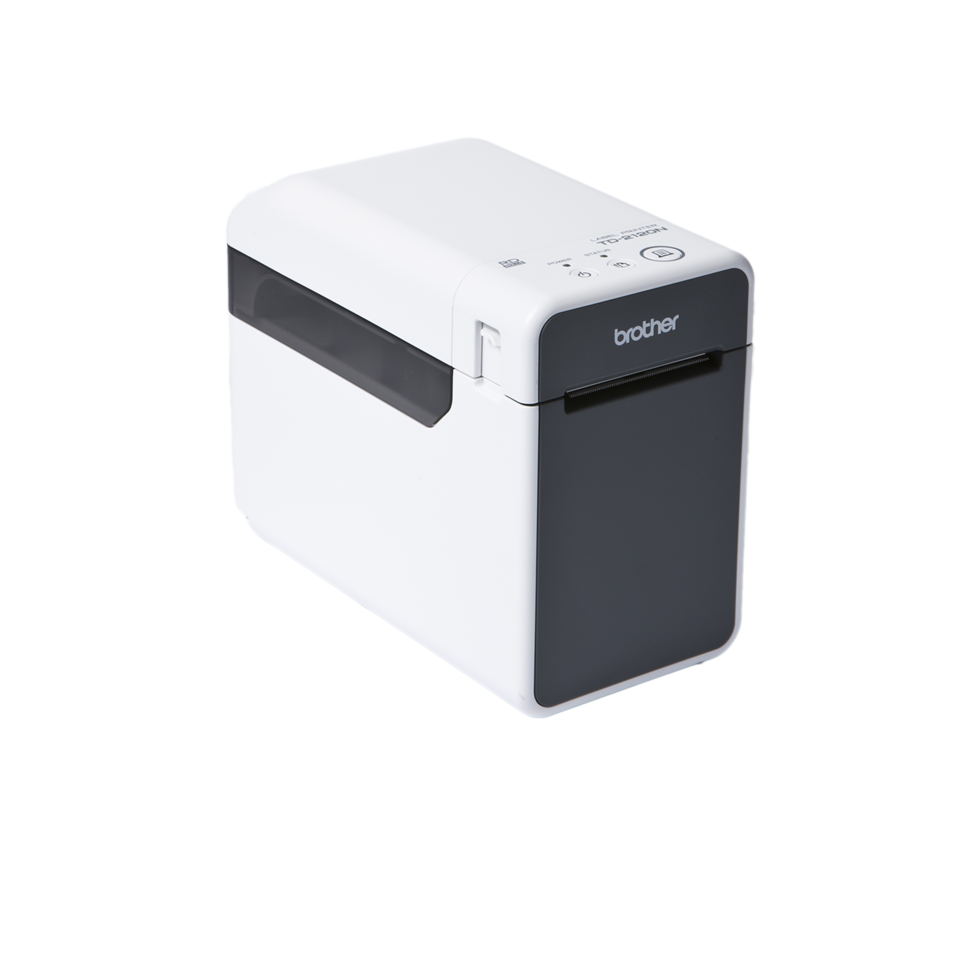

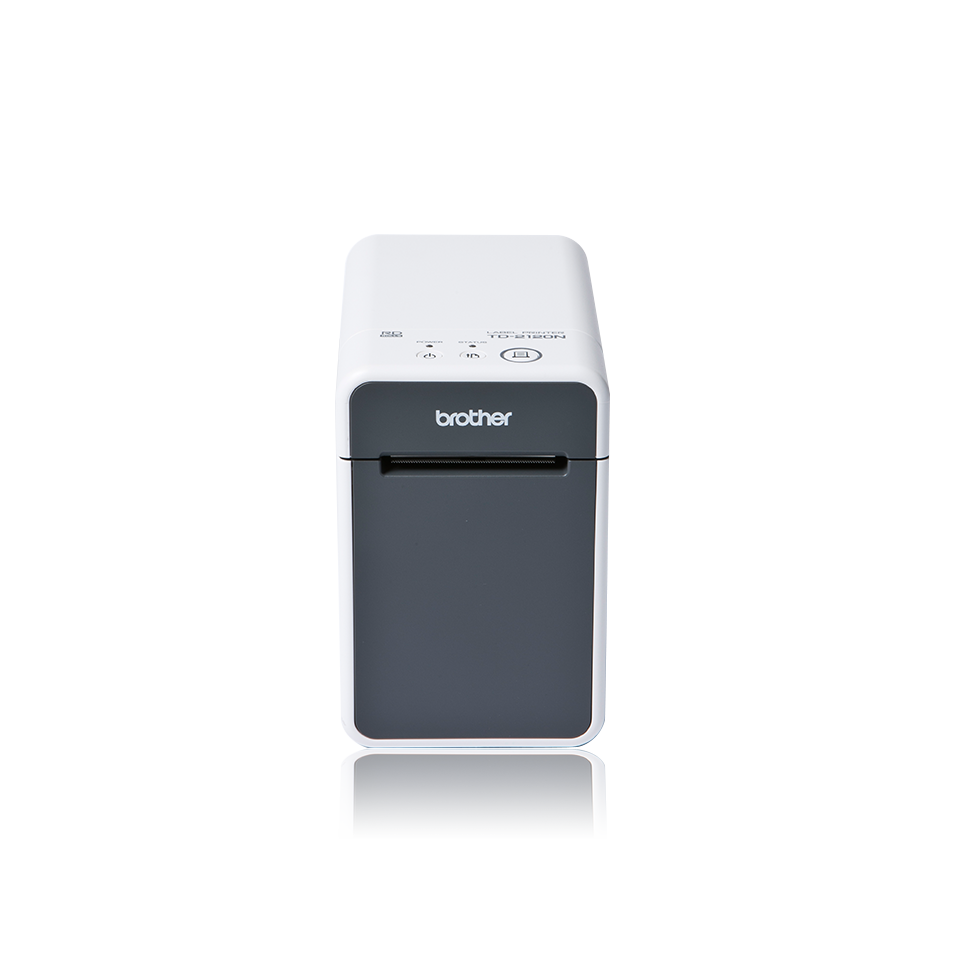

TD-2125N Desktop Label Printer
Versatile, compact desktop label printer. Print professional quality custom labels, wristbands and receipts up to 63mm in width at 152mm/sec.Product Details
High quality 203dpi print resolution.
- Free 3 year return to base warranty. Advanced exchange service up to five years available to purchase.
USB & serial connectivity.
Up to 152mm/second print speed.
- Print from a PC via USB or add on optional touch panel display (PA-TDU-001) for stand-alone printing.
- ZPL II printer language emulation
Product Overview
The TD-2125N is the perfect label printer for hospitality, warehousing, manufacturing and retail, where you need to be able to print high-quality receipts, labels or wristbands at your desk or on the move.
Ideal for printing stock rotation labels, pre-packaged food ingredients labels, barcode labels, specimen, pathology and phlebotomy labels and shelf edge labels.
A compact machine with the speed, features and media capacity of a desktop printer, the TD-2125N allows you to print professional quality custom labels, wristbands or receipts at 203dpi, wherever you are in the workplace.
Printing from your existing systems is simple thanks to our range of software developer kits and easy integration.
The flexible TD-2125N can accommodate rolls of up to 5” in diameter, meaning less time wasted reloading media, plus there’s a choice of optional extras that ensure it’s perfectly suited to your business needs.
Specifications
General
| Technology | Direct thermal |
| Buttons | Power , Feed |
| Memory capacity | RAM, FLASH, 64MB, 256MB |
Connectivity
| Serial | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
Connectivity
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile), GATT (Bluetooth Low Energy) |
| Serial | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
Dimensions and weights
| Dimensions | 110mm (W) x 215mm (D) x 172mm (H) |
| Weight | 1.33 |
In the box
| In the box | Printer, AC adaptor, AC Power supply cord, USB Cable, Quick Setup Guide (QSG) |
Operating systems & software
| Supported Operating Systems | Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), For the full list of compatible operating systems visit support.brother.com, Linux |
Printing
| Maximum Print Speed | 152mm/sec |
| Maximum Print Length | 1000mm |
| Resolution | 203 |
| Supported commands | CPCL emulation, P-touch Template 2.0 (includes ZPL2® emulation), ESC/P |
Printing
| Maximum Print Speed | 152mm/sec |
| One Dimensional Barcode Symbology | CODABAR(NW7), Code128, Code39, Code93, EAN13(JAN13), EAN8(JAN8), GS1 DataBar (RSS), GS1 Databar(Omnidirectional/Truncated/Stacked/Stacked Omnidirectional/Limited/Expanded/Expanded Stacked), GS1-128(UCC/EAN-128), ITF(I-2/5), MSI, POSTNET, UPC-A, UPC-E, UPC/EAN EXTENSION |
| Two Dimensional Barcode Symbology | QR Code, MaxiCode, PDF417, DataMatrix, Aztec |
| Maximum Print Lenght | 1000mm |
| Printing Maximum Print Speed | 152mm/sec |
| Printing Resident Fonts | Letter Gothic Bold, Gothic, Brougham, Brussels, Helsinki, San Diego, Letter Gothic Regular |
| Resolution (dpi) | 203 |
| Printing Maximum Roll Diameter | 127mm |
| Printing Minimum Label Width | 19mm |
| Supported commands | CPCL emulation, P-touch Template 2.0 (includes ZPL2® emulation), ESC/P |
Solutions
| SDK (Software Development Kit) | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Support & Drivers
Resources
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
