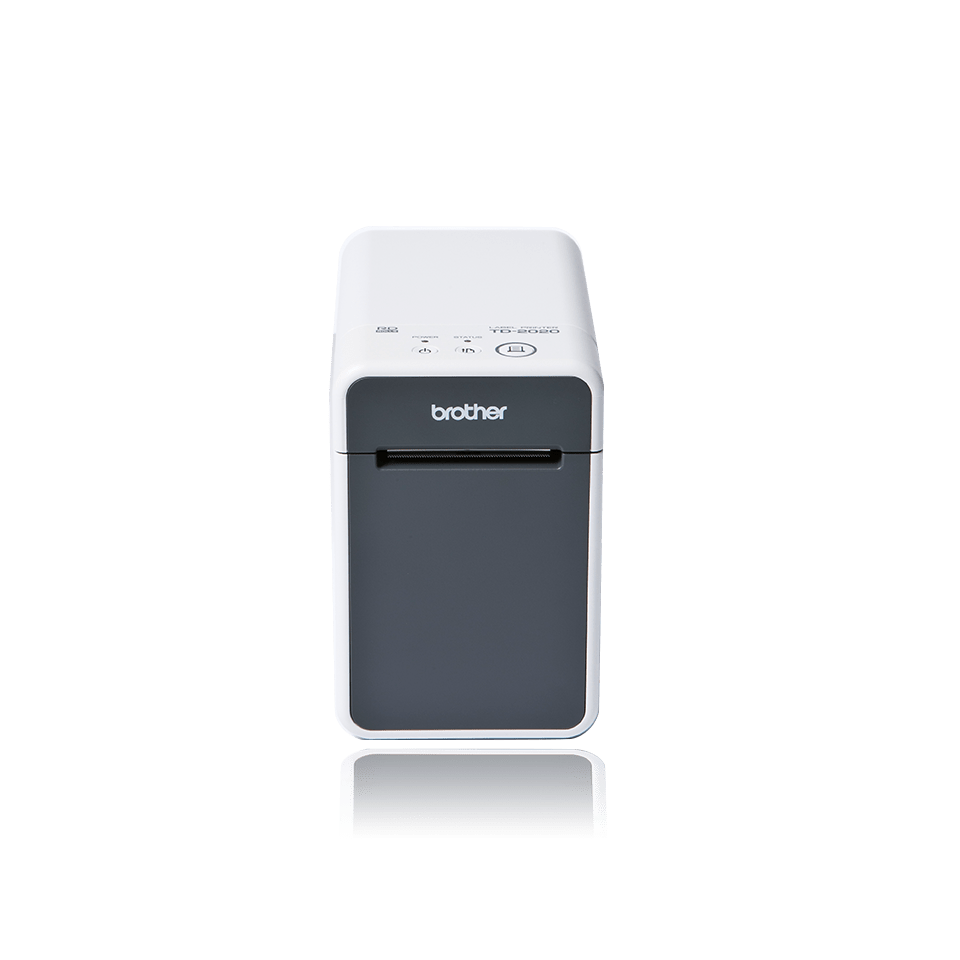

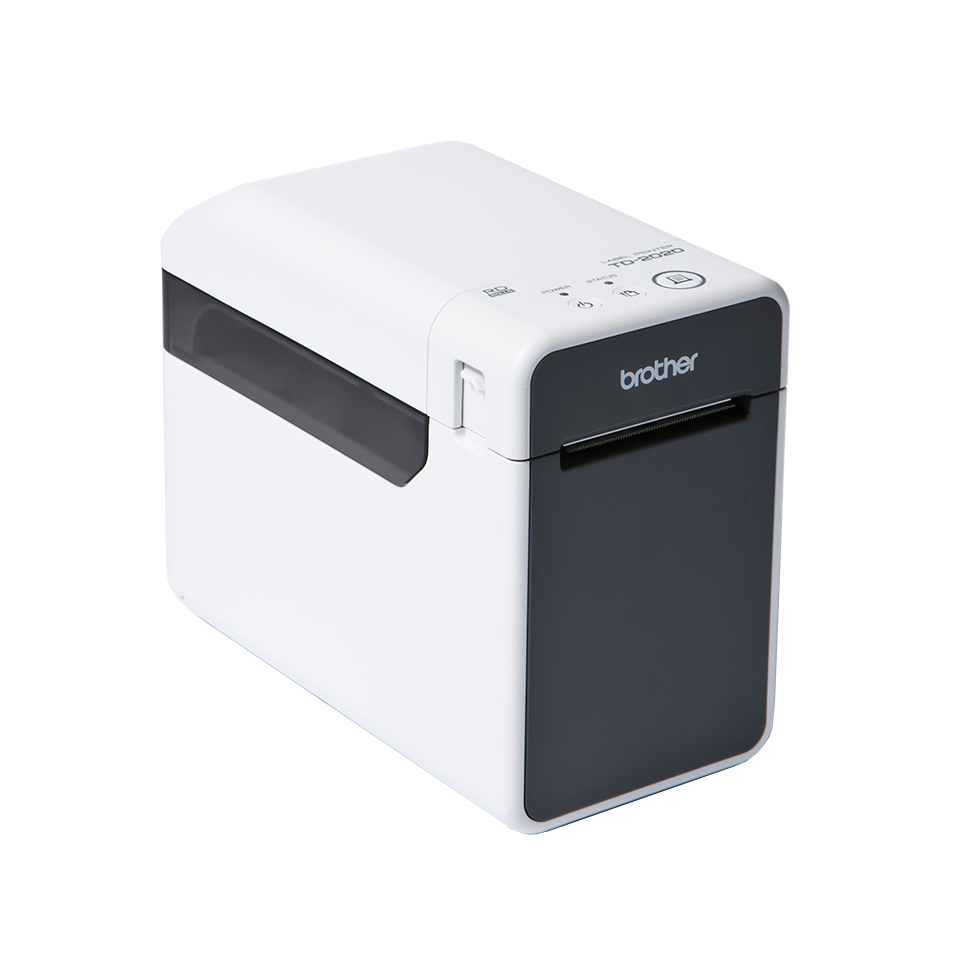

TD-2020A Desktop Label Printer
Designed for use in almost any retail or other work space, the TD-2020A is a compact and fast 56mm wide desktop thermal printer. Perfect for printing price, mark-down, product identification, returns and shelf-edge labels quickly at up to 152mm/second.Product Details
- USB & serial connectivity
- Up to 152mm/second print speed
- High quality 203dpi print resolution
256MB RAM, 64MB Flash
- ZPL II printer language emulation
- P-touch Editor 5 software - works on Windows
Product Overview
Increasing productivity and reducing costs are priorities in any workplace. When it comes to label printing, the TD-2020A combines proven desktop printer performance with new levels of efficiency to help you do more for less.
Specifications
General
| Technology | Direct thermal |
| Buttons | Power , Feed, Print |
| Memory capacity | RAM, FLASH, 64MB, 256MB |
Connectivity
| Serial | Yes (Requires optional cable) |
| USB interface | USB 2.0 Full Speed |
Connectivity
| Serial | Yes (Requires optional cable) |
| USB interface | USB 2.0 Full Speed |
Dimensions and weights
| Dimensions | 110mm (W) x 215mm (D) x 172mm (H) |
| Weight | 1.32 |
In the box
| In the box | Quick Setup Guide (QSG), Printer, AC adaptor, AC Power supply cord, USB Cable |
Operating systems & software
| Supported Operating Systems | Windows (Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), For the full list of compatible operating systems visit support.brother.com |
Printing
| Maximum Print Speed | 6 ips |
| Maximum Print Length | 1000mm |
| Resolution | 203 |
| Supported commands | P-touch Template 2.0 (includes ZPL2® emulation), ESC/P |
Printing
| Maximum Print Speed | 6 ips |
| One Dimensional Barcode Symbology | CODABAR(NW7), Code128, Code39, Code93, EAN13(JAN13), EAN8(JAN8), GS1-128(UCC/EAN-128), ITF(I-2/5), MSI, POSTNET, UPC-A, UPC-E |
| Two Dimensional Barcode Symbology | DataMatrix, Micro PDF417, MaxiCode, QR Code, Aztec |
| Maximum Print Lenght | 1000mm |
| Printing Maximum Print Speed | 6 ips |
| Resolution (dpi) | 203 |
| Supported commands | P-touch Template 2.0 (includes ZPL2® emulation), ESC/P |
Solutions
| SDK (Software Development Kit) | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
