Product Details

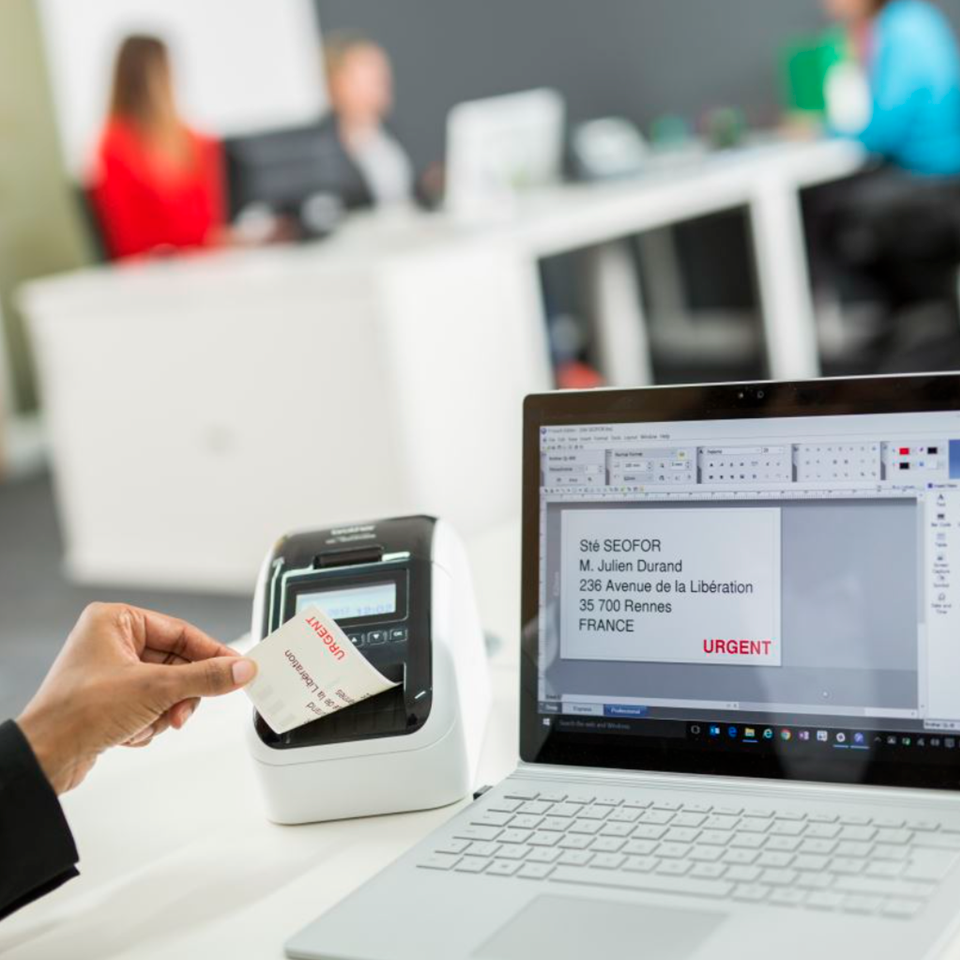

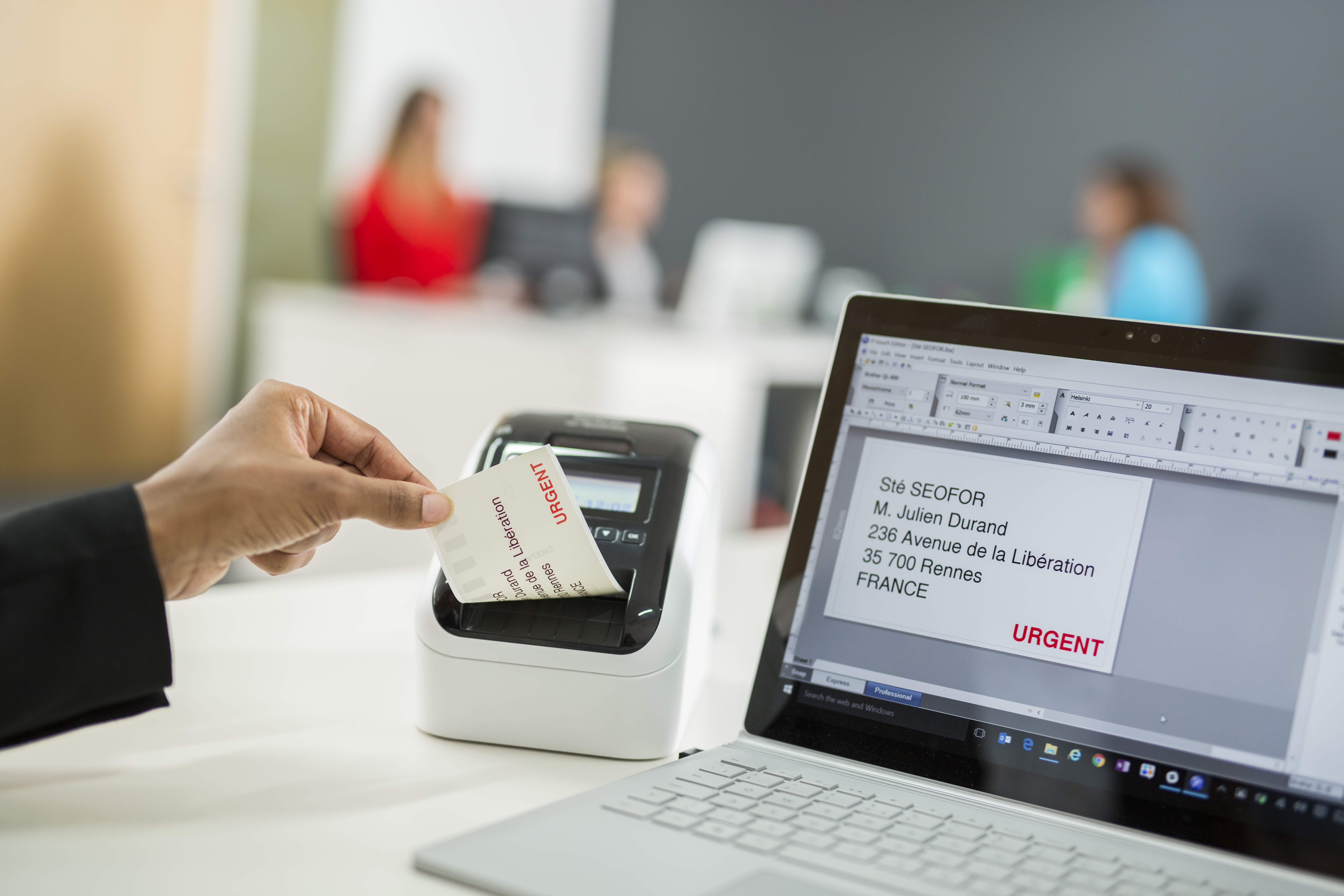

Design and print badges using Brother P-touch Editor on your PC or Mac

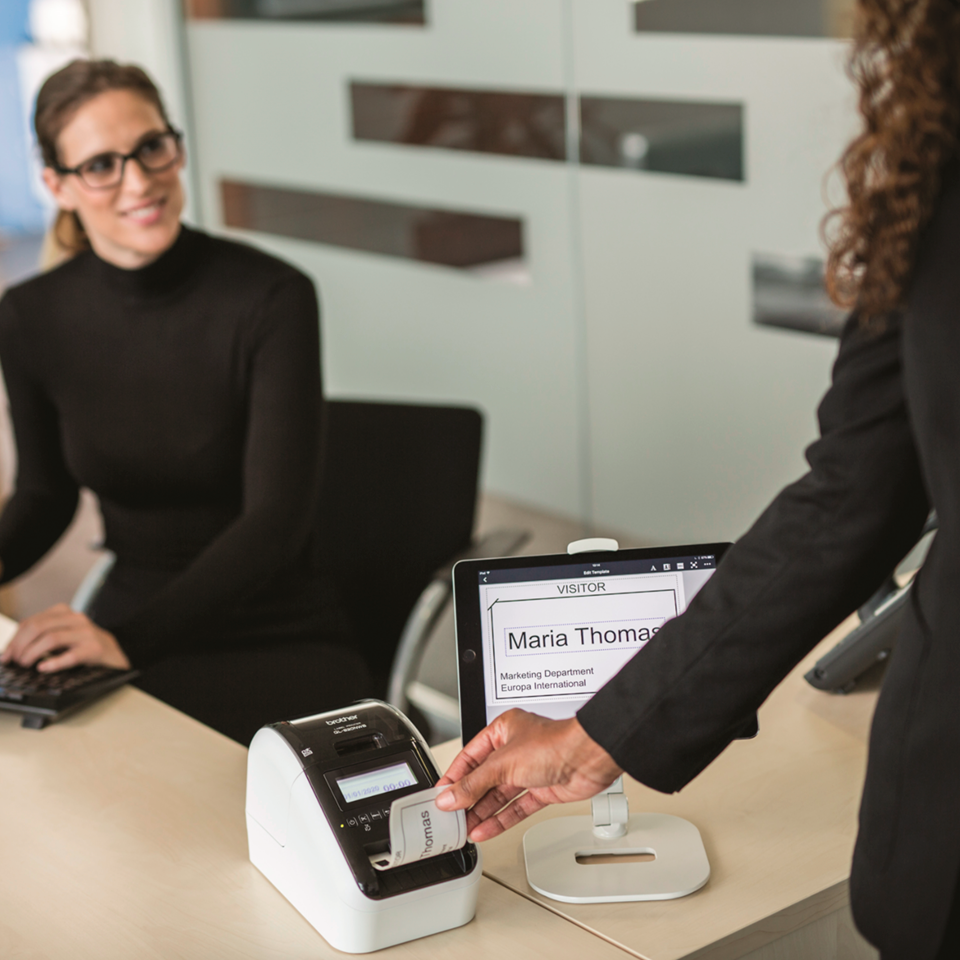

Alternatively use the iPrint&Label app on your tablet to print your visitor passes
Can also be used with compatible third party visitor and event management apps and software
USB, Ethernet, Wi-Fi and Bluetooth connectivity
Adhesive label and non-adhesive card badge rolls available
Optional rechargeable Li-ion battery base for use away from power sources

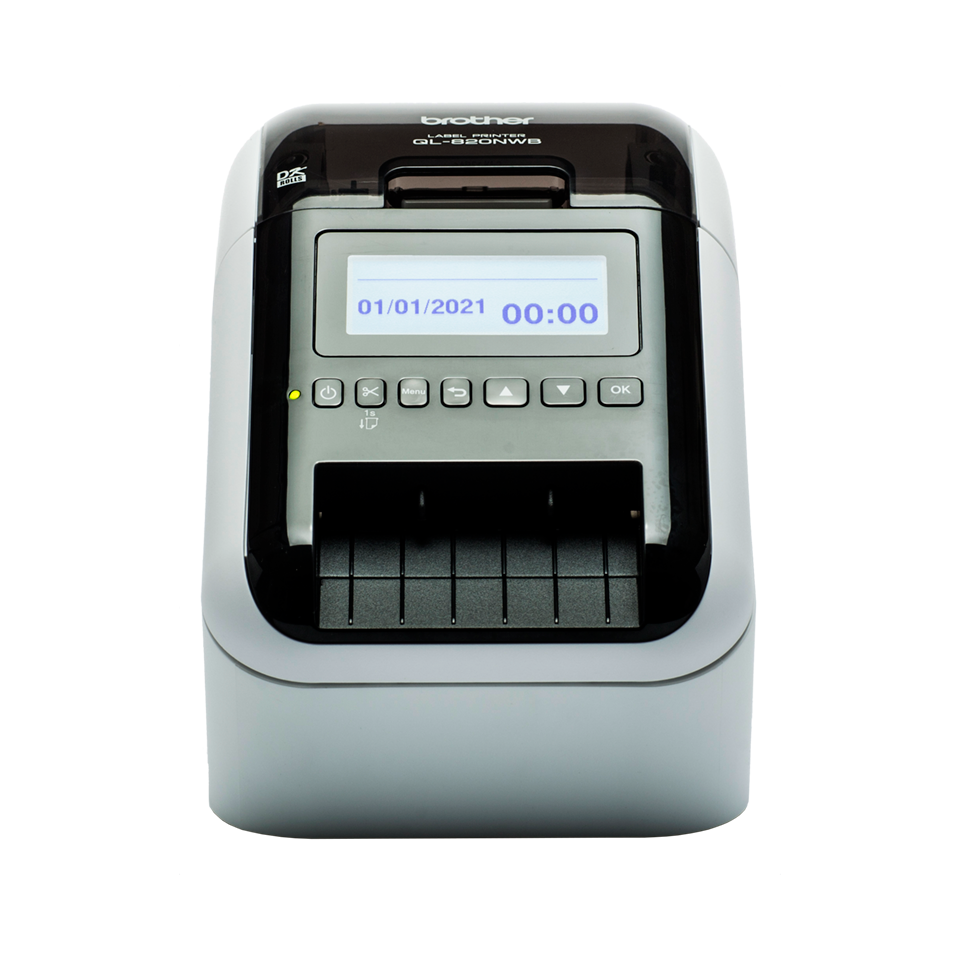

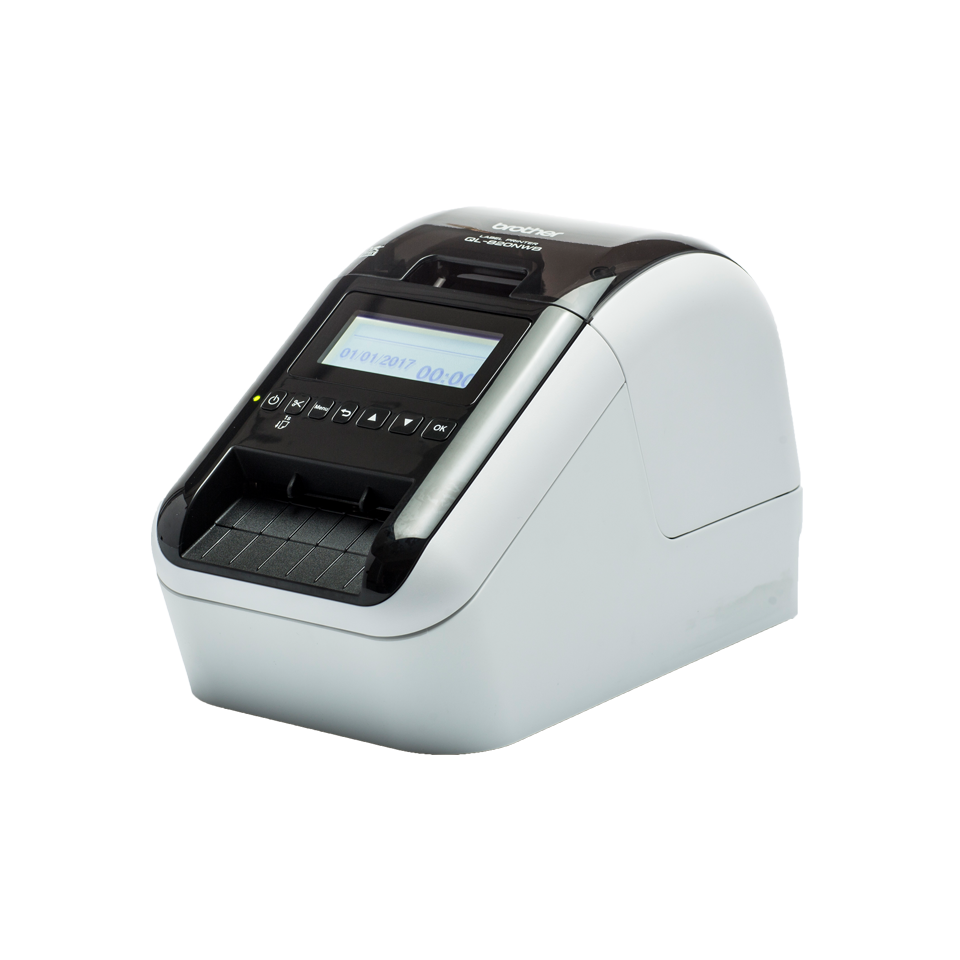

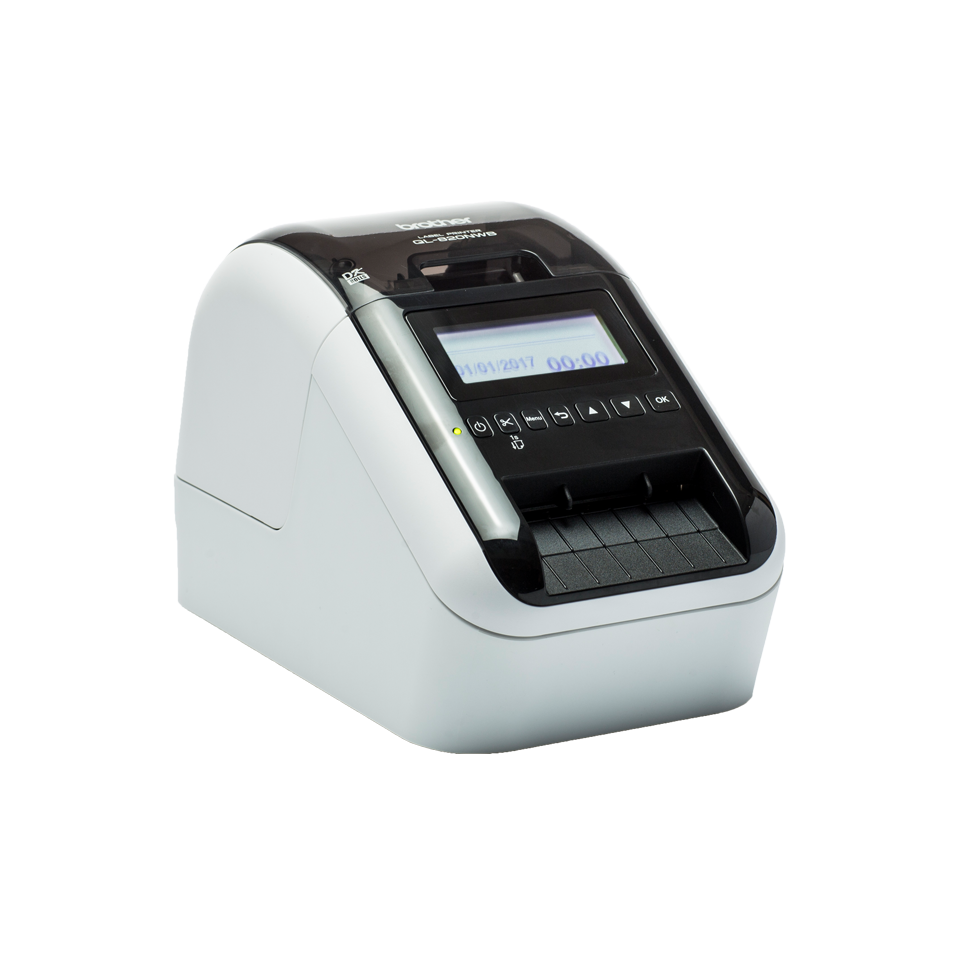

Product Overview
Print visitor and event badges from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth and the free Brother badge printing software and apps. Includes 3 non-adhesive card rolls to print around 1,000 badges.
Can also be used with professional visitor management apps and software from other companies that offer compatibility for this model of badge printer.
Independent Software Vendors can easily incorporate support for this printer into their own apps and solutions by accessing Brother's various developer resources.
Specifications
General
| Machine Type | PC Connectable, Desktop |
| Database upload from PC | Yes |
| Housing colour | Glossy black and white |
| Image upload from PC | Yes |
| Memory Locations | 255 |
| Technology | Direct thermal |
| Memory Capacity | 6MB |
| Template upload from PC | Yes |
Connectivity
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
Connectivity
| Airprint | Yes |
| Bluetooth | Yes (Ver 5.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile) |
| WiFi Direct | Yes |
| MFi | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
General Supplies
| Rolls | DK Die-cut Labels, DK Continuous Length Tape |
Dimensions and weights
| Dimensions | 125mm (W) x 234mm (D) x 145mm (H) |
| Weight | 1.16 |
In the box
| In the box | User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, AC Adaptor, AC power cord, 3 x DK-N55224 non-adhesive card rolls (30.48m each) |
Operating systems & software
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022 |
| Supported Operating Systems | For the full list of compatible operating systems visit support.brother.com |
Printing
| Bitmap Fonts | Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego |
| Black And Red Printing Capability (25) | Yes |
| One Dimensional Barcode Symbologies | CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
| Printing Maximum Label Width | 62mm |
| Printing Maximum Print Width | 60.96mm |
| Printing Outline Vector Fonts | Brussels, Helsinki, Letter Gothic |
| Printing Resolution | 300 x 300 (standard), 300 x 600 (high resolution mode) |
| Standard Print Speed (labels per minute) (24) | 110 labels per minute |
| Standard Print Speed (mm per second) (24) | 176mm per second |
| Two Dimensional Barcode Symbologies | PDF417(Standard, Truncate, Micro), QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION |
Editor label design
| Database File Compatibility | Microsoft Access, Microsoft Excel |
| Microsoft Office AddIn | Excel, Outlook, Word |
| Screen Capture | Yes |
| Fonts | All installed truetype fonts |
| Frames | 126 |
| Software Date And Time Stamp | Date and time |
| Software Label Orientations | Horizontal, Vertical |
| Software Sequential Numbering | Yes |
| Software Text Alignment | Centre, Left, Justify, Right |
| Software Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround |
| Software Vertical Print | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Warranty
| Warranty | 1 year back to base warranty (upon registration) |
Caveats
- [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
- [25] Requires DK-22251 continuous roll to print in black and red
