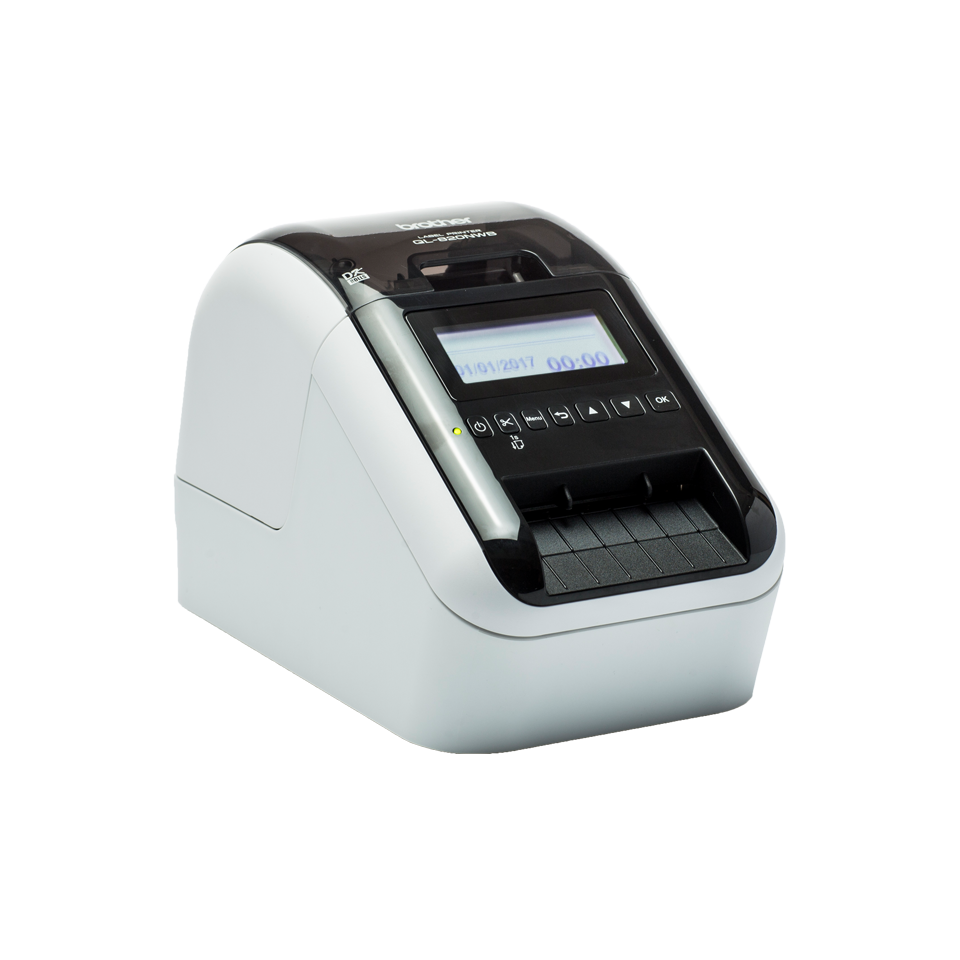

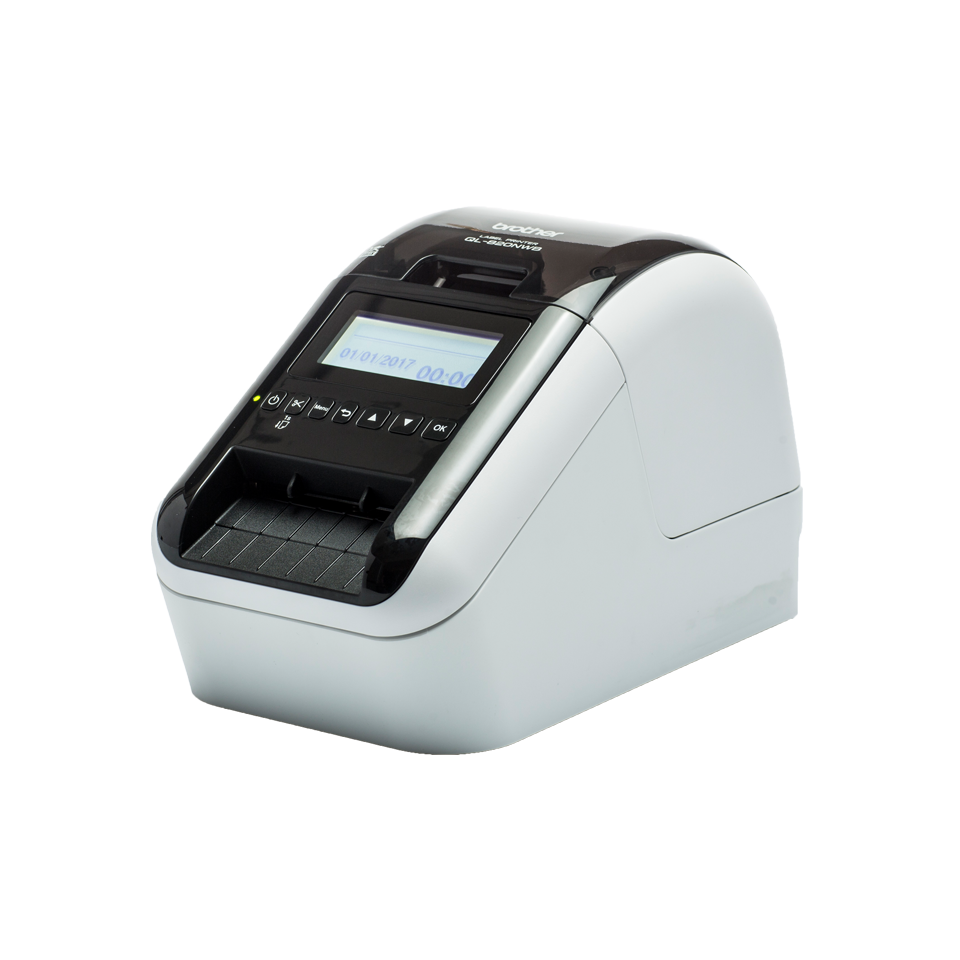

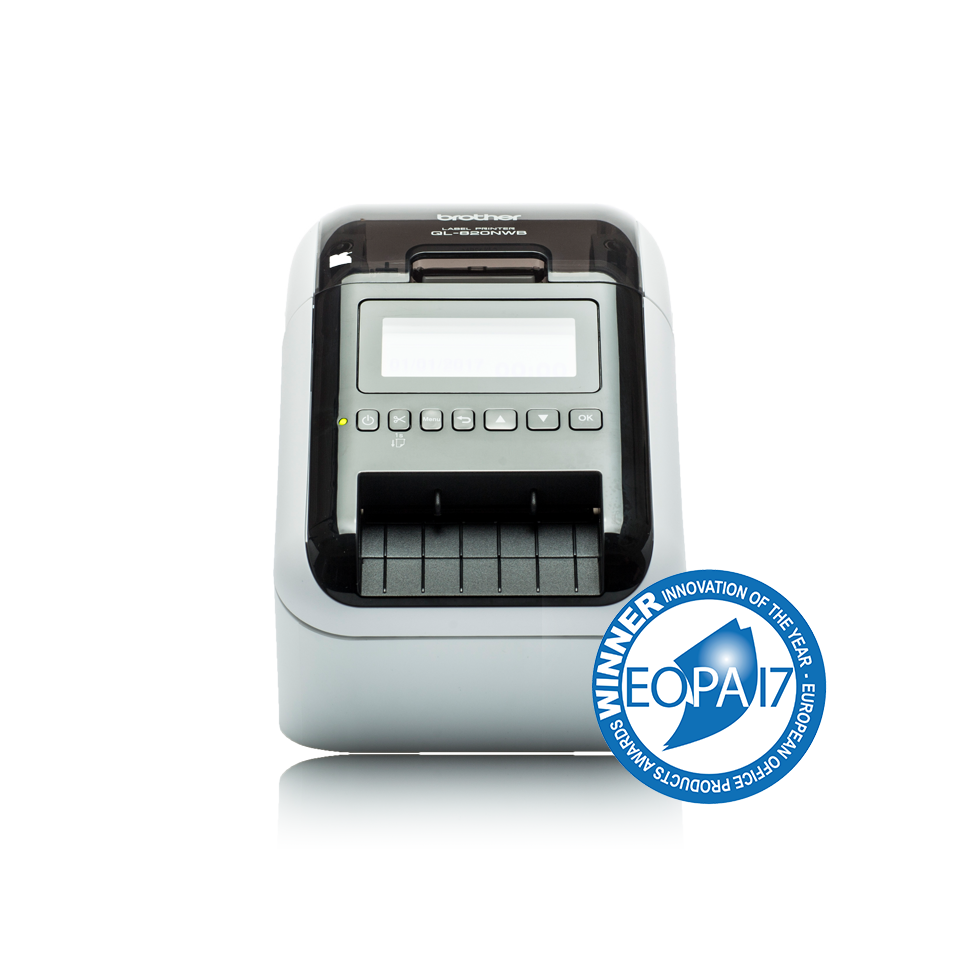

QL-820NWBc network label printer
Label printer with a wide range of integrated connectivity options, including Wi-Fi, wired Ethernet, Bluetooth and AirPrint. The large back-lit LCD display enables easy setup and operation.Product Details
USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint
Print labels up to 62mm wide from PC, smartphone or tablet. Or print labels stored in memory using the integrated control panel
Large backlit LCD display for easy set-up and operation
Print in black and red without needing ink or toner
Built-in cutter to create your own length labels
Optional rechargeable Li-ion battery base for mobile labelling applications
Product Overview
Print labels from your PC, Mac, smartphone or tablet using USB, Ethernet, Wi-Fi and Bluetooth. Or alternatively use it in standalone mode by selecting and printing labels previously designed and uploaded to the memory, using the integrated backlit LCD display.
When used with special rolls, you can print labels that can contain both black and red print without needing any ink.
And when you can print custom sized labels up to one metre in length using the built-in cutter and continuous rolls, you can see why this is the most advanced label printer available.
Specifications
General
| Machine Type | PC Connectable, Desktop |
| Database upload from PC | Yes |
| Housing colour | Glossy black and white |
| Image upload from PC | Yes |
| Memory Locations | 255 |
| Technology | Direct thermal |
| Memory Capacity | 6MB |
| Template upload from PC | Yes |
Connectivity
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
Connectivity
| Airprint | Yes |
| Bluetooth | Yes (Ver 5.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile) |
| WiFi Direct | Yes |
| MFi | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
General Supplies
| Rolls | DK Die-cut Labels, DK Continuous Length Tape |
Dimensions and weights
| Dimensions | 125mm (W) x 234mm (D) x 145mm (H) |
| Weight | 1.16 |
In the box
| In the box | User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, AC Adaptor, AC power cord, Standard address die-cut labels (100 labels, 29mm x 90mm), 62mm 2-colour print continuous label roll (5m) |
Operating systems & software
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022 |
| Supported Operating Systems | For the full list of compatible operating systems visit support.brother.com |
Printing
| Bitmap Fonts | Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego |
| Black And Red Printing Capability (25) | Yes |
| One Dimensional Barcode Symbologies | CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
| Printing Maximum Label Width | 62mm |
| Printing Maximum Print Width | 60.96mm |
| Printing Outline Vector Fonts | Brussels, Helsinki, Letter Gothic |
| Printing Resolution | 300 x 300 (standard), 300 x 600 (high resolution mode) |
| Standard Print Speed (labels per minute) (24) | 110 labels per minute |
| Standard Print Speed (mm per second) (24) | 176mm per second |
| Two Dimensional Barcode Symbologies | PDF417(Standard, Truncate, Micro), QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION |
Editor label design
| Database File Compatibility | Microsoft Access, Microsoft Excel |
| Microsoft Office AddIn | Excel, Outlook, Word |
| Screen Capture | Yes |
| Fonts | All installed truetype fonts |
| Frames | 126 |
| Software Date And Time Stamp | Date and time |
| Software Label Orientations | Horizontal, Vertical |
| Software Sequential Numbering | Yes |
| Software Text Alignment | Centre, Left, Justify, Right |
| Software Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround |
| Software Vertical Print | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Warranty
| Warranty | 1 year back to base warranty (upon registration) |
Caveats
- [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
- [25] Requires DK-22251 continuous roll to print in black and red
