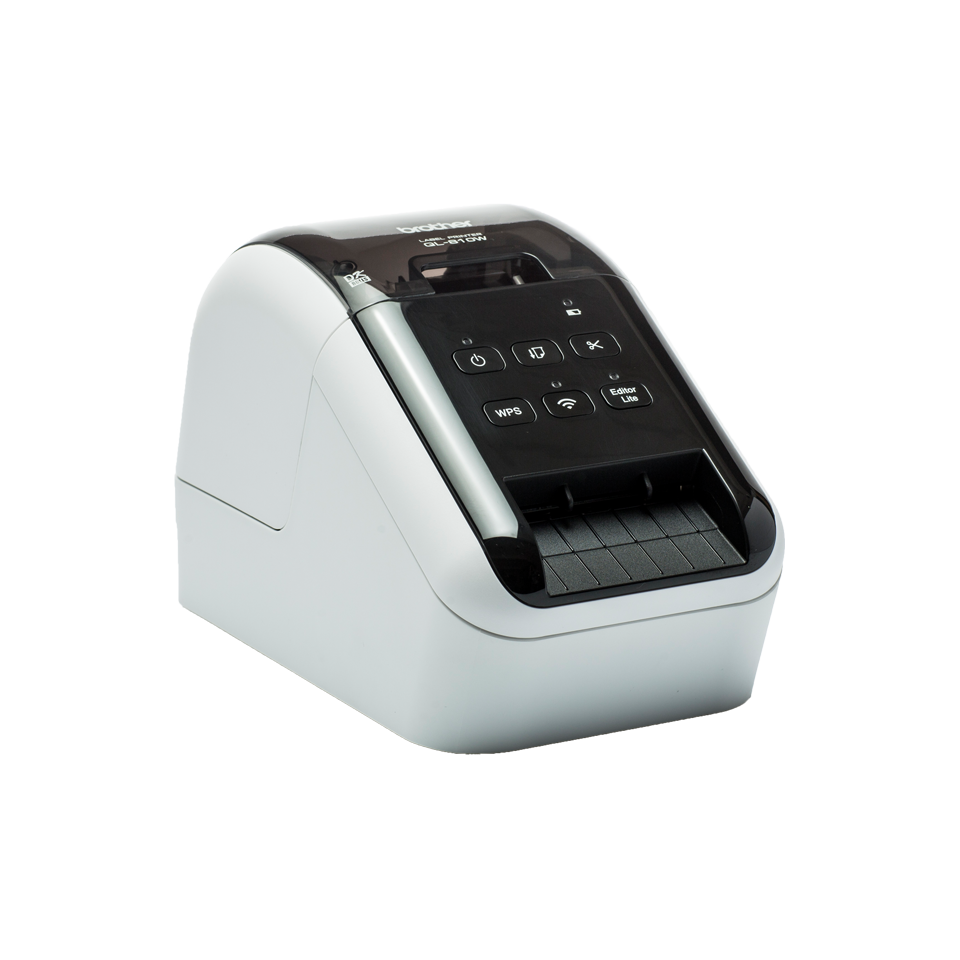

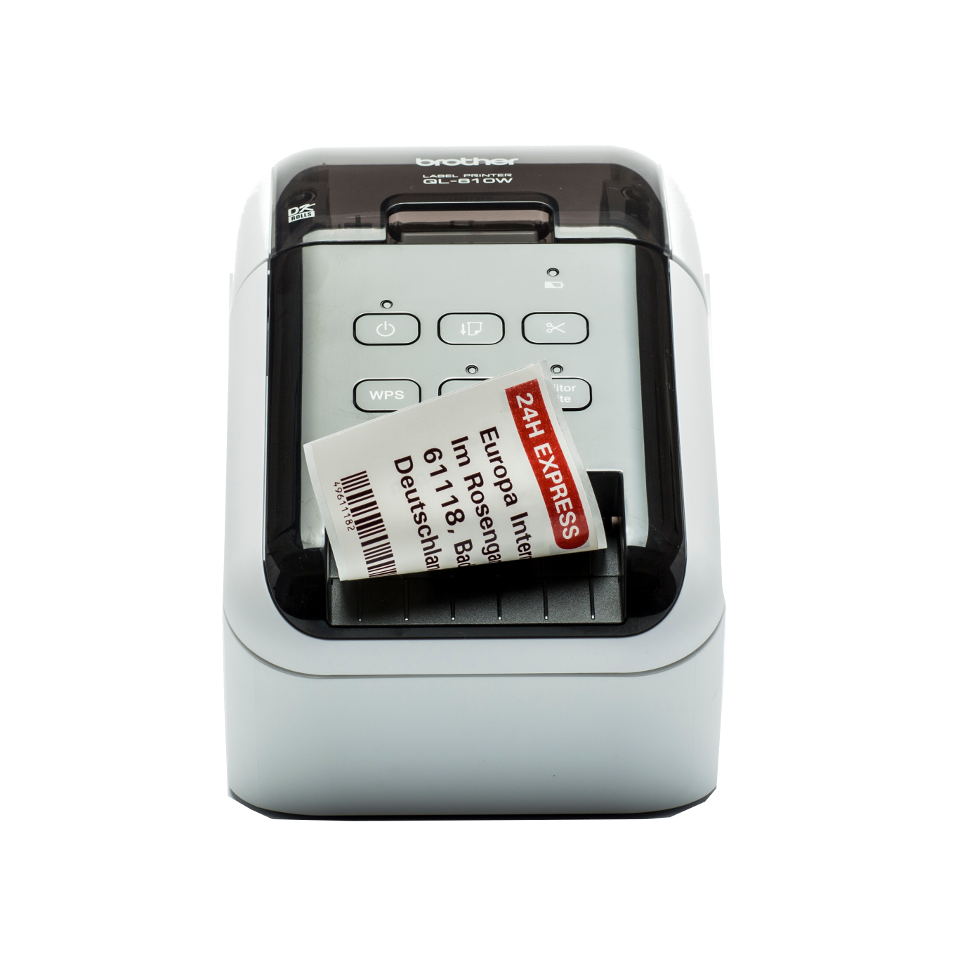

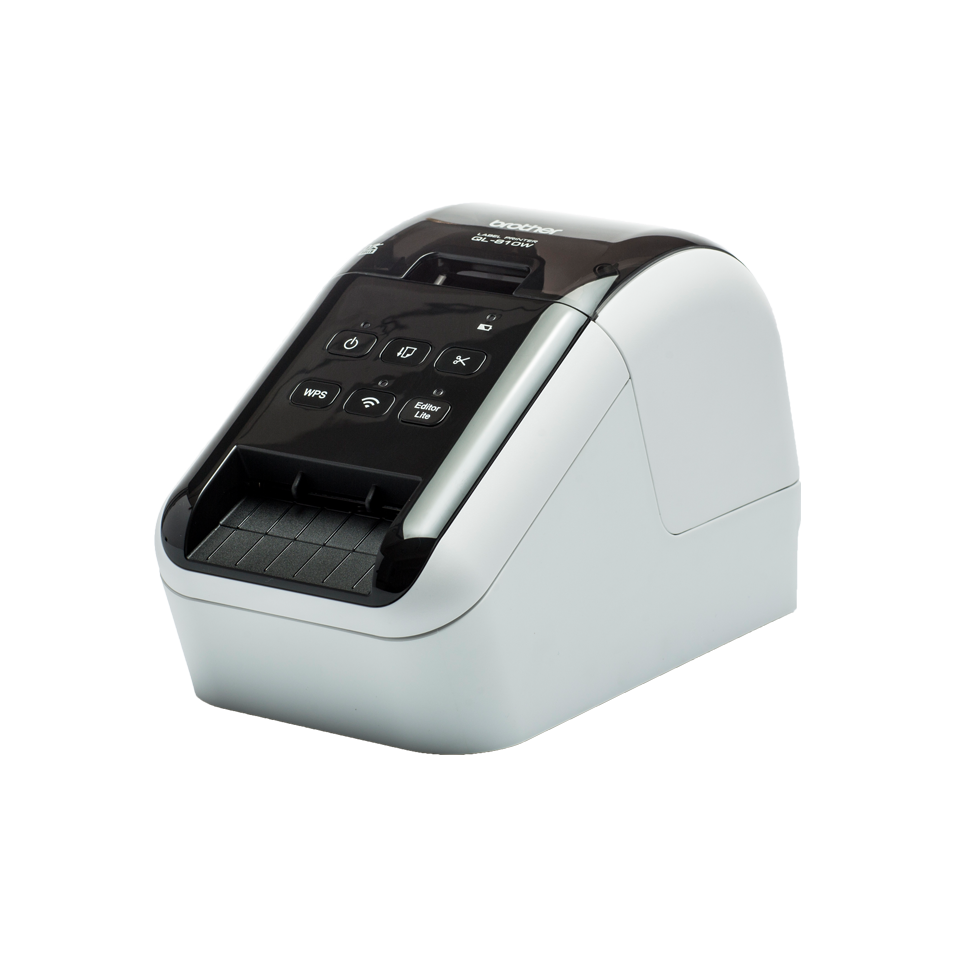

QL-810Wc wireless label printer
Label printer with USB, Wi-Fi and AirPrint. Prints both black and red text.Product Details
USB and Wi-Fi connectivity with AirPrint support
Print labels up to 62mm wide from PC, Mac, smartphone or tablet
Built-in label editing software doesn't need installing. Simply click to run
Print in black and red without needing ink or toner
Integrated cutter to create your own length labels
Optional rechargeable Li-ion battery base for mobile labelling applications
Product Overview

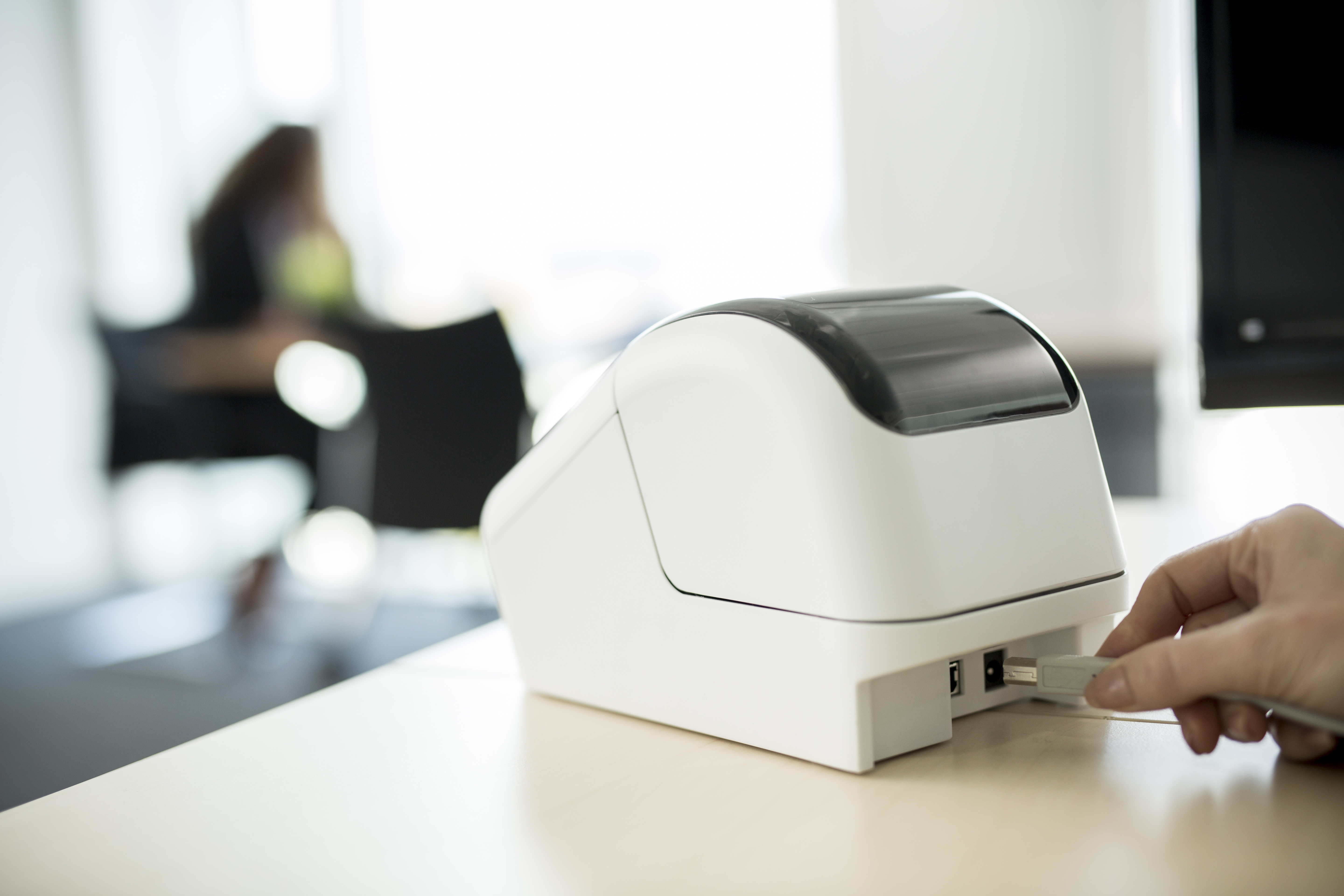

This high-speed label printer connects to your PC, Mac, smartphone or tablet using USB or Wi-Fi. The built-in P-touch Editor Lite software is so easy to use - simply connect the printer to your computer, click the icon to launch the software and design and print your labels.
Thanks to its advanced print mechanism and special label roll, you can also print labels that can contain both black and red colours without the need for ink or toner.
And when you discover you can print custom sized labels up to one metre in length using the integrated cutter and continuous label rolls, it's easy to understand why the QL-810Wc is the ideal choice for offices, workgroups, mail rooms and receptions.
Specifications
General
| Machine Type | PC Connectable, Desktop |
| Database upload from PC | Yes |
| Housing colour | Glossy black and white |
| Image upload from PC | Yes |
| Memory Locations | 255 |
| Technology | Direct thermal |
| Memory Capacity | 6MB |
Connectivity
| USB interface | USB 2.0 Full Speed |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
Connectivity
| Airprint | Yes |
| WiFi Direct | Yes |
| USB interface | USB 2.0 Full Speed |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
General Supplies
| Rolls | DK Die-cut Labels, DK Continuous Length Tape |
Dimensions and weights
| Dimensions | 125mm (W) x 234mm (D) x 145mm (H) |
| Weight | 1.12 |
In the box
| In the box | User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, AC power cord, Standard address die-cut labels (100 labels, 29mm x 90mm), 62mm 2-colour print continuous label roll (5m) |
Operating systems & software
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022 |
| Supported Operating Systems | For the full list of compatible operating systems visit support.brother.com |
Printing
| Bitmap Fonts | Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego |
| Black And Red Printing Capability (25) | Yes |
| One Dimensional Barcode Symbologies | CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
| Printing Maximum Label Width | 62mm |
| Printing Maximum Print Width | 60.96mm |
| Printing Outline Vector Fonts | Brussels, Helsinki, Letter Gothic |
| Printing Resolution | 300 x 300 (standard), 300 x 600 (high resolution mode) |
| Standard Print Speed (labels per minute) (24) | 110 labels per minute |
| Standard Print Speed (mm per second) (24) | 176mm per second |
| Two Dimensional Barcode Symbologies | QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION, PDF417 |
Editor label design
| Database File Compatibility | CSV, Microsoft Access, Microsoft Excel |
| Microsoft Office AddIn | Excel, Outlook, Word |
| Screen Capture | Yes |
| Fonts | All installed truetype fonts |
| Frames | 126 |
| Software Date And Time Stamp | Date and time |
| Software Label Orientations | Horizontal, Vertical |
| Software Sequential Numbering | Yes |
| Software Text Alignment | Centre, Left, Justify, Right |
| Software Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround |
| Software Vertical Print | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Caveats
- [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
- [25] Requires DK-22251 continuous roll to print in black and red
