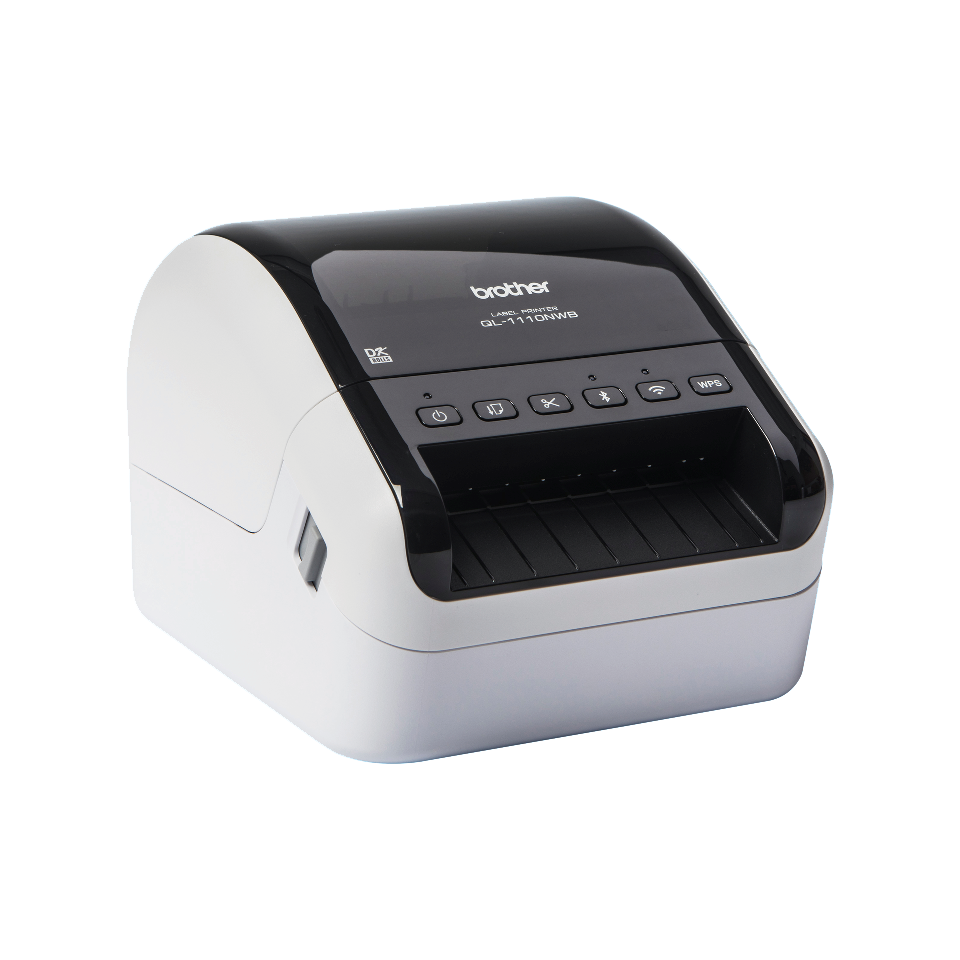

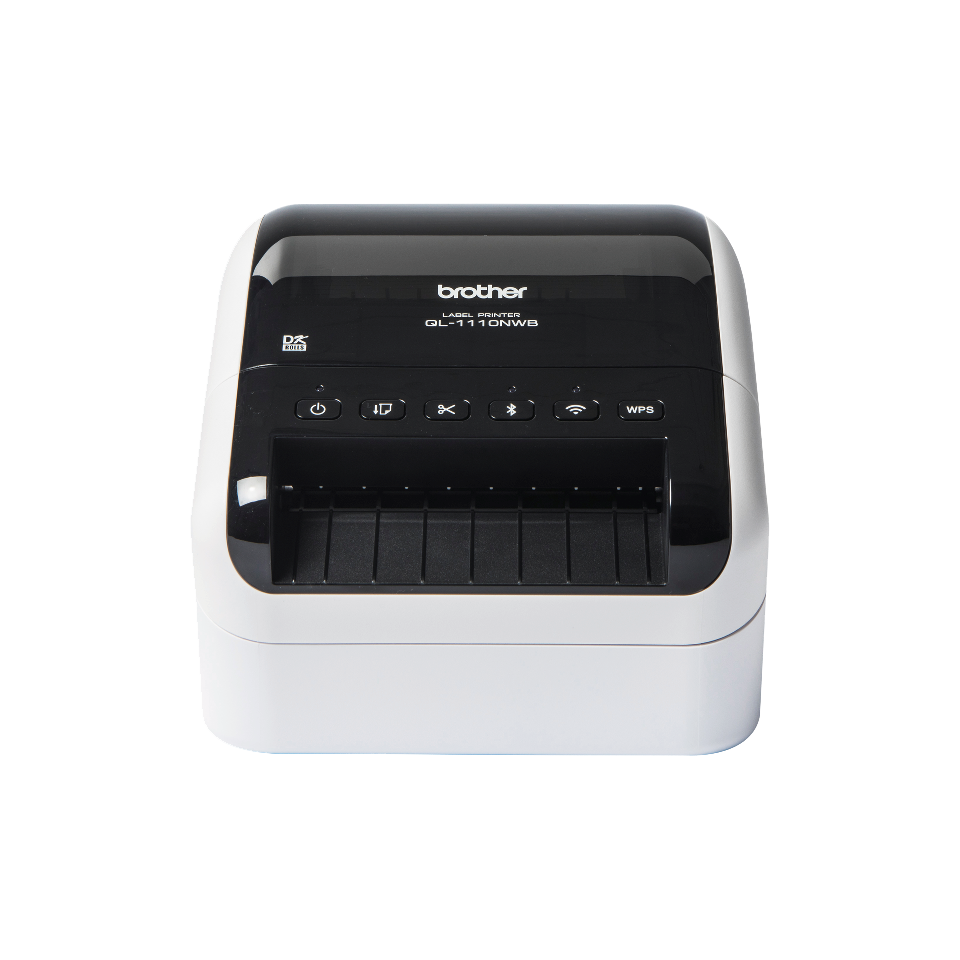

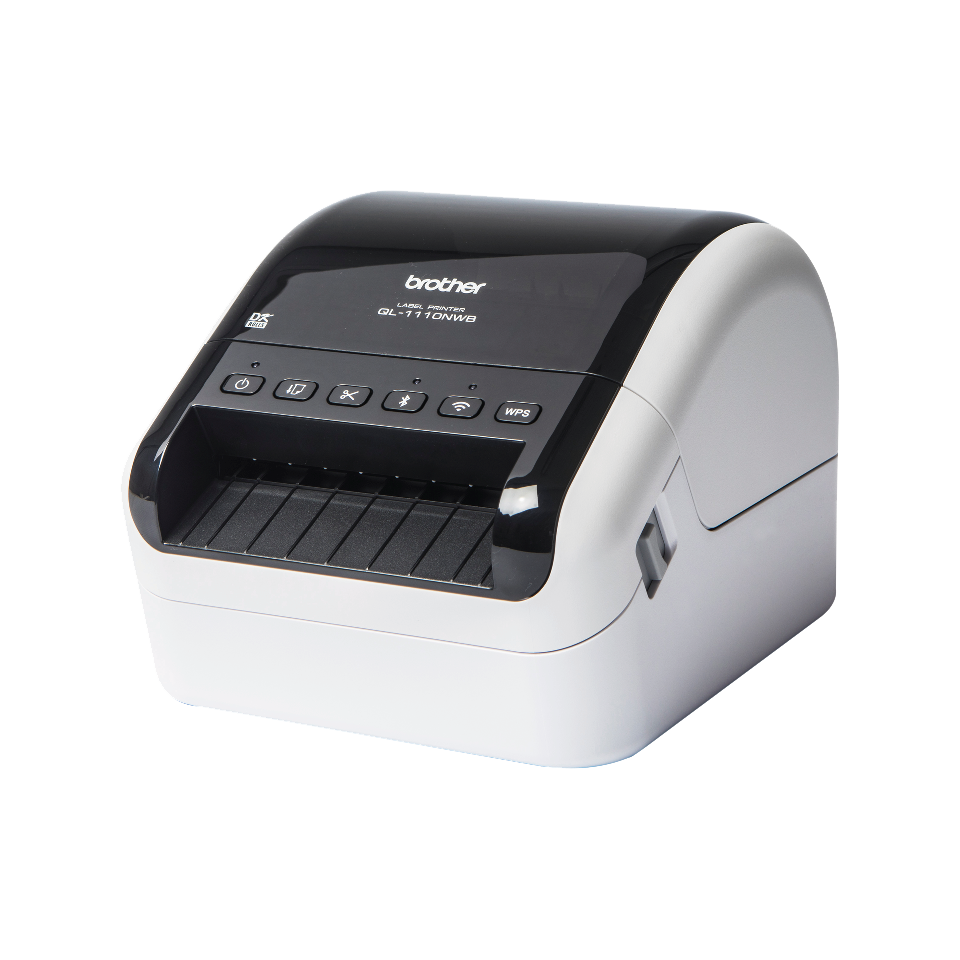

QL-1110NWBc wireless shipping and barcode label printer
The fully featured warehouse and mail room label printer for labelling boxes and parcels. Several wired and wireless connectivity options and a true 4 inch (101.6mm) print width offers maximum flexibility.Product Details
USB, Ethernet, Wi-Fi and Bluetooth connectivity with support for MFi and AirPrint
Print labels up to 103.6mm wide from PC, Mac, smartphone or tablet
Store up to 99 label templates in the printer's memory
Supports printing of FBA (Fulfilled By Amazon) labels through special PDF crop print function
Built-in cutter to create your own length labels using continuous rolls
Various SDK (Software Development Kits) available for Windows, iOS and Android devices
Product Overview
This wide format shipping label printer has a true 4 inch(101.6mm) print width - to offer maximum compatibility with various shipping label software packages.
Easily send your products to a Fulfilled By Amazon (FBA) warehouse using the special "PDF Crop Print". Simply print the PDF that contains the multiple barcode labels from your FBA account, and let the driver detect, extract and print each individual label to the QL-1110NWBc automatically.
With USB, Ethernet, Wi-Fi and Bluetooth, you can choose to print labels from your PC, Mac, smartphone or tablet, whichever is most convenient. Plus with Apple MFi certification and AirPrint, all your connectivity options are covered.
And with a range of SDK's (Software Development Kits) for Windows, iOS and Android, the QL-1110NWBc can be easily integrated into your own systems and software.
Specifications
General
| Machine Type | PC Connectable, Desktop |
| Database upload from PC | Yes |
| Housing colour | Glossy black and white |
| Image upload from PC | Yes |
| Memory Locations | 99 |
| Technology | Direct thermal |
| Template upload from PC | Yes |
Connectivity
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
Connectivity
| Airprint | Yes |
| Bluetooth | Yes (Ver 5.2) |
| Bluetooth Profiles | SPP (Serial Port Profile), OPP (Object Push Profile), HCRP (Hard Copy Cable Replacement Profile) |
| WiFi Direct | Yes |
| MFi | Yes |
| USB interface | USB 2.0 Full Speed |
| Wired network interface | 10/100 BASE-TX |
| Wireless network interface | IEEE802,11b/g/n (Infrastructure Mode) |
Dimensions and weights
| Dimensions | 170mm (W) x 222mm (D) x 151mm (H) |
| Weight | 1.73 |
In the box
| In the box | User Guide, Warranty Card, Label Printer, USB Cable, Quick Setup Guide, Power Supply Cord, 62mm black on white continuous paper label roll (8m), Large shipping die-cut labels (41 labels) |
Operating systems & software
| Windows | Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 10, Windows 8.1, Windows 11, Server 2022 |
| Supported Operating Systems | For the full list of compatible operating systems visit support.brother.com |
Printing
| Bitmap Fonts | Brougham, Brussels, Helsinki, Letter Gothic Bold, San Diego |
| One Dimensional Barcode Symbologies | CODE39, CODE128, UPC-A, UPC-E, EAN8, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), EAN13(JAN13), GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
| Printing Maximum Label Width | 103.6mm |
| Printing Maximum Print Length | 3000mm |
| Printing Maximum Print Width | 101.66mm |
| Printing Outline Vector Fonts | Brussels, Helsinki, Letter Gothic |
| Printing Resolution | 300 x 300 (standard) |
| Standard Print Speed (mm per second) (24) | 110mm per second |
| Two Dimensional Barcode Symbologies | PDF417(Standard, Truncate, Micro), QR Code (Model1, Model2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION, MSI, Aztec |
Editor label design
| Database File Compatibility | Microsoft Access, Microsoft Excel |
| Microsoft Office AddIn | Excel, Outlook, Word |
| Screen Capture | Yes |
| Fonts | All installed truetype fonts |
| Frames | 126 |
| Software Date And Time Stamp | Date and time |
| Software Label Orientations | Horizontal, Vertical |
| Software Sequential Numbering | Yes |
| Software Text Alignment | Centre, Left, Justify, Right |
| Software Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround |
| Software Vertical Print | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Caveats
- [24] Brother standard test environment. Using DK-11201 standard address labels and USB connection
