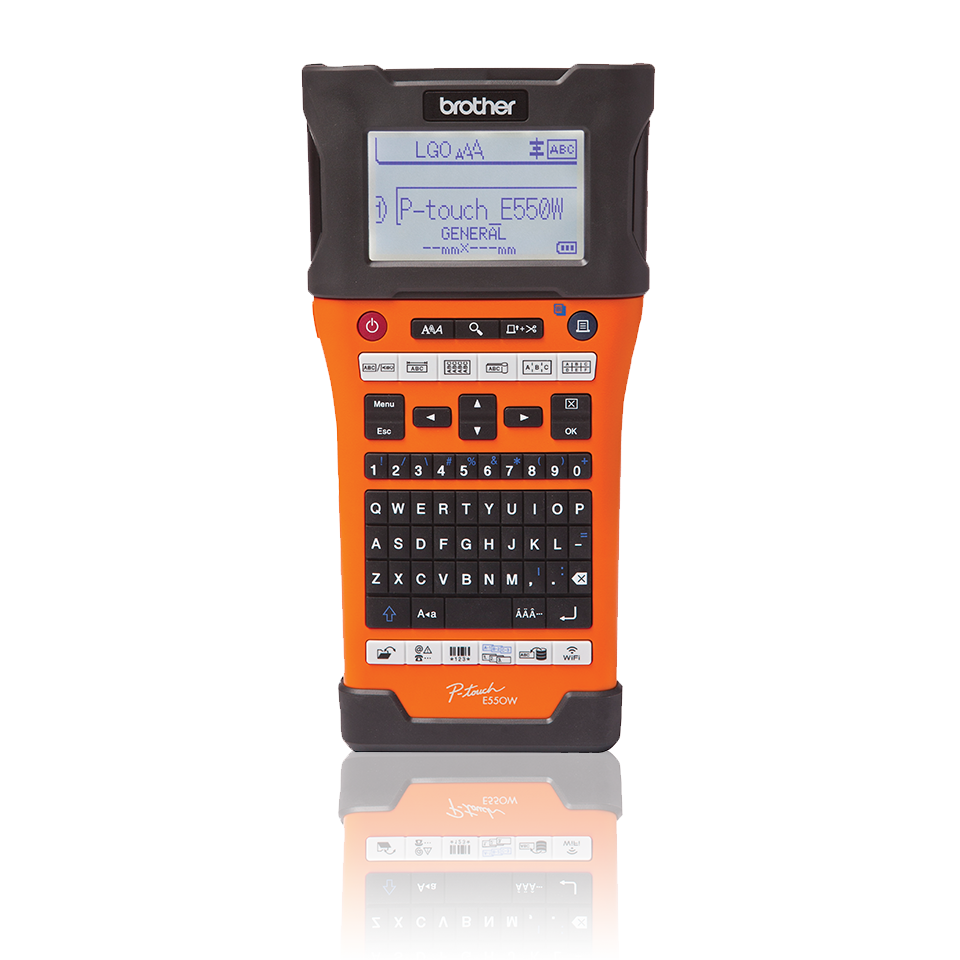

Portable Wi-Fi certified label printer to produce ANSI/TIA-606-C and ISO/IEC 14763-2 compliant labels for cables, patch panels, faceplates, equipment and more. Uses durable P-touch Pro Tapes for reliable, long-term labelling.
PTE550WNIVP
PTE550WNIVP
Dedicated functions for cable, patch panel and faceplate labelling
Free app to print multiple cable IDs stored in your Fluke Networks Linkware Live account
Design and print labels from your PC
Advanced cutter keeps labels in sequential order and easy-to-peel

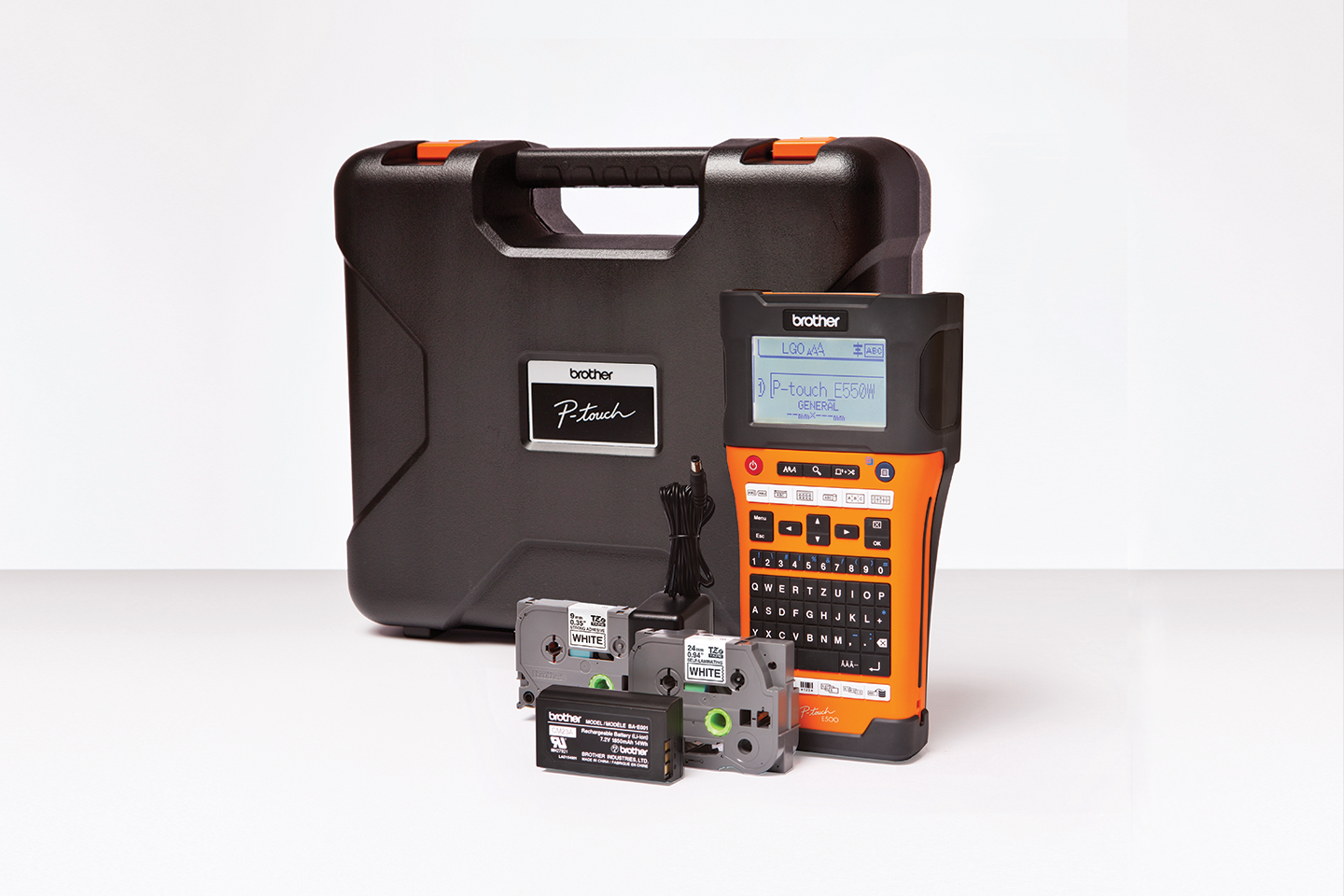

Includes self-laminating and strong adhesive tapes, AC adapter, li-ion battery and carry case
Prints 3.5, 6, 9, 12, 18 and 24mm labels

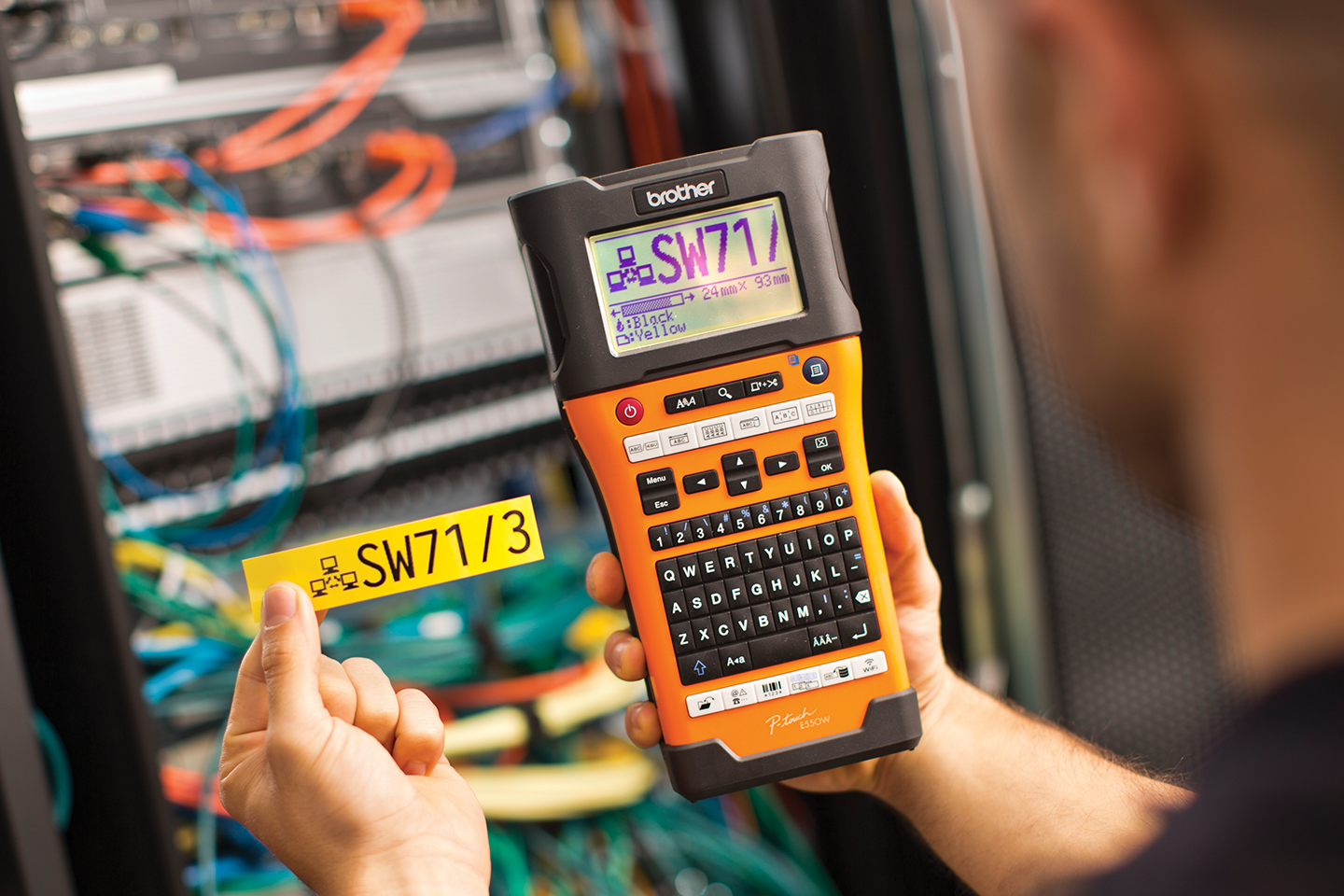

Create durable labels for network cable, equipment and patch panel identification on-demand with this Wi-Fi enabled label printer. Use stand-alone, from your PC or with one of the smartphone apps available to streamline your cable labelling processes.
The Brother BA-E001 Printer Battery: For use with P-touch label printers
| AC adaptor | Yes |
|---|---|
| Machine type | Handheld |
| Maximum tape width (mm) | 24 mm |
| Alkaline batteries | AA X 6pcs (LR03, HR03) |
| Auto power off | Yes |
| Cutter type | Full and half, Auto |
| Display | Backlit LCD |
| Display size | 16 characters x 3 lines |
| Housing colour | Orange and Black |
| Housing design | Handheld |
| Keyboard type | QWERTY |
| Languages | English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croation, Turkish, Brazilian Portuguese |
| Li-Ion rechargeable battery | Included |
| Memory locations | 99 |
| Number of keys | 70 |
| Technology | Thermal transfer |
| Unit setting (mm / inches) | Yes |
| Width | 3.5mm,6mm,9mm,12mm,18mm,24mm |
|---|---|
| Type | TZe Tape, HSe Heat Shrink Tube |
| Wireless network interface | 802.11b / Wi-Fi Certified |
|---|
| Dimensions | 126 (W) x 250 (D) x 94 mm (H) |
|---|---|
| Weight | 1.05 kg |
| AC adaptor | Yes |
|---|---|
| AC adaptor power cord | Yes |
| Carry case | Yes |
| Li-ion battery | Included |
| Tape cassettes | 24mm black on white self-laminating tape (8m) / 9mm strong adhesive tape (8m) |
| USB cable | Yes |
| User guide | Yes |
| Warranty card | Yes |
| Wrist strap | Yes |
| Fonts | 14 |
|---|---|
| Frames | 7 |
| Line format | Yes |
| Symbols | 384 |
| Text alignment | Centre, Justify, Left, Right |
| Underline | Yes |
| Vertical printing | Yes |
| Copies | 1-200 |
|---|---|
| Database file compatibility | csv, Microsoft Excel |
| Fonts | All installed true type fonts as per PT Editor software |
| Frames | 154 |
| Label orientations | Horizontal, Vertical |
| Languages | English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croation, Turkish, Brazilian Portuguese |
| Sequential numbering | 1-200 |
| Tape size detection | Yes |
| Text alignment | Centre, Left, Right |
| Warranty | One year return to base |
|---|
Download and install the latest drivers and software for your Brother products.
View Downloads

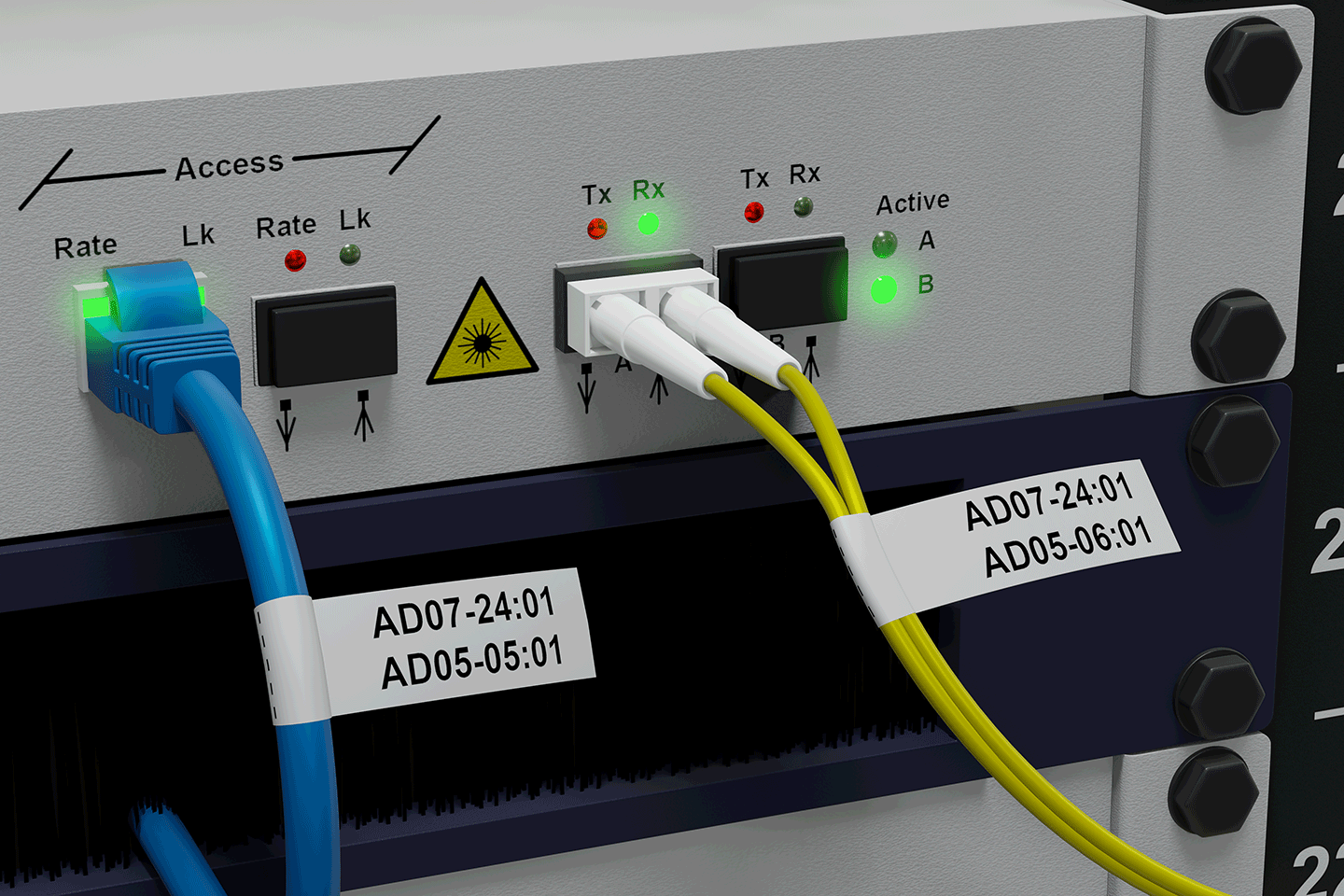

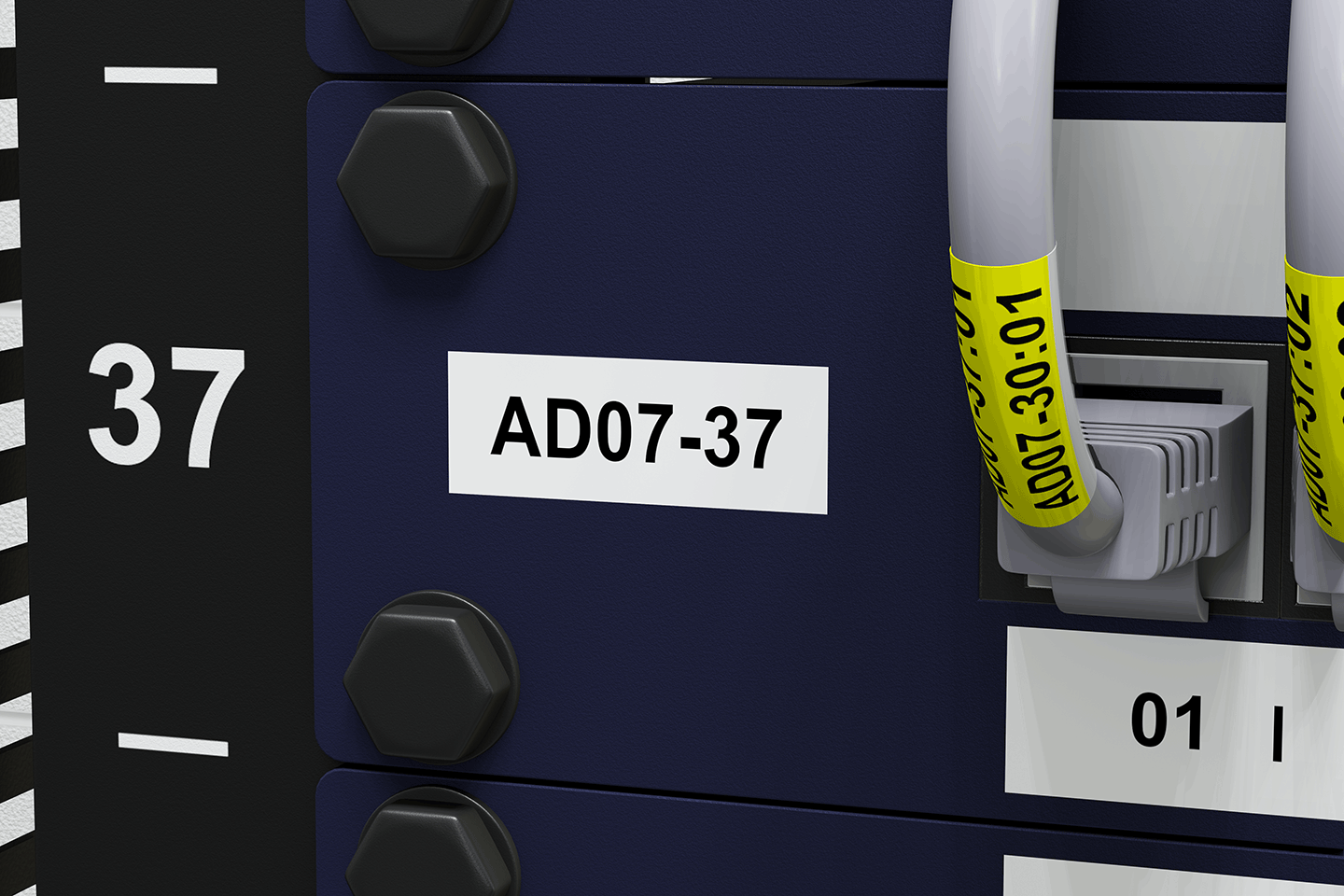

P-touch Pro Tape range - Labels designed for network identification
Using tough, durable and dependable professional grade materials and adhesives, our self-laminating and flexible ID tapes are developed for network cable identification, while our strong adhesive tapes have 3 times more strength on textured surfaces than Brother standard tapes on average making them ideal for patch panel and equipment identification.
To learn more about our Pro Tape range of labels here.
Dedicated keys for network infrastructure labelling

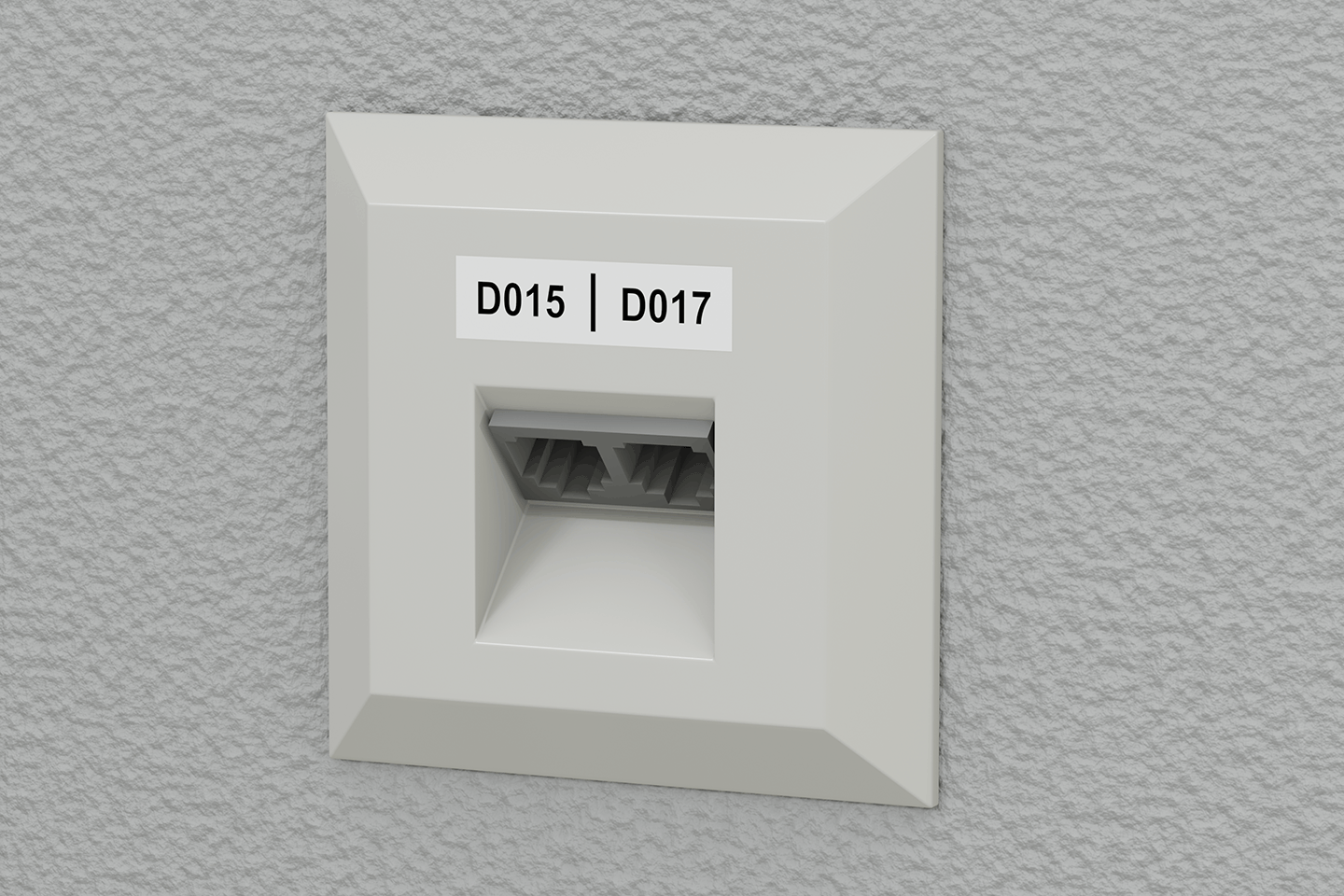

Use the built-in functions through easily accessible keys to quickly and accurately create identification labels for cable wrapping/cable flagging, faceplates, patch panels, equipment, pathways and more.
Advanced cutter

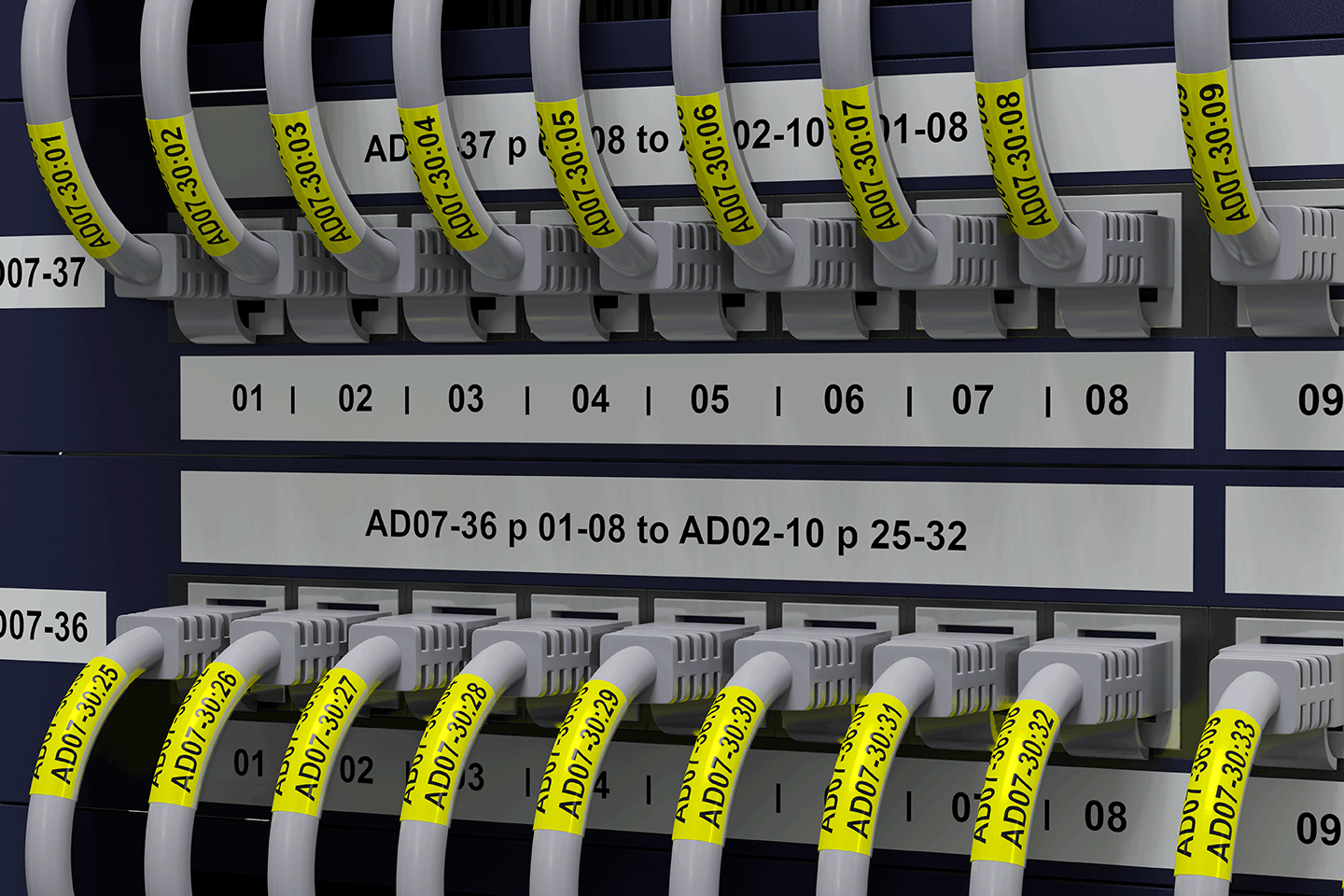

Choose to fully cut each individual label or cut through the front part of the label whilst leaving it attached to the backing paper. This produces labels in a long strip, keeping them in the correct sequential order and makes them quick and easy to peel and apply to your cables and equipment.

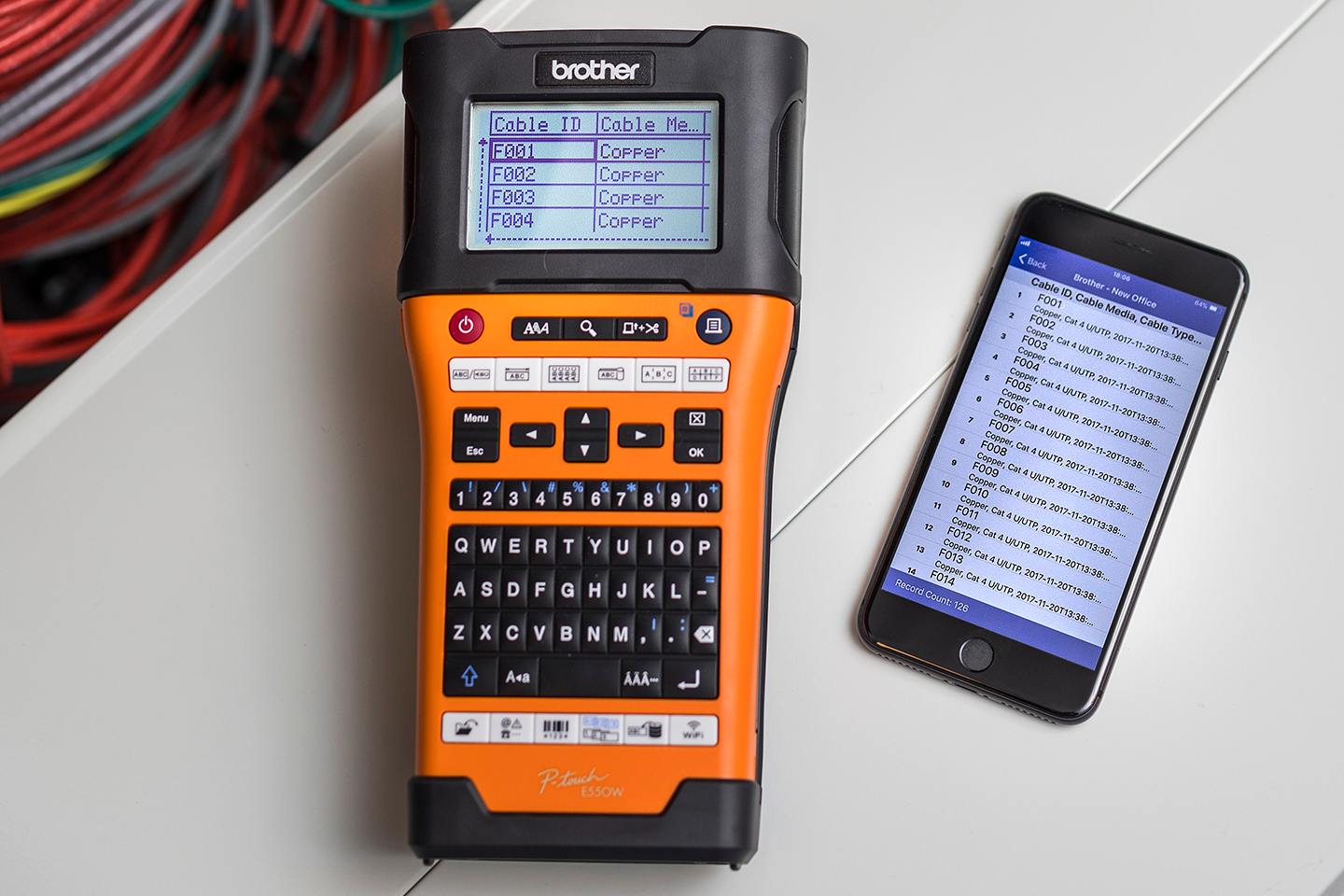

Print cable ID labels from Linkware™ Live
The free Brother iLink&Label app allows you to print multiple cable IDs stored in your Fluke Networks Linkware ™ Live projects onto your labels. This reduces errors and saves you time over manually typing each individual cable ID on the label printer’s keypad. Download this from the App Store or Google Play
Brother Pro Label Tool app
Create labels for cables, patch panels, faceplates and more using the Brother Pro Label Tool app. This app is template based, allowing you to quickly select the label type required, edit the text and then print. Download from the App Store or Google Play.

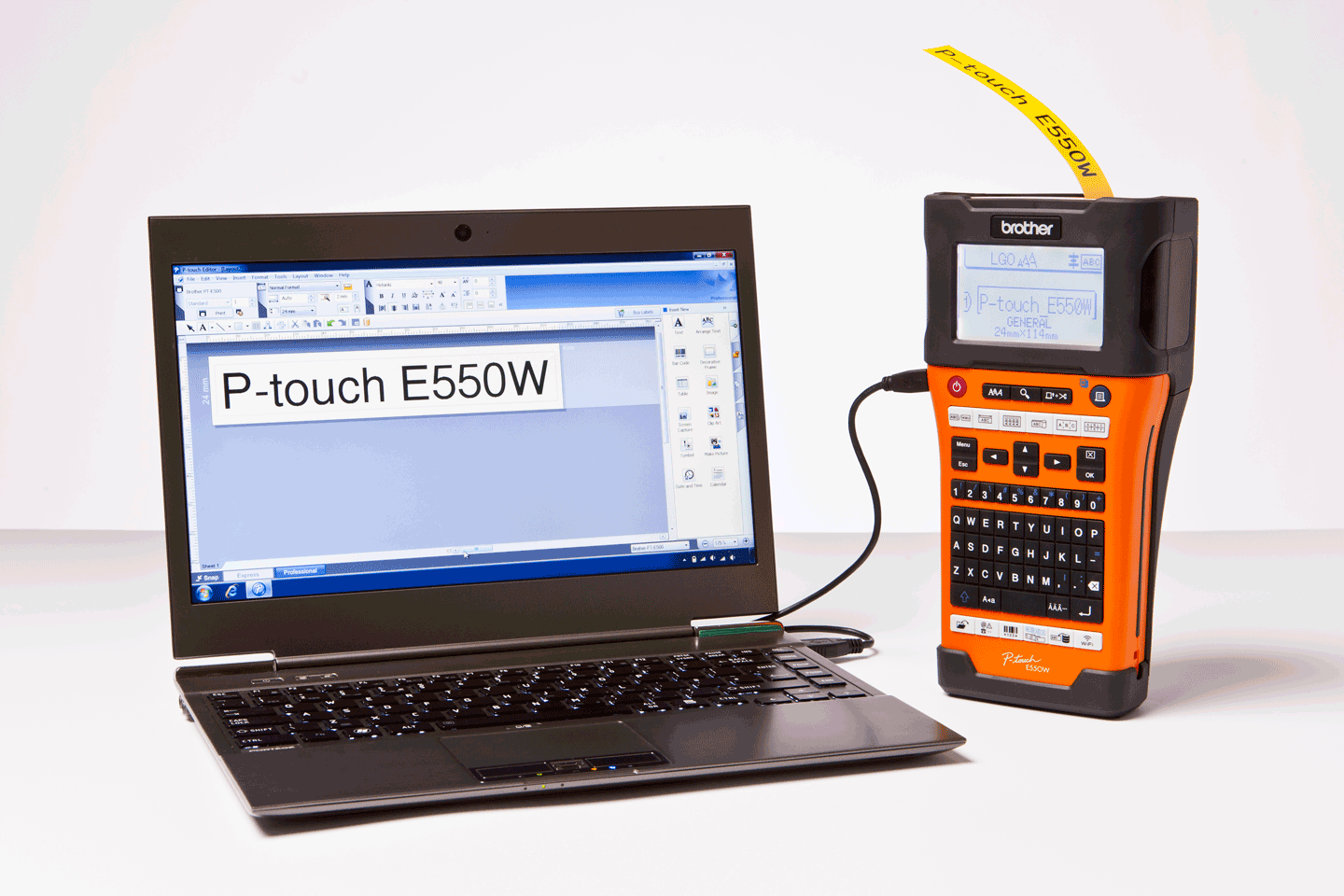

Design and print labels on your PC
Brother P-touch Editor is a fully featured label design program that gives you the freedom to design your labels with pixel precision, and link to data in Excel spreadsheets or .csv files to automatically batch print all your labels in one go.
