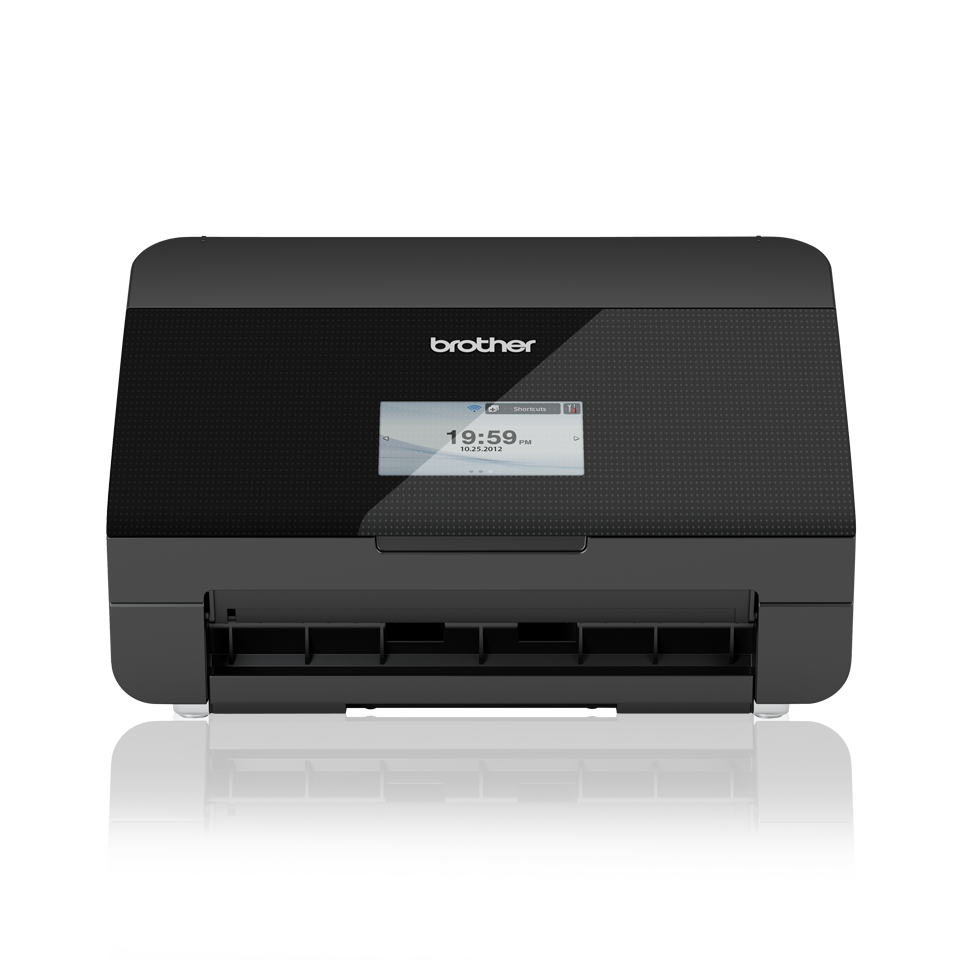

ADS-2600W High-Speed Desktop Scanner + Wireless

The ultimate wireless business scanner

At a glance

  • Mobile device compatible
  • Cloud Connectivity
  • ISIS compatibility
  • Twain
  • PC Pro Recommended Product
The top-of-the-range ADS-2600W features built-in wireless connectivity coupled with duplex scanning up to 600dpi and direct-to-cloud connectivity, all controlled via an intuitive 9.3cm colour LCD touchscreen. Which means more powerful document management at your fingertips.

Key Features

  • Dedicated business scanner + easy-to-use 9.3cm screen
  • Wireless-network ready - scan direct to the cloud, USB stick or PC
  • Up to 24ppm/48ipm 2-sided scan speeds
  • Up to 50-page automatic document feeder with multi-page detector
  • Scan to searchable PDF
  • Twain and ISIS scanner drivers

Overview

ADS-2600W Desktop 2-Sided Scanner

Networked desktop with auto 2-sided scan. Network facility for businesses with a workgroup requirement. Users can upload scans direct to their network folders and share across the business. The LCD touch screen allows users to quickly scroll through features. Suitable for businesses with multiple users requiring regular scanning.

Modules Tab

Brother Scanners for Finance

Legal & Finance

With the Brother scanners, legal firms can significantly cut down their admin time dealing with the thousands of documents they need to collect, store and share.

Find out more

Finance and insurance companies have an increasing need for paperless document management whether for compliance, internal collaboration or customer requirements. Scanning helps reduces the time and effort in long term storage and management of contracts. Brother scanners help bridge the gap between paper processes and effective digitisation.

Specification

Features and Specifications

Usage type Desktop
Display Colour touchscreen
Display size 9.3cm
Multi feed sensor Yes
RAM 256 MB
USB interface High Speed USB 2.0
Wired network interface Yes
Wireless network interface Yes
With carton 383 W x 291 D x 285 H mm
With carton 5700 g
Without carton 299 W x 220 D x 179 H mm
Weight 3600 g
Operating 20 watts
Ready mode 4 watts
Off 0.4 watts
Sleep mode 2 watts
Sound power 62 dB
Sound pressure 49 dBA
Operating humidity 20 - 80%
Operating temperature 5 - 35C
Energy Star environmental accreditation Yes
AC adaptor Yes
Carrier sheet Yes
Plastic card carrier sheet Yes
Power supply cord Yes
Product safety guide Yes
Receipt carrier sheet Yes
Software disc Driver software for Windows® and Mac OS
USB cable Yes
User guide Yes
Quick setup guide Yes
Types and sizes Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card
Weights 52-110 gsm (multiple sheets)
ADF media sizes Paper (multiple sheets): 51-215.9x70-355.6mm, Paper (single sheet): 51, 215.9x70x863mm, Plastic card: 85.6-54x0.76mm, Plastic card Thickness: 0.25-0.76mm
IPv4 Yes
Wired network Built in 10Base‐T/100Base‐TX
Wired network security APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3
Wireless network Built‐in 802.11b/g/n wireless network
Wireless network security APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3
2-Sided scan Yes
ADF 50
Scan to email, Image, OCR, File, email server, Network, USB, Cloud, SharePoint
Colour A4 scan speed 24 ppm
Colour depth 30/24 bit
Greyscale 256 levels
ICA compatibility Yes
Interpolated scan resolution 1200 x 1200 dpi
ISIS compatibility Yes
Paper sensor Yes
SANE compatibility Yes
Scan resolution from ADF 600 x 600
TWAIN compatibility Windows 7, Windows 8, Windows Vista, Windows XP
WIA compatibility Yes
Optional accessories Pickup roller ADF (Life –50,000 sheets) PUR‐A0001, Separation Pad ADF ( Life‐50,000 sheets) SP‐A0001
Plastic card carrier sheet (Life –500 scans) CS‐CA001
Receipt carrier sheet (Life –500 scans) CS‐A3001

Ratings and Reviews

Customer reviews

Rated 2 out of 5 by from Disappointing in most ways I was recommended this scanner as I wanted a sheet feeder scanner which worked with Mac OSX, and could scan over ethernet. Setup was easy, although the touchscreen is slow and kinda cumbersome to use, and in hindsight I would have preferred simple button interface. You can create shortcuts to certain features using the touchscreen interface, but even accessing a shortcut sends you through various confirmation dialogs, its all very poorly thought out. The scanner supports scanning directly to Dropbox and various other hosted services, which is a nice feature but mostly I wanted to scan direct to my computer. Here is where my problems started. The Control Center software provided for Mac OSX, clearly has not been updated in many years. The interface is klunky and very unintuitive. Im a software engineer myself, and it took me over an hour to figure out even basic usage of the desktop software. The scanner does a good job of scanning some documents especially color, but others (particularly black and white text documents originating from a laser printer), sometimes result in a very blurry PDF. Maybe its the paper type, I don't know, but no software settings would resolve this. I also hoped there would be a way to scan 50 pages, and output 50 separate PDF's. Apparently this is not possible, and the only option is to produce 1 50-page PDF and then use various third party tools to split it up. I could of course feed each page in manually and create a PDF for each one, but then this defeats the purpose of having a sheet fed scanner. I have no complaints about the speed of the scanner, which is actually impressive. But overall I'm dissatisfied with my purchase, and would not recommend it. I have resorted to going back to my laser/flatbed scanner for small sets of documents, as its much less hassle. Perhaps if you are on Windows, and want to scan large amounts of documents into a single PDF, it may suit your needs.
Date published: 2014-01-07
Rated 5 out of 5 by from Brother scanner ADS 2600W Very easy to set up. Simple to use. Had one issue with bottom of document being missed on scan which was easily resolved with standard set up change with aid of Brother helpline to identify problem. Considerably cheaper than other wireless models.
Date published: 2013-02-13
Rated 2 out of 5 by from Downloading Drivers Page on site does not work I can't seem to download the drivers from the website. I don't have a CD drive to install the drivers so I'm a bit stuck. Will review the produciton once I get past that stage :(
Date published: 2014-02-26
Rated 4 out of 5 by from Small machine with a big finish! Smart, compact machine that does a first class job.
Date published: 2014-03-06
