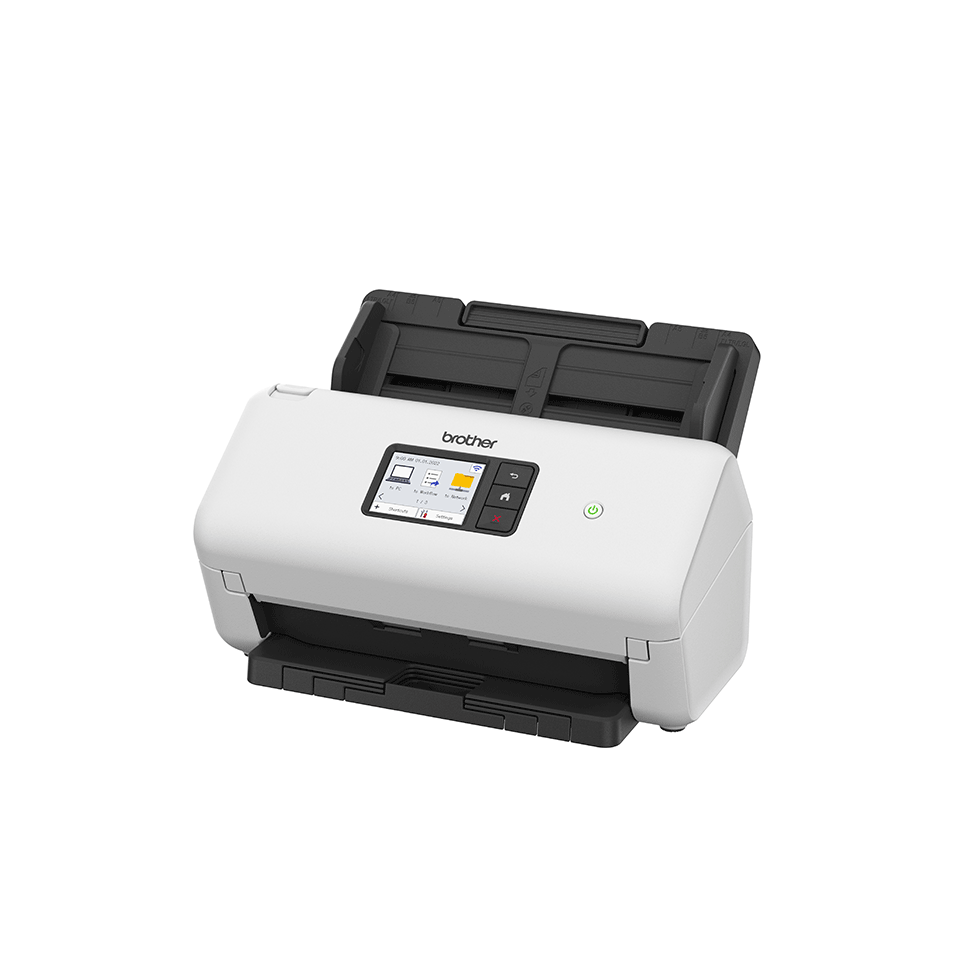

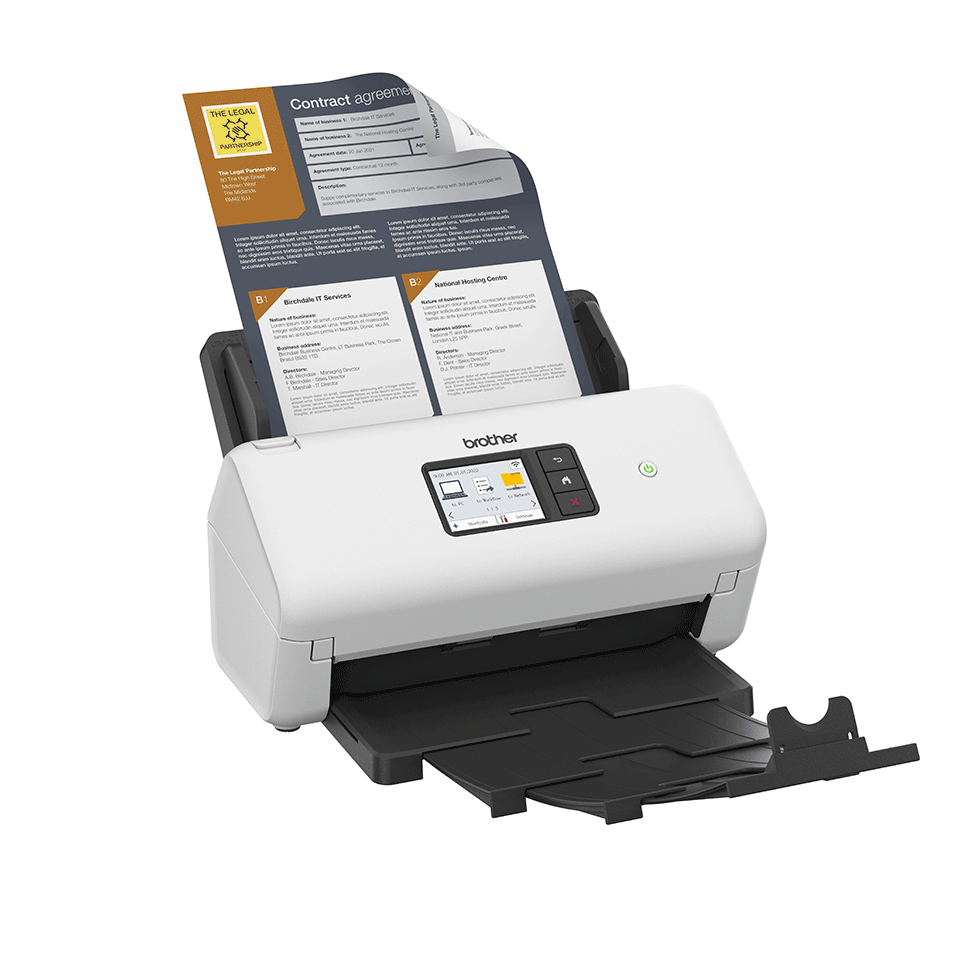

ADS-4500W Desktop document scanner

With fast wired and wireless connectivity. Create shortcuts and simple workflows with the easy-to-use touchscreen. Ideal for scanning at home or in the office.

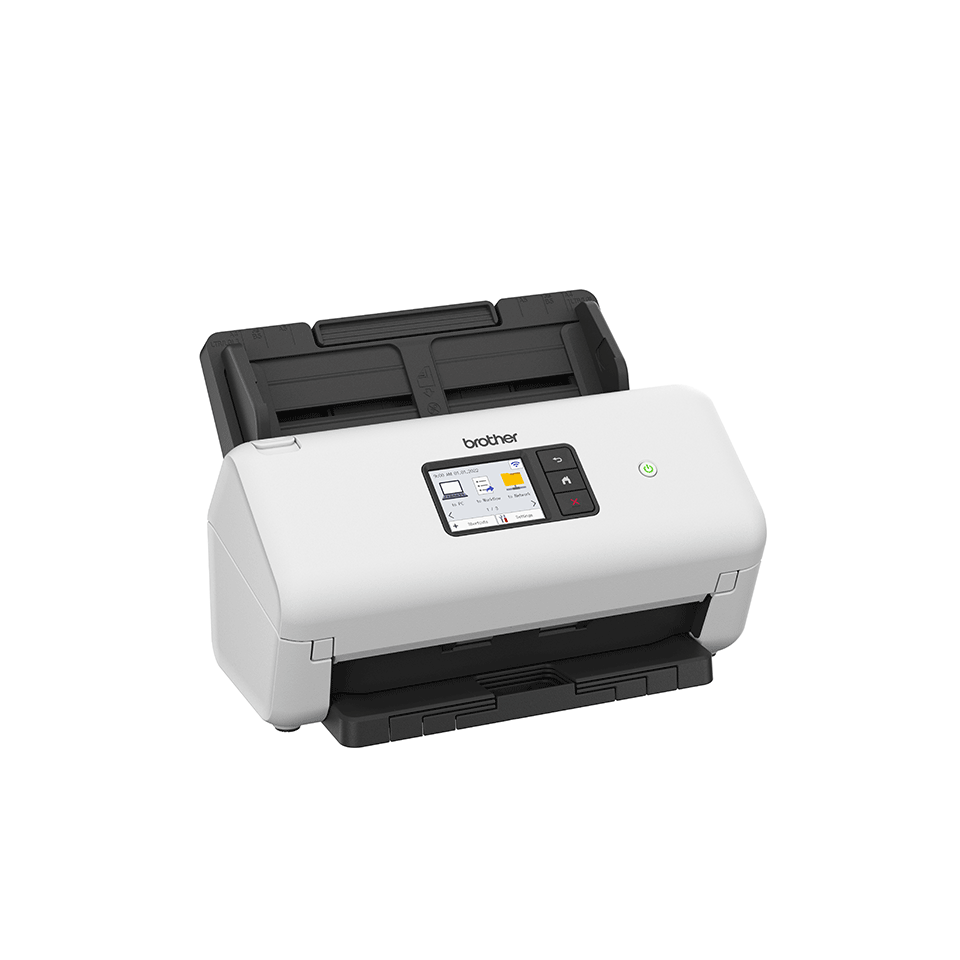

ADS-4500W Desktop document scanner
ADS-4500W Desktop document scanner 2
ADS-4500W Desktop document scanner 3
ADS-4500W Desktop document scanner 4
ADS-4500W Desktop document scanner 5
ADS-4500W Desktop document scanner 6
ADS-4500W Desktop document scanner 7

Similar scanners we recommend

ADS-4300N facing forward with document

ADS-4300N Network desktop scanner

With high-speed wired connectivity. Great choice for scanning documents to the network and collaborating with colleagues. Ideal for shared use in the office.

SRP £394.80 SRP £329.00 (exc. VAT)

Buy from our retailers
ADS-4700W facing forward with document

ADS-4700W Desktop document scanner

With high-speed wired and wireless connectivity and dedicated user touchscreen. Ideal for complex workflows and sharing documents with colleagues.

SRP £490.80 SRP £409.00 (exc. VAT)

Buy from our retailers

SRP £418.80 Inc. VAT

SRP £349.00 Ex. VAT

Buy from our retailers Find a local store

Scan up to 35 pages per minute

2-sided scan up to 35 pages per minute

60 sheet Automatic Document Feeder (ADF)

Product Overview

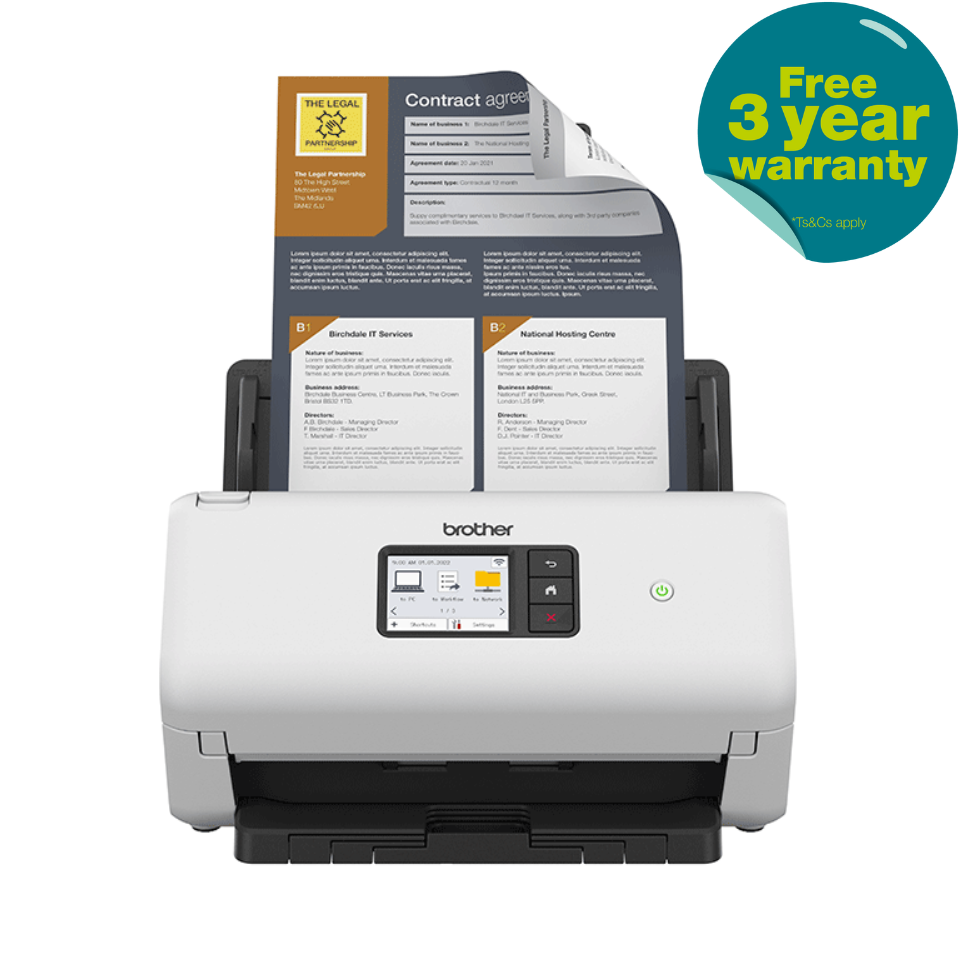

ADS-4500W facing forward with document

Wireless and wired connectivity

Scan directly to USB host

Intuitive 7.1cm touchscreen

  • Scan up to 35 pages per minute
  • 2-sided scan up to 35 pages per minute
  • 60 sheet Automatic Document Feeder (ADF)
  • Wireless and wired connectivity
  • Scan directly to USB host
  • Intuitive 7.1cm touchscreen

About this product:

Simple and intuitive, offering a user-friendly touch screen combined with the option of wired and wireless connectivity. The ideal choice for shared use in an office or at home.


  • 20 configurable shortcuts
  • Brother Mobile Connect app
  • Support AirPrint Scan
  • Advanced image processing
  • Driver compatibility with TWAIN (Win and macOS), WIA, ICA, Linux SANE

Specifications More about this product

Specification Details

General

Usage type Desktop
Control panel 4 keys
Display Colour touchscreen
Display size 7.1cm

Connectivity

USB interface SuperSpeed 3.0, USB 2.0 Host (Rear)
Wi-Fi Direct 802.11g/n
Wired network interface 10Base-T/100Base-TX
Wireless network interface 2.4GHz: IEEE 802.11b/g/n, (Infrastructure Mode), Vertical Pairing

Dimensions & weights

With carton W 391mm ｘ D 243mm ｘ H 320mm
With carton 3.41 kg
Without carton W 299.5mm ｘ D 215.9mmｘ H 190.5mm
Weight 2.68 kg

Energy Consumption

Power Consumption - ready mode Up to 7.3W
Power Consumption - sleep mode Up to 1.7W
Operating Up to 25 watts
Off 0.1 watts
Sound power 59 dB

Environment

Operating humidity 20 - 80%
Operating temperature 5 - 35°C

In the box

Others ADS-4500W, detachable ADF. Power supply cord. AC adapter. USB Cable. Quick setup guide. Product safety guide. Warranty

Media specifications

Types and sizes Plain Paper, Thin Paper, Thick Paper, Recycled Paper, Business Card, Plastic Card
Weights 40 - 200 gsm

Network

IPv4 DHCP, APIPA (Auto IP), WINS/NetBIOS, DNS Resolver, mDNS, SNMPv1/v2c/v3, ICMP, Web Services(Scan), HTTP/HTTPS server, LLMNR responder, SNTP Client, LDAP
IPv6 RA, DNS Resolver, mDNS, LLMNR responder, Web Services(Scan), SNTP Client, HTTP/HTTPS server, ICMPv6
Wired network security SMTP-AUTH, SSL/TLS (HTTPS, SMTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Wireless network security SMTP-AUTH, TLS, SSL(HTTPS, SMTP), WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), WPA3
Wireless setup support Yes

Operating systems & software

Software supplied - Mac 10.14.x/10.15.x/11.0.x/11.1.x. Brother iPrint&Scan for Desktop, Remote Setup. AirPrint Scan, TWAIN. Newsoft Presto! Bizcard 7, Newsoft Image Folio
Software supplied - Windows Windows 10 (Home|Pro|Education|Enterprise)(32 or 64 bit editions), Windows 8.1(32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012. Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, Brother ScanEssentials Lite. TWAIN, WIA. Newsoft Presto! Bizcard 6, Newsoft Image Folio. BRAdmin Light, Brother BRAdmin Professional 4

Scanning

2-Sided scan Yes
A4 Scan Speed 35 pages per minute
ADF 60
Scan to PC, Image, Network (SMB), Email Server, Workflow, FTP/SFTP
Colour depth 48/24 bit
Greyscale 256 levels
Interpolated scan resolution 1200 x 1200 dpi
Paper sensor Yes
SANE compatibility Yes
Scan features 20 Personalised Shortcuts, Auto Start Scan, Continuous Scan, Resume Scan, Document Separation, Long Paper Scan (5000mm), Kensington Lock
Scan resolution from ADF 600 x 600

Warranty

Warranty 12 months
Show more
Show less

Support

Woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
Man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
Man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals
Technical Specifications

Overview

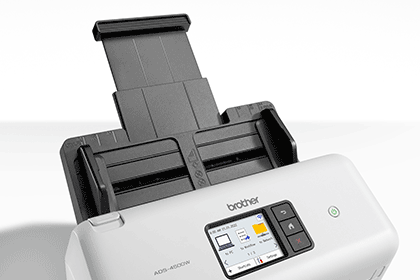

ADS-4500W Automatic Document Feeder ADF

Fast and reliable

With high-quality and robust roller mechanisms, the ADS-4500W has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.

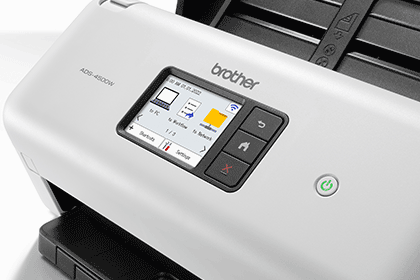

ADS-4500W touchscreen, keys

Simple and intuitive

Simple to set up with the easy-to-use touch screen.

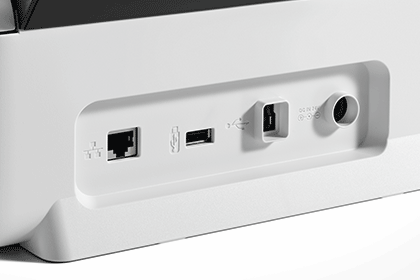

Connection ports on ADS-4500W scanner

Advanced connectivity

With USB3.0, USB host, network and wireless connectivity, you can securely scan documents and share with colleagues.

Grey file icons, blue rotate icon, blue crop icon

Advanced image capture and processing

Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

Grey scanner icon with colour paper, ScanEssentials

Brother ScanEssentials Lite

Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.

Kofax logo, PaperPort logo, PowerPDF logo

Industry recognised software

Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.

Rating and Reviews

ADS-4500W is rated 4.6 out of 5 by 13.
Rated 2 out of 5 by from ESCANEA SOLO DOS HOJAS Lo compre con la idea de que me pudiera escanear varios documentos u hojas a la vez y sólo escanea correctamente si se hace de dos en dos.-
Date published: 2023-11-22
Rated 5 out of 5 by from Fast and clean scanning Fast and clean scanning, even better if they have a webui/api for scanning
Date published: 2023-09-07
Rated 4 out of 5 by from Kleine krachtpatser die uitblinkt in gemak Tot voor kort kon ik documenten scannen op de professionele afdelingsscanner op mijn werk. Sindsdien getracht documenten te scannen met mijn smartphone maar dat gaf gehannes met uitwisselen van bestanden, plus dat scans niet voldoende scherp waren. Na uitgebreide orientatie gekozen voor deze Brother ADS-4500W. Reden voor mijn keuze: compacte afmetingen, in één keer dubbelzijdig scannen, stapel documenten in één keer scannen, en netwerk-aansluiting. Daarmee kan ik tenminste niet alleen vanaf mijn desktop maar ook vanaf mijn laptop scannen zonder eerst kabeltjes te hoeven wisselen. Nou, en de Brother stelt niet teleur, wat een gaaf ding! Hij is inderdaad klein en compact maar groots in functionaliteit. Hij scant een brief van zeg 3 dubbelzijdige kantjes A4 in no-time. Sjoefff, sjoefff, sjoefff en de klus is geklaard. De bijgeleverde Brother iPrint&Scan software maakt het supereenvoudig en na wat aanpassen van de standaard-instellingen worden PDF documenten met een gigantische compressie van meer dan 90% opgeslagen. Zonder verlies aan al te veel kwaliteit. HelemaaI mooi is om scans als searchable PDF's op te slaan waardoor je snel in PDF's kunt zoeken. Ik wil niet veel zeggen, maar dit dingetje kan zich meten met scanners van wereldmerken. Ik kan niet genoeg de nadruk op eenvoud van bediening leggen omdat dat er juist voor zorgt dat je ook meer gaat scannen waardoor zienderogen papier uit je (thuis)kantoor verdwijnt. Heb je brieven, offertes, rapporten, verslagen, enz. éénmaal digitaal, dan betaald het gemak aan doorsturen, vermenigvuldigen, zoeken, en opslag zich dubbel en dwars uit. Eén puntje van kritiek: als je een stapel documenten scant moet je wel de stapel eerst "uitwaaieren" zodat de vellen niet aan elkaar kleven. Anders pakt de scanner 2 blaadjes tegelijk en mis je wat. Aan de andere kant kun je heel makkelijk vellen "bijscannen" die dan aan de al gescande documenten worden toegevoegd. Ik ben er heel blij mee en kan iedereen die van papier af wil en van gemak houdt deze Brother ADS-4500W van harte aanbevelen.
Date published: 2023-06-15
Rated 5 out of 5 by from All Good Things Come in Small Packages Wow, wow, wow! The old saying, 'all good things come in small packages' is perfect to describe the Brother ADS-4500w. After a little stumble at the beginning where the material to be scanned would not go into the feeder properly, I realised it was user error as I hadn't removed the piece of tape inside the scanner, oops! Connecting the scanner and downloading the software and drivers was a doddle. I am reasonably tech savvy but am convinced that even if I wasn't, it would have been a relatively simple process. I tried it with the USB cable and also in the Wi-Fi setting. The settings are simple and to the point. I only tried feeding in a sheet at a time and it fed through extremely quickly and with ease. I even tried a piece of printed embossed card and again, no problemo. The scan quality is highly impressive and as you can see from the photo picks up on the colours and textures beautifully. This is a serious piece of kit in a compact little package and is definitely going to be my favourite toy to play with. Gone are the days when you spend hours scanning a sheet in at a time and now I genuinely can't wait to scan in all the paperwork that is waiting for me. It is also going to be fantastic for me to scan in all the work projects not to mention the old photos which hold so much sentimental value. Thank you Brother and a very warm welcome to my family.
Date published: 2023-05-17
Rated 5 out of 5 by from Amazing scanner This scanner is the best on the market. Compact, easy to use, set up simple & does everything you need a scanner to do! Buy it you won’t regret it I guarantee. 10/10 for me !!
Date published: 2023-05-02
Rated 4 out of 5 by from Great Piece of Kit....For My Needs Let me start by saying this is a great bit of kit! For years I have been using my small all in one printer to do my scanning, taking forever to setup and scan a single sheet....but this is lightning fast! You feed your document in (like you would feed blank paper on a printer) and within a second I have a great quality copy straight on my phone! Now for me, this is all I need it for so its great, however I did have issues trying to scan to email. I work in IT so like to think I know what im doing but couldn’t find a way to get it to scan to email without it throwing a 'server timeout' error. I also don't think the instructions that came in the box offer any help with this type of scanning setup too. It hasnt really affected how I would use this though, but I will look into it further!
Date published: 2023-04-11
Rated 5 out of 5 by from Incredibly fast and very compact scanner Woooow! I'm so satisfied with this scanner. It is very compact in size which is a great advantage in small offices. The whole setting process is easy, quick and hassle free. I didn't expect that a scanner is able to scan so fast in such a good quality. I don't have to take photo of each customer's bill separately. Now I just put a pile of receipts in the scanner and it scans it quickly and effortlessly. I was able to declutter the drawer with my daughters' school stuff and scan it all smoothly to my desktop. I definitely recommend Brother ADS-4500W to everyone.
Date published: 2023-04-11
Rated 5 out of 5 by from I wish I had owned this scanner sooner! I was pleasantly surprised to find that the Brother ASD 4500W scanner was compact. This meant that I would have no problem finding a home for it in my office. The set up really could not have been any simpler. I downloaded the app to my mobile phone, scanned the barcode in the set-up guide and followed the instructions. Less than 10 minutes later I was scanning my first document. The only part of the set up that I found tricky was typing my Wi-Fi password on the small screen of the scanner. In future I will use a stylus instead of my chubby fingers! I scanned documents in different sizes and in paper thicknesses. All scanned super quickly, and the resultant scanner quality was excellent. It was super easy to scan multiple pages and the scanner will accept up to 60 pages at a time in the feeder, (in less than 2 minutes). It is possible to add more pages to the saved file for documents of over 60 pages. Unlike previous scanners I’ve used, all pages came out straight and there were no paper jams. There are options to save documents as jpeg images or as pdfs to a variety of different locations such as mobile phone, USB, ethernet or W-Fi. It can also scan directly onto a shared drive or even to e-mail. One of the reasons I wanted a scanner like this was to digitise photographs. I was sceptical about how well the scanner would perform in terms of image quality and efficiency, but I need not have worried as both surpassed my expectations. Although I did not time the speed of scanning photographs, it was even quicker than scanning A4 documents. On my next use decided to scan documents onto a USB and then also to my PC. After downloading the drivers, the process was incredibly simple. Super simple to set up, so far I’ve set up a shortcut for scanning photos onto USB , single sided in colour with a resolution of 600dpi and a shortcut for scanning documents in black and white with a resolution of 200dpi and omitting any blank pages. I discovered that if scanning photos directly onto a mobile phone it is only possible to select a maximum resolution of 300dpi. It is just so convenient to be able to scan without the need for a PC and the image quality at 300psi still looked great, so I’m likely to continue to scan from the app on my phone and reserve scanning to my PC for special photos where I want higher resolution. I would wholeheartedly recommend this scanner to anyone. It just makes life so much easier.
Date published: 2023-04-06
