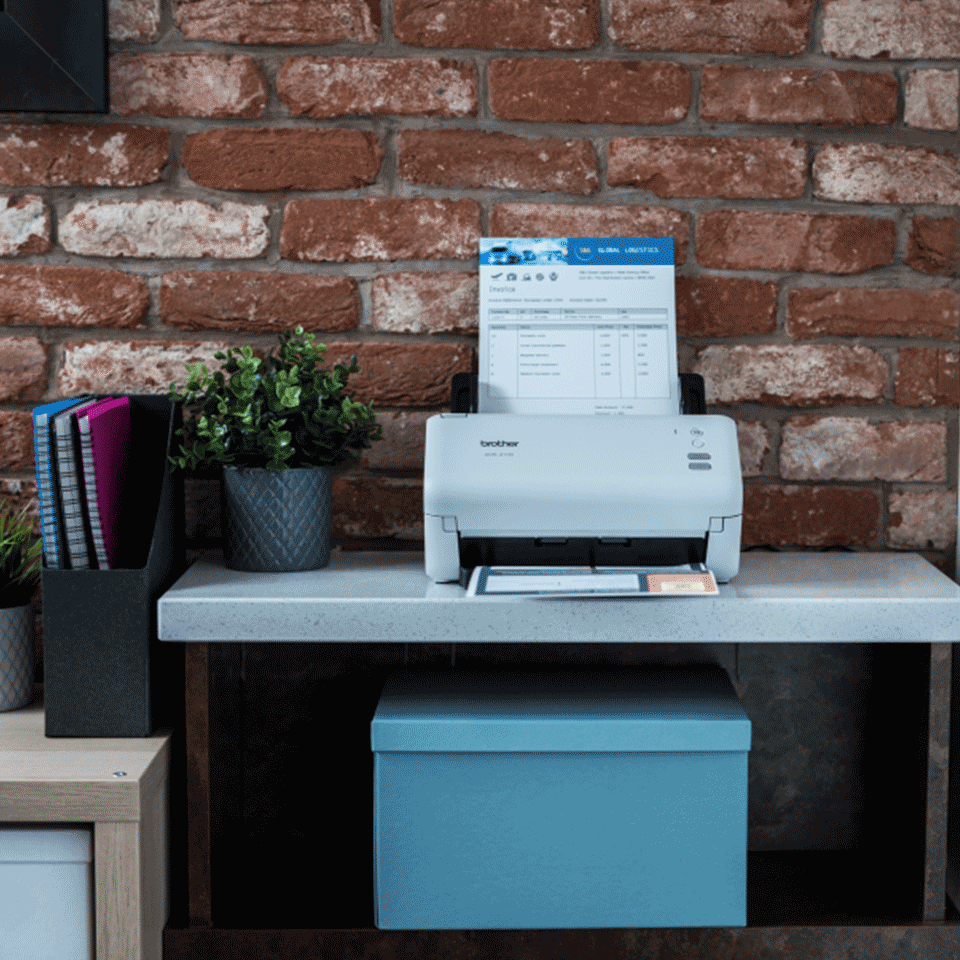

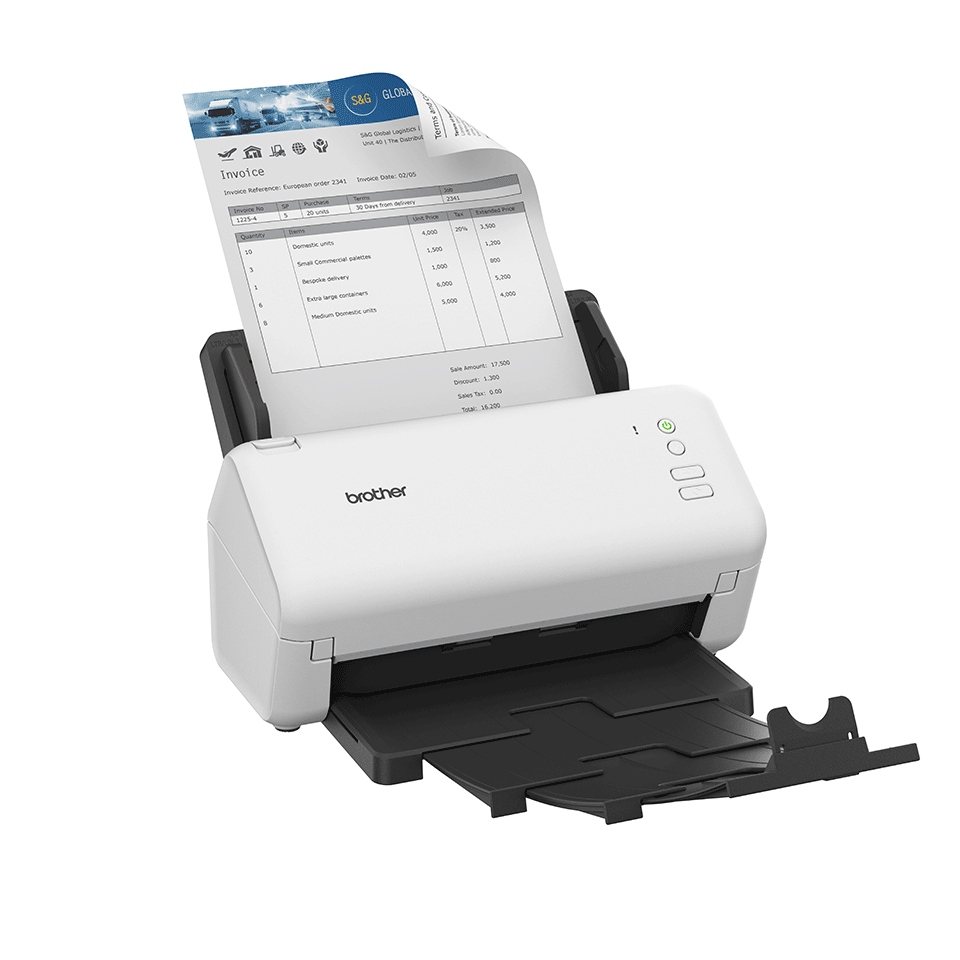

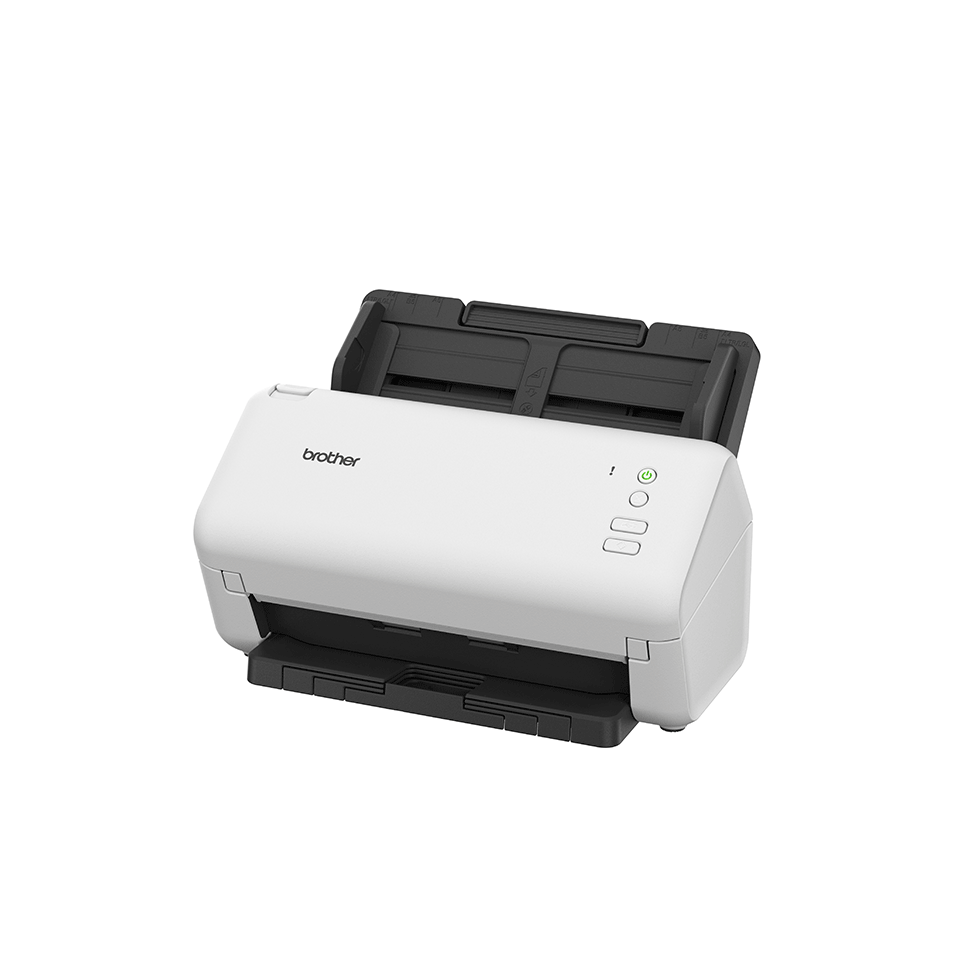

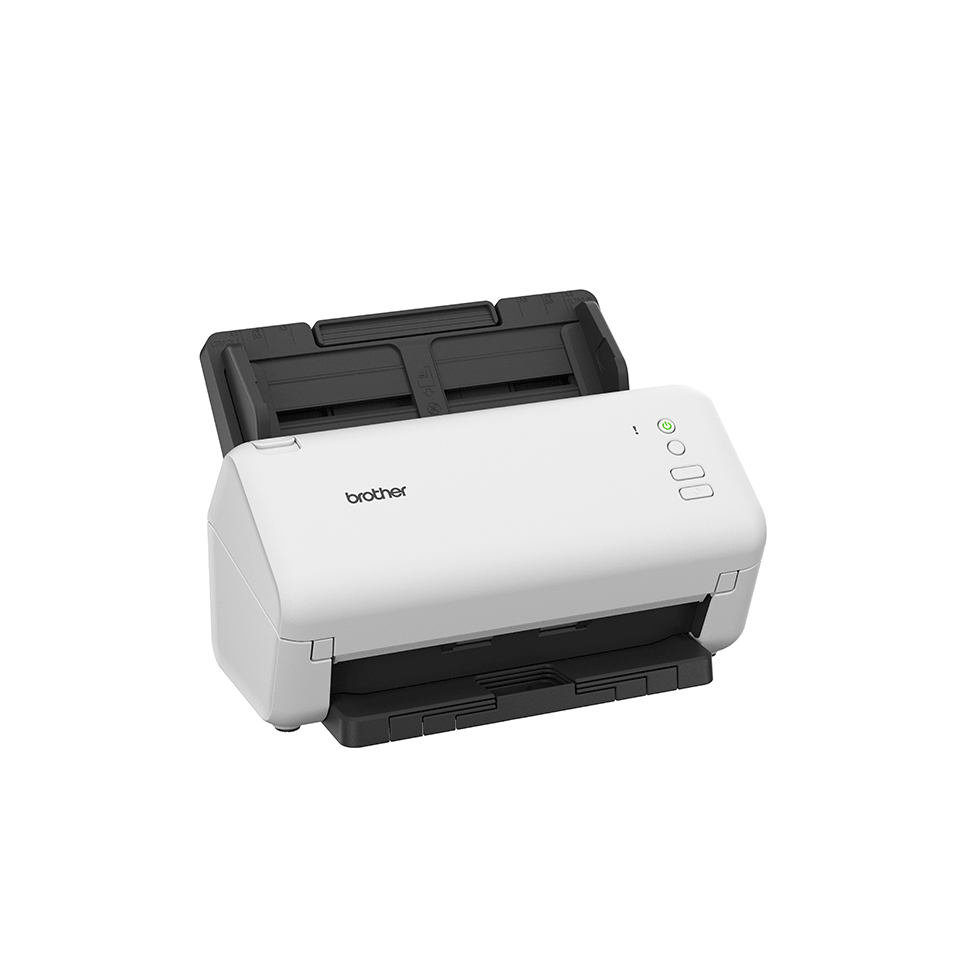

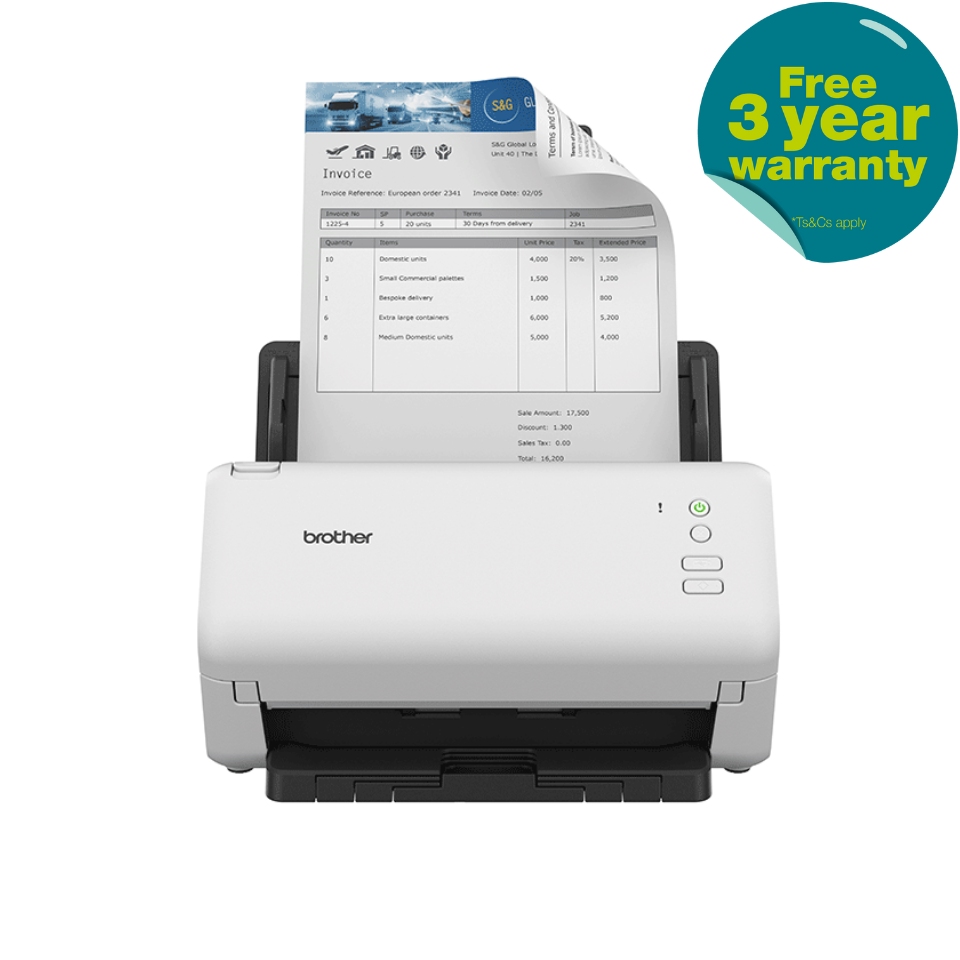

ADS-4100 Desktop document scanner
With simplicity built in. Robust, easy-to-use, every day scanner. Great for digitising a range of media at home or in the office.Inc. VAT
Ex. VAT
Inc. VAT
Ex. VAT
Product Details
- Scan up to 35 pages per minute
- 2-sided scan up to 35 pages per minute
- 60 sheet Automatic Document Feeder (ADF)
- SuperSpeed USB3.0
- Scan directly to USB host
- Brother ScanEssentials Lite software
Product Overview
Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.
- Advanced image processing
- Driver compatibility with TWAIN (Win and macOS), WIA, ICA, Linux SANE
Related Products
-
This product is available from our authorised retailers
-
Separation Roller x 1, Pick-up Roller x 2, Brake Roller x 1£37.20Inc. VAT£31.00Ex. VATThis product is available from our authorised retailers
Specifications
General
| Function | Scan |
| Control Panel | Keys |
| Display | No |
| Backup Clock | Up to 24 hours |
| Form Factor | Desktop |
| Scanner type | Dual CIS (Contact Image Sensor), LED Array Light Source |
Scanning
| 2-Sided scan | Yes |
| One Sided Scan Speed A4 Mono (3) | 35 (pages per minute) |
| One Sided Scan Speed A4 Colour (3) | 35 (pages per minute) |
| Two Sided Scan Speed A4 Mono (3) | 70 (images per minute) |
| Two Sided Scan Speed A4 Colour (3) | 70 (images per minute) |
| Resolution | Optical (600 x 600dpi), Interpolated |
| Colour Depth | 24 bit Colour Processing, Output, Input, 48 bit Colour Processing |
| Desktop |
Media specifications
| Automatic Document Feeder | 60 |
| Media Sizes | Direct Paper Path (Width 50.8 - 215.9mm), Long Paper 5000mm, Height 50.8 - 355.6mm |
| Media Types | Plastic Card, Plain Paper, Thicker Paper, Thin Paper, Recycled Paper, Business Card, Thick Paper |
| Paper Weight | 40 - 200gsm |
| Paper Thickness | 0.08 ~ 0.28mm |
| Plastic Card Size | Length (ISO) (85.60mm), Width (ISO) (53.98mm) |
| Plastic Card Thickness | Up to 1.32mm |
Scanner functions
| File Format Support | PDF, TIFF, JPEG |
| Standard Functions | Scan to (PC, Image) |
| Direct Scan | Yes |
Drivers
| Scan Drivers | Linux ( SANE), Windows (Windows 11, Windows 10, TWAIN, WIA, Windows 8.1, Windows Server 2019, 2016, 2012R2, 2012 & 2008R2), Macintosh ( TWAIN, 10.14.x, ICA, macOS), Visit support,brother,com for the full list of supported OS and to download the latest drivers and software, |
Fleet Management Tools
| Software supplied - Windows | Windows Software (Brother iPrint&Scan, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup, NewSoft Presto! Bizcard 6, Brother ScanEssentials Lite, Image Folio), Macintosh Software (Brother iPrint&Scan Desktop, Remote Setup, NewSoft Presto! Bizcard 7, Image Folio), Utilities, Easy Setup |
| Detachable ADF, Power supply cord, AC adapter, USB cable, Quick setup guide, Product safety guide, Warranty, Device |
Supplies And Accessories
| Optional accessories | Roller Kit (Roller Kit PRK-A3001 ADS-4100, ADS-4300N, ADS-4500W, ADS-4700W), A3 Carrier Sheet |
Carton Contents
| Carton Contents | Detachable ADF, Power supply cord, AC adapter, USB cable, Quick setup guide, Product safety guide, Warranty, Device |
Dimensions And Weights
| Dimensions With Carton | 391mm (W) x 243mm (D) x 320mm (H) |
| Dimensions Without Carton | 299.5mm (W) x 215.9mm (D) x 190.5mm (H) |
Operating Environment
| Power Requirement | AC (100-240V AC 50/60Hz), DC (24V, 1.9A) |
| Sound Power | Scanning (<59dB) |
| Operating | Humidity % (20 - 80%), Degrees Celsius (5°C - 35°C), Degrees Fahrenheit (41°F - 95°F) |
| Storage | Humidity % (10 - 90%), Degrees Сelsius (-20°C - 60°C), Degrees Fahrenheit ( -4°F - 140°F) |
| Power Saving Modes | Sleep, Power Down |
| Wake Up Time | USB connected, approx 1 second from sleep mode |
Connectivity
| Local interface | USB 2.0 Host (Rear), Super Speed micro USB 3.0 Type B |
Security Features
| Security Features | Kensington Lock, Firmware Updates |
Energy Consumption
| Power Saving Modes | Sleep, Power Down |
| Power Saving Modes | Scanning (<59dB) |
Caveats
- [3] Scan Speeds based on ISO/IEC 17991
Support & Drivers
Resources
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.

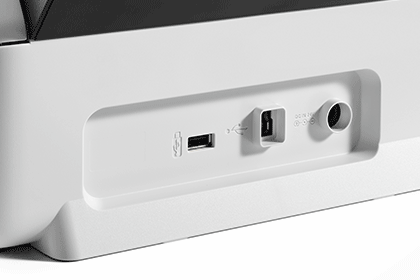

Advanced connectivity
With USB3.0 and USB host, you can securely scan documents without the need for a PC.

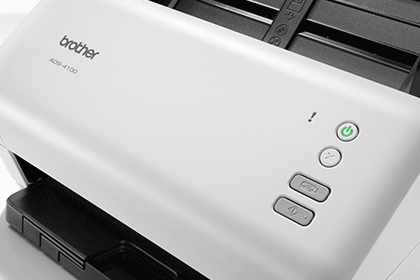

Simple and intuitive
Design simplicity means it's easy to set up and easy to use.
Brother ScanEssentials Lite
Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.

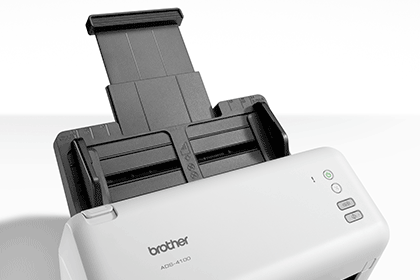

Fast and reliable
With high-quality and robust roller mechanisms, the ADS-4100 has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.

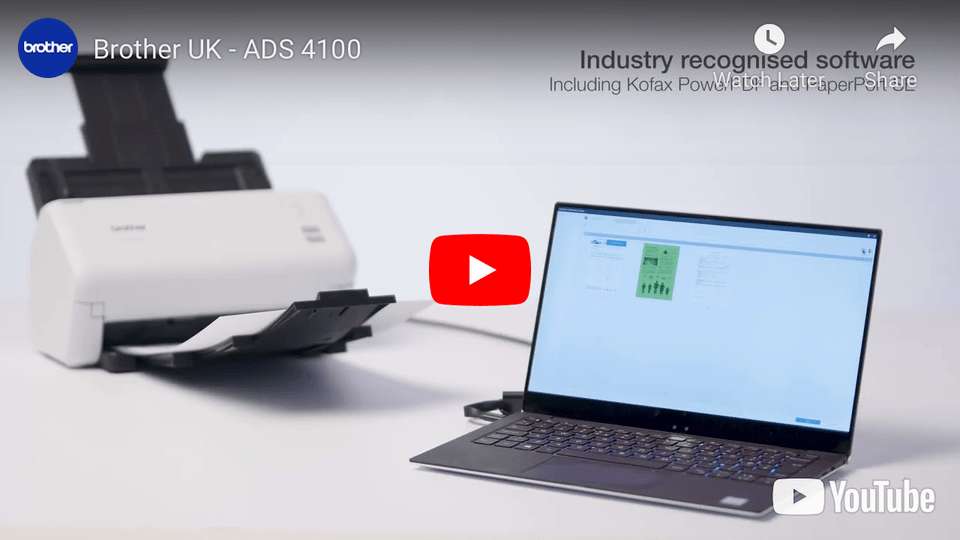

Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
