RJ-3230B | Mobile Printers

Print labels and receipts up to 3” width on the move

USB Type-C connectivity for both charging and data transfer

MFi, NFC and Bluetooth 5.0 connectivity

Product Overview

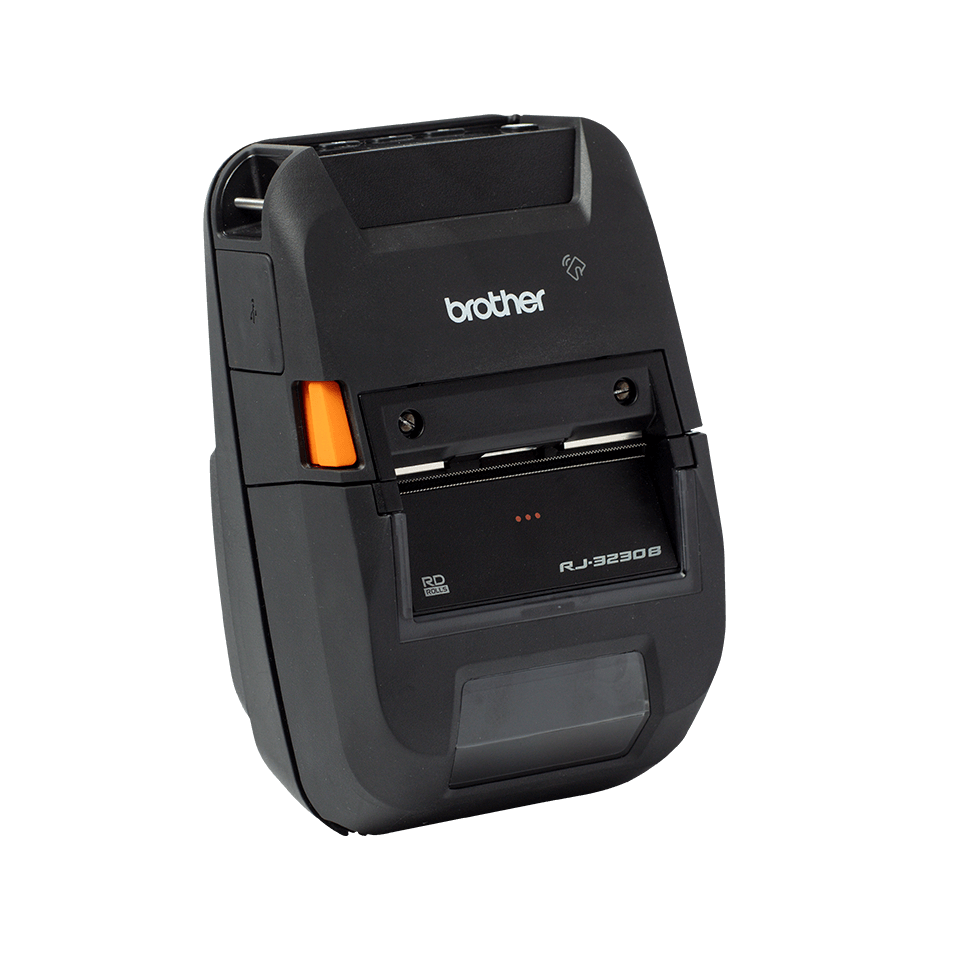

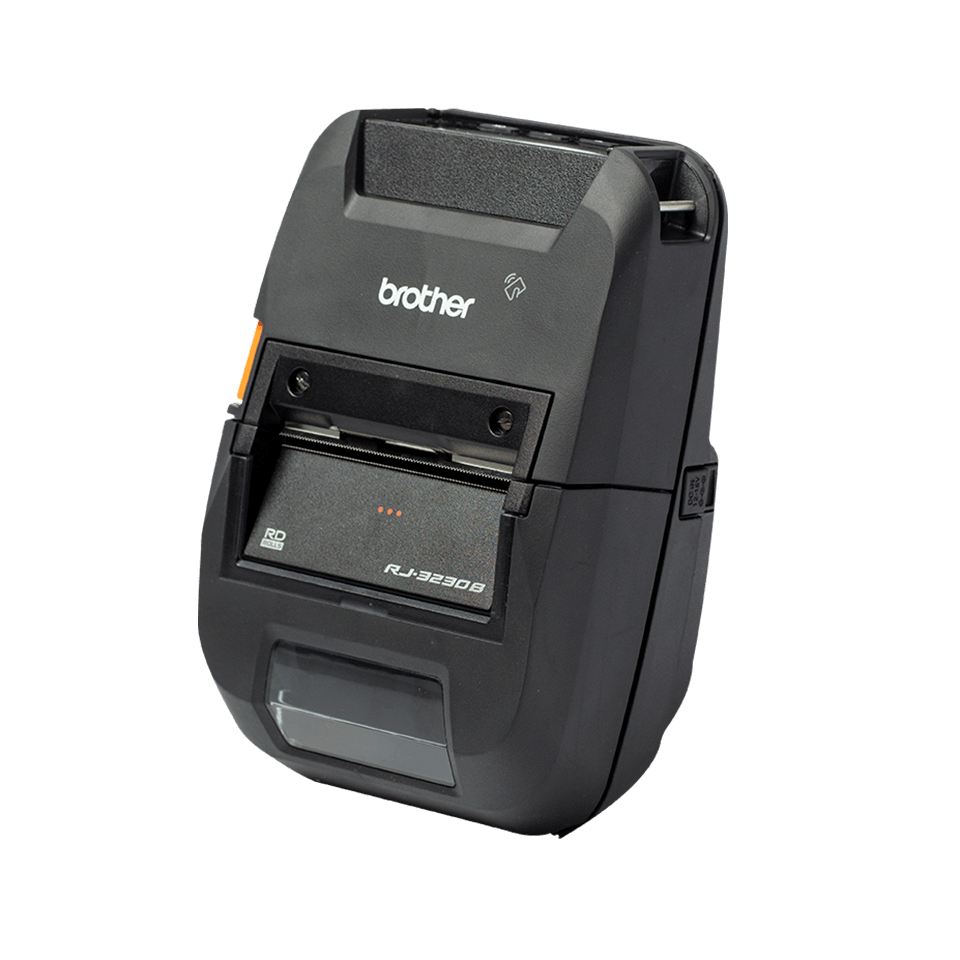

Brother RJ-3230BL rugged mobile printer with transparent background - front angle

Long-lasting smart Li-ion battery

Range of accessories to tailor a label printing solution to your needs

Fast print speeds of up to 5ips (127mm/sec) on the move

Key features

Print labels and receipts up to 3” width on the move
USB Type-C connectivity for both charging and data transfer
MFi, NFC and Bluetooth 5.0 connectivity
Long-lasting smart Li-ion battery
Range of accessories to tailor a label printing solution to your needs
Fast print speeds of up to 5ips (127mm/sec) on the move

About this product:

The RJ-3230B mobile printer offers a fast print solution, designed to last multiple shifts from a single charge. With a range of accessories, you can wear this compact Bluetooth printer on-body or mount on a surface to suit your business needs and printer wherever required.

This compact, yet rugged, 3 inch portable printer offers a reliable labelling and receipt solution that can endure the regular bumps and drops that come with everyday usage.

Perfect for retail, T&L, healthcare and field service environments, users can experience fast print speeds, the latest connectivity options and smart batteries that last all day - ideal for applications like shelf labelling, customer receipts, pricing labels, click and collect labels and more. With reliable and easy printing, your employees are freed up to focus on customer service, while high quality, accurate labels mean customers get clear and correct information.

Specifications More about this product

Supplies

PACD600CG Car Adapter (Optional)

SRP £24.68 (Inc. VAT)
SRP £20.57 (Ex. VAT)

PACD600WR

Car adapter (wired)

SRP £24.68 (Inc. VAT)
SRP £20.57 (Ex. VAT)

PASS4000

A durable shoulder strap designed for our RuggedJet series of mobile printers

SRP £34.93 (Inc. VAT)
SRP £29.11 (Ex. VAT)

PA-BC-003 Battery Charger

Single battery charger

SRP £129.05 (Inc. VAT)
SRP £107.54 (Ex. VAT)

PA-BT-006 Smart Battery

3000mAh Li-ion Rechargeable Smart Battery

SRP £161.74 (Inc. VAT)
SRP £134.78 (Ex. VAT)

PA-AD-600AUK AC Power Adapter

UK AC adapter accessory with 3-pin plug for use with RJ or PJ Brother mobile printers.

SRP £50.14 (Inc. VAT)
SRP £41.78 (Ex. VAT)

Brother Battery Eliminator Kit Cigarette Socket Connection PA-BEK-001CG

The Brother PA-BEK-001CG battery eliminator kit with cigarette lighter socket connection.

SRP £222.41 (Inc. VAT)
SRP £185.34 (Ex. VAT)

Brother Wired Battery Eliminator Kit PA-BEK-001WR

The Brother PA-BEK-001WR battery eliminator kit with wired connection.

SRP £222.41 (Inc. VAT)
SRP £185.34 (Ex. VAT)

Brother PA-4CR-003 4-slot Charging Cradle

4-slot charging cradle accessory for RJ-3200 mobile printers.

SRP £376.55 (Inc. VAT)
SRP £313.79 (Ex. VAT)

Brother PA-CR-005 Single Slot Charging Cradle

1-slot charging cradle accessory for RJ-3200 mobile printers.

SRP £111.72 (Inc. VAT)
SRP £93.10 (Ex. VAT)

Brother PA-LP-007 Label Peeler

Label peeler accessory for RJ-3200 printers.

SRP £64.14 (Inc. VAT)
SRP £53.45 (Ex. VAT)

Brother PA-LPR-004 Linerless Kit

Linerless kit accessory for RJ-3200 printers.

SRP £71.38 (Inc. VAT)
SRP £59.48 (Ex. VAT)

Show less

Direct Thermal Receipt Roll BDL-7J000076-066 (Box of 8)

The BDL-7J000076-066 continuous receipt roll, measuring 76mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £43.20 (Inc. VAT)
SRP £36.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J044076-066 (Box of 8)

The BDE-1J044076-066 die-cut label roll, measuring 76mm x 44mm and containing 400 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £48.00 (Inc. VAT)
SRP £40.00 (Ex. VAT)

Direct Thermal Receipt Roll BDL-7J000058-040 (Box of 24)

The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.

SRP £72.00 (Inc. VAT)
SRP £60.00 (Ex. VAT)

Show less

Show all Supplies

Specifications

Usage type	On body
Flash RAM	128 MB
Memory capacity	256 MB

Bluetooth	v 5.0
Bluetooth profiles	SPP, OPP, HCRP, GATT, iAP

Dimensions	117mm (W) x 180mm (D) x 77mm (H)
Weight	807 g

Belt clip	Yes
Li-ion battery	3000 mAh Li-ion battery (Smart Battery)
Others	Roll holder stop
Quick setup guide	Yes

Android	v6 and higher
iOS	Yes
Windows	Server 2012, Server 2012R2, Server 2016, Server 2019, Windows 7, Windows 8.1, Windows 10

1 dimensional barcode symbologies	CODE39, ITF(I-2/5), EAN-8(JAN8), EAN-13(JAN13), UPC-A, UPC-E, CODABAR(NW-7), CODE128, GS1-128(UCC/EAN-128), POSTNET CODE93, UPC/EAN EXTENSION, MSI, Intelligent Mail Barcode, Industrial 2-of-5, Standard 2-of-5 (Supported barcodes depend on printer command, please refer to the command reference for details)
2 dimensional barcode symbologies	QR Code, PDF417, MaxiCode, Aztec, Micro QR Code, MicroPDF417, DataMatrix, GS1 DataBar (Supported barcodes depend on printer command, please refer to the command reference for details)
Maximum print length	3000 mm
Maximum print width	72 mm
Resolution (dpi)	203
Standard print speed	127 mm per second
Supported commands	Raster, ESC/P, P-touch Template, ZPL II emulation, CPCL emulation

SDK (Software Development Kit)	Yes

Warranty	3 years return-to-base

Show less

Support

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Technical Specifications

Resources

Software Security Updates Guarantee

Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.

After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.

If you already own a Brother device, visit support.brother.com for information specific to your device.

More about this product

Brother RJ-3200 mobile printer falling to floor in supermarket

In-built durability

With 2m metre drop protection, IP54 rating against dust and moisture and an elastomer covering to protect from any knocks - the RJ-3200 printers are suitable for a range of applications in retail and field workforce.

Brother RJ-3200 rugged printer being picked up from charging cradle in warehouse

Recharge and relax

Experience easy updates that can take place overnight whilst the printers are charging - keeping your printers working at their best, ready for the next shift (with optional accessory PACR005 or PA4CR003).

Close up of Brother RJ-3200 Ready screen with full battery and bluetooth connectivity

Batteries that can keep up

The smart Li-Ion battery, included as standard with RJ-3200 printers, is designed to last a full shift.

Reduce downtime with a display indicator to keep you updated on the battery health status and power save mode to preserve battery life.

Back of house worker in high vis vest wearing Brother RJ-3200 printer on shoulder strap and smiling to camera

"At your side" warranties

The RJ Series comes with Brother's three year return-to-base warranty as standard so you know we have you covered.

Dark grey rosette on light grey background

Protect your investment with enhanced warranties

As well as 3 years return-to-base warranty included as standard on this product, Brother offers a range of enhanced warranties to suit your requirements.

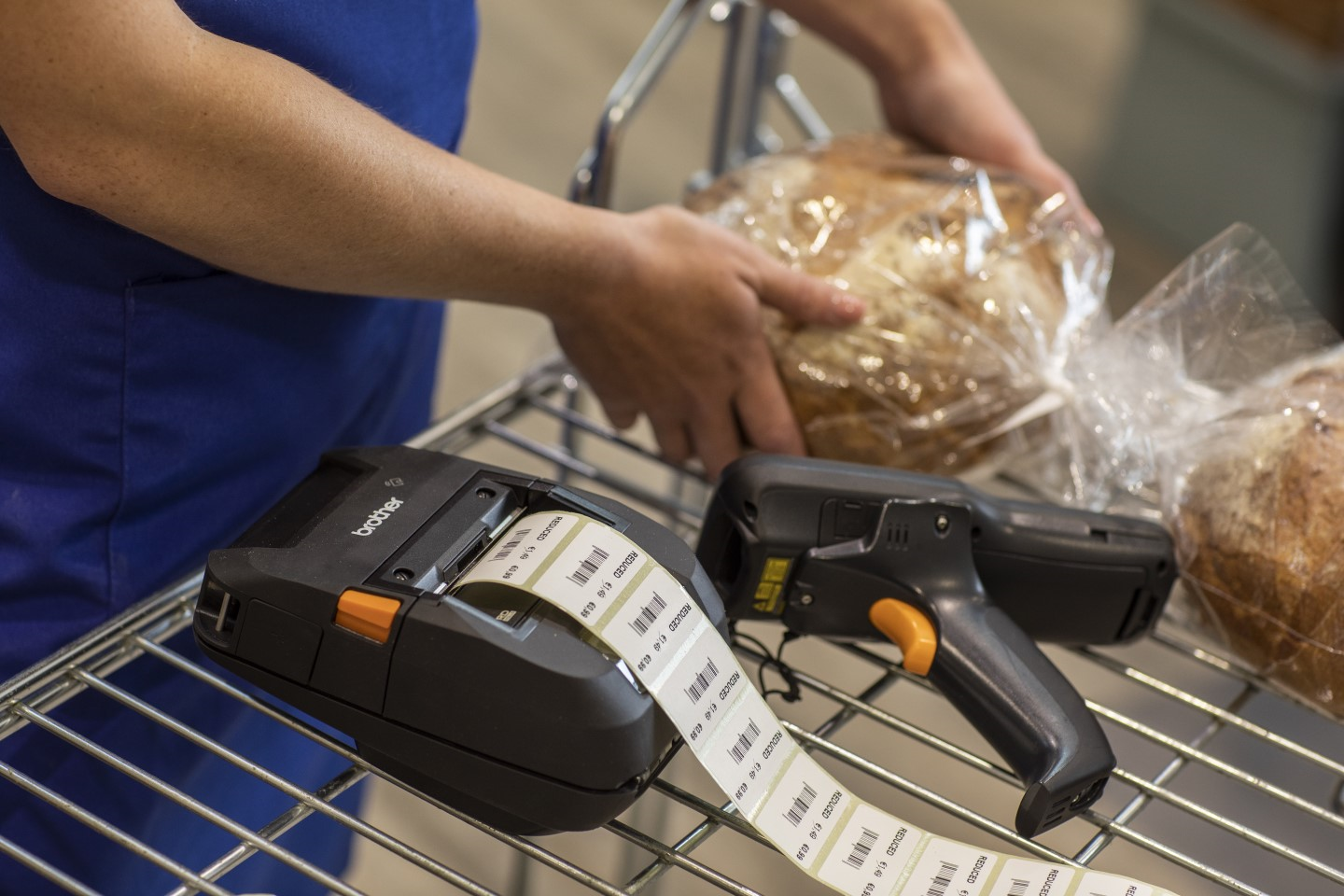

A retail worker using Brother RJ-3200 rugged mobile printer in bread aisle in a grocery store

Retail applications

Shelf edge labels
Mark down or discount labels
Price labels
Food safety labelling
Click and collect labels
Queue busting receipt printing

An RJ portable printer labelling a blue plastic box in a storage room

Transportation and logistics applications

Sales orders and confirmations
Returned goods receipts and labels
Customer receipts
Delivery receipts

A field worker handing across a piece of paper printed on his RJ 3200 portable printer

Field service applications

Receipts and invoices
Repair estimates
Statements of work
Work orders
Estimates and quotations
Maintenance and service reports
