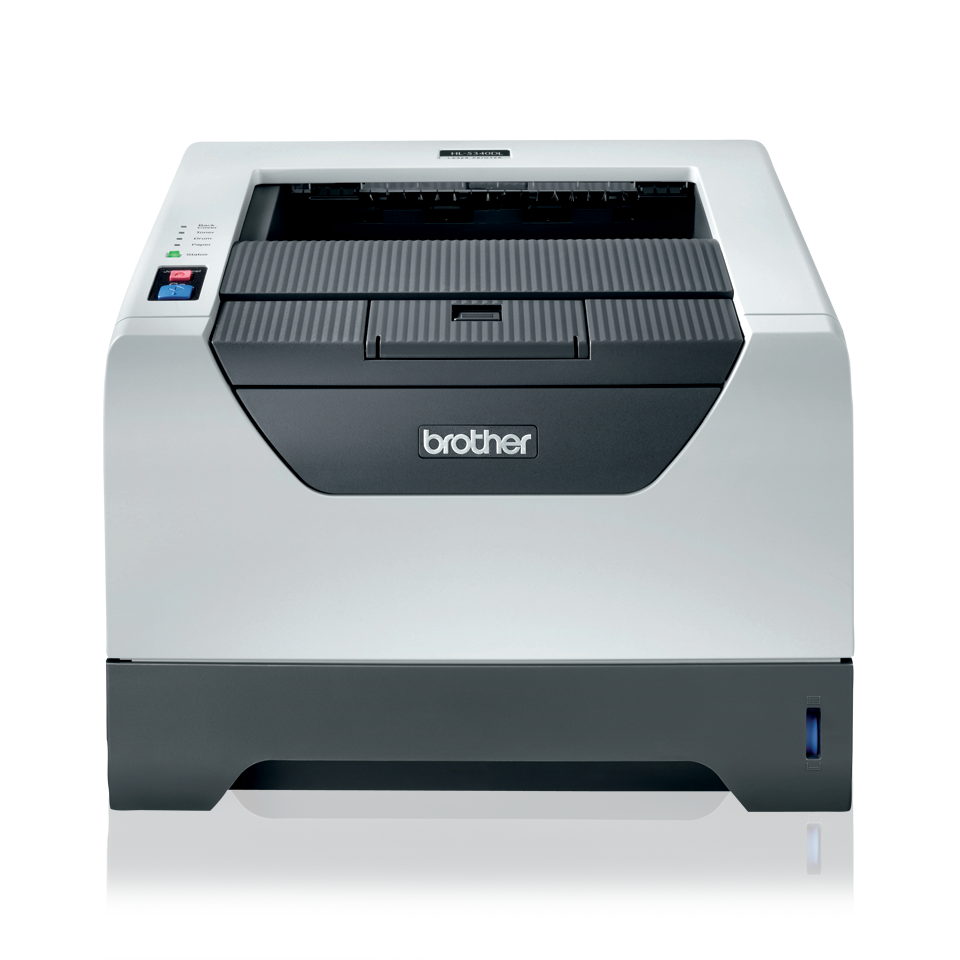

HL-5340DL Mono Laser Printer + Duplex

The low-cost mono laser for the busy office



Printer type Mono
Function Print
Laser classification Class 1 laser product (IEC 60825-1 A2:2001))
Max paper size A4
Memory 16MB (expandable up to 528MB using one 144 pin DIMM slot)
Processor 300MHz
Technology Laser


Connectivity USB
Local interface Hi-Speed USB2.0 IEEE1284 Parallel
Wired network interface IEEE1284 Parallel

Dimensions & weights

With carton 486(w) x 500(d) x 455(h) mm / 11.7kg
Without carton 371(w) x 384(d) x 246(h) mm / 9.5kg


Nordic Swan environmental accreditation Yes
Power consumption (Watts) 675W active, 75W ready, 6W sleep
Sound power 6.95BA active, 4.8BA ready
Sound pressure 54dBA active, 35dBA ready
Typical electrical consumption 2.3Wh / week

In the box

Contents Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard / Optional Paper Tray - Plain & recycled paper (between 60 - 105 g/m2 (16 - 28 lb)). Multi-Purpose Tray - Plain, recycled & bond paper (between 60 - 163g/m2 (16 to 43lb))
Weights Standard / Optional Paper Tray - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio (A4 only supported in automatic duplex print mode). Multi-Purpose Tray - Width: 69.8mm to 216mm (2.75” to 8.50”) x Length 116mm to 406.4mm (4.57” to 16”)

Operating systems & software

Supported Windows® Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® 2000 Professional, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions) Macintosh Mac OS X 10.3.9 or greater Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper handling

Paper input 250 sheet standard paper tray, 50 sheet multi-purpose tray, 250 sheet optional paper tray (maximum of 2)
Paper output 150 sheets face down, 1 sheet face up (straight paper path)


A4 standard print speed Up to 30
Resolution 1,200 x 1,200dpi, HQ1200 (2,400 x 600dpi quality), 600 x 600dpi
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3TM Language Emulation), IBM Proprinter XL & Epson FX-850
First print out time Less than 8.5 seconds


Supported b-guard, Managed Print Services

Supplies and accessories

Supplies In-box Toner Approx. 2,000 pages, Standard Toner TN-3230 - Approx. 3,000 pages


Warranty 12 month
