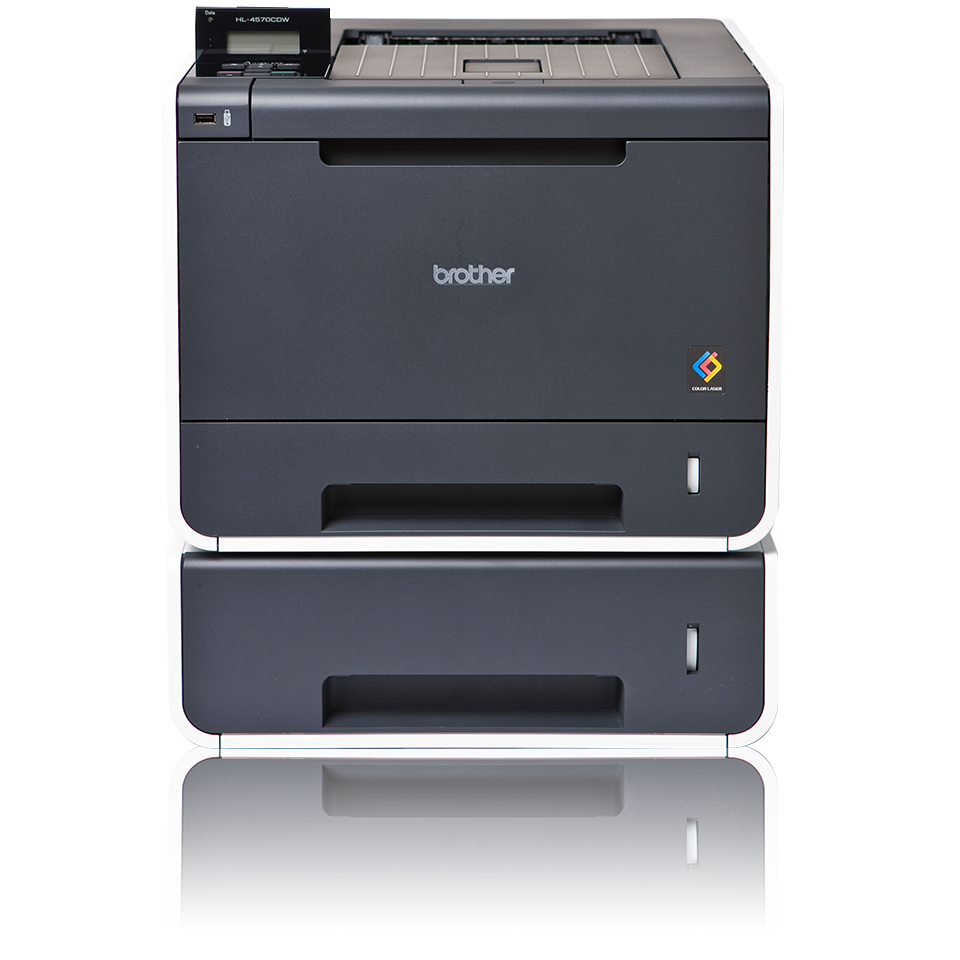

HL-4570CDWT High Speed Colour Laser Printer + Network, Extra Tray

Faster print & less refills for the busy office network

Supplies

Show more
Show less

Specifications

General

Printer type Colour
Function Print
Display Backlit LCD
Display size 2-line, 16 characters backlit green
Laser classification Class 1 Laser Product (IEC60825-1:2007)
Max paper size A4
Memory 128MB Expandable up to 384MB, using industry standard 1 x DDR2 (144 PIN) slot
Technology Laser

Connectivity

Connectivity Wireless
Local interface Hi-Speed USB 2.0
Wired network interface 10/100 Base-TX, Wireless LAN IEEE802.11b/g (Infrastructure Mode/Adhoc Mode)
Wireless network interface IEEE 802.11b/g/n

Dimensions & weights

With carton 650(W) x 574(D) x 521(H)mm / 25.5kg
Without carton 410(W) x 486(D) x 313(H)mm / 21.0kg

Environmental

Blue Angel environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Sound power Less than 6.77B(A) when printing in colour, less than 4.09B(A) in ready mode
Sound pressure Less than 57dBA when printing in colour, less than 33dBA in ready mode
Typical electrical consumption 2.0kWh / Week

In the box

Contents Power supply cord, Product safety guide, Software disc, Supplies, User guide, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard Paper Trays - Plain Paper, Thin Paper, Recycled Paper. Multi-Purpose Tray - Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelopes (Thick & Thin), Glossy Paper, Standard Paper Trays - A4, Letter, B5(ISO/JIS), A5, A5(Long Edge), B6(ISO), A6, Executive, Legal, Folio. Multi-Purpose Tray - Width 69.8mm to 216mm, Length 116mm to 406.4mm
Weights Standard Paper Trays - 60 to 105g/m2 (16 to 28lb) Multi-Purpose Tray - 60 to 163g/m2 (16 to 43lb)

Network

Secure function lock v2 Configure individual access restrictions by user and by function
Wireless network IEEE 802.11b/g/n
Wireless network security WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (AES), APOP, POP before SMTP, SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP, POP), SNMP v3, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), Kerberos

Operating systems & software

Supported Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows XP Home Edition, Windows XP Professional (32 & 64 bit editions), Windows® 2000 Professional, Windows Server® 2003 (Network only / 32 bit & 64 bit editions), Windows Server® 2008 (Network only / 32 bit & 64 editions), Windows Server® 2008 R2 (Network only) Mac OS X 10.4.11, 10.5.x, 10.6.x Linux printer driver for CUPS & LPD/LPRng printing system (x86, x64 environment)

Paper handling

Paper input 250 & 500 Sheet Standard Paper Trays [750 Sheets Total], 50 Sheet Multi-Purpose Tray
Paper output 150 Sheets (Face Down), 1 Sheet (Face up) Straight Paper Path

Printing

A4 standard print speed Up to 28
Resolution Up to 2,400 x 600dpi print resolution
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3 Language Emulation)
First print out time Less than 16 seconds

Solutions

Supported AirPrint, b-guard, Br-Docs, BSI, Cortado Cloud Print, Dropbox, Evernote, Google Cloud Print, Google Docs, iPrint & Scan, ISIS, Managed Print Services

Supplies and accessories

Supplies Inbox Toners 2,500 pages BK 1,500 pages C, M, Y, Standard Toner Black (TN-320BK) 2,500 pages Standard Toner Colour (TN-320C/M/Y) 1,500 pages, Super High Yield Black (TN-328BK) 6,000 pages Super High Yield Colour (TN-328C/M/Y) 6,000 pages. Drum Unit [DR-320CL] 25,000 A4 pages. Belt Unit [BU-300CL] Up to 50,000 pages. Waste Toner Box [WT-300CL] Up to 50,000 pages.

Warranty

Warranty 12 month
