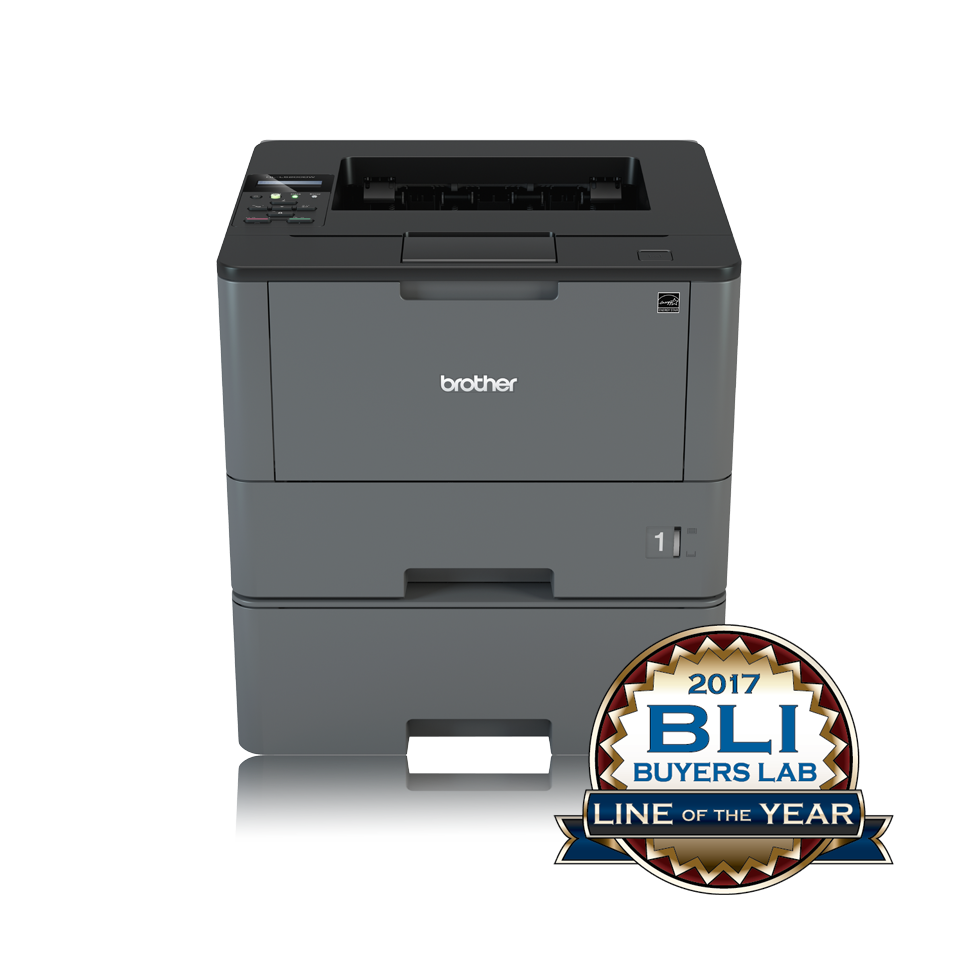

HL-L5200DWT Workgroup Mono Laser Printer + WiFi

SME Workgroup mono laser with additional paper tray

Specifications

General

Printer type Mono
Function Print
Display Backlit LCD
Display size 16 characters x 1 line
Laser classification Class 1 Laser Product (IEC 60825-1:2007)
Max paper size A4
Memory 256MB
Processor Cortex-A9 800MHz
Technology Laser

Connectivity

Connectivity Wired Network, Wireless
Local interface Hi-Speed USB 2.0
Wired network interface Ethernet (10Base-T/100Base-TX)
Wireless network interface IEEE 802.11b/g/n

Mobile connectivity

Supported AirPrint, Android Print Service Plugin, Cortado Cloud Print™, Google Cloud Print 2.0, iPrint&Scan, Mopria, Wi-Fi Direct™

Dimensions & weights

With carton 662(w) x 522(d) x 702(h) mm
With carton 22 kg
Without carton 373(w) x 388(d) x 387(h) mm
Weight 14.6 kg

Environmental

Blue Angel environmental accreditation Yes
Nordic Swan environmental accreditation Yes
Sound power Printing 6.90BA, Quiet mode printing 6.47BA, Ready mode up to 4.70BA
Sound pressure Printing 52dbA, quiet mode printing 50dbA, ready mode up to 34dbA
Typical electrical consumption 0.52KWh / Week

In the box

Contents Power supply cord, Product safety guide, Software disc, Supplies, Warranty card, Quick setup guide

Media specifications

Types and sizes Standard & Optional Trays – plain, recycled, coloured and letterhead paper (between 60 - 120gsm). Multi Purpose Tray - plain, recycled, bond, coloured and letterhead paper (between 60 - 200gsm). 2-sided Print - plain, recycled, coloured and letterhead paper (between 60 - 105gsm)
Weights Standard Tray - A4, Letter, A5, A5(Long Edge), A6, Executive, Legal, Folio, Mexico Legal, India Legal. Optional Tray - A4, Letter, A5, Executive, Legal, Folio, Mexico Legal, India Legal. Multi Purpose (MP) Tray - Width: 76.2mm to 215.9mm x Length: 127mm to 355.6mm. 2-sided Print – A4

Network

Wired network security SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3, Kerberos, IPsec, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
Wireless network security SMTP-AUTH, SSL/TLS (IPPS, HTTPS, SMTP), SNMP v3, Kerberos, IPsec, 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)

Operating systems & software

Supported Windows®: Windows 10® (32 & 64 bit editions), Windows 8® (32 & 64 bit editions),Windows 7® (32 & 64 bit editions), Windows Vista® (32 & 64 bit editions), Windows® XP Professional (32 & 64 bit editions), Windows® XP Home Edition, Windows® Server 2012, Windows® Server 2008R2, Windows® Server 2008 (32 & 64 bit editions), Windows® Server 2003 (32 & 64 bit editions). / Mac: OS X 10.8.5, 10.9.x, 10.10.x, 10.11.x or greater / Linux CUPS, LPD/LPRng (x86/x64 environment)

Paper handling

Paper input Lower Tray – 1 x 250 sheets & 1 x 520 sheets Multi Purpose Tray – 50 sheets
Paper output Face Down - 150 sheets Face Up (Straight Paper Path) - 1 sheet

Printing

A4 2-sided print speed Up to 20 sides per minute
A4 standard print speed Up to 40
Resolution Up to 1,200 x1,200dpi
Automatic 2 sided print Yes
Emulations PCL6, BR-Script3 (Postscript®3™ Language Emulation), IBM Proprinter XL, Epson FX-850, PDF Version 1.7, XPS Version 1.0
First print out time Less than 7.2 seconds
Recommended monthly volume Up to 3,500 pages

Security features

802.1x Yes
IP filter Yes
Secure function lock v3 Yes
Secure print Yes
Secure printing with SSL Yes

Solutions

Supported AirPrint, Android Print Service Plugin,Cortado Cloud Print,Google Cloud Print 2.0,iPrint&Scan,Managed Print Services, Mopria, PrintSmart Solutions

Supplies and accessories

Accessories Optional Lower Tray LT-5500 - 250 sheets, Optional Lower Tray LT-6500 - 520 sheets, Filter Holder FH-1000(Germany only)
Supplies Inbox Toner Approx. 3,000 pages, Standard Toner TN-3430 - Approx. 3,000 pages, High Yield Toner TN-3480 - Approx. 8,000 pages, Drum DR-3400 - Approx. 50,000 A4 pages (3 pages per job) / 30,000 A4 pages (1 page per job)

Warranty

Warranty 1 Year Manufacturers Warranty
