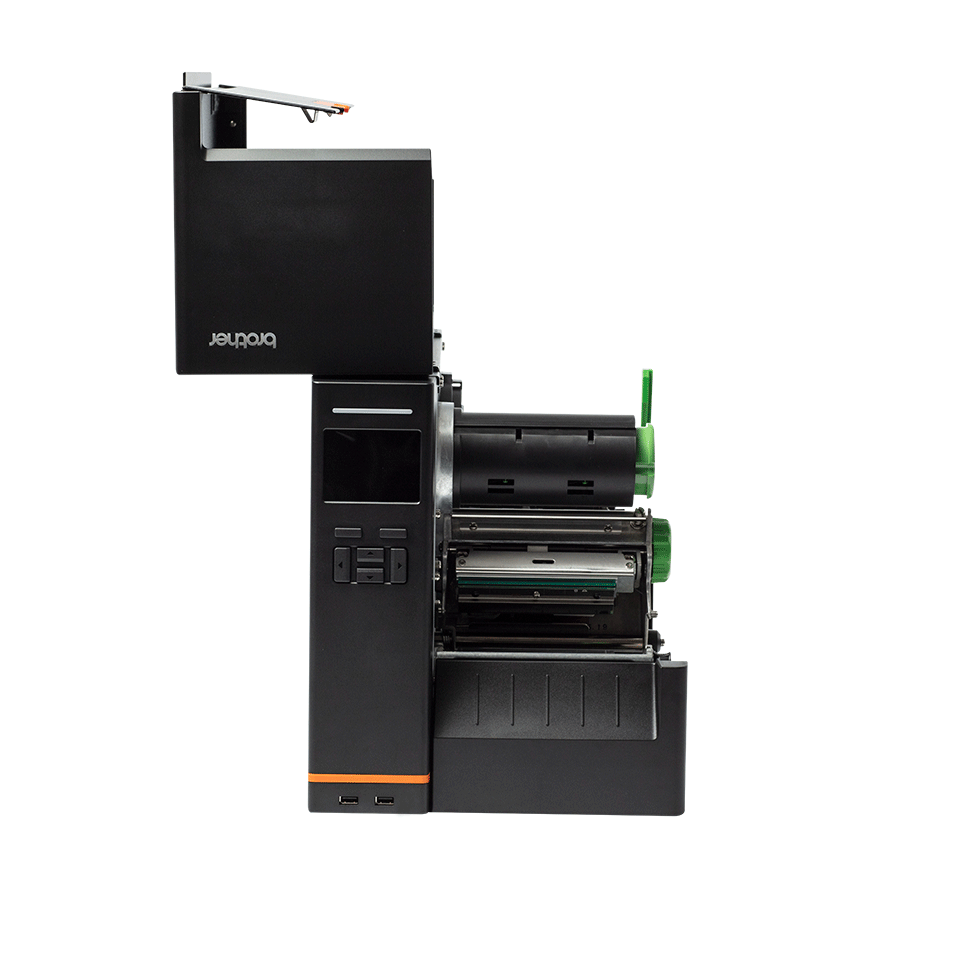

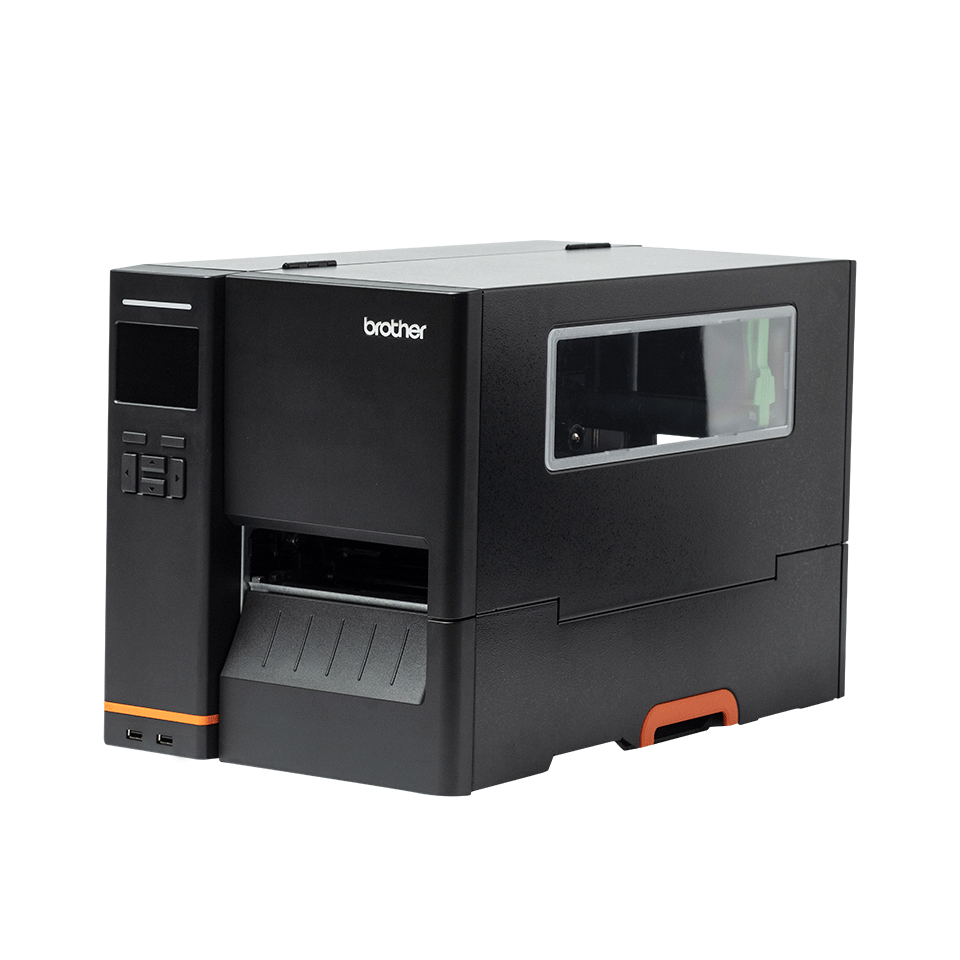

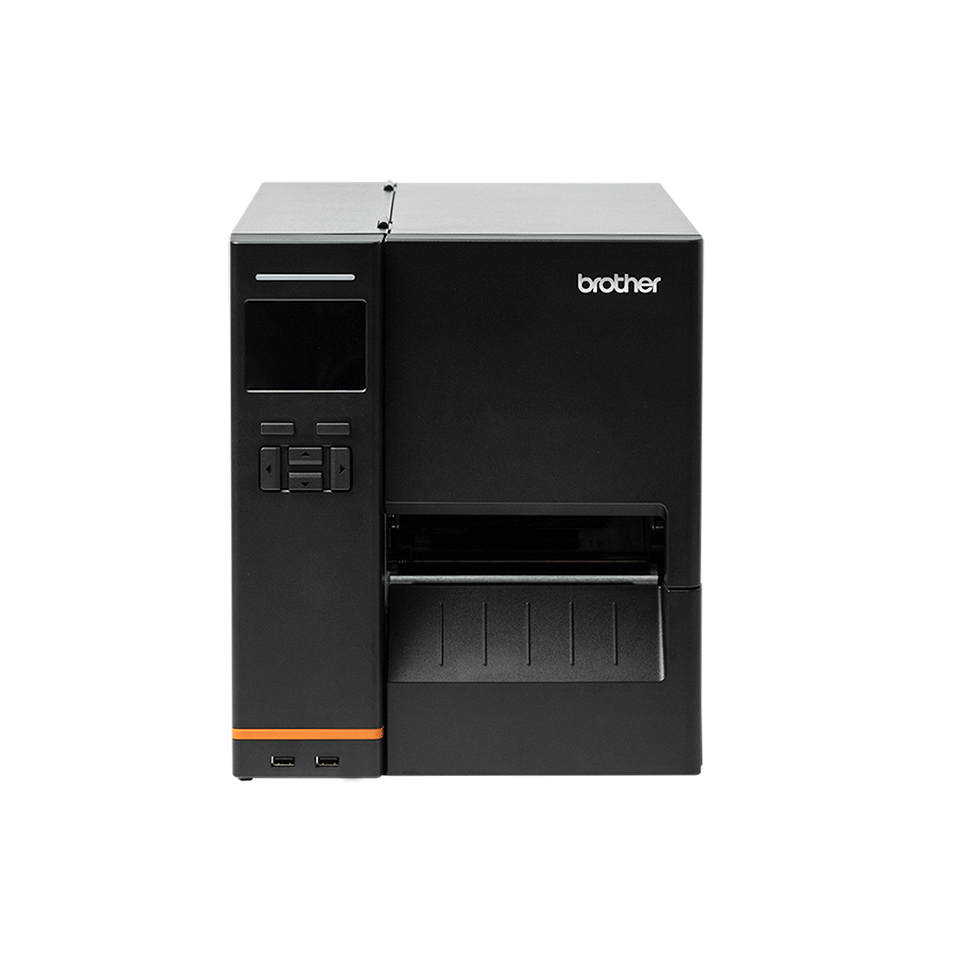

Brother TJ-4520TN Industrial Label Printer
4 inch industrial thermal label printer with LCD display, print width up to 104mm and print speeds up to 12ipsProduct Details
- Print speeds of up to 12ips with 300dpi resolution
- LCD display to indicate printer status
- Print width of up to 104mm
- FBPL-EZD (EPL2, ZPL2, DPL) printer command languages supported
- High capacity 600m thermal transfer ribbon means fewer media changes
- Connect easily with USB, USB Host, Serial, Ethernet and optional dual wireless interface (WiFi and Bluetooth)
Product Overview
Print more than 1,000 labels a day, even in the toughest production environments, with the Brother TJ-4520TN industrial label printer.
With fast print speeds, ZPL2 emulation compatibility and high ribbon capacity - this durable industrial printer has been built with you in mind.
Experience efficient labelling solutions and performance you can rely on with the TJ-4520TN industrial label printer.
As well as 3 years return-to-base warranty included as standard on this product, Brother offers a range of enhanced warranties to suit your requirements - including onsite.
Related Products
-
The BRP-1D600-110 premium resin thermal transfer black ink ribbon, 600 metres in length and 110mm in width has been Certified by Brother International Europe. Each purchase contains 6 ribbons per order.£352.80Inc. VAT£294.00Ex. VATThis product is available from our authorised retailers
-
The BRS-1D600-110 standard resin thermal transfer black ink ribbon, 600 metres in length and 110mm in width has been Certified by Brother International Europe. Each purchase contains 6 ribbons per order.£306.00Inc. VAT£255.00Ex. VATThis product is available from our authorised retailers
-
The BSP-1D600-110 premium wax/resin thermal transfer black ink ribbon, 600 metres in length and 110mm in width has been Certified by Brother International Europe. Each purchase contains 6 ribbons per order.£176.40Inc. VAT£147.00Ex. VATThis product is available from our authorised retailers
-
The BSS-1D600-110 standard wax/resin thermal transfer black ink ribbon, 600 metres in length and 110mm in width has been Certified by Brother International Europe. Each purchase contains 6 ribbons per order.£136.73Inc. VAT£113.94Ex. VATThis product is available from our authorised retailers
-
The BWP-1D600-110 premium wax thermal transfer black ink ribbon, 600 metres in length and 110mm in width has been Certified by Brother International Europe. Each purchase contains 6 ribbons per order.£90.00Inc. VAT£75.00Ex. VATThis product is available from our authorised retailers
-
The BWS-1D600-110 standard wax thermal transfer black ink ribbon, 600 metres in length and 110mm in width has been Certified by Brother International Europe. Each purchase contains 6 ribbons per order.£71.93Inc. VAT£59.94Ex. VATThis product is available from our authorised retailers
-
Brother printhead compatible with selected TJ industrial label printers£589.24Inc. VAT£491.03Ex. VATThis product is available from our authorised retailers
-
Brother replacement platen roller compatible with selected TJ industrial label printers£92.93Inc. VAT£77.44Ex. VATThis product is available from our authorised retailers
-
Automatic label cutter accessory compatible with selected TJ industrial label printers.£615.64Inc. VAT£513.03Ex. VATThis product is available from our authorised retailers
-
Automatic label peeler accessory compatible with selected TJ industrial label printers.£381.20Inc. VAT£317.67Ex. VATThis product is available from our authorised retailers
-
Dual connectivity module (WiFi and Bluetooth) accessory compatible with selected TJ industrial label printers£434.00Inc. VAT£361.67Ex. VATThis product is available from our authorised retailers
Specifications
General
| Technology | Thermal transfer/Direct thermal |
| Buttons | Power , Feed |
| Display | Colour LCD |
| LED | Power, Status, Error |
| Memory capacity | RAM, FLASH, 256MB, 512MB |
Connectivity
| Serial | Yes |
| USB interface | USB 2.0, USB Host |
| Wired network interface | 10/100 Mbps |
Connectivity
| Serial | Yes |
| USB interface | USB 2.0, USB Host |
| Wired network interface | 10/100 Mbps |
Dimensions and weights
| Dimensions | 276mm (W) x 502mm (D) x 326mm (H) |
| Weight | 15.35 |
In the box
| In the box | Quick Setup Guide (QSG), Printer, AC Power supply cord, USB Cable, Documentation |
Operating systems & software
| Supported Operating Systems | Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Mac OSX (10,11 or higher ), iOS (Labelling,SupportedOperatingSystems,Mac), Android (5 or higher ), For the full list of compatible operating systems visit support.brother.com, Linux |
Printing
| Maximum Print Length | 11430mm |
| Maximum Print Speed | 12 ips |
| Resolution | 300 x 300dpi |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
Printing
| Maximum Print Speed | 12 ips |
| One Dimensional Barcode Symbology | Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, Industrial 2-of-5, Standard 2-of-5, EAN14 |
| Printing Maximum Media Width | 114mm |
| Maximum Print Lenght | 11430mm |
| Printing Maximum Print Speed | 12 ips |
| Resolution (dpi) | 300 x 300dpi |
| Two Dimensional Barcode Symbology | GS1 Databar Composite, DataMatrix, MaxiCode, Aztec, PDF417, QR Code, Micro PDF417, CODABLOCK F mode, TLC39 |
| Inner Paper Core Ribbon Length | 1 paper core: Max OD 90mm, 600m long |
| Printing Maximum Ribbon Width | 114.3mm |
| Printing Maximum Roll Core Diameter | 76.2mm |
| Printing Maximum Roll Diameter | 203mm |
| Printing Minimum Ribbon Width | 25.4mm |
| Printing Minimum Roll Core Diameter | 38.1mm |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
Solutions
| SDK (Software Development Kit) | Yes |
Solutions
| SDK (Software Development Kit) | Yes |
Protect your investment with Service Packs
As well as a 3 year return-to-base service included as standard on this product, Brother offers a range of Service Packs to suit your requirements - including onsite.
Integrate with ease
With the Brother TJ label printers, there is no need to worry about integration.
Our industrial printers support various printer command languages, including ZPL2 emulation, making printer replacements as easy as possible - with minimal disruption.
Connectivity as standard
USB, USB Host, Serial and Ethernet are included as standard for the TJ industrial label printers.
An optional WiFi and Bluetooth module is also available as an accessory to meet your connectivity needs.
Minimise downtime and save money
Offering a high ribbon capacity of 600m, the TJ industrial label printers ensure your workers spend as little time as possible changing supplies.
Fewer ribbon changes means saving your workers' time for other tasks, improving efficiency and saving you money.
In-built durability
Brother industrial printers have been built with you in mind, and built to last, ensuring you enjoy years of hassle-free label printing.
The high volume industrial printers feature a metal frame and cover as well as other durable design features to ensure they perform at their best, even in the toughest production environments.
High quality thermal printing
The TJ-4520TN industrial barcode label printer offers 300 dpi resolution for easy-to-read text and barcodes, time after time.
With high quality product, packing and shipping labels, it is easy to maintain compliance throughout the supply chain.
