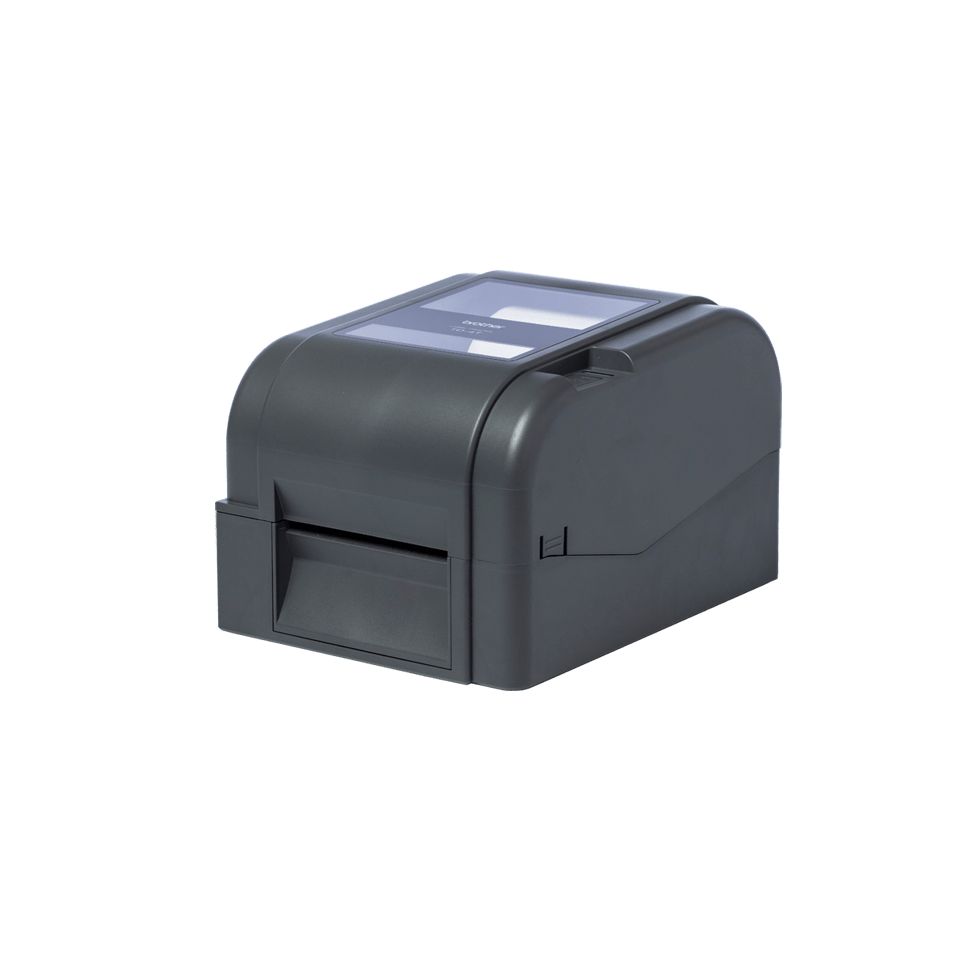

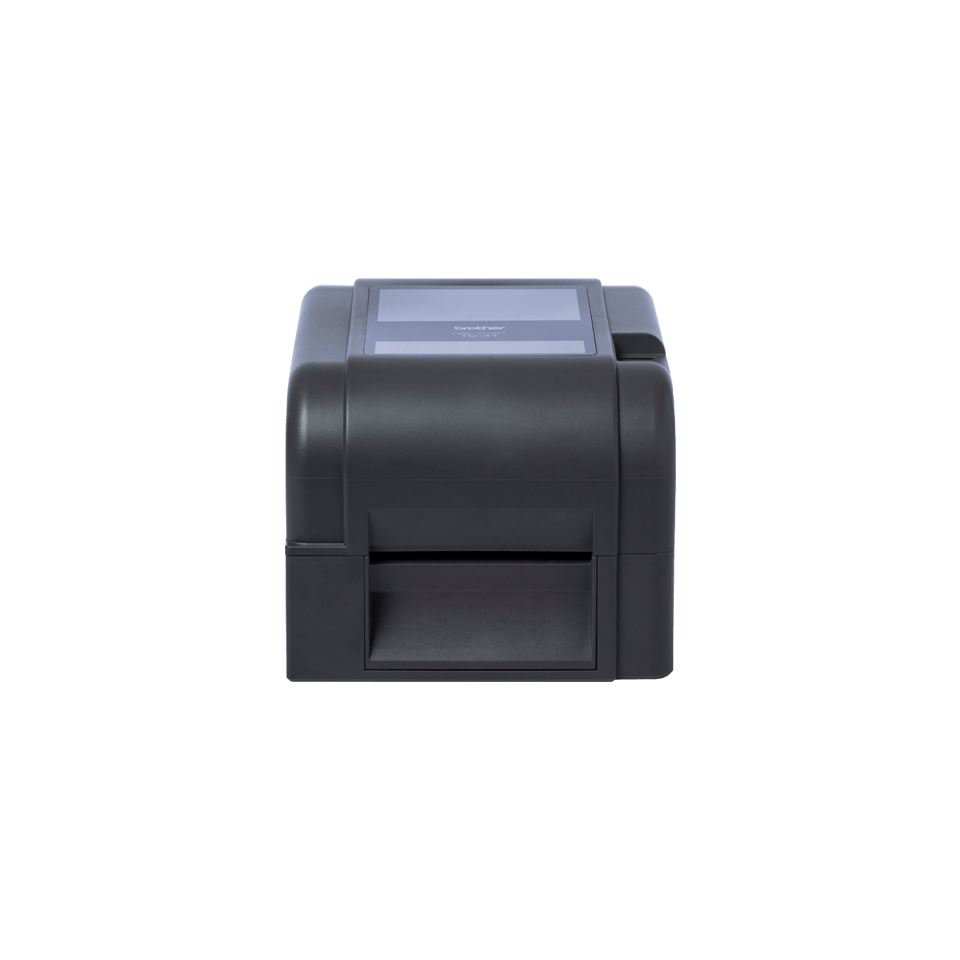

TD4520TN | Thermal Transfer Barcode Label Printer

300dpi high resolution printing for crisp text and barcodes

Thermal transfer print using high capacity ink ribbons

Up to 127mm/second (5 ips) print speed

Product Overview

USB, wired ethernet and serial ports as standard

Supports popular printer languages including ZPL/ZPL2, EPL and DPL

Free label design software available via download

Key features

300dpi high resolution printing for crisp text and barcodes
Thermal transfer print using high capacity ink ribbons
Up to 127mm/second (5 ips) print speed
USB, wired ethernet and serial ports as standard
Supports popular printer languages including ZPL/ZPL2, EPL and DPL
Free label design software available via download

About this product:

The TD-4520TN creates high resolution labels that last. Thermal transfer technology means labels are especially durable, making them suitable for a wide range of tasks in sectors like transport and logistics, retail, healthcare and food traceability. Operation is easy with BarTender and SAP compatibility*, and auto media configuration delivers better usability. For a more cost-efficient print option, direct thermal technology is built-in too, letting you print high-quality receipts, shipping labels and tickets.

Specifications More about this product

Supplies

Brother PA-CU-003 Label Cutter for TD-4T series

Automatic label cutter used to produce labels of various lengths by using continuous label rolls.

SRP £173.71 (Inc. VAT)
SRP £144.76 (Ex. VAT)

Brother PA-LP-003 Label Peeler for TD-4T series

Automatic label peeler that improves worker efficiency by removing the backing from the labels when printed. Compatible with the TD-4T series label printers TD-4420TN and TD-4520TN.

SRP £40.13 (Inc. VAT)
SRP £33.44 (Ex. VAT)

Brother PA-RH-001 External Roll Holder for TD-4T series

External roll holder for the Brother TD-4T series label, receipt and wristband printers

SRP £28.09 (Inc. VAT)
SRP £23.41 (Ex. VAT)

Brother PA-CU-002 Full and Partial Label Cutter for TD-4T series

This product has been discontinued. Our nearest equivalent is the PA-CU-003. Compatible with the TD-4T series label printers TD-4420TN and TD-4520TN.

Show less

Show all Supplies

Specifications

Buttons	Feed
Flash RAM	128 MB
LED	Power, Data, Error
RAM	64 MB
Technology	Thermal transfer / Direct thermal

Serial	RS-232C (DB9 female)
USB interface	Type B: Ver. 2.0 High Speed \| Type A: USB Host (mass storage device class)
Wired network interface	10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP clpient, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP

Dimensions	(W) 204mm x (H) 177.5mm x (D) 280mm
Weight	2.50 kg

AC adaptor	Yes
AC adaptor power cord	Yes
Label design software	Bartender Ultra Lite Edition (free download)
Supplies	Pair of 25.4mm ribbon spindles for 300m ribbon \| 25.4mm ribbon paper core
USB cable	Yes
Quick setup guide	Yes

Linux	Linux
Macintosh	Mac OS X 10.10.x or higher
Windows	Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1

1 dimensional barcode symbologies	Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies	GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Bitmap fonts	FBPL: 8 alpha-numeric bitmap fonts
Label detection sensor	Yes
Maximum label width	112 mm
Maximum print length	11430 mm
Maximum print width	105 mm
Outline/Vector fonts	Monotype Image TrueType font engine with one CG Triumvirate Bold Condensed font
Resolution (dpi)	300 x 300
Standard print speed	127 mm per second
Supported commands	FBPL-EZD (EPL, ZPL, ZPL2, DPL)

Warranty	3 year return-to-base

Show less

Support

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Technical Specifications

Resources

More about this product

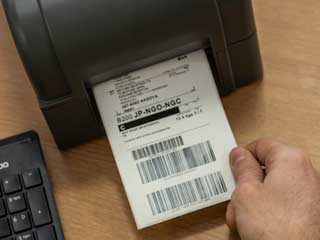

Label printed on a Brother TD-4D series label printer

High quality thermal transfer printing

The 300dpi print resolution produces incredibly crisp, easy-to-read text and barcodes using thermal transfer ink ribbons and media. As your printing needs change, so can the Brother TD-4520TN label printer.

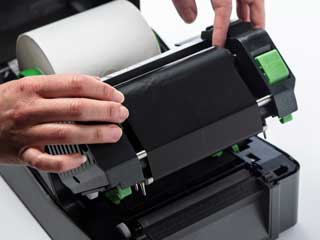

Thermal transfer ink ribbon being installed in a TD-4D label printer

High capacity thermal transfer print ribbons in various materials depending on application

Large capacity ribbons of up to 300 metres can be installed, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

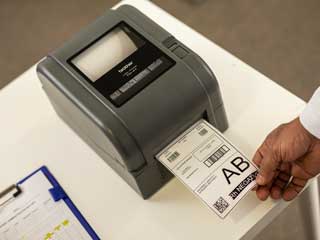

Industry standard printer commands, as standard

Print from Windows using the standard printer driver, or integrate the Brother TD-4520TN label printer into your legacy systems using ZPL/ZPL2 or EPL printer commands without needing to change your existing software.

Brother TD-4D label printer on steel table next to cakes in a bakery

Fast print speed and processing to improve efficiency

A fast print speed of 127mm/second (5 inches per second) means less time waiting for your labels to print and more time being productive.

Ethernet cable being plugged into the rear port of a Brother TD-4D label printer

Connectivity to suit your requirements

With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4520TN will have no problems connecting to your existing equipment and infrastructure.

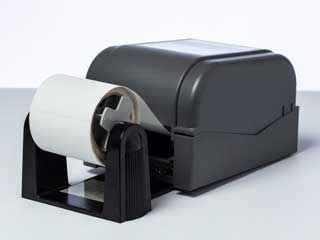

Option roll holder installed on a Brother TD-4D label printer

Optional accessories to further improve productivity

Add a durable label cutter, automatic label peeler or external roll holder for larger capacity rolls to further enhance your efficiency and provide maximum printer up-time.
