TD-4520DN | Professional Label & Receipt Printer

Network connectivity

Professional quality up to 300dpi print resolution

Fast print speeds up to 6 inches per second

Product Overview

Brother TD-4520DN desktop label printer front shot

Print width up to 4.27 inches / 108mm

Easy set-up with automatic media configuration

Ready to integrate with iOS and Android apps

Key Features

Network connectivity
Professional quality up to 300dpi print resolution
Fast print speeds up to 6 inches per second
Print width up to 4.27 inches / 108mm
Easy set-up with automatic media configuration
Ready to integrate with iOS and Android apps

About this product:

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes.

The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions.

With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Specifications More about this product

Supplies

Brother PA-CU-001 Label Cutter for TD-4D series

Label cutter for the TD-4D series label, receipt and wristband printers.

SRP £107.18 (Inc. VAT)
SRP £89.32 (Ex. VAT)

Brother PA-LP-002 Label Peeler for TD-4D series

Label Peeler for the Brother TD-4D series label, receipt and wristband printers

SRP £49.63 (Inc. VAT)
SRP £41.36 (Ex. VAT)

Brother PA-HU3-001 Thermal Print Head (300dpi)

Thermal Print Head (300dpi) for the TD-4520DN and TD-4550DNWB label printers

SRP £239.18 (Inc. VAT)
SRP £199.32 (Ex. VAT)

Brother PA-PR3-001 Platen Roller for TD-4D Series

Platen Roller (300dpi) for the TD-4520DN and TD-4550DNWB label printers

SRP £20.06 (Inc. VAT)
SRP £16.72 (Ex. VAT)

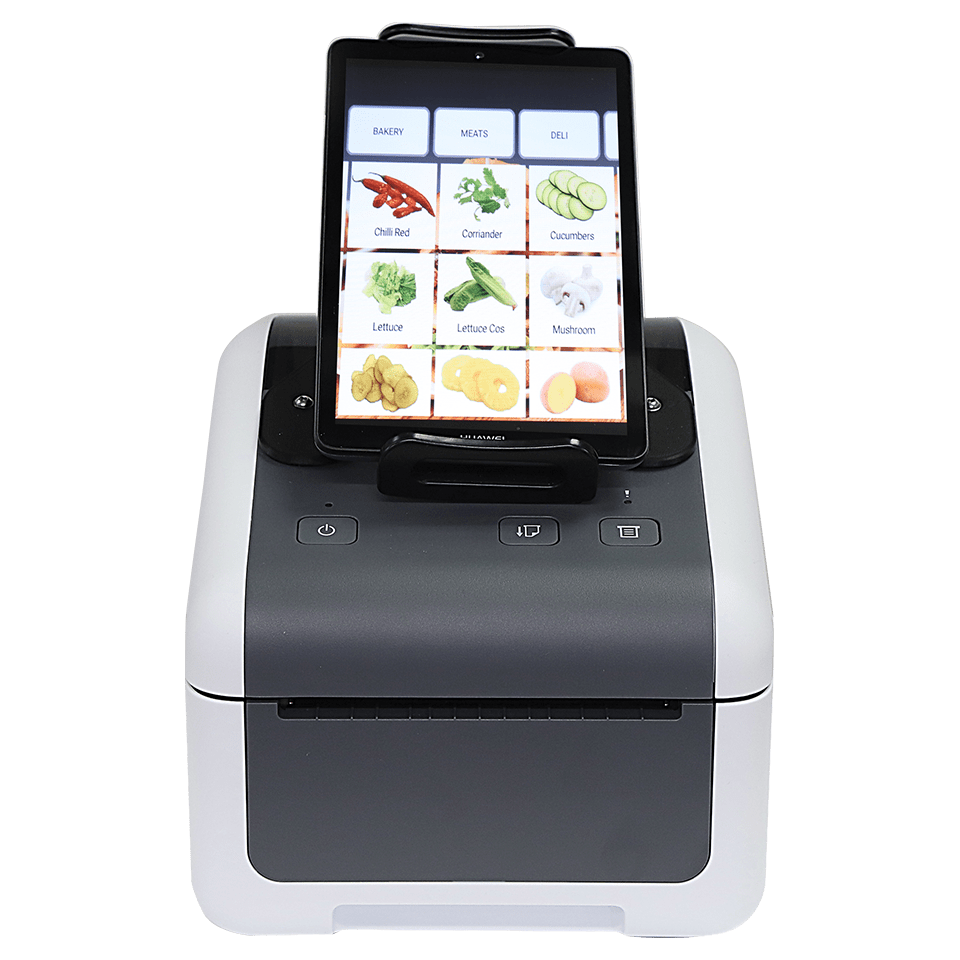

TD4HOLDERU1 Tablet Holder for TD-4D Series

Tablet holder for the TD-4D series label, receipt and wristband printers.

SRP £54.00 (Inc. VAT)
SRP £45.00 (Ex. VAT)

Show less

Direct Thermal Receipt Roll BDL-7J000058-040 (Box of 24)

The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.

SRP £72.00 (Inc. VAT)
SRP £60.00 (Ex. VAT)

Direct Thermal Receipt Roll BDL-7J000058-102 (Box of 8)

The BDL-7J000058-102 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £83.90 (Inc. VAT)
SRP £69.92 (Ex. VAT)

Direct Thermal Receipt Roll BDL-7J000076-066 (Box of 8)

The BDL-7J000076-066 continuous receipt roll, measuring 76mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £43.20 (Inc. VAT)
SRP £36.00 (Ex. VAT)

Direct Thermal Receipt Roll BDL-7J000102-058 (Box of 20)

The BDL-7J000102-058 continuous receipt roll, measuring 101.6mm in width, has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.

SRP £120.00 (Inc. VAT)
SRP £100.00 (Ex. VAT)

Direct Thermal Continuous Label Roll BDE-1J000102-102 (Box of 8)

The BDE-1J000102-102 continuous label roll, measuring 102mm wide and 58m in length, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £144.00 (Inc. VAT)
SRP £120.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J026051-060 (Box of 12)

The BDE-1J026051-060 die-cut label roll, measuring 51mm x 26mm and containing 500 labels per roll has been Certified by Brother International Europe. Each purchase contains 12 rolls per order.

SRP £39.60 (Inc. VAT)
SRP £33.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J026051-102 (Box of 16)

The BDE-1J026051-102 die-cut label roll, measuring 51mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 16 rolls per order.

SRP £144.00 (Inc. VAT)
SRP £120.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J026076-102 (Box of 8)

The BDE-1J026076-102 die-cut label roll, measuring 76mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £120.00 (Inc. VAT)
SRP £100.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J044076-066 (Box of 8)

The BDE-1J044076-066 die-cut label roll, measuring 76mm x 44mm and containing 400 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £48.00 (Inc. VAT)
SRP £40.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J050102-102 (Box of 8)

The BDE-1J050102-102 die-cut label roll, measuring 102mm x 50mm and containing 1,050 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £124.80 (Inc. VAT)
SRP £104.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J152102-058 (Box of 20)

The BDE-1J152102-058 die-cut label roll, measuring 102mm x 152mm and containing 85 labels per roll has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.

SRP £120.00 (Inc. VAT)
SRP £100.00 (Ex. VAT)

Direct Thermal Die-Cut Label Roll BDE-1J152102-102 (Box of 8)

The BDE-1J152102-102 die-cut label roll, measuring 102mm x 152mm and containing 350 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £158.40 (Inc. VAT)
SRP £132.00 (Ex. VAT)

RD-S01E2

Continuous length paper label

RDS02E1

Die Cut Label Rolls - 102mm x 152mm

RD-S03E1

Die Cut Labels 102mm x 50mm

RD-S04E1

Die Cut Labels - 76mm x 26mm

RD-S05E1

Die Cut Labels - 51mm x 26mm

RD-S07E5

Continuous receipt rolls - 58mm x 86m

RD-Q04E1

Die cut labels - 51mm x 26mm

RD-P09E1

Die cut labels - 76mm x 44mm

SRP £144.00 (Inc. VAT)
SRP £120.00 (Ex. VAT)

RD-M03E1 12 x Label Rolls

Die Cut Label Rolls - 102mm x 152mm

SRP £111.60 (Inc. VAT)
SRP £93.00 (Ex. VAT)

RDR03E5

Receipt Rolls - 58mm x 12m

RDP08E5

Receipt Rolls - 76mm x 35.3m

RD-M01E5 12 x Receipt Rolls

Receipt Rolls - 102mm x 27.7m

SRP £86.40 (Inc. VAT)
SRP £72.00 (Ex. VAT)

Show less

Show all Supplies

Specifications

Flash RAM	64 MB
Housing colour	White and grey
RAM	256 MB
Technology	Direct thermal
Control panel	3 button, 3 LED
LED	Power, Data, Status, Error

Serial	RS-232C Serial (DB9 male)
USB interface	USB Ver. 2.0 (Full Speed) Type B
Wired network interface	10/100Base-TX

Dimensions	180mm (W) x 155mm (H) x 224mm (D)
Weight	2.08 kg

AC adaptor power cord	Yes
USB cable	Yes
Warranty card	Yes
AC adaptor	Yes
Software	Available to download from support.brother.com
Quick setup guide	Yes

Linux	Linux
Android	Android 4.0.3 or later
IOS	iOS® 8 or later
Windows	Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 7, Windows 8, Windows 8.1, Windows 10

Bitmap fonts	Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels, Gothic
Copies	1-9999 (ESC/P P-touch Template)
Label detection sensor	Yes
Maximum label width	118 mm
Maximum print length	3000 mm
Mirror printing	Yes
Resolution (dpi)	300 x 300
Sequential numbering	1 - 9999 / A - Z / a - z
Standard print speed	152 mm per second
Supported commands	P-touch Template, Raster, ESC/P, ZPL II emulation, CPCL emulation
Maximum print width	108 mm

Database file compatibility	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date and time
Label length settings	25 mm (minimum)
Languages	English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hugarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Screen capture	Yes
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround

SDK (Software Development Kit)	Yes

Rolls	RD rolls (die-cut and continuous)
Optional accessories	Cutter, Peeler, Platen roller, Thermal print head

Warranty	3 years (return to base)

Show less

Support

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Technical Specifications

Resources

More about this product

Brother TD-4520 network desktop label printer on wooden desk with shipping notes on clipboard

Crop function

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.

Brother TD-4520DN desktop label printer in hospital printing patient details label

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Man wearing hi-vis in warehouse printing label from Brother TD-4520DN

Print from your Windows PC

Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Back of Brother TD-4520 network desktop label printer showing network power vga ports

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.

Brother TD-4520DN network desktop label printer printing label with barcode

Software support

Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs. Software development kit's available from: https://atyourside.brother.co.uk/developer-centre
