TD4420TN | Thermal Transfer Label Printer

203dpi printing for crisp text and barcodes

Thermal transfer print using high capacity ink ribbons

Up to 152mm/second (6 ips) print speed

Product Overview

USB, wired ethernet and serial ports as standard

Supports popular printer languages including ZPL/ZPL2, EPL and DPL

Free label design software available via download

Key features

203dpi printing for crisp text and barcodes
Thermal transfer print using high capacity ink ribbons
Up to 152mm/second (6 ips) print speed
USB, wired ethernet and serial ports as standard
Supports popular printer languages including ZPL/ZPL2, EPL and DPL
Free label design software available via download

About this product:

The TD-4420TN uses innovative thermal transfer technology to create durable labels that stand up to the toughest of tests. SAP and BarTender compatibility* ensure it fits perfectly into your workflows, and there’s the added bonus of customisation options like label peelers, cutters and external roll holders. Plus, you can also use the in-built direct thermal technology to print high-volume, low-cost labels for everyday usage.

Specifications More about this product

Supplies

Uncoated Thermal Transfer White Die-Cut Label Roll BUS-1J150102-121

The BUS-1J150102-121 uncoated die-cut label roll, measuring 102mm x 150mm and containing 500 labels per roll has been Certified by Brother International Europe.

SRP £120.60 (Inc. VAT)
SRP £100.50 (Ex. VAT)

Uncoated Thermal Transfer Die-Cut White Label Roll BUS-1J074102-121

The BUS-1J074102-121 uncoated die-cut label roll, measuring 102mm x 74mm and containing 1,000 labels per roll has been Certified by Brother International Europe.

SRP £120.60 (Inc. VAT)
SRP £100.50 (Ex. VAT)

Premium Coated Thermal Transfer Die-Cut Label Roll BCS-1J150102-121

The BCS-1J150102-121 premium coated die-cut label roll, measuring 102mm x 150mm and containing 500 labels per roll has been Certified by Brother International Europe.

SRP £126.00 (Inc. VAT)
SRP £105.00 (Ex. VAT)

Premium Coated Thermal Transfer Die-Cut Label Roll BCS-1J074102-121

The BCS-1J074102-121 premium coated die-cut label roll, measuring 102mm x 74mm and containing 1,000 labels per roll has been Certified by Brother International Europe.

SRP £127.80 (Inc. VAT)
SRP £106.50 (Ex. VAT)

Direct Thermal Continuous Label Roll BDE-1J000102-102 (Box of 8)

The BDE-1J000102-102 continuous label roll, measuring 102mm wide and 58m in length, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

SRP £144.00 (Inc. VAT)
SRP £120.00 (Ex. VAT)

Standard Wax Thermal Transfer Black Ink Ribbon BWS-1D300-110

The BWS-1D300-110 standard wax thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.

SRP £72.00 (Inc. VAT)
SRP £60.00 (Ex. VAT)

Premium Wax Thermal Transfer Black Ink Ribbon BWP-1D300-110

The BWP-1D300-110 premium wax thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.

SRP £93.60 (Inc. VAT)
SRP £78.00 (Ex. VAT)

Standard Wax/Resin Thermal Transfer Black Ink Ribbon BSS-1D300-110

The BSS-1D300-110 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.

SRP £136.80 (Inc. VAT)
SRP £114.00 (Ex. VAT)

Premium Wax/Resin Thermal Transfer Black Ink Ribbon BSP-1D300-110

The BSP-1D300-110 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.

SRP £180.00 (Inc. VAT)
SRP £150.00 (Ex. VAT)

Standard Resin Thermal Transfer Black Ink Ribbon BRS-1D300-110

The BRS-1D300-110 standard resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.

SRP £309.60 (Inc. VAT)
SRP £258.00 (Ex. VAT)

Premium Resin Thermal Transfer Black Ink Ribbon BRP-1D300-110

The BRP-1D300-110 premium resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.

SRP £360.00 (Inc. VAT)
SRP £300.00 (Ex. VAT)

Standard Wax Thermal Transfer Black Ink Ribbon BWS-1D300-080

The BWS-1D300-080 standard wax thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.

SRP £54.00 (Inc. VAT)
SRP £45.00 (Ex. VAT)

Premium Wax Thermal Transfer Black Ink Ribbon BWP-1D300-080

The BWP-1D300-080 premium wax thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.

SRP £68.40 (Inc. VAT)
SRP £57.00 (Ex. VAT)

Standard Wax/Resin Thermal Transfer Black Ink Ribbon BSS-1D300-080

The BSS-1D300-080 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.

SRP £100.80 (Inc. VAT)
SRP £84.00 (Ex. VAT)

Premium Wax/Resin Thermal Transfer Black Ink Ribbon BSP-1D300-080

The BSP-1D300-080 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.

SRP £129.60 (Inc. VAT)
SRP £108.00 (Ex. VAT)

Standard Resin Thermal Transfer Black Ink Ribbon BRS-1D300-080

The BRS-1D300-080 standard resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.

SRP £223.20 (Inc. VAT)
SRP £186.00 (Ex. VAT)

Premium Resin Thermal Transfer Black Ink Ribbon BRP-1D300-080

The BRP-1D300-080 premium resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.

SRP £259.20 (Inc. VAT)
SRP £216.00 (Ex. VAT)

Standard Wax Thermal Transfer Black Ink Ribbon BWS-1D300-060

The BWS-1D300-060 standard wax thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.

SRP £39.60 (Inc. VAT)
SRP £33.00 (Ex. VAT)

Premium Wax Thermal Transfer Black Ink Ribbon BWP-1D300-060

The BWP-1D300-060 premium wax thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.

SRP £50.40 (Inc. VAT)
SRP £42.00 (Ex. VAT)

Standard Wax/Resin Thermal Transfer Black Ink Ribbon BSS-1D300-060

The BSS-1D300-060 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.

SRP £75.60 (Inc. VAT)
SRP £63.00 (Ex. VAT)

Premium Wax/Resin Thermal Transfer Black Ink Ribbon BSP-1D300-060

The BSP-1D300-060 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.

SRP £97.20 (Inc. VAT)
SRP £81.00 (Ex. VAT)

Standard Resin Thermal Transfer Black Ink Ribbon BRS-1D300-060

The BRS-1D300-060 standard resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.

SRP £169.20 (Inc. VAT)
SRP £141.00 (Ex. VAT)

Premium Resin Thermal Transfer Black Ink Ribbon BRP-1D300-060

The BRP-1D300-060 premium resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.

SRP £194.40 (Inc. VAT)
SRP £162.00 (Ex. VAT)

Show less

Brother PA-CU-003 Label Cutter for TD-4T series

Automatic label cutter used to produce labels of various lengths by using continuous label rolls.

SRP £173.71 (Inc. VAT)
SRP £144.76 (Ex. VAT)

Brother PA-LP-003 Label Peeler for TD-4T series

Automatic label peeler that improves worker efficiency by removing the backing from the labels when printed. Compatible with the TD-4T series label printers TD-4420TN and TD-4520TN.

SRP £40.13 (Inc. VAT)
SRP £33.44 (Ex. VAT)

Brother PA-RH-001 External Roll Holder for TD-4T series

External roll holder for the Brother TD-4T series label, receipt and wristband printers

SRP £28.09 (Inc. VAT)
SRP £23.41 (Ex. VAT)

Brother PA-CU-002 Full and Partial Label Cutter for TD-4T series

This product has been discontinued. Our nearest equivalent is the PA-CU-003. Compatible with the TD-4T series label printers TD-4420TN and TD-4520TN.

Show less

Show all Supplies

Specifications

Buttons	Feed
Flash RAM	128 MB
LED	Power, Data, Error
RAM	64 MB
Technology	Thermal transfer / Direct thermal

Serial	RS-232C (DB9 female)
USB interface	Type B: Ver. 2.0 High Speed \| Type A: USB Host (mass storage device class)
Wired network interface	10/100 BASE-TX (ARP, MAC, BOOTP, DHCP, DNS, WINS, FTP server, HTTP server, SNTP client, SMTP clpient, SNMP V1, Telnet, LPR/LPD, RAW 9100, IPV4, ICMP, IGMP, TCP, UDP

Dimensions	(W) 204mm x (H) 177.5mm x (D) 280mm
Weight	2.50 kg

AC adaptor	Yes
AC adaptor power cord	Yes
Label design software	Bartender Ultra Lite Edition (free download)
Supplies	Pair of 25.4mm ribbon spindles for 300m ribbon \| 25.4mm ribbon paper core
USB cable	Yes
Quick setup guide	Yes

Linux	Linux
Macintosh	Mac OS X 10.10.x or higher
Windows	Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1

1 dimensional barcode symbologies	Code128UCC, Code128 subsets A、B、C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2 dimensional barcode symbologies	GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Bitmap fonts	FBPL: 8 alpha-numeric bitmap fonts
Label detection sensor	Yes
Maximum label width	112 mm
Outline/Vector fonts	Monotype Image TrueType font engine with one CG Triumvirate Bold Condensed font
Resolution (dpi)	203
Supported commands	FBPL-EZD (EPL, ZPL, ZPL2, DPL)
Maximum print length	25400 mm
Maximum print width	108 mm
Standard print speed	152 mm per second

Warranty	3 year return-to-base

Show less

Support

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Technical Specifications

Resources

More about this product

Label printed on a Brother TD-4D series label printer

Thermal transfer printing for ultimate flexibility

An industry standard 203dpi print resolution gives you crisp, easy-to-read logos, images and barcodes on coated and uncoated label stock using thermal transfer media and ink ribbons.

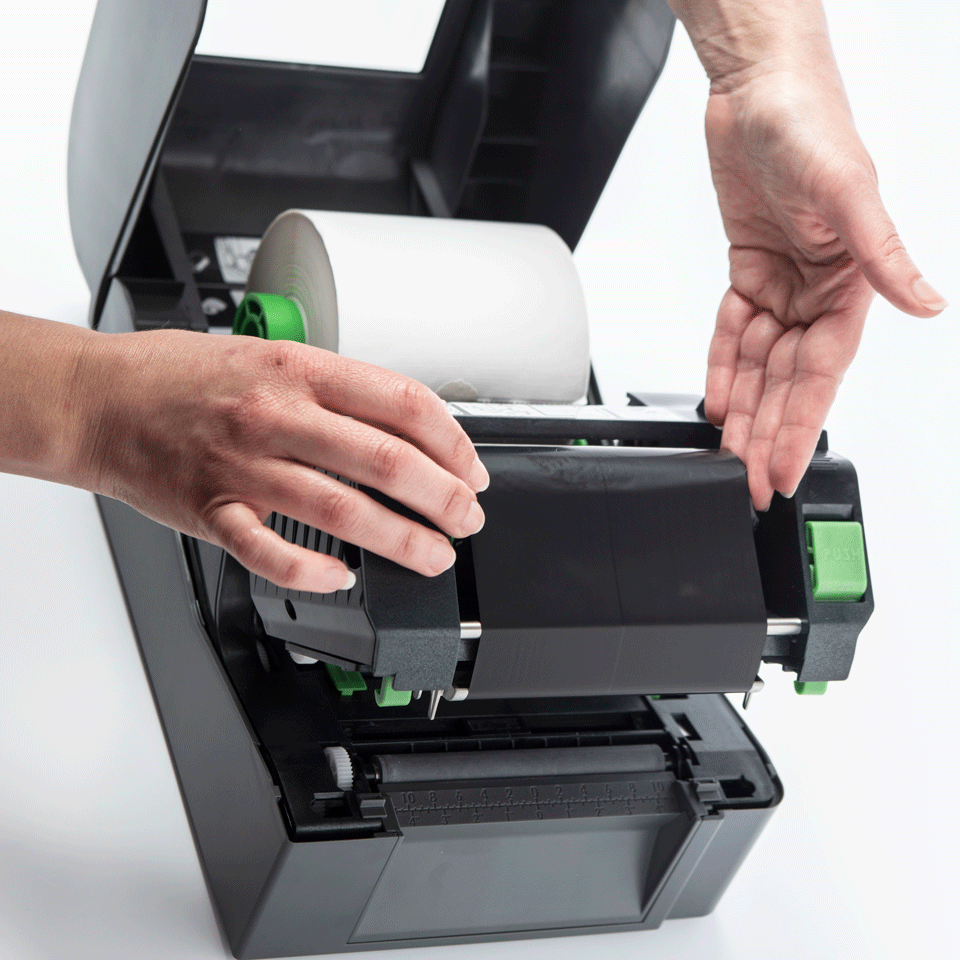

Thermal transfer ink ribbon being installed in a TD-4D label printer

Thermal transfer print ribbons in wax or resin material to suit your application

Standard or premium high capacity ribbons of up to 300 metres can be used, and are available in wax for standard paper media, wax/resin for improved resistance to chemicals on paper and synthetic media or resin for the best durability against heat and chemicals.

Supports industry standard printer commands

In addition to printing from Windows using the standard printer driver, you can integrate the Brother TD-4420TN label printer into your legacy systems thanks to ZPL/ZPL2 or EPL printer commands.

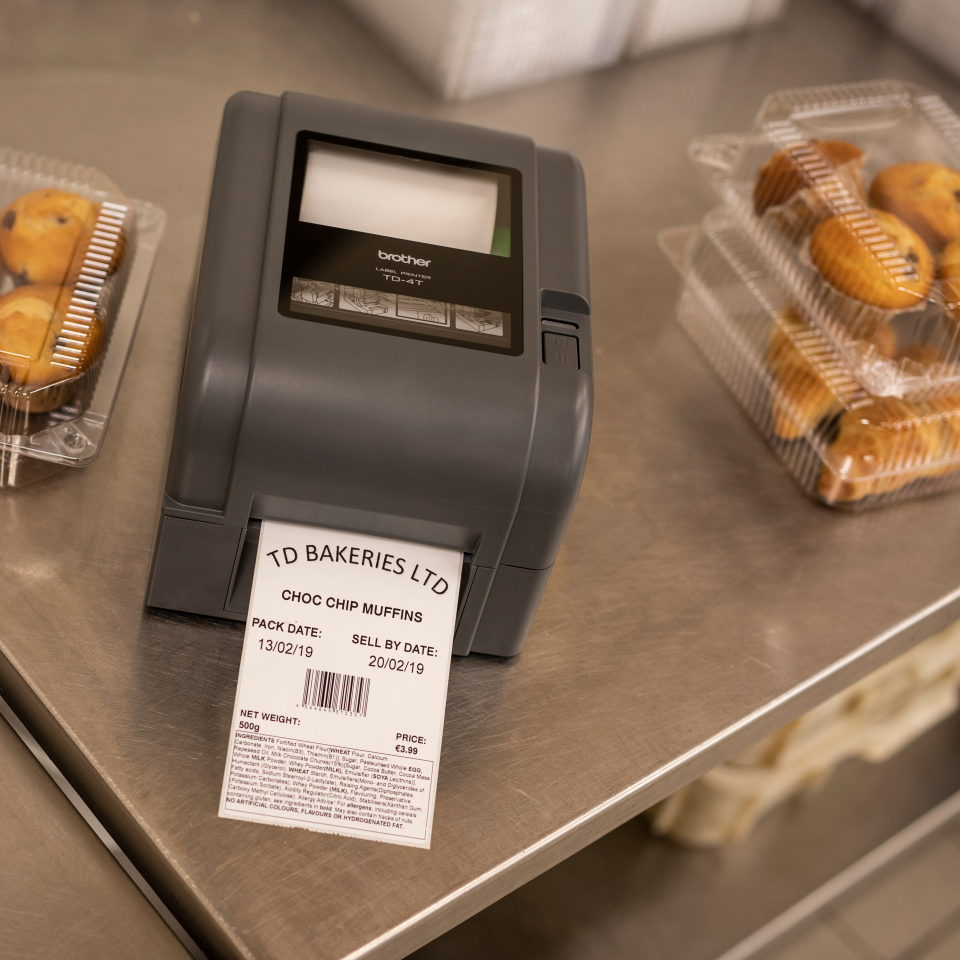

Brother TD-4D label printer on steel table next to cakes in a bakery

High print speed to improve efficiency

Printing at speeds up to 152mm/second (6 inches per second) ensures staff will have their labels almost immediately, and can spend their time being more productive.

Ethernet cable being plugged into the rear port of a Brother TD-4D label printer

Wired connectivity to meet your exact needs

USB, Ethernet and Serial ports are included as standard, ensuring the Brother TD-4420TN will connect to your current equipment and infrastructure without problem.

Option roll holder installed on a Brother TD-4D label printer

A range of accessories to improve staff efficiency

Improve productivity by adding an optional label peeler, label cutter or external roll holder to use much larger capacity rolls and reduce printer downtime.
