TD-4420DN | Professional Label & Receipt Printer

Network connectivity

High-quality up to 203dpi print resolution

Fast print speeds up to 8 inches per second

Product Overview

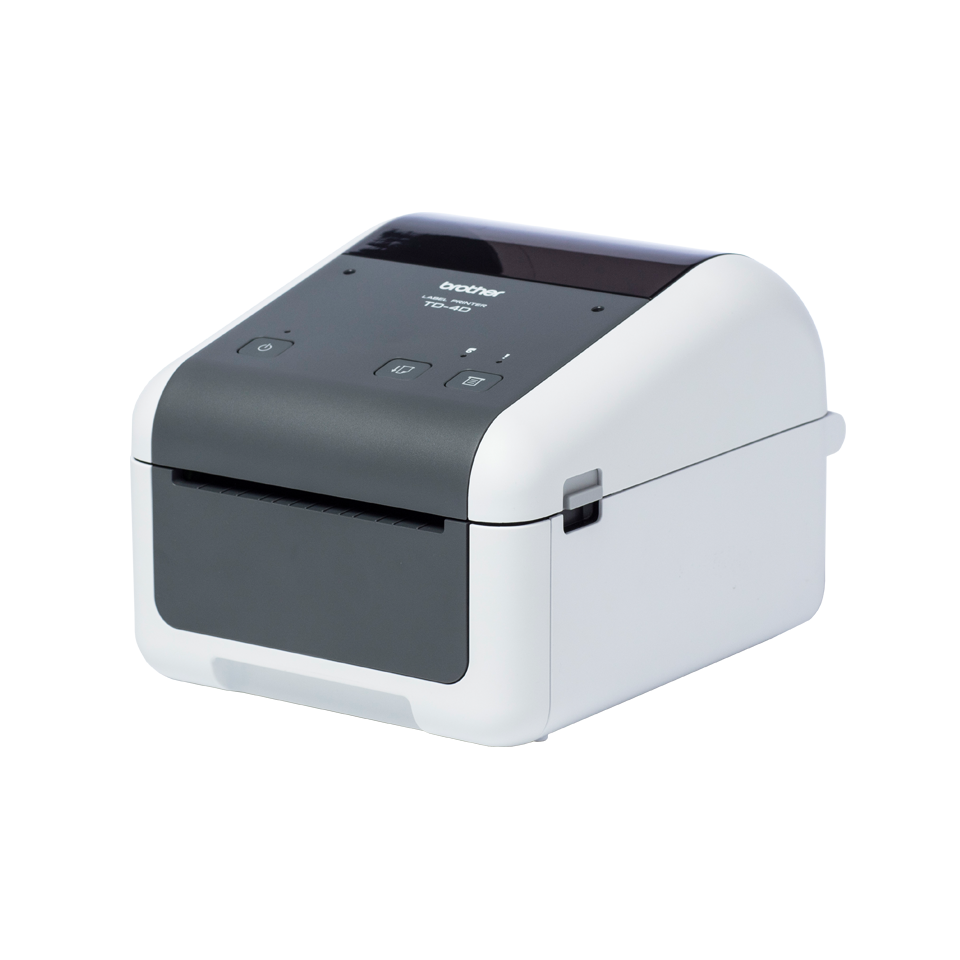

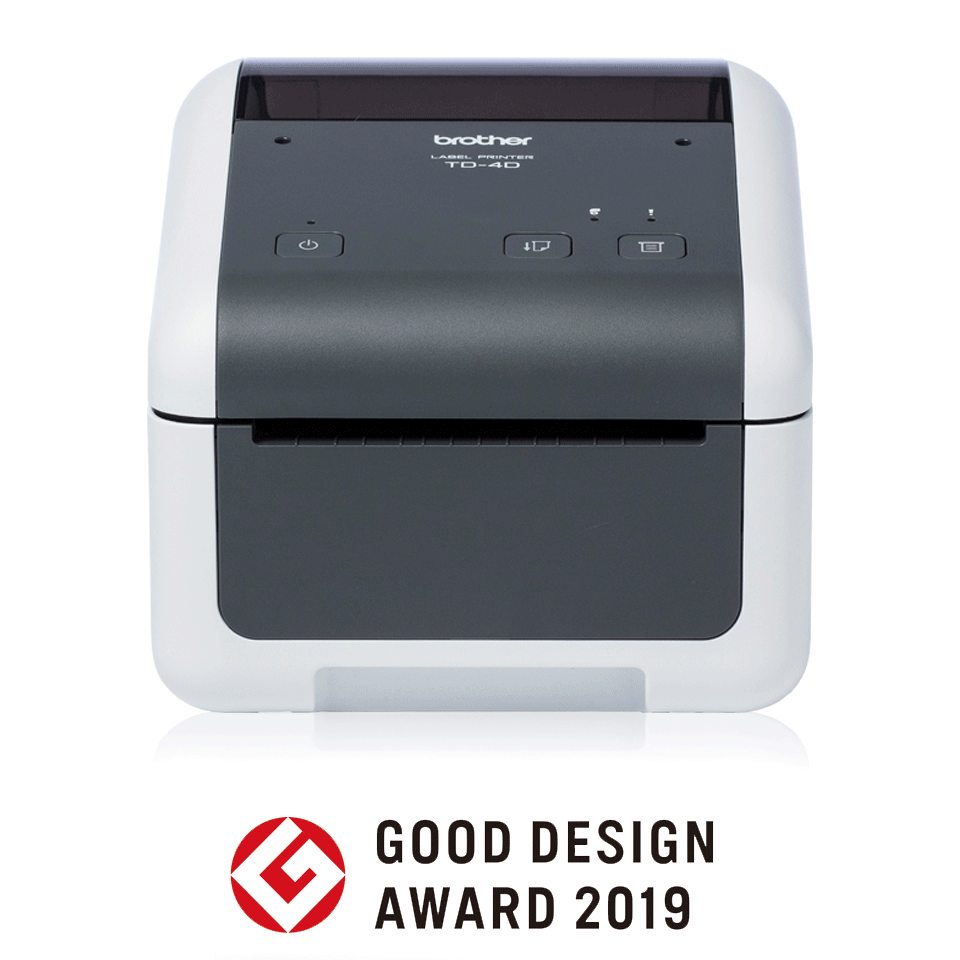

Brother TD-4420DN desktop label printer front shot

Print width up to 4.09 inches / 104mm

Easy set-up with automatic media configuration

Ready to integrate with iOS and Android apps

Key Features

Network connectivity
High-quality up to 203dpi print resolution
Fast print speeds up to 8 inches per second
Print width up to 4.09 inches / 104mm
Easy set-up with automatic media configuration
Ready to integrate with iOS and Android apps

About this product:

With built-in network connectivity, the TD-4420DN is designed to be shared.

Labels are printed at a high-resolution, producing sharp and clear images. Making the TD-4420DN ideal for printing 1D barcodes for scanning.

Direct thermal print technology produces accurate images, with crisp definition. Utilising heat-sensitive coating, ink is not required. A good choice for printing high-volume, temporary labels with barcodes with a maximum media width up to 118mm/4.65 inches wide.

Specifications More about this product

Supplies

Brother PA-CU-001 Label Cutter for TD-4D series

Label cutter for the TD-4D series label, receipt and wristband printers.

SRP £107.18 (Inc. VAT)
SRP £89.32 (Ex. VAT)

Brother PA-LP-002 Label Peeler for TD-4D series

Label Peeler for the Brother TD-4D series label, receipt and wristband printers

SRP £49.63 (Inc. VAT)
SRP £41.36 (Ex. VAT)

Brother PA-HU2-001 Thermal Print Head (203dpi)

Thermal Print Head (203dpi) for the TD-4410D and TD-4420DN label printers

SRP £119.06 (Inc. VAT)
SRP £99.22 (Ex. VAT)

Brother PA-PR2-001 Platen Roller for TD-4D series

Platen Roller (203dpi) for the TD-4410D and TD-4420DN label printers

SRP £20.06 (Inc. VAT)
SRP £16.72 (Ex. VAT)

Brother TD4HOLDERU1 Tablet Holder for TD-4D Series

Tablet holder for the TD-4D series label, receipt and wristband printers.

SRP £54.00 (Inc. VAT)
SRP £45.00 (Ex. VAT)

Show less

RD-S01E2

Continuous length paper label

RDS02E1

Die Cut Label Rolls - 102mm x 152mm

RD-S03E1

Die Cut Labels 102mm x 50mm

RD-S04E1

Die Cut Labels - 76mm x 26mm

RD-S05E1

Die Cut Labels - 51mm x 26mm

RD-S07E5

Continuous receipt rolls - 58mm x 86m

RD-M01E5 12 x Receipt Rolls

Receipt Rolls - 102mm x 27.7m

SRP £86.40 (Inc. VAT)
SRP £72.00 (Ex. VAT)

RDP08E5

Receipt Rolls - 76mm x 35.3m

RDR03E5

Receipt Rolls - 58mm x 12m

RD-M03E1 12 x Label Rolls

Die Cut Label Rolls - 102mm x 152mm

SRP £111.60 (Inc. VAT)
SRP £93.00 (Ex. VAT)

RD-P09E1

Die cut labels - 76mm x 44mm

SRP £144.00 (Inc. VAT)
SRP £120.00 (Ex. VAT)

RD-Q04E1

Die cut labels - 51mm x 26mm

Direct Thermal Receipt Roll BDL-7J000058-040 (Box of 24)

The BDL-7J000058-040 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 24 rolls per order.

Direct Thermal Receipt Roll BDL-7J000058-102 (Box of 8)

The BDL-7J000058-102 continuous receipt roll, measuring 58mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Direct Thermal Receipt Roll BDL-7J000076-066 (Box of 8)

The BDL-7J000076-066 continuous receipt roll, measuring 76mm in width, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Direct Thermal Receipt Roll BDL-7J000102-058 (Box of 20)

The BDL-7J000102-058 continuous receipt roll, measuring 101.6mm in width, has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.

Direct Thermal Continuous Label Roll BDE-1J000102-102 (Box of 8)

The BDE-1J000102-102 continuous label roll, measuring 102mm wide and 58m in length, has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J026051-060 (Box of 12)

The BDE-1J026051-060 die-cut label roll, measuring 51mm x 26mm and containing 500 labels per roll has been Certified by Brother International Europe. Each purchase contains 12 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J026051-102 (Box of 16)

The BDE-1J026051-102 die-cut label roll, measuring 51mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 16 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J026076-102 (Box of 8)

The BDE-1J026076-102 die-cut label roll, measuring 76mm x 26mm and containing 1,900 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J044076-066 (Box of 8)

The BDE-1J044076-066 die-cut label roll, measuring 76mm x 44mm and containing 400 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J050102-102 (Box of 8)

The BDE-1J050102-102 die-cut label roll, measuring 102mm x 50mm and containing 1,050 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J152102-058 (Box of 20)

The BDE-1J152102-058 die-cut label roll, measuring 102mm x 152mm and containing 85 labels per roll has been Certified by Brother International Europe. Each purchase contains 20 rolls per order.

Direct Thermal Die-Cut Label Roll BDE-1J152102-102 (Box of 8)

The BDE-1J152102-102 die-cut label roll, measuring 102mm x 152mm and containing 350 labels per roll has been Certified by Brother International Europe. Each purchase contains 8 rolls per order.

Show less

Show all Supplies

Specifications

Buttons	Power, Feed
Flash RAM	64 MB
Housing colour	White and grey
LED	Status
RAM	256 MB
Technology	Direct thermal

Serial	RS-232C Serial (DB9 male)
USB interface	USB Ver. 2.0 (Full Speed) Type B
Wired network interface	10/100Base-TX

Dimensions	180mm (W) x 155mm (H) x 224mm (D)
Weight	2.08 kg

AC adaptor power cord	Yes
Others	102 mm continuous black on white label roll (2 metre starter roll)
USB cable	Yes
User guide	Yes
Warranty card	Yes

Linux	Linux
Windows	Windows 7, Windows 8, Windows 10
Android	Android 4.0.3 or later
IOS	iOS® 8 or later

Bitmap fonts	Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels, Gothic
Copies	1-9999 (ESC/P P-touch Template)
Label detection sensor	Yes
Maximum label width	118 mm
Maximum print length	3000 mm
Maximum print width	104 mm
Mirror printing	Yes
Resolution (dpi)	203
Sequential numbering	1 - 9999 / A - Z / a - z
Standard print speed	203 mm per second
Supported commands	P-touch Template, Raster, ESC/P, ZPL II emulation, CPCL emulation

Database file compatibility	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date and time
Label length settings	25 mm (minimum)
Languages	English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hugarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Screen capture	Yes
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround

SDK (Software Development Kit)	Yes

Rolls	RD rolls (die-cut and continuous)

Warranty	3 years

Show less

Support

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

Technical Specifications

Resources

More about this product

warehouse employee wearing a hi vis jacket

Managed Label Services

Avoid making a big investment upfront for your labelling solutions by creating a custom labelling bundle, combining premium-quality thermal printers, third party hardware and additional services on a simple monthly subscription plan.

Back of Brother TD-4420 network desktop label printer showing network power vga ports

Network connectivity

Increase your teams productivity with this network desktop label printer. Sharing is made easier with the integrated network port.

Nurse printing patient label using Brother TD-4420DN desktop label pritner

Seamless integration

Understanding that integration into legacy systems is important, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation and many more.

Man wearing hi-vis printing in warehouse using Brother TD-4420DN desktop label printer

Print from your Windows PC

Custom labels are easily created using Brother's P-touch Editor. Add your company logo, symbols to hundreds of built-in images to the labels you create. Not to mention, linking your excel data to print large batches of labels.

Brother TD-4420DN network desktop label printer printing label with barcode

Software support

Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs. Software development kit's available from: https://atyourside.brother.co.uk/developer-centre

Customer Reviews

TD4420DN is rated 2.0 out of 5 by 1.

Rated 2 out of 5 by Shelbs from Eats stickers. It looks nice but if you rip it slightly wrong, it eats the stickers, rips them in half, and then you gotta take it apart to clear it.

Date published: 2021-02-14

Industry Application

Pharmacy employee with the Brother TD label printer

Healthcare, medical and laboratory

With the strict regulations on the tracking of patient specimens and other items within the healthcare industry, clear, high quality labelling is essential to maintain safety and traceability.

Warehouse employee using the Brother TD label printer

Warehousing and logistics

Efficient warehousing operation and worker productivity are critical to the success of many companies. With the most common sizes of shipping labels available and the ability to create custom size labels, there are many uses for these models in the warehouse.

Retail

Easy to read labels are essential for consumers to help make informed decisions prior to a potential purchase. The high print resolution and high quality labels used in this range ensure that every output printed looks professional, offering sharp text, logos and barcodes with a high contrast to ensure faultless scanning at the checkout.
