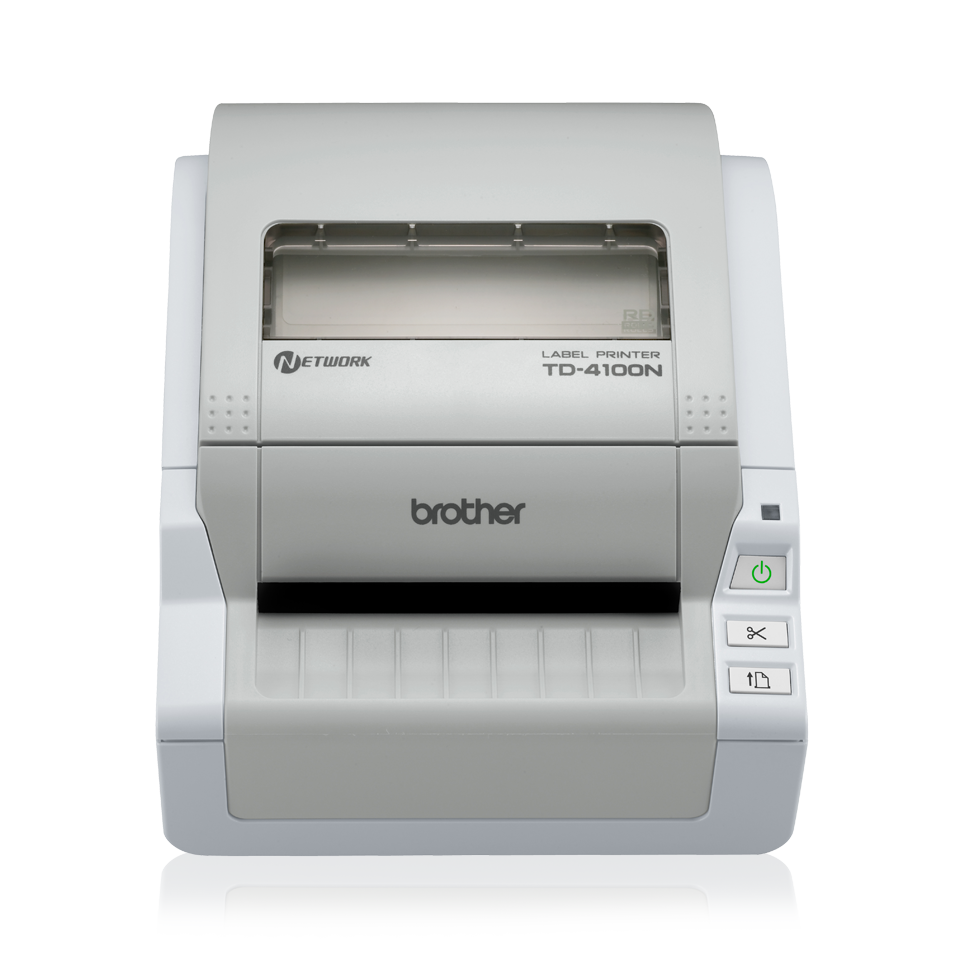

TD-4100N | Wide Label Printer + Network

Overview

Built for the high-volume network

This professional network-ready label printer can help your business work quicker and more efficiently.

Print 300dpi quality labels up to 102mm wide, and from 25mm to 3m long. The TD-4100N also prints at up to 110mm per second with a built-in automatic cutter for extra quick results. It also supports barcode printing and lets you easily import your own graphics too.

And being fully network ready, the TD-4100N can be seamlessly integrated into your current systems.

Specification

Features and Specifications

Maximum label width (mm)	102 mm
Office	Industrial
Buttons	Power, Feed, Cut
Flash RAM	2 MB
Housing colour	Light grey & pearl white
LED	Status

Serial	RS-232C Serial (9 pin)
USB interface	USB Ver. 2.0 (Full Speed)
Wired network interface	10/100Base-TX

Dimensions	173 mm (W) x 229 mm (D) x 158 mm (H)
Weight	1.83 kg

AC adaptor power cord	Yes
Others	102 mm continuous black on white label roll (2 metre starter roll)
Software disc	CD ROM containing software, drivers and user guide
Supplies	51 mm x 26 mm black on white die cut label roll (60 labels)
USB cable	Yes

Windows	Windows 7, Windows 8, Windows Vista, Windows XP

Bitmap fonts	Helsinki, Letter Gothic Bold, San Diego, Brougham, Brussels
Copies	1-9999 (ESC/P P-touch Template)
Label detection sensor	Yes
Label margins	3 mm - 126 mm
Maximum label width	102 mm
Maximum print length	3000 mm
Maximum print width	98.6 mm
Mirror printing	Yes
Outline/Vector fonts	33 - 400 dots (22 sizes)
Resolution (dpi)	300 x 300
Sequential numbering	1 - 9999 / A - Z / a - z
Standard print speed	110 mm per second
Supported commands	Raster mode, ESC/P, P-touch template mode

Database file compatibility	csv, Microsoft Access, Microsoft Excel
Date and time stamp	Date and time
Label length settings	25 mm (minimum)
Languages	English / Danish / Dutch / French / German / Italian / Norwegian / Portuguese / Spanish / Swedish / Finnish / Czech / Polish / Hungarian / Simplified Chinese / Russian / Turkish / Japanese
Microsoft Office add-in (highlight->click->print)	Excel, Outlook, Word
Screen capture	Yes
Typestyles	Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround
