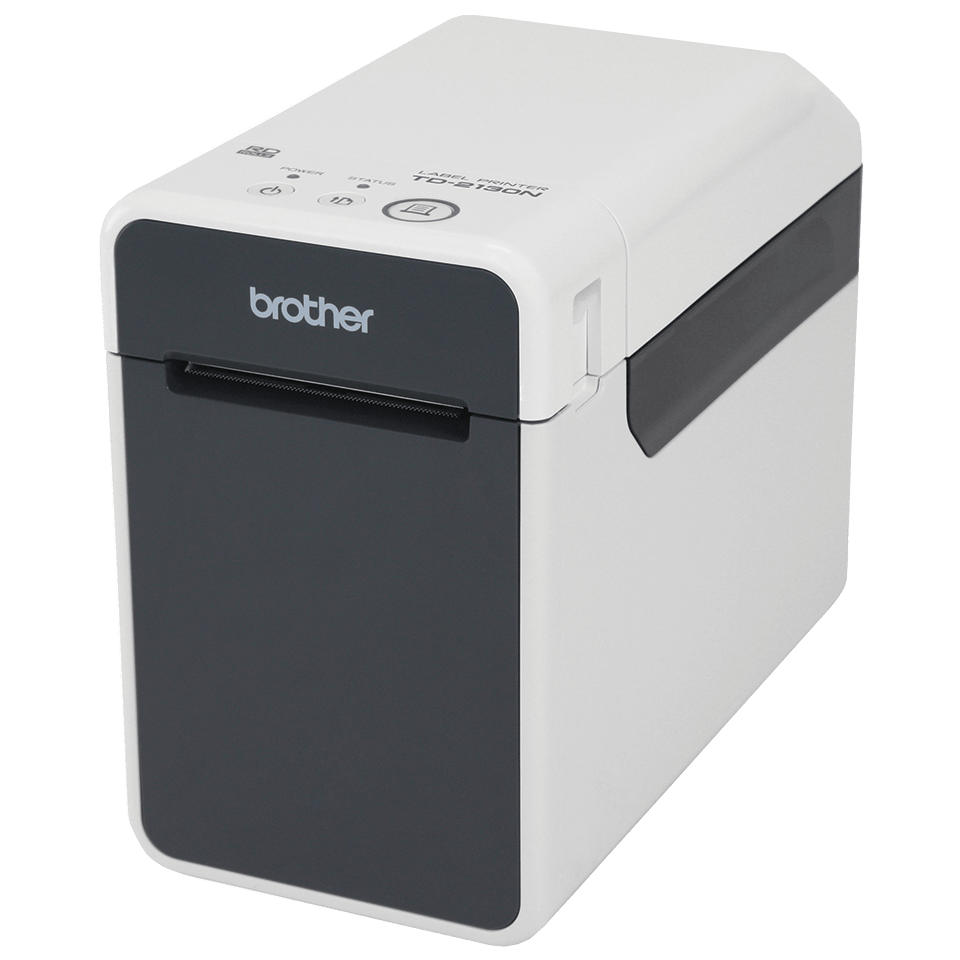

TD-2130N Industrial Label Printer + Network

The high-resolution desktop labeller

SRP £398.10 Inc. VAT

SRP £331.75 Ex. VAT

Up to 6 inches per second print speed

300dpi print resolution

Network capability + optional accessories available (touch panel display, label peeler, rechargeable battery, wireless LAN & Bluetooth)

Product Overview

TD2130N

USB and serial connectivity

32MB RAM, 16MB Flash

ZPL II printer language

Key Features

  • Up to 6 inches per second print speed
  • 300dpi print resolution
  • Network capability + optional accessories available (touch panel display, label peeler, rechargeable battery, wireless LAN & Bluetooth)
  • USB and serial connectivity
  • 32MB RAM, 16MB Flash
  • ZPL II printer language

About this product:

With a range of specialised features and print resolution up to 300dpi, the TD-2130N is the perfect label printer for warehousing, logistics, manufacturing and retail – plus any other sector where you need to be able to print high-quality receipts or labels at your desk or on the move.

Supplies

Specifications

General

Memory capacity 6 MB
Technology Direct thermal

Connectivity

Serial Option: RS-232C
USB interface Ver 2.0 Full Speed
Wired network interface 10/100 Base-TX
Wireless network interface Option: IEEE802.11 b/g/n

Dimensions & weights

Dimensions 110 mm (W) x 215 mm (D) x 172 mm (H)
Weight 1.34 kg

In the box

AC adaptor Yes
Power supply cord Yes
Software Yes
USB cable Yes
User guide Yes
Quick setup guide Yes

Network

Wireless network Option: IEEE802.11 b/g/n
Wireless network security Infrastructure Mode/Adhoc Mode

Operating systems & software

Windows Windows 7, Windows 8, Windows Server 2003 & 2008 (32 & 64 bits), Windows Vista, Windows XP

Printing

Bitmap fonts Up to 10 (depending on emulation used)
Copies 1-999 (P-touch Template mode)
Maximum label width 63 mm
Maximum print length 1000 mm
Maximum print width 56 mm
Outline/Vector fonts Up to 4 (depending on emulation used)
Resolution (dpi) 300 x 300
Standard print speed 152.4 mm per second
Supported commands P-touch Template 2.0 (includes ZPLII® emulation), Raster, ESC/P

P-touch Editor label design software

Date and time stamp Date and time
Fonts All installed truetype fonts
Frames 154
Languages English, German, French, Dutch, Italian, Spanish, Portuguese, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Russian, Turkish, Brazilian Portuguese, Japanese, Simplified Chinese
Screen capture Yes
Typestyles Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Shadow light, Surround

Solutions

SDK (Software Development Kit) Yes

Supplies and accessories

Optional accessories Rechargeable Battery (PA-BT-4000LI), Battery Base (PA-BB-001), Touch Panel Display (PA-TDU-001), Label Peeler (PA-LP-001), Bluetooth Interface (PA-BI-001), WLAN Interface (PA-WI-001), Serial Adapter (PA-SCA-001)
Rolls RD rolls (die-cut and continuous)
Show more
Show less

Support

Woman sat at a desk on a laptop

Downloads & Drivers

Download and install the latest drivers and software for your Brother products.

View Downloads
Man and a woman sat a desk on a laptop

FAQs

Find the answers to our most frequently asked questions and troubleshooting here.

View FAQs
Man sat on a sofa working on a tablet

Manuals & Guides

Download the latest manuals and user guides for your Brother products

View Manuals

More about this product

High-resolution desktop and portable label printing

With a range of specialised features, the TD-2130N is the perfect label printer for warehousing, logistics, manufacturing and retail – plus any other sector where you need to be able to print receipts or labels on the move.


Pick up the optional wireless, battery and touchscreen, and this now truly portable and speedy machine prints at a high 300dpi, so you can rely on it to get the job done fast and done right.


Accommodating a generous 5” roll size and boasting impressive memory, the TD-2130N is especially flexible. And you can choose from an impressive range of extras including Bluetooth interface and touch panel display to design a personalised solution that suits your business to a tee.
