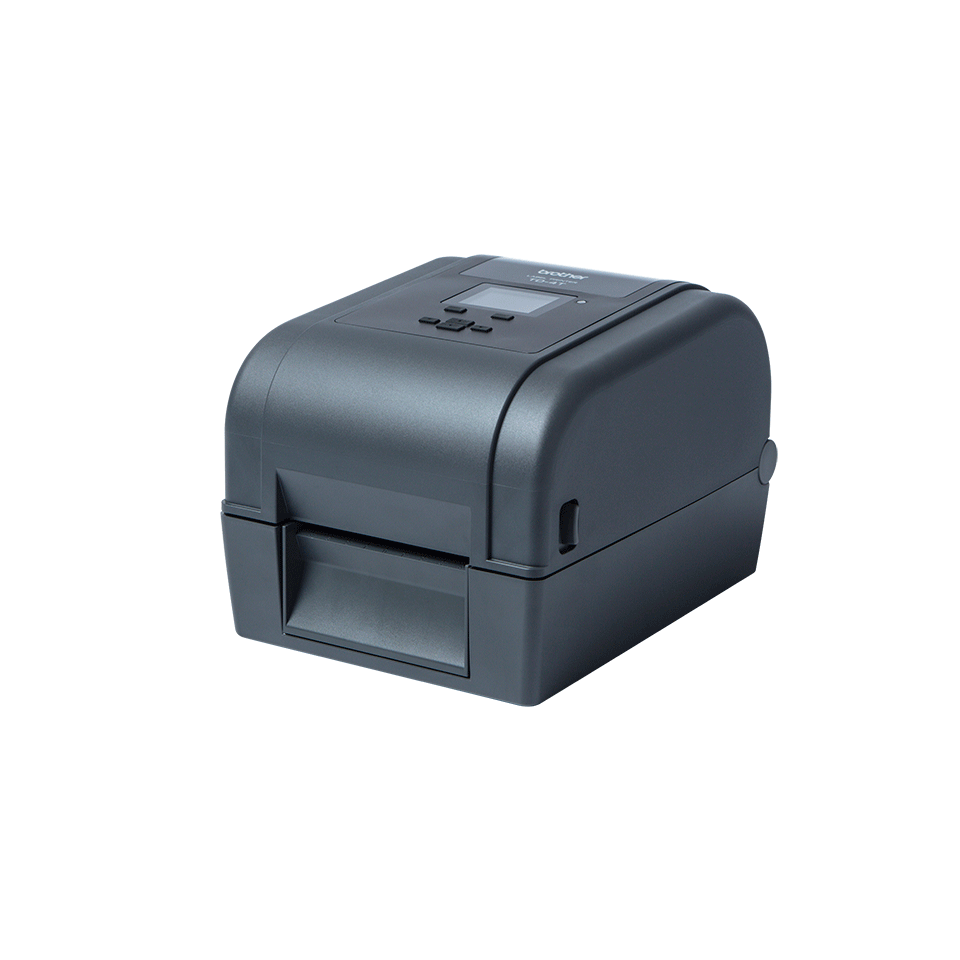

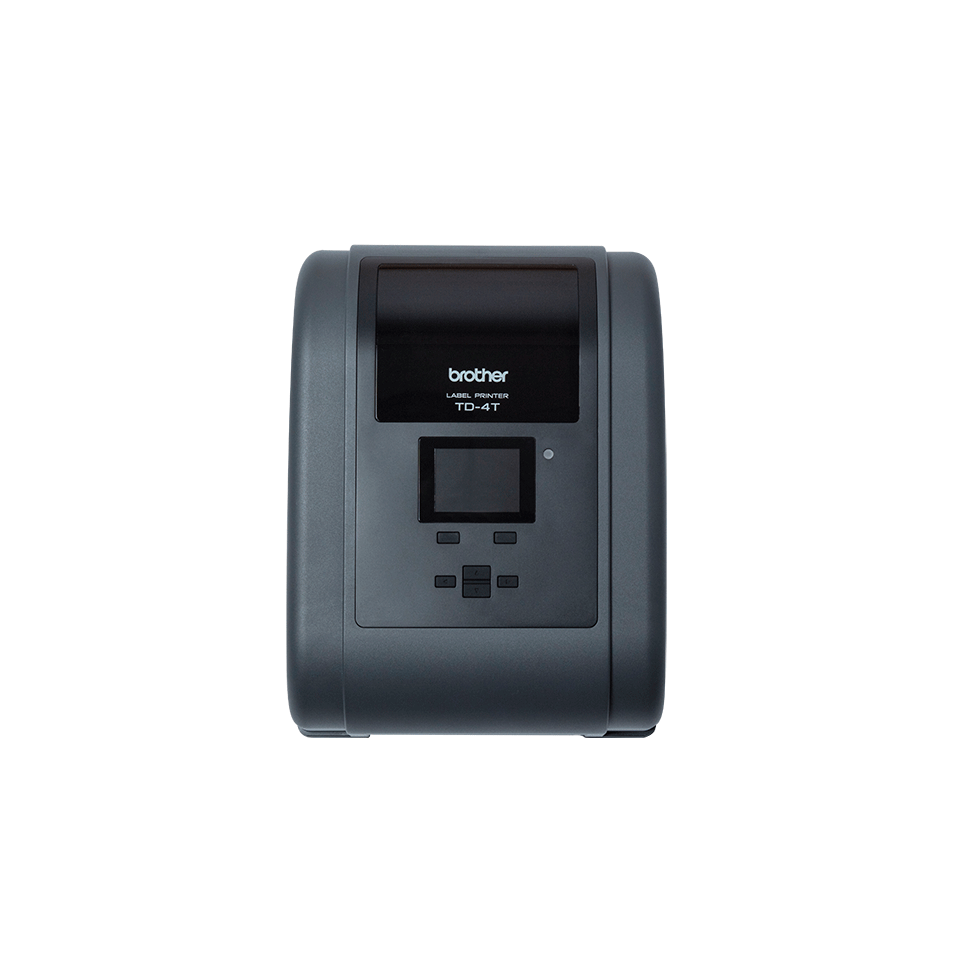

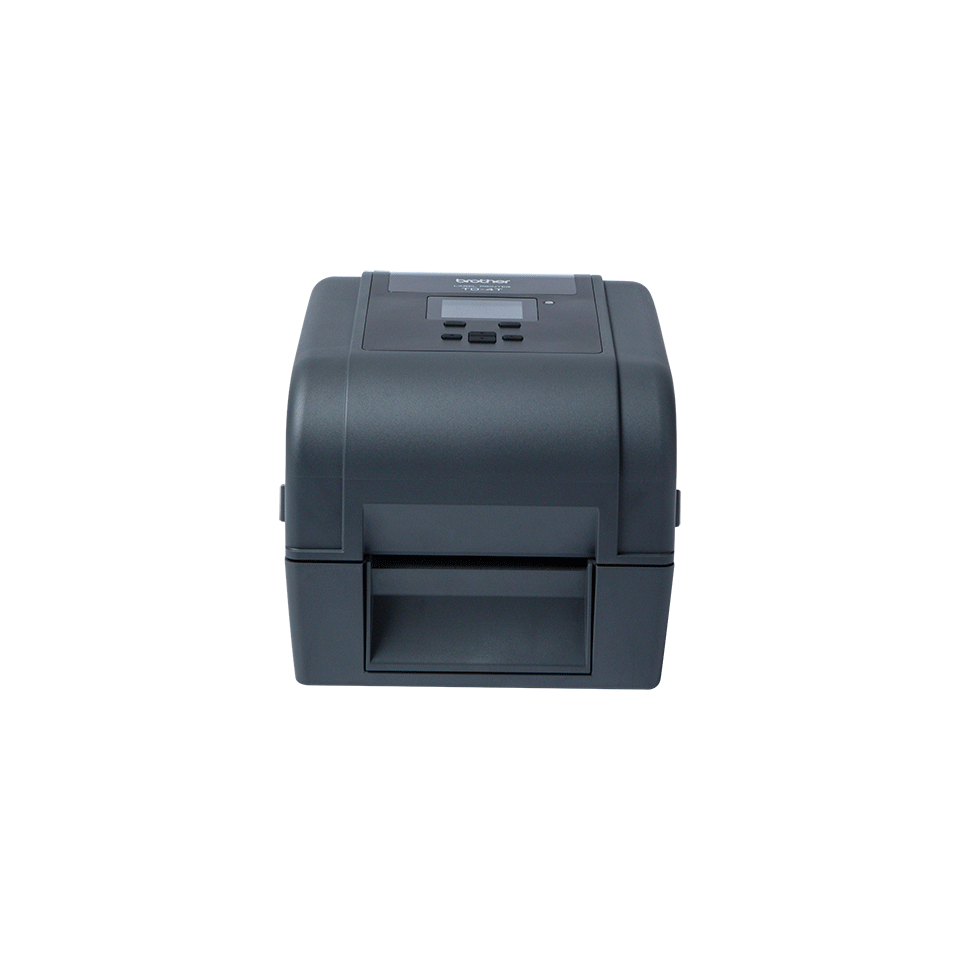

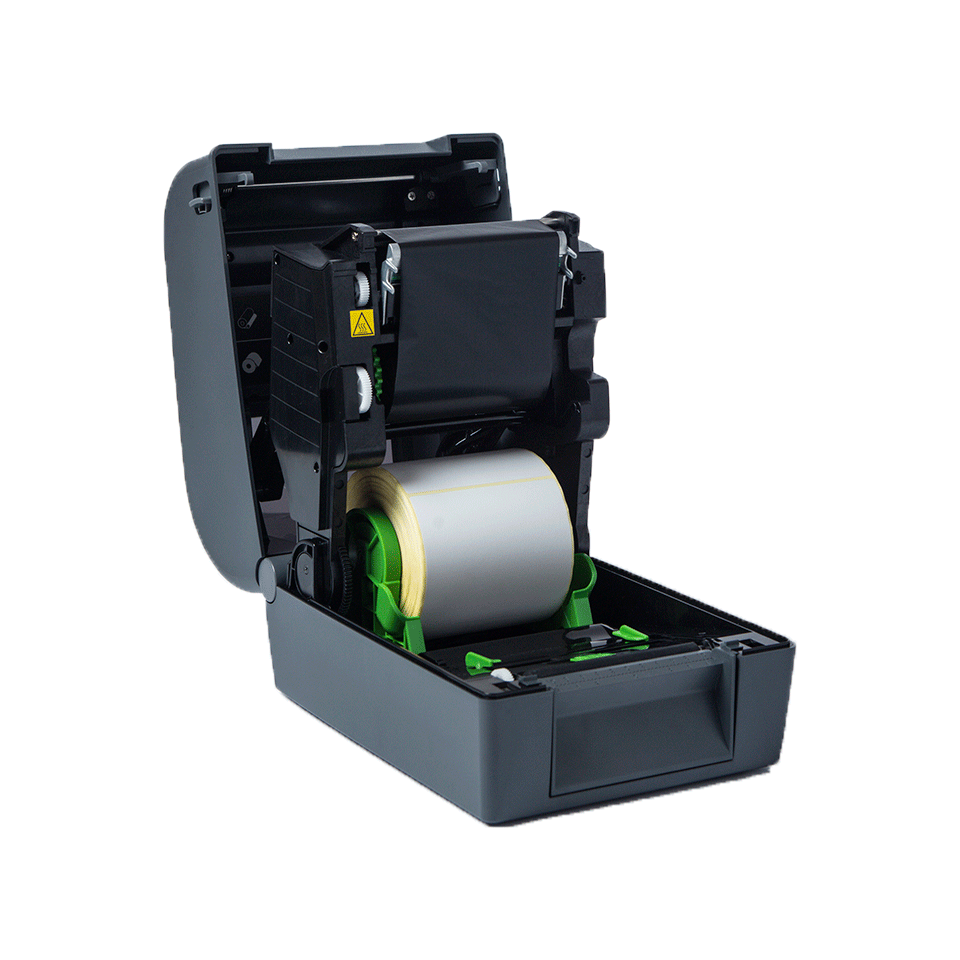

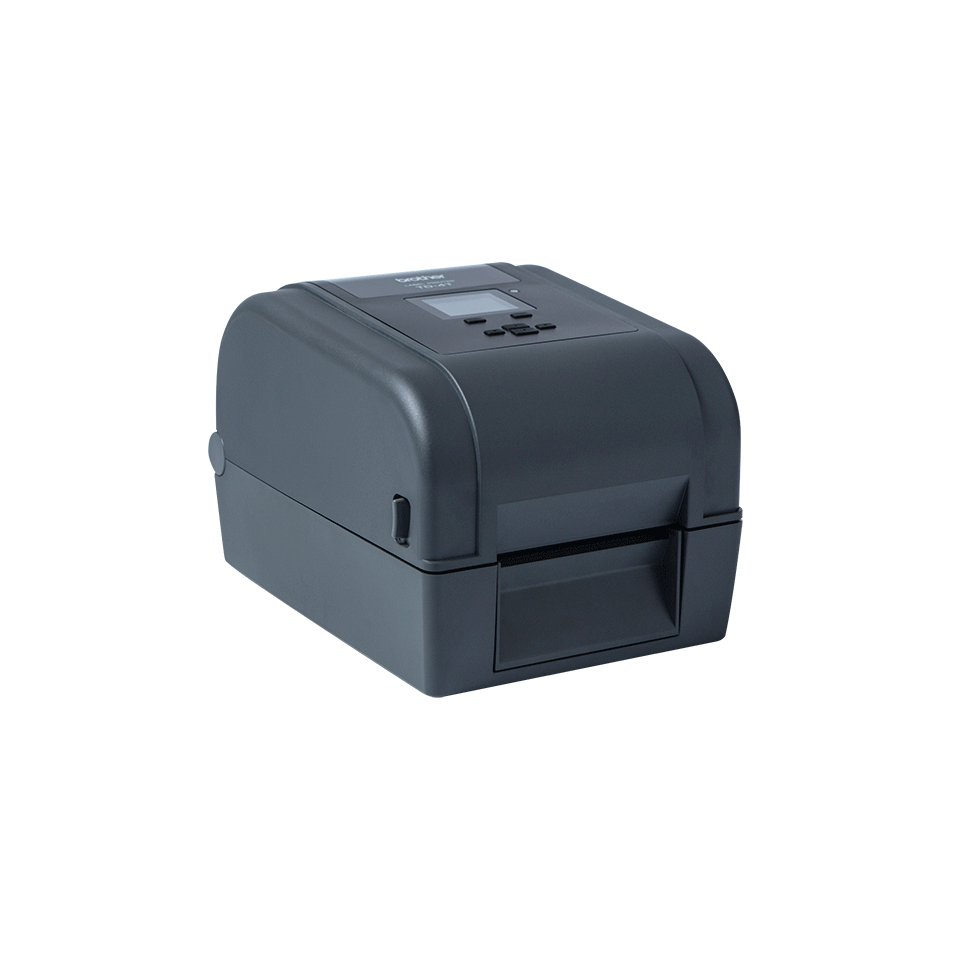

TD-4750TNWBR Desktop Label Printer
4" desktop printer for high-quality, continuous label printingProduct Details
- Ease of use with 2.3" colour LCD display
- Thermal transfer and direct thermal printing technology
- Range of connectivity options including USB, Network, WiFi and Bluetooth
- High capacity with 300m ribbon, minimising downtime
- 300dpi high resolution printing for crisp text and barcodes
- Fast print speeds up to 6 inches per second
Product Overview
The TD-4750TNWBR versatile desktop printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with its industry standard embedded printer commands. This desktop printer also offers RFID capabilities for identification, tracking and security.
Related Products
-
The BCS-1J074102-121 premium coated die-cut label roll, measuring 102mm x 74mm and containing 1,000 labels per roll has been Certified by Brother International Europe.£127.80Inc. VAT£106.50Ex. VATThis product is available from our authorised retailers
-
The BCS-1J150102-121 premium coated die-cut label roll, measuring 102mm x 150mm and containing 500 labels per roll has been Certified by Brother International Europe.£126.00Inc. VAT£105.00Ex. VATThis product is available from our authorised retailers
-
The BRP-1D300-060 premium resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.£194.40Inc. VAT£162.00Ex. VATThis product is available from our authorised retailers
-
The BRP-1D300-080 premium resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.£259.20Inc. VAT£216.00Ex. VATThis product is available from our authorised retailers
-
The BRP-1D300-110 premium resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.£360.00Inc. VAT£300.00Ex. VATThis product is available from our authorised retailers
-
The BRS-1D300-060 standard resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.£169.20Inc. VAT£141.00Ex. VATThis product is available from our authorised retailers
-
The BRS-1D300-080 standard resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.£223.20Inc. VAT£186.00Ex. VATThis product is available from our authorised retailers
-
The BRS-1D300-110 standard resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.£309.60Inc. VAT£258.00Ex. VATThis product is available from our authorised retailers
-
The BSP-1D300-060 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.£97.20Inc. VAT£81.00Ex. VATThis product is available from our authorised retailers
-
The BSP-1D300-080 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.£129.60Inc. VAT£108.00Ex. VATThis product is available from our authorised retailers
-
The BSP-1D300-110 premium wax/resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.£180.00Inc. VAT£150.00Ex. VATThis product is available from our authorised retailers
-
The BSS-1D300-060 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.£75.60Inc. VAT£63.00Ex. VATThis product is available from our authorised retailers
-
The BSS-1D300-080 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.£100.80Inc. VAT£84.00Ex. VATThis product is available from our authorised retailers
-
The BSS-1D300-110 standard wax/resin thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.£136.80Inc. VAT£114.00Ex. VATThis product is available from our authorised retailers
-
The BUS-1J074102-121 uncoated die-cut label roll, measuring 102mm x 74mm and containing 1,000 labels per roll has been Certified by Brother International Europe.£120.60Inc. VAT£100.50Ex. VATThis product is available from our authorised retailers
-
The BUS-1J150102-121 uncoated die-cut label roll, measuring 102mm x 150mm and containing 500 labels per roll has been Certified by Brother International Europe.£120.60Inc. VAT£100.50Ex. VATThis product is available from our authorised retailers
-
The BWP-1D300-060 premium wax thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.£50.40Inc. VAT£42.00Ex. VATThis product is available from our authorised retailers
-
The BWP-1D300-080 premium wax thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.£68.40Inc. VAT£57.00Ex. VATThis product is available from our authorised retailers
-
The BWP-1D300-110 premium wax thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.£93.60Inc. VAT£78.00Ex. VATThis product is available from our authorised retailers
-
The BWS-1D300-060 standard wax thermal transfer black ink ribbon, 300 metres in length and 60mm in width has been Certified by Brother International Europe.£39.60Inc. VAT£33.00Ex. VATThis product is available from our authorised retailers
-
The BWS-1D300-080 standard wax thermal transfer black ink ribbon, 300 metres in length and 80mm in width has been Certified by Brother International Europe.£54.00Inc. VAT£45.00Ex. VATThis product is available from our authorised retailers
-
The BWS-1D300-110 standard wax thermal transfer black ink ribbon, 300 metres in length and 110mm in width has been Certified by Brother International Europe.£72.00Inc. VAT£60.00Ex. VATThis product is available from our authorised retailers
-
Automatic label cutter used to produce labels of various lengths by using continuous label rolls.£173.71Inc. VAT£144.76Ex. VATThis product is available from our authorised retailers
-
Automatic label peeler that improves worker efficiency by removing the backing from the labels when printed. Compatible with TD-4T series label printers.£38.99Inc. VAT£32.49Ex. VATThis product is available from our authorised retailers
-
External roll holder for the Brother TD-4T series label, receipt and wristband printers£28.09Inc. VAT£23.41Ex. VATThis product is available from our authorised retailers
Specifications
General
| Technology | Thermal transfer/Direct thermal |
| Buttons | Power , Feed |
| Display | LCD Display |
| LED | Power, Data, Error |
| Memory capacity | FLASH, 128MB, RAM, 128MB |
Connectivity
| Bluetooth | Yes (Ver 5.0) |
| Bluetooth Profiles | SPP (Serial Port Profile), Bluetooth Classic, GATT (Bluetooth Low Energy) |
| Serial | Yes |
| USB interface | USB 2.0, USB Host |
| Wired network interface | 10/100 Mbps |
| Wireless network interface | 802,11 a/b/g/n |
Dimensions and weights
| Dimensions | 219mm (W) x 284mm (D) x 191mm (H) |
| Weight | 3.0 |
In the box
| In the box | Quick Setup Guide (QSG), Printer, AC adaptor, AC Power supply cord, USB Cable |
Operating systems & software
| Supported Operating Systems | Windows (Windows 8.1, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows, Labelling,SupportedOperatingSystems,Windows), Mac OSX (Mac OS X 10.8 or higher), For the full list of compatible operating systems visit support.brother.com, Linux |
Printing
| Maximum Print Speed | 6 ips |
| One Dimensional Barcode Symbology | Code128, Interleaved 2 of 5, Code39, EAN13(JAN13), EAN8(JAN8), UPC-A, UPC-E, UPC/EAN EXTENSION, CODABAR(NW7), MSI, China post, ITF14, Code11, TELEPEN, TELEPEN number, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS, PLESSEY, POSTNET |
| Two Dimensional Barcode Symbology | GS1 Databar Composite, DataMatrix, MaxiCode, Aztec, PDF417, QR Code, Micro PDF417 |
| Maximum Print Lenght | 11430mm |
| Printing Maximum Print Speed | 6 ips |
| Resolution (dpi) | 300 x 300dpi |
| Printing Maximum Roll Core Diameter | 38.1mm |
| Printing Maximum Roll Diameter | 127mm |
| Printing Minimum Label Width | 20mm |
| Printing Minimum Roll Core Diameter | 25.4mm |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
Solutions
| SDK (Software Development Kit) | Yes |
Warranty
| Warranty | 3 years |
Software Security Updates Guarantee
Brother devices conform to The Product Security and Telecommunications Infrastructure (Security Requirements for Relevant Connectable Products) Regulations 2023 and receive guaranteed software security updates until at least five years after the device is last in production.
After the initial support period, Brother shall use all reasonable endeavours to provide software updates for as long as reasonably practicable.
If you already own a Brother device, visit support.brother.com for information specific to your device.
Ultimate productivity
Experience high-performance, thermal desktop printing up to 4" in width for ultimate productivity. The TD-4750TNWBR label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.
Connectivity to suit your requirements
With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWBR will have no problems connecting to your existing equipment and infrastructure.
Additional connectivity includes WiFi and Bluetooth.
Easy to use
The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.
High quality thermal transfer printing
This 4" desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.
RFID capability
Equipped with the ability to print on RFID labels and tags, the TD-4750TNWBR printer can meet your RFID needs - whether that's security, stock management or tracking your assets.
Customisation with optional accessories
The TD-4750TNWBR offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
