4" desktop printer for high-quality, continuous label printing
TD4750TNWBZU1
TD4750TNWBZU1

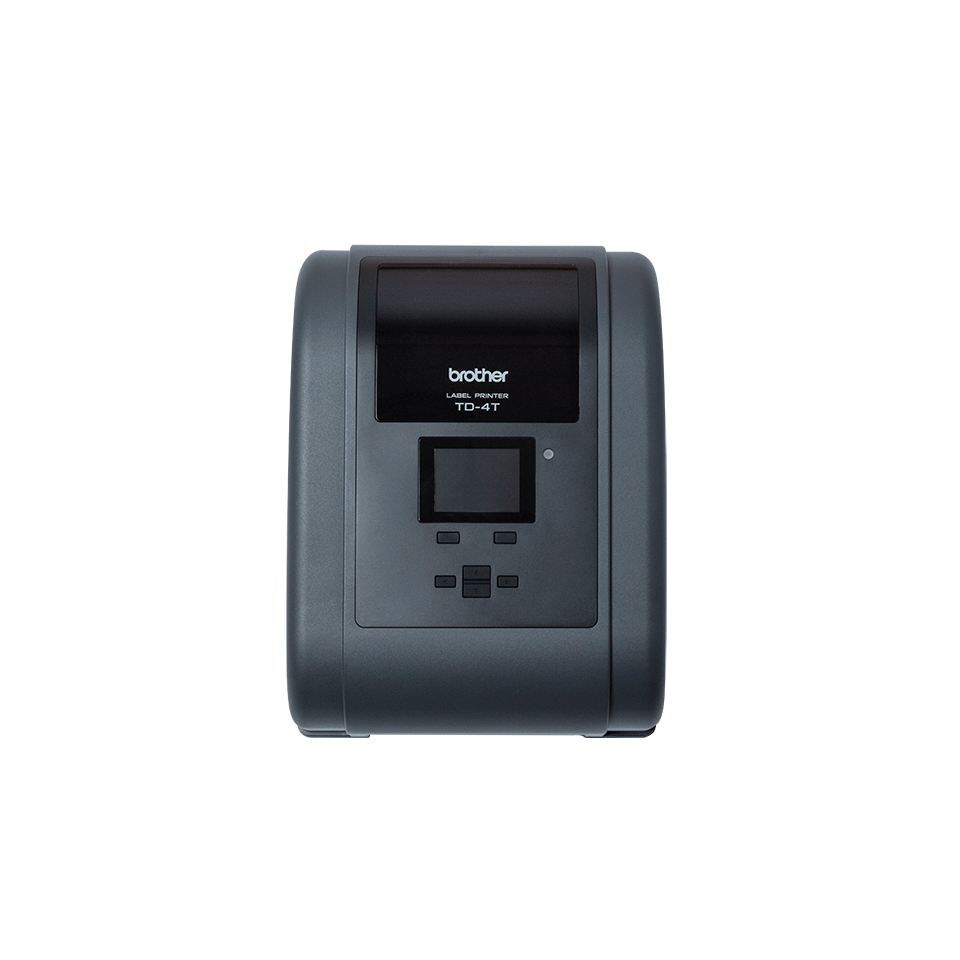

Ease of use with 2.3" colour LCD display
Thermal transfer and direct thermal printing technology
Range of connectivity options including USB, Network, WiFi and Bluetooth

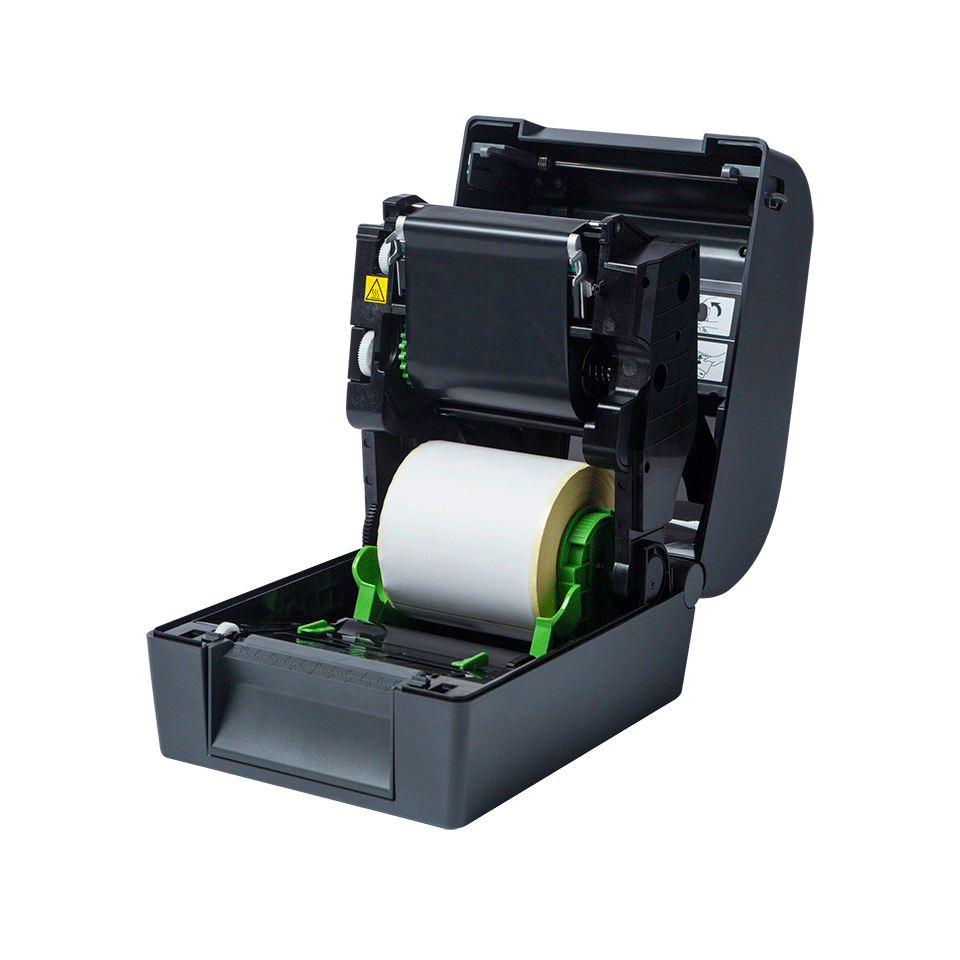

High capacity with 300m ribbon, minimising downtime
300dpi high resolution printing for crisp text and barcodes
Fast print speeds up to 6 inches per second
The TD-4750TNWB versatile thermal label printer uses high capacity thermal transfer ink ribbons for durable labelling and ultimate productivity. Seamlessly integrate into your existing systems with industry standard printer command languages.
External roll holder for the Brother TD-4T series label, receipt and wristband printers
| Buttons | Power, Feed |
|---|---|
| Display | LCD |
| Flash RAM | 128 MB |
| LED | Power, Data, Error |
| RAM | 128 MB |
| Technology | Thermal transfer / Direct thermal |
| Maximum label width (mm) | 112mm mm |
| Bluetooth | BT v4.2 |
|---|---|
| Bluetooth profiles | SPP, Bluetooth Classic |
| Serial | RS-232 |
| USB interface | USB,USB Host |
| Wi-Fi Direct | WiFi (802.11 a/b/g/n) |
| Wired network interface | 10/100Mbps |
| Dimensions | 219mm (W) x 191mm (H) x 285mm (D) |
|---|---|
| Weight | 3.0 kg |
| AC adaptor | Yes |
|---|---|
| AC adaptor power cord | Yes |
| Label design software | Bartender Ultra Lite Edition (downloadable) |
| Power supply cord | Yes |
| Supplies | Two 1" ribbon spindles, One 1" ribbon paper core |
| USB cable | Yes |
| Quick setup guide | Yes |
| Linux | Linux |
|---|---|
| Macintosh | Mac OS X 10.7.x, 10.8.x or higher, Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher |
| Windows | Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1 |
| 1 dimensional barcode symbologies | Code128UCC, Code128 subsets A, B, C, EAN128, Interleaved 2 of 5, Interleaved 2 of 5 with check digit, Code39, Code39 with check digit, Code93, EAN13, EAN8, UPCA, UPCE, EAN and UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code11, TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS |
|---|---|
| 2 dimensional barcode symbologies | GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417 |
| Label detection sensor | Yes |
| Maximum label width | 112 mm |
| Maximum print width | 105 mm |
| Resolution (dpi) | 300 x 300 |
| Standard print speed | 152 mm per second |
| Supported commands | FBPL-EZD (EPL2, ZPL2, DPL) |
| Maximum print length | 11430 mm |
| SDK (Software Development Kit) | Yes |
|---|
| Warranty | 3 year return-to-base |
|---|
Download and install the latest drivers and software for your Brother products.
View Downloads
Avoid making a big investment upfront for your labelling solutions by creating a custom labelling bundle, combining premium-quality thermal printers, third party hardware and additional services on a simple monthly subscription plan.
Experience high-performance, thermal desktop printing up to 4" in width for ultimate productivity. The TD-4750TNWB label, receipt and wristband printer offers fast print speeds of up to 6 inches per/second and minimises downtime with 300 metre ribbons, meaning less ribbon changes.
The colour LCD ensures ease-of-use and the supported printer command languages and Software Development Kits make integration equally as easy.
With integrated USB, Ethernet and Serial ports as standard, the Brother TD-4750TNWB will have no problems connecting to your existing equipment and infrastructure.
Additional connectivity includes WiFi and Bluetooth.
This 4" desktop printer offers 300 dpi for crisp, easy-to-read text and barcodes, time after time, to meet the needs of your demanding workflow.
Suitable for a range of industries, the TD-4750TNWB thermal label printer can be used for applications in retail, healthcare, warehousing & logistics and more.
The TD-4750TNWB offers optional accessories including a label cutter, automatic label peeler and external roll holder to further meet your requirements and increase your efficiency.
