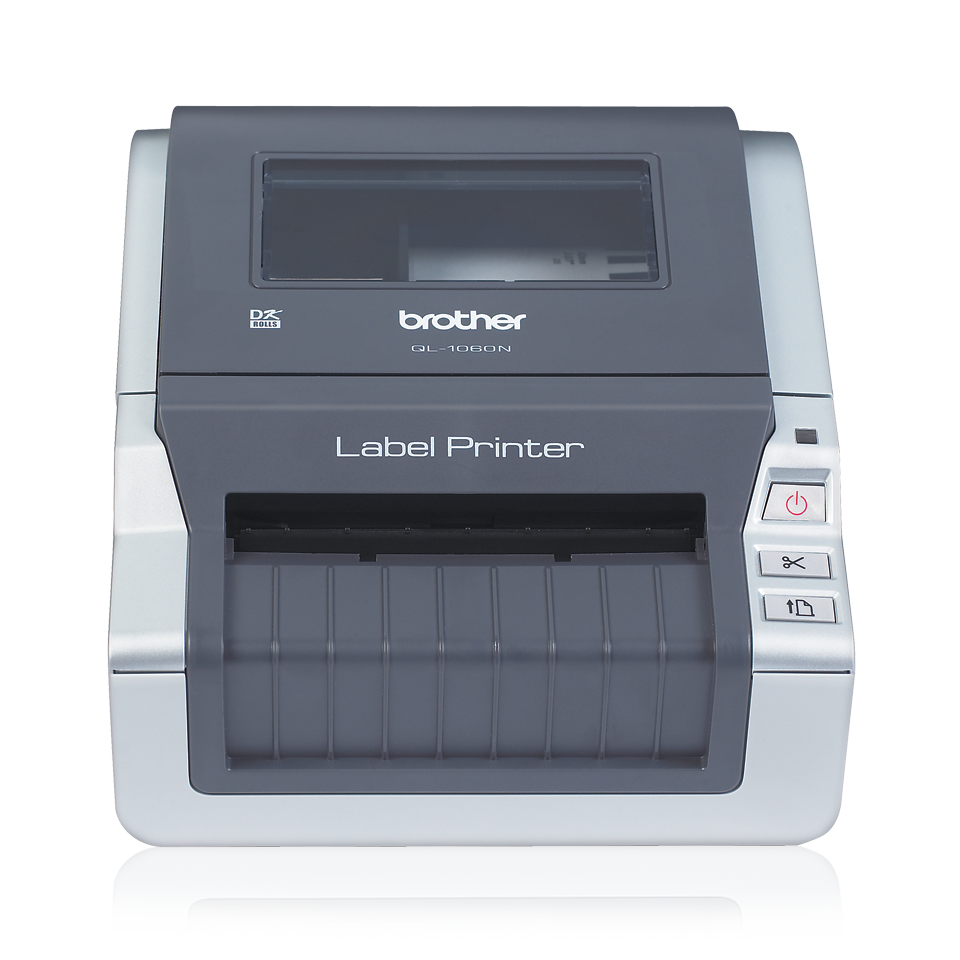

The heavy-duty label printer for the busy office network
QL1060NZU1
QL1060NZU1
| Maximum label width (mm) | 102mm |
|---|---|
| Office | Office |
| Built-in power supply | Yes |
| Housing colour | Black and grey |
| Image upload from PC | Yes |
| Memory capacity | 2 MB |
| Memory locations | 99 |
| Technology | Direct thermal |
| Serial | RS-232C |
|---|---|
| USB interface | 1.1 or later |
| Wired network interface | 10/100 Base-TX Network |
| Dimensions | 170mm (W) x 222mm (D) x 148mm (H) |
|---|---|
| Weight | 1.7 kg |
| AC adaptor power cord | Yes |
|---|---|
| Power supply cord | Yes |
| Software | 1 |
| Software disc | CD-ROM (Software, Driver, User Guide) |
| Tape cassettes | DK11241 40 large shipping labels (102mm x 152mm) - DK2205 8m continuous paper tape roll (62mm x 8m) |
| USB cable | Yes |
| User guide | Yes |
| Warranty card | Yes |
| Quick setup guide | Yes |
| Windows | Windows 2000, Windows 7, Windows 8, Windows Vista, Windows XP |
|---|
| 1 dimensional barcode symbologies | CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked |
|---|---|
| 2 dimensional barcode symbologies | PDF417 (Standard, Truncated, Micro), QR Code (Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode |
| Bitmap fonts | Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham |
| Maximum label width | 102 mm |
| Maximum print width | 98.6 mm |
| Resident fonts | Helsinki, Brussels, Letter Gothic |
| Resolution (dpi) | 300 x 300 |
| Standard print speed | 69 labels per minute |
| Standard print speed | 110 mm per second |
| Database file compatibility | csv, Microsoft Access, Microsoft Excel |
|---|---|
| Date and time stamp | Date, Date and time, Time |
| Fonts | All installed truetype fonts |
| Microsoft Office add-in (highlight->click->print) | Excel, Outlook, Word |
| Screen capture | Yes |
| Text alignment | Centre, Justify, Left |
| Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Outside frame, Shadow, Surround |
| Vertical print | Yes |
| SDK (Software Development Kit) | Yes |
|---|
| Rolls | DK rolls (DK Die-cut Labels / DK Continuous Length Tape) |
|---|
| Warranty | 3 year back to base warranty (upon registration) |
|---|
