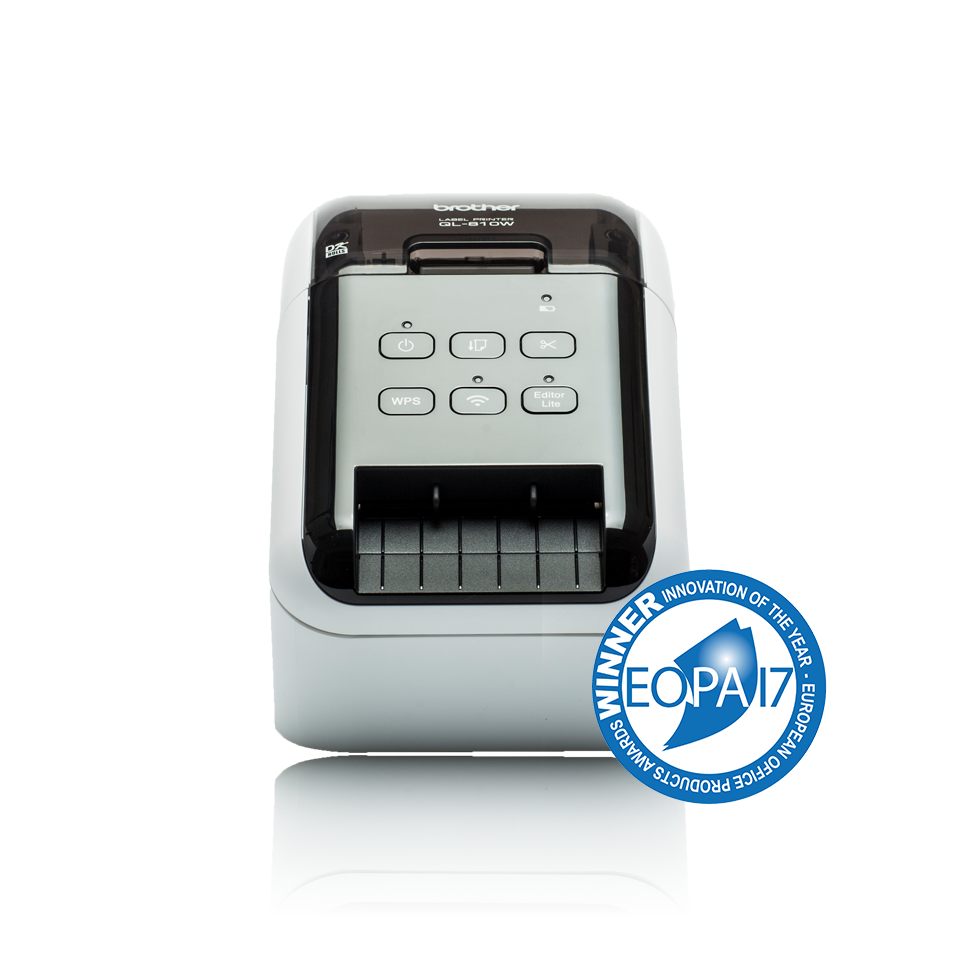

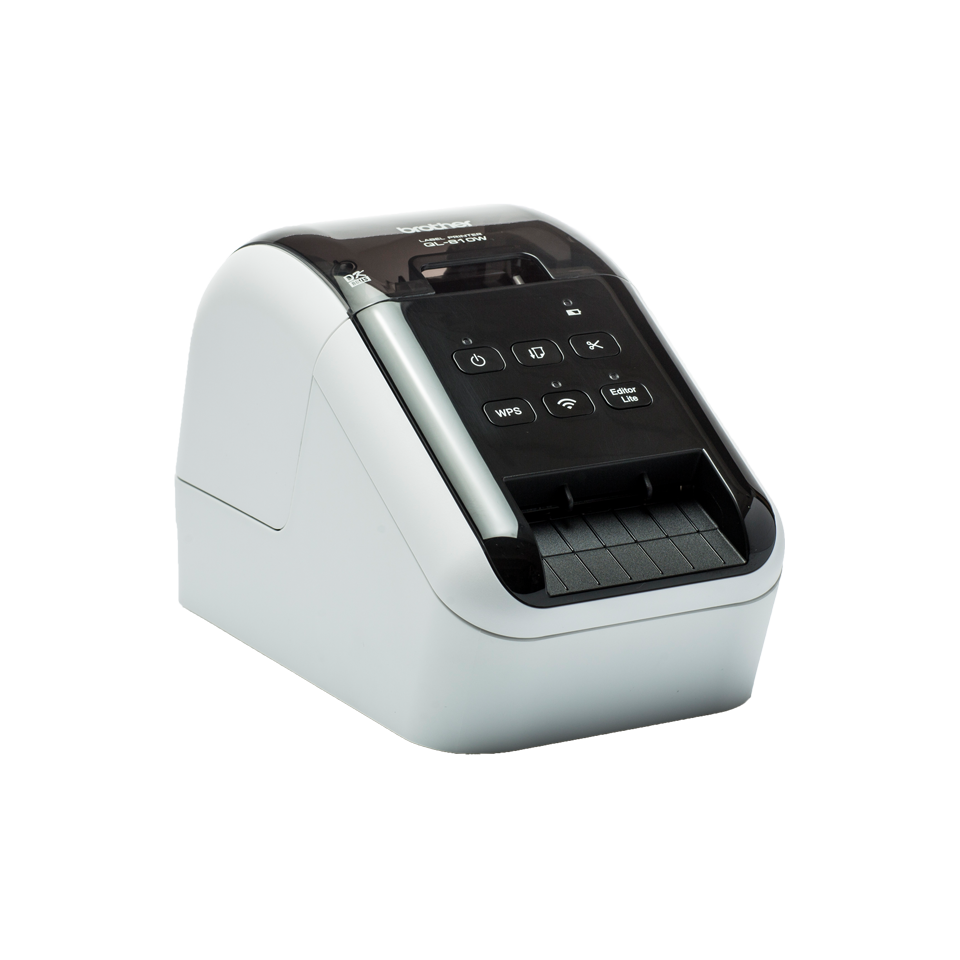

Versatile and easy to use, print labels with black and red text
QL810WZU1
QL810WZU1
USB and Wi-Fi connectivity with AirPrint support to print directly from another wireless device
Choose from pre-sized labels or Brother’s continuous roll option which allows you to print labels to the size you need up to 1 metre in length
Built-in label editing software doesn't need installing. Simply click to run
Download free P-touch Editor label design software to include barcodes, images and print from a database
Integrated cutter to create your own length labels
Optional rechargeable Li-ion battery base for mobile labelling applications
This high-speed label printer connects to your PC, Mac, smartphone or tablet using USB or Wi-Fi. The built-in P-touch Editor Lite software is so easy to use - simply connect the printer to your computer, click the icon to launch the software and design and print your labels.
Thanks to its advanced print mechanism and special label roll, you can also print labels that can contain both black and red colours without the need for ink or toner.
And when you discover you can print custom sized labels up to one metre in length using the integrated cutter and continuous label rolls, it's easy to understand why the QL-810W is the ideal choice for offices, workgroups, mail rooms and receptions.
| Maximum label width (mm) | 62mm |
|---|---|
| Database upload from PC | Yes |
| Housing colour | Glossy black and white |
| Image upload from PC | Yes |
| Memory capacity | 6 MB |
| Memory locations | 99 |
| Technology | Direct thermal |
| Template upload from PC | Yes |
| Type | DK rolls (DK die-cut labels / DK continuous length tape) |
|---|
| AirPrint | Yes |
|---|---|
| USB interface | Ver 2.0 (full speed) |
| Wi-Fi Direct | Yes |
| Wireless network interface | IEEE 802.11 b/g/n |
| Dimensions | 125mm (W) x 234mm (D) x 145mm (H) |
|---|---|
| Weight | 1.12 kg |
| AC adaptor | Yes |
|---|---|
| AC adaptor power cord | Yes |
| USB cable | Yes |
| User guide | Yes |
| Warranty card | Yes |
| Quick setup guide | Yes |
| Tape cassettes | 29mm x 90mm black print on white standard address labels (100 labels) - 62mm black/red print on continuous length paper tape (5 meters) |
| Wireless network security | WEP, WPA-PSK/WPA2-PSK （TKIP/AES), LEAP (CKIP), EAP-FAST (TKIP/AES), PEAP (TKIP/AES), EAP-TTLS (TKIP/AES), EAP-TLS (TKIP/AES) |
|---|
| Macintosh | Mac OS X 10.10.x or higher, Mac OS X 10.11.x or higher, Mac OS X 10.12.x or higher, Mac OS X 10.13.x or higher, Mac OS X 10.14.x or higher |
|---|---|
| Windows | Server 2008, Server 2008R2, Server 2012, Server 2012R2, Server 2016, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista |
| 1 dimensional barcode symbologies | CODE39, CODE128, UCC/EAN-128(GS1-128), ITF(I-2/5), CODABAR(NW-7), UPC-A, UPC-E, EAN13(JAN13), EAN8, GS1 DataBar(RSS)(GS1 DataBar Omnidirectional,GS1 DataBar Truncated,GS1 DataBar Stacked,GS1 DataBar Stacked Omnidirectional,GS1 DataBar Limited,GS1 DataBar Expanded,GS1 DataBar Expanded Stacked) |
|---|---|
| 2 dimensional barcode symbologies | PDF417(Standard, Truncate, Micro), QR Code(Model 1, Model 2, Micro), Data Matrix (ECC200 Square, ECC200 Rectangular), MaxiCode, CODE93, POSTNET, UPC-E EXTENSION |
| Black and red printing capability | Yes |
| Bitmap fonts | Helsinki, Brussels, Letter Gothic Bold, San Diego, Brougham |
| Maximum label width | 62 mm |
| Maximum print width | 58 mm |
| Outline/Vector fonts | Helsinki, Brussels, Letter Gothic |
| Resolution (dpi) | 300 x 300, 300 x 600 |
| Standard print speed | 110 labels per minute |
| Standard print speed | 176 mm per second |
| Database file compatibility | csv, Microsoft Access, Microsoft Excel |
|---|---|
| Date and time stamp | Date and time |
| Fonts | All installed truetype fonts |
| Frames | 126 |
| Label orientations | Horizontal, Vertical |
| Microsoft Office add-in (highlight->click->print) | Excel, Outlook, Word |
| Screen capture | Yes |
| Sequential numbering | 1 - 9999 / A - Z / a - z |
| Text alignment | Centre, Justify, Left, Right |
| Typestyles | Bold, Horizontal lines, Invert, Italic, Normal, Shadow, Shadow light, Surround |
| Vertical print | Yes |
| SDK (Software Development Kit) | Yes |
|---|
| Warranty | 3 year warranty (upon registration) |
|---|
Download and install the latest drivers and software for your Brother products.
View Downloads
This advanced label printer is designed for the demands of a busy workplace, yet easy to set-up and use. Using the same technology as USB pen drives, simply connect to your PC or Mac, and run the built- in software. No need to install printer drivers. Alternatively download the free P-touch Editor label design software and printer drivers to design and print fully customised labels containing text, frames, barcodes and images. And easily share the printer with colleagues over your wireless network using P-touch Editor Lite LAN software.
Having both USB, Wi-Fi and AirPrint built-in as standard, you can choose whether to use as a personal label printer on your desk, or let others also use it from their PC or Mac via your wireless network.
Choose from several options for designing and printing labels. Download for free the P-touch Editor label design software for PC and Mac to design labels with text, barcodes, images and frames. Alternatively, head on over to your app store to download the free iPrint & Label app for iOS and Android, then quickly create and print labels from your mobile devices, wirelessly.
Rolls are available in a range of traditional die-cut (pre-sized) labels, or continuous that lets the built-in cutter cut your label to the precise length (up to one metre). And now you can draw attention to important information by including red* on your labels too - ideal for highlighting use-by dates, allergens and other critical information.
There are situations where you may need to print labels away from a power source, such as use on a portable trolley and printing from a tablet in retail, healthcare or similar industries. The optional Li-ion battery base has a fast charge function, and lasts for thousands of labels on a full charge.
The QL series label printers use Brother DK rolls - that easily slot-in for fast label changes. Several types are available:
Highlight, click and print your text data directly from Word, Excel and Outlook with just a click! The P-touch Editor add-in for Microsoft Office (Windows only) allows you to print labels with the information you use every day. Alternatively, if you have text saved in an Excel or .csv file, import this into P-touch Editor and simply place each field on your label layout to print many labels with the same format (design). Ideal for printing address, product and pricing labels.
