PT-E550WVP Electrician's Handheld Label Printer

Leave the mark of a smart professional

SRP £226.80 Inc. VAT

SRP £189.00 Ex. VAT

Prints hard-wearing labels up to 24mm wide

Up to 30mm per second print speed + 7 lines of print

QWERTY style keyboard + 16 character, 3-line backlit LCD screen

Product Overview

PTE550WVP

Heat shrink tube labels compatible + 384 symbols available

Automatic (full and half) cutter

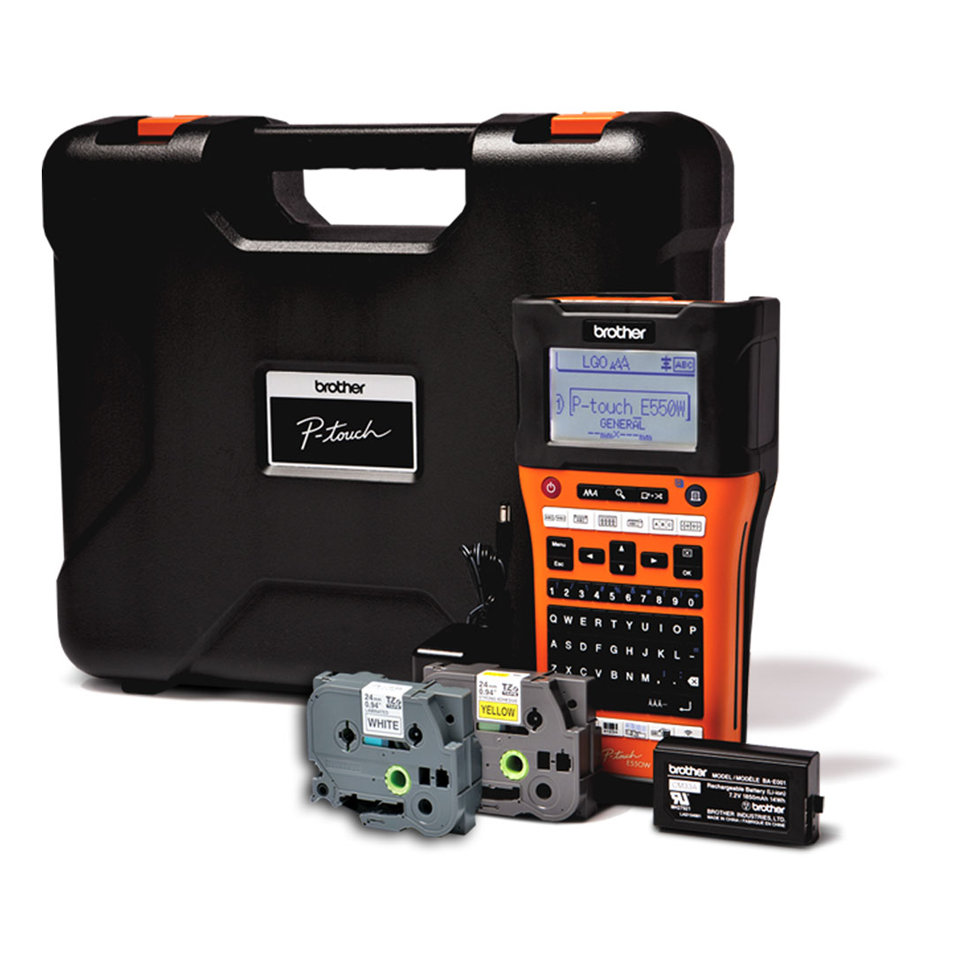

Comes with carry case, wrist strap, USB cable, 24mm and 12mm tape, and rechargeable lithium-ion battery

Key Features

  • Prints hard-wearing labels up to 24mm wide
  • Up to 30mm per second print speed + 7 lines of print
  • QWERTY style keyboard + 16 character, 3-line backlit LCD screen
  • Heat shrink tube labels compatible + 384 symbols available
  • Automatic (full and half) cutter
  • Comes with carry case, wrist strap, USB cable, 24mm and 12mm tape, and rechargeable lithium-ion battery

About this product:

With this smart and efficient label printer at your side, you can create durable labels for electrical or datacom installations through built-in labelling functions, PC software, or from your smartphone or tablet with the Brother cable labelling app.

At a glance

Supplies

Filter by

Show more
Show less

Specifications

General - P-touch

AC adaptor Yes
Machine type Handheld
Maximum tape width (mm) 24 mm
Alkaline batteries AA X 6pcs (LR03, HR03)
Auto power off Yes
Cutter type Full and half, Auto
Display LCD
Display size 16 characters x 3 lines - 75 x 45 mm
Housing colour Orange and Black
Housing design Handheld
Keyboard type QWERTY
Languages English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Turkish, Brazilian Portuguese
Memory locations 99
Number of keys 70
Technology Thermal transfer
Unit setting (mm / inches) Yes

General Supplies

Width 3.5mm,6mm,9mm,12mm,18mm,24mm
Type TZe Tape

Dimensions & weights

Dimensions 126 (W) x 250 (D) x 94 mm (H)
Weight 1.05 kg

In the box

AC adaptor Yes
AC adaptor power cord Yes
Carry case Yes
Tape cassettes TZe-S651 (24mm Black/Yellow Strong Adhesive 8m) TZe-FX231 (12mm Black/White Flexible ID 8m)
User guide Yes
Warranty card Yes

Operating systems & software

Supported Windows 10 (32 & 64-bit), Windows 8.1 (32 & 64-bit), Windows 8 (32 & 64-bit), Windows 7 (32 & 64-bit), Windows Vista (32 & 64-bit), Windows Server 2019, Windows Server 2016, Windows Server 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008 (32 & 64-bit), macOS 10.15.x, macOS 10.14.x, macOS 10.13.x, macOS 10.12.x, OS X 10.11.x, OS X 10.10.x, OS X 10.9.x, OS X 10.8.x, Mac OS X 10.7.x

Label design

Fonts 14
Frames 7
Line format Yes
Symbols 384
Text alignment Centre, Justify, Left, Right
Underline Yes
Vertical printing Yes

Pre-defined label layouts

Cable marking function Yes

Label design software

Copies 1-5000
Fonts All installed true type fonts as per PT Editor software
Frames 154
Label orientations Horizontal, Vertical
Labelling wizard Cable
Languages English, German, French, Spanish, Portuguese, Italian, Dutch, Danish, Norwegian, Swedish, Finnish, Hungarian, Czech, Polish, Romanian, Slovenian, Slovakian, Croatian, Turkish, Brazilian Portuguese
Sequential numbering Yes
Tape colour detection Yes
Text alignment Centre, Left, Right

Supplies and accessories

Tape widths 3.5mm,6mm,9mm,12mm,18mm,24mm
Show more
Show less

More about this product

Ideal for the electrical and datacom specialist

Create durable labels for electrical or datacom installations via the easy-to-use built-in labelling functions, PC software, or from your smartphone or tablet with the Brother cable labelling app.

Ensuring cables, conduits, switches and sockets are clearly identified with long-lasting, durable labels is essential for electricians, datacom, telecom and security equipment installers. The Brother P-touch E550WVP creates labels that help address ANSI/EIA/TIA-606A/B and that meet the UL-969 standards.
